„Lindy 47246“ tinklo kabelis

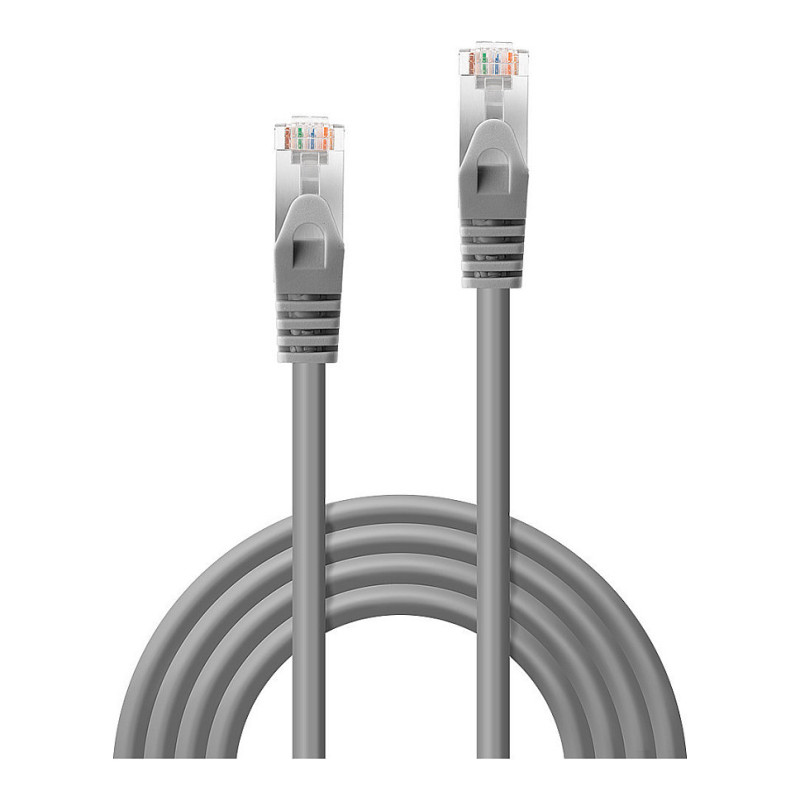

Lindy 47246. Cable length: 5 m, Cable standard: Cat6, Cable shielding: F/UTP (FTP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Nickel/Gold, Product colour: Grey

Cat.6 F/UTP CCA network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

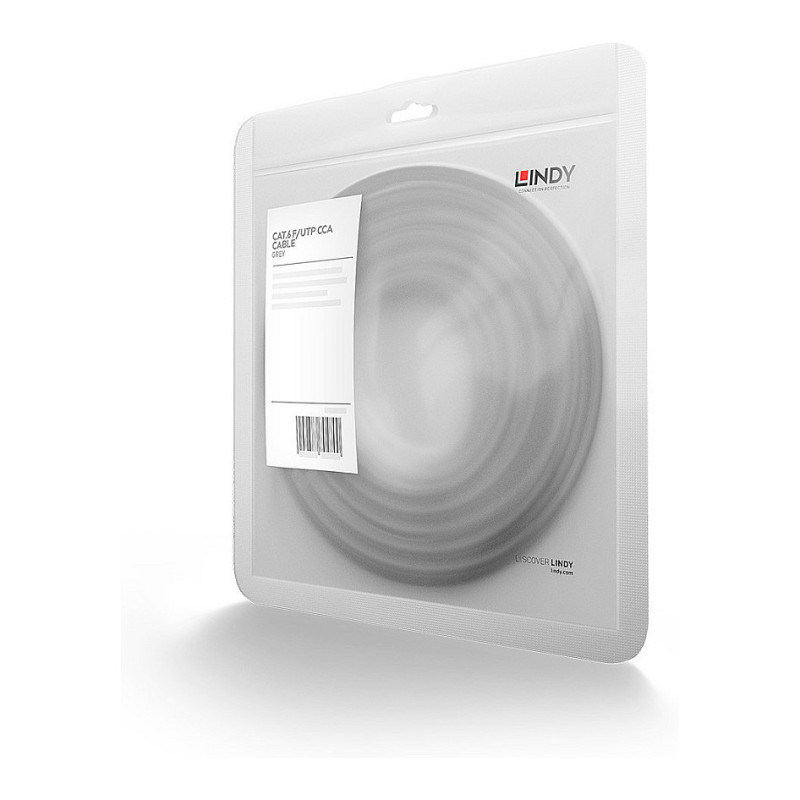

Cat.6 cable for operating frequencies up to 250Mhz in a shielded version with foil shielding (F/UTP). Cat.6 cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The high frequencies used in network technology cause a high current load in the outer layers of the conductors due to the skin effect , while the conductor cores are only subjected to very low electrical loads. This allows the use of copper clad aluminium (CCA) conductor material, making this cable more cost-effective than pure copper cables.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m.

Features

Product colour: Grey
Cable length: 5 m
Cable standard: Cat6
Cable shielding: F/UTP (FTP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector contacts plating: Nickel/Gold
Feature: Connector shielding
Connector shield material: Aluminium
Jacket material: Polyvinyl chloride (PVC)
Conductor material: Copper-Clad Aluminium (CCA)
Cabling technology: 10/100/1000Base-T(X)
AWG wire size: 26
Frequency: 250 MHz
Bend radius (min): 7.2 cm

Operational conditions

Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -20 - 75 °C

Certificates

Certification: RoHS, REACH, California Proposition 65

Weight & dimensions

Outer diameter: 6 mm
Connector 1 dimensions (WxDxH): 11.6 x 22.8 x 8.3 mm
Connector 2 dimensions (WxDxH): 11.6 x 22.8 x 8.3 mm

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package type: Polybag

Logistics data

Harmonized System (HS) code: 84733080
