Lindy 38348 AV ilgintuvas

Lindy 38348. Type: AV transmitter, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6. Power source type: DC, Operating voltage (transmitter): 24 V, Output current: 1 A. Width: 80 mm, Depth: 80 mm, Height: 38 mm. Package width: 152 mm, Package depth: 133 mm, Package height: 95 mm

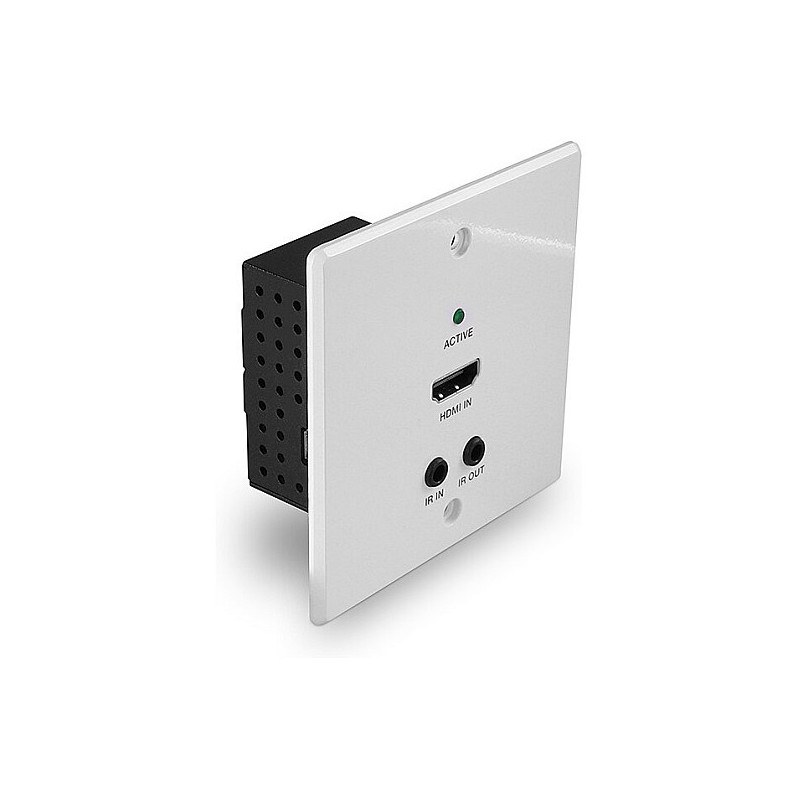

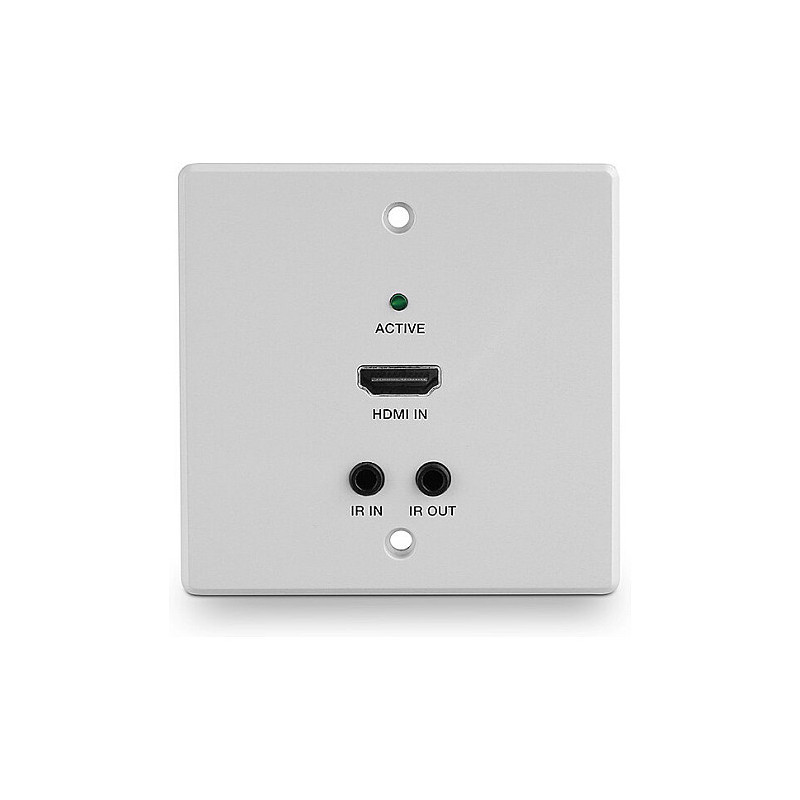

The Lindy Cat.6 HDBaseT HDMI 4K60 Wall Plate Transmitter is one part of a high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.

By combining this Transmitter unit with a compatible HDBaseT Receiver such as Lindy No. 38214 and 38342, this solution ensures reliable transmission up to 70m.

The following distance and resolution combinations are possible when using high quality Cat.6 or above U/UTP or F/UTP cable:

70m: 1920x1080@60Hz 4:4:4 8bit

40m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit

Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.

PoC (Power over Cable) functionality with On/Off switch provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at one side of the installation.

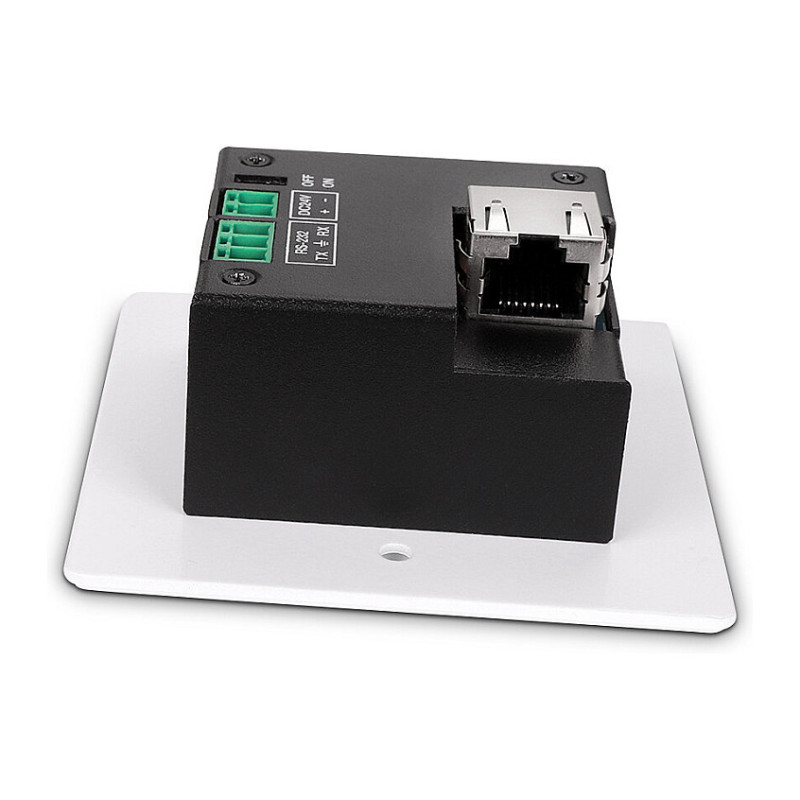

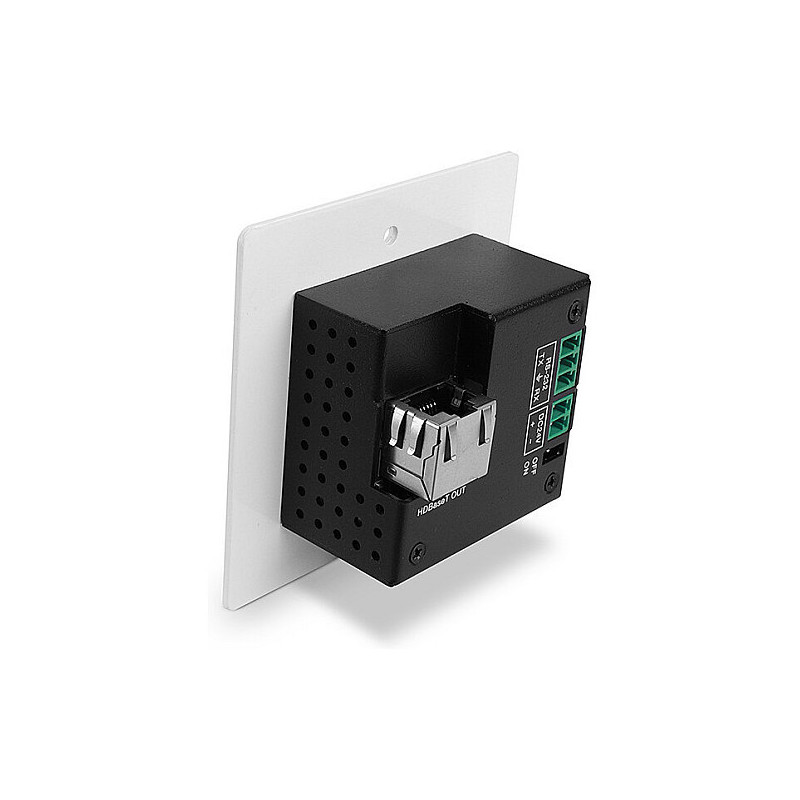

Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. This extension system allows for complete and simple control for the user providing also RS-232 port via terminal block on the rear side of the wall plate.

HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.

Features

Type: AV transmitter
Maximum resolution: 3840 x 2160 pixels
Cable types supported: Cat6
Maximum transfer distance: 70 m
Chipset: VS010
Feature: High Dynamic Range (HDR) supported
Maximum refresh rate: 60 Hz
Feature: Extended display identification data (EDID)
Feature: Bidirectional
Infrared (IR) frequency range: 20 - 60 kHz
Feature: HDCP
HDCP version: 2.2
Product colour: White

Ports & interfaces

RJ-45 output ports: 1
Feature: HDBaseT port
HDMI in: 1
RS-232 input ports: 1
RS-232 output ports: 1
Video in: 1
Remote (IR) input: 1
Remote (IR) output: 1

Power

Power source type: DC
Operating voltage (transmitter): 24 V
Output current: 1 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 90%

Weight & dimensions

Width: 80 mm
Depth: 80 mm
Height: 38 mm
Weight: 390 g

Packaging data

Package width: 152 mm
Package depth: 133 mm
Package height: 95 mm
Package weight: 540 g

Packaging content

Feature: Manual
Feature: Transceiver(s) included

Technical details

Feature: Sustainability compliance
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA
