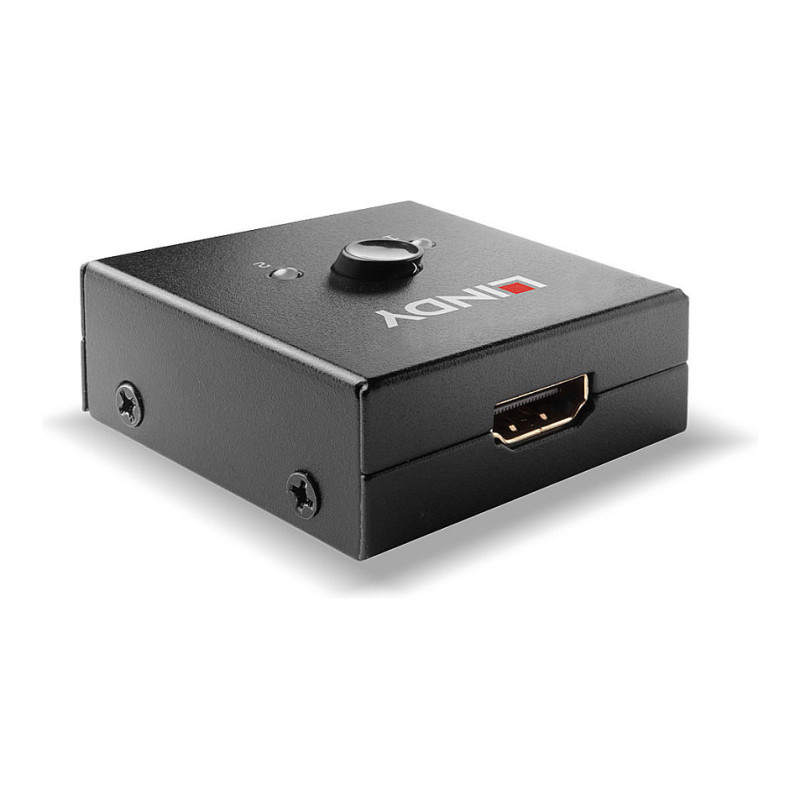

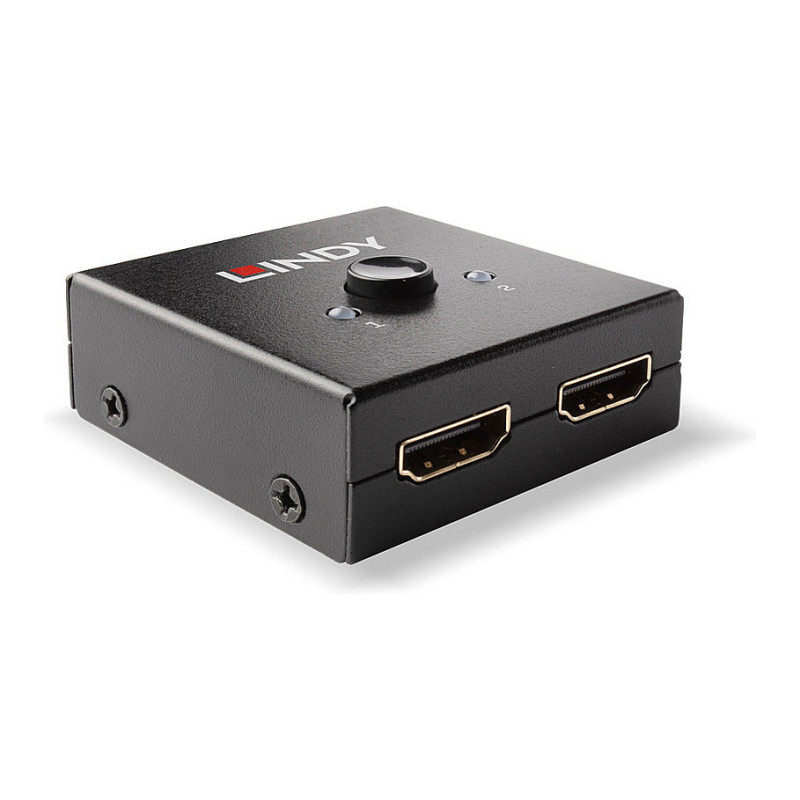

Lindy 38336 vaizdo jungiklis

Lindy 2 Port HDMI 18G Bi-Directional Switch. Video port type: HDMI. Material: Metal, Product colour: Black, Maximum refresh rate: 60 Hz. Certification: CE, FCC, REACH, California Proposition 65. Width: 49 mm, Depth: 52 mm, Height: 20 mm. Package width: 63.5 mm, Package depth: 80 mm, Package height: 28 mm

The Lindy HDMI 18G Bi-directional Switch allows the user to connect two 4K Ultra High Definition source devices such as Blu-Ray players or games consoles to a single 4K Ultra HD display or projector and easily switch between them at the push of a button. Alternatively, connect one 4K Ultra HD source can be connected to two 4K Ultra HD displays or projectors and switch between displays at the touch of a button.

With support for resolutions up to 4K 3840x2160 @60Hz, this switch ensures a superior visual experience within residential, education or conferencing installations.

The switch's minimalistic design, with no external power requirement, allows for a clean, discreet installation.

Ports & interfaces

Video port type: HDMI
HDMI ports quantity: 3
HDMI version: 2.0
HDMI in: 2
Number of HDMI outputs: 1

Features

Material: Metal
Product colour: Black
Feature: Consumer Electronics Control (CEC) support
Feature: HDCP
Maximum refresh rate: 60 Hz
Bandwidth: 18 Gbit/s
LED indicators: Yes
Maximum resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD

Certificates

Certification: CE, FCC, REACH, California Proposition 65

Weight & dimensions

Width: 49 mm
Depth: 52 mm
Height: 20 mm
Weight: 700 g

Packaging data

Package width: 63.5 mm
Package depth: 80 mm
Package height: 28 mm
Package weight: 840 g

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -10 - 80 °C
Operating relative humidity (H-H): 10 - 85%

Technical details

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 85176990
