Lindy 38228 vaizdo jungiklis

Lindy 4x1 4K60 HDMI Seamless Multiview Switch. Video port type: HDMI. Material: Metal, Product colour: Black, Maximum refresh rate: 60 Hz. AC input voltage: 12 V, AC adapter input voltage: 2.5 V. Width: 219 mm, Depth: 111 mm, Height: 30 mm. Package width: 280 mm, Package depth: 179 mm, Package height: 78 mm

This HDMI® 4x1 Multi-View Switch is a high-performance video switch designed for 4K displays, enabling signals from up to four different Ultra HD sources to be seamlessly integrated for simultaneous display on a single monitor. With four distinct viewing modes (Quad-View, Full Screen, Picture in Picture, and Dual Video), this Multi-View switch accommodates the monitoring of multiple video sources in various configurations supporting Ultra HD 4K resolutions on both input and output.

In mission-critical environments, the switch ensures optimal performance through seamless switching, eliminating frame loss during transitions between connected source devices or different picture modes. It offers a cost-effective switch for different applications such as;

Digital Presentations
CCTV Surveillance & Control
Video Conference & Meeting rooms;
The switch allows independent switching between audio and video channels, offering flexibility in operation. This can be achieved by using the provided remote control or the front panel buttons, as well as RS-232 Control. Seamlessly transition between connected source devices, maintaining continuous use of a single audio source or monitoring a single video source while effortlessly switching to the other.

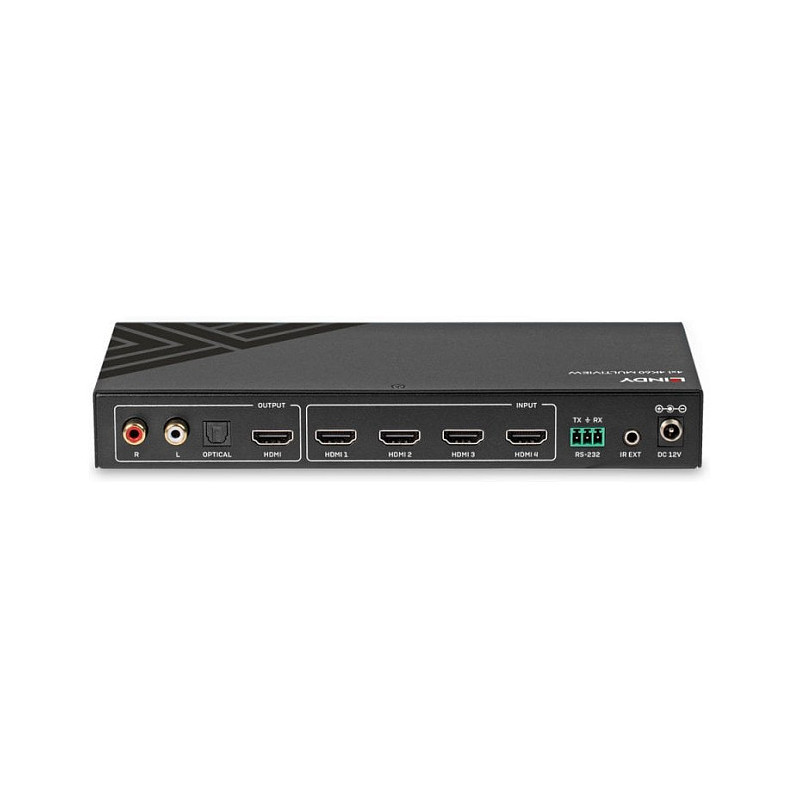

Ports & interfaces

Video port type: HDMI
HDMI ports quantity: 5
HDMI in: 4
Number of HDMI outputs: 1
Audio (L/R) out: 1

Features

Material: Metal
Product colour: Black
Feature: Plug and Play
Feature: HDCP
Maximum refresh rate: 60 Hz
Supported graphics resolutions: 3840 x 2160
Bandwidth: 18 Gbit/s
Maximum resolution: 3840 x 2160 pixels
HDCP version: 2.2

Power

AC input voltage: 12 V
AC adapter input voltage: 2.5 V

Weight & dimensions

Width: 219 mm
Depth: 111 mm
Height: 30 mm
Weight: 610 g

Packaging data

Package width: 280 mm
Package depth: 179 mm
Package height: 78 mm
Package weight: 1.08 kg

Packaging content

Quantity per pack: 1 pc(s)
Feature: Remote control included
Feature: Manual
Cables included: HDMI
Feature: Screws included

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -4 - 140 °C
Operating relative humidity (H-H): 20 - 90%
Storage relative humidity (H-H): 20 - 90%

Technical details

Warranty period: 2 year(s)
Compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS
