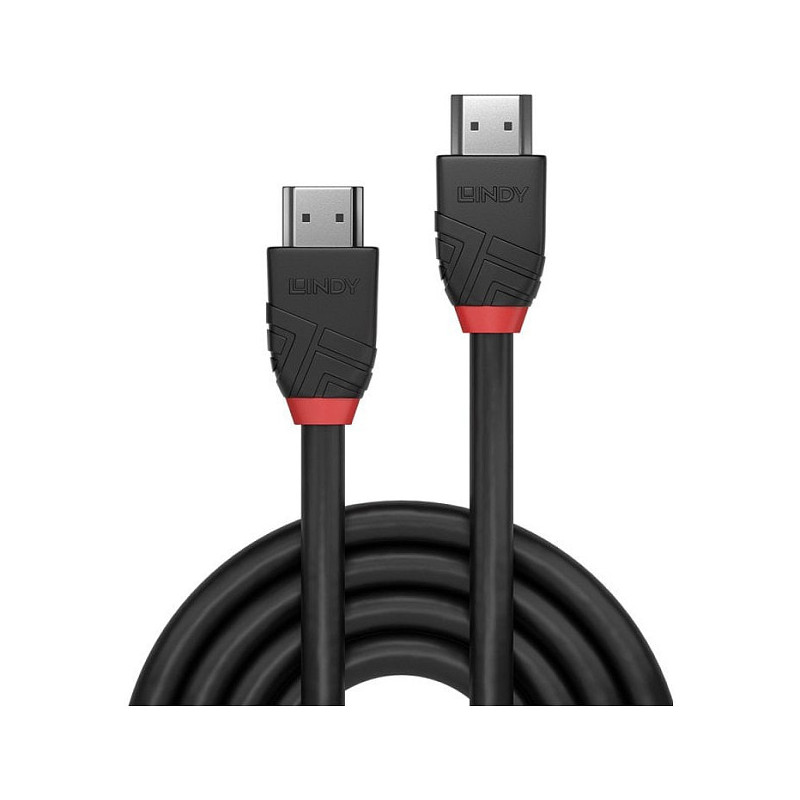

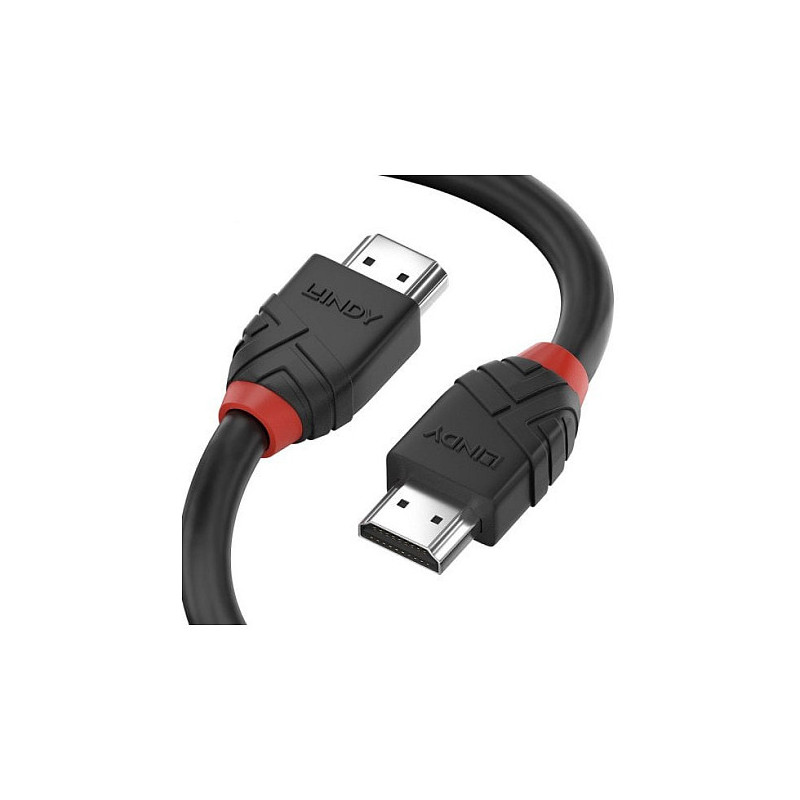

Lindy 36507 HDMI cable

Lindy 36507. Cable length: 10 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, 3D, Data transfer rate: 18 Gbit/s, Product colour: Black

The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions. Ideal for safety-critical installations, this cable is perfectly suited for public environments such as schools, transport hubs, and government buildings, anywhere safety compliance and performance are essential.

The cable features a double shielded construction with 30AWG bare copper for premium performance featuring gold connectors and gold flashed contacts to maintain signal integrity and reliability.

Supporting 18Gbps bandwidth the Lindy LSZH HDMI® Cable can support UHD resolutions up to 3840x2160@60Hz 4:4:4 8bit. Whilst also transmitting up to 32 Channel audio including Dolby® True HD & DTS-HD Master Audio.

The Lindy LSZH HDMI® Cable is available in lengths from 0.5m to 10m.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Features

Cable length: 10 m
Connector 1: HDMI Type A (Standard)
Connector 2: HDMI Type A (Standard)
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
HDMI cable type: High Speed HDMI cable
Product colour: Black
Feature: 3D
Supported graphics resolutions: 3840 x 2160
Supported video modes: 2160p
Dolby technologies: DTS-HD Master Audio, Dolby TrueHD
Data transfer rate: 18 Gbit/s
Supported digital audio channels (uncompressed): 32
Maximum refresh rate: 60 Hz
AWG wire size: 28
Connector contacts plating: Gold
Cable material: Copper
Cable type: Round cable
Cable jacket material: Low smoke zero halogen (LSZH), Polyvinyl chloride (PVC)
Feature: Magnetically shielded
Shield material: Aluminium
Bending radius (min): 6 cm
Feature: Plug and Play
Colour sampling: 4:4:4
Nominal attenuation: 300kHz~825MHz<5dB825MHz~2.475GHz<5dB2.475GHz~4.125GHz<12dB4.125GHz~5.1GHz<20dB

Operational conditions

Operating temperature (T-T): -10 - 80 °C
Storage temperature (T-T): -20 - 85 °C

Sustainability

Doesn't contain: Halogen

Certificates

Compliance certificates: REACH, RoHS

Weight & dimensions

Cable diameter: 5.5 mm

Packaging data

Package type: Polybag
Quantity per pack: 1 pc(s)
