Lindy 32115 kabelio lyties keitiklis

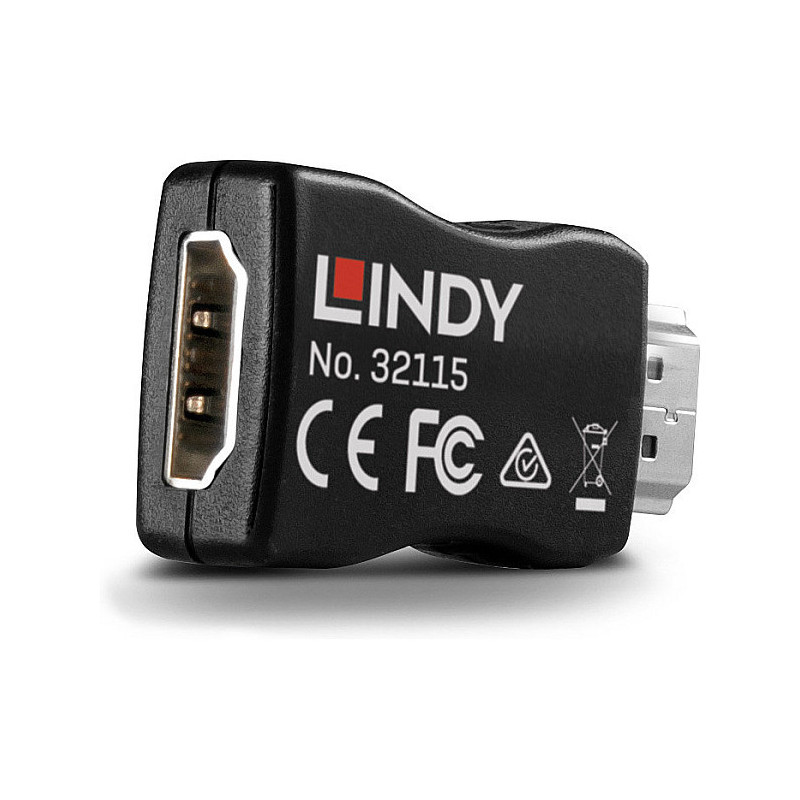

Lindy HDMI 2.0 EDID Emulator. Connector 1: HDMI, Connector 2: HDMI. Product colour: Black

The Lindy HDMI 2.0 EDID Emulator Adapter is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV/KVM Extenders, Switches and Splitters. It can also be used in place of a monitor to keep the graphics card of a PC or Server awake for remote access via IP. With support for resolutions up to Ultra HD 4K 60Hz (via cloning) including High-Dynamic Range and with the ability to passthrough HDCP 2.2 content, the Emulator is suitable for use with the very latest PC and AV applications.

Some computer systems, KVM switches and digital video signage systems may interrupt the flow of EDID data, or may not be able to pass this information directly back to the video card's output port. This adapter can be used to quickly and easily clone the EDID data from a HDMI display so that the graphics card has direct access to the correct data from the display, the cloning process takes less than 10 seconds!

It is also possible to use the Emulator without cloning a display as it comes complete with preset EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.

Ports & interfaces

Connector 1: HDMI
Connector 2: HDMI
Connector 1 gender: Male
Connector 2 gender: Female

Performance

Product colour: Black
Supported video modes: 720p
Data transfer rate: 18 Gbit/s
Maximum resolution: 3840 x 2160 pixels
Maximum refresh rate: 75 Hz
Colour depth: 24 bit
Feature: Plug and Play

Operational conditions

Operating temperature (T-T): 0 - 60 °C
Storage temperature (T-T): -10 - 70 °C
Relative humidity: 0 - 80%

Certificates

Compliance certificates: RoHS
Certification: CE, FCC, REACH

Weight & dimensions

Weight: 8 g

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 136 mm
Package height: 138 mm
Package weight: 13 g
Package type: Polybag
