Įrengti LC / ST 50 / 125 μm 10 m InfiniBand / šviesolaidinį kabelį

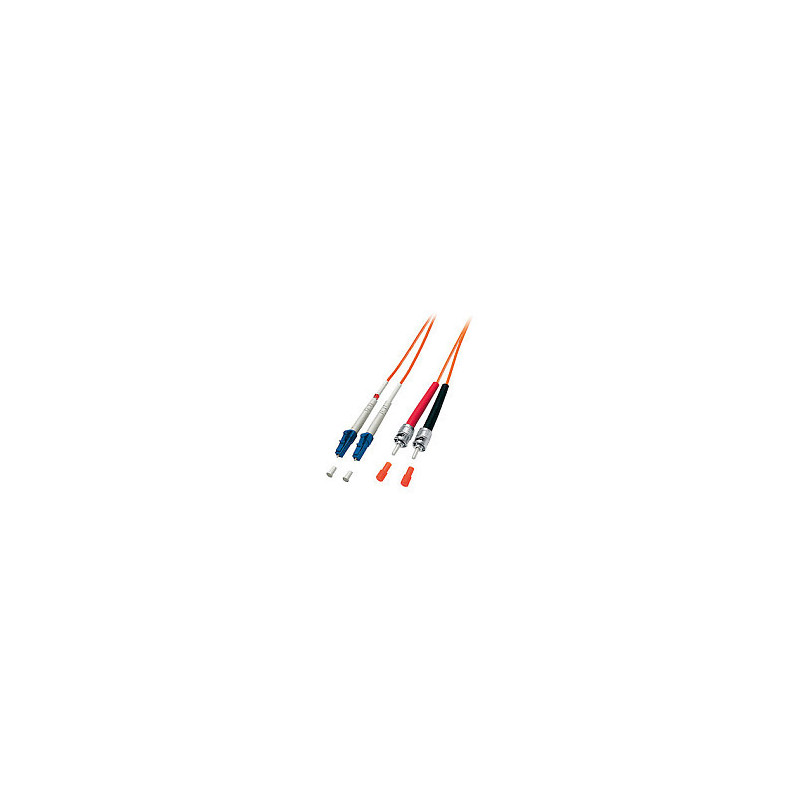

Equip LC/ST 50/125μm 10m. Cable length: 10 m, Fibre optic type: OM2, Connector 1: LC, Connector 2: ST, Core diameter: 50 µm, Full duplex

The equip®Fiber Optic Patch Cord is made of superior materials to ensure an insertion loss, return loss, and endface geometry connection. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

- Multi-mode, duplex
- Connector: ceramic-ferrule
- Cladding: low smoke and zero halogen
- Cable spec: I-VH 2 x 1G
- Cable jacket color: orange
- Each cable includes a measure protocol
- OM1 = 62.5/125mμ, OM2 = 50/125mμ

Features

Cable length: 10 m
Fibre optic type: OM2
Connector 1: LC
Connector 2: ST
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Orange
Feature: Full duplex
Core diameter: 50 µm
Cladding diameter: 125 µm
Fiber mode structure: Multi-mode
Insertion loss: 0.5 dB
Jacket material: Low smoke zero halogen (LSZH)

Certificates

Compliance certificates: REACH, RoHS

Operational conditions

Operating temperature (T-T): -20 - 70 °C
Storage temperature (T-T): -40 - 80 °C

Logistics data

Harmonized System (HS) code: 85447000
