Įrengti 253335 „InfiniBand“ / šviesolaidinį kabelį

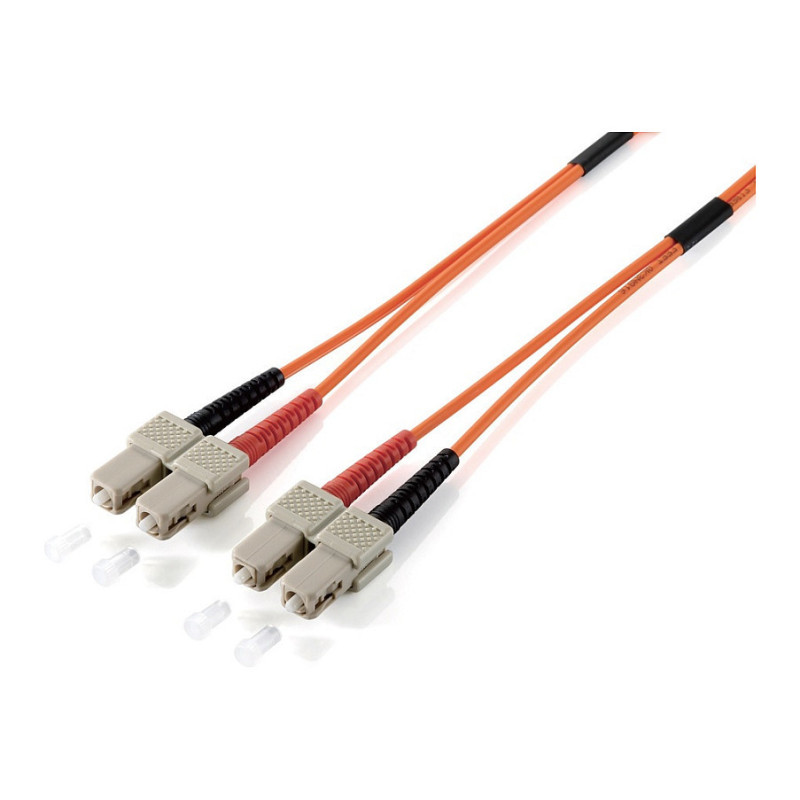

Equip SC/SC Fiber Optic Patch Cable, OS2, 5m. Cable length: 5 m, Fibre optic type: OS2, Connector 1: SC, Connector 2: SC, Core diameter: 9 µm, Full duplex

The equip® Optical Fiber Patch Cord is made of superior materials to ensure an end-face geometry connection with lower return loss and insertion loss. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Features

Cable length: 5 m
Fibre optic type: OS2
Connector 1: SC
Connector 2: SC
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Yellow
Feature: Full duplex
Core diameter: 9 µm
Cladding diameter: 125 µm
Fiber mode structure: Single-mode
Insertion loss: 0.3 dB
Jacket material: Low smoke zero halogen (LSZH)

Certificates

Compliance certificates: REACH, RoHS

Operational conditions

Operating temperature (T-T): -20 - 70 °C
Storage temperature (T-T): -40 - 80 °C

Weight & dimensions

Weight: 61 g

Packaging data

Package width: 275 mm
Package depth: 18 mm
Package height: 175 mm
Package weight: 64 g

Logistics data

Harmonized System (HS) code: 85447000
