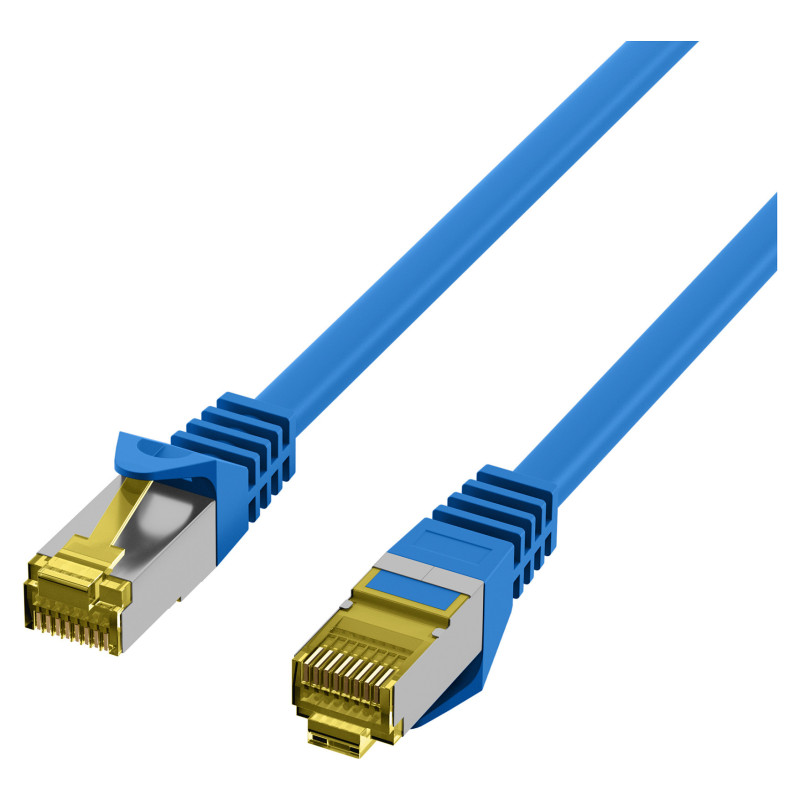

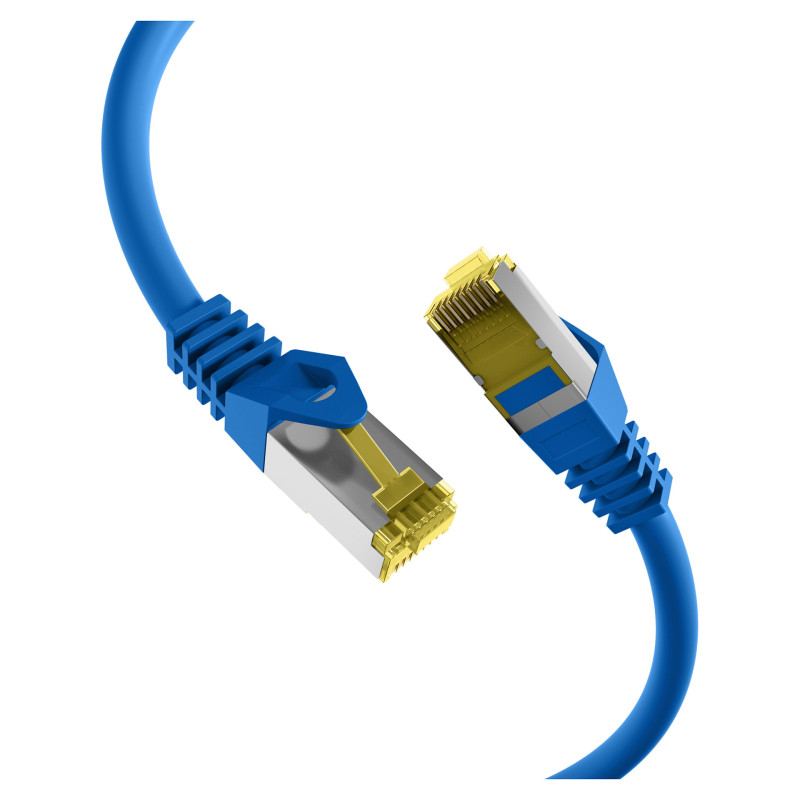

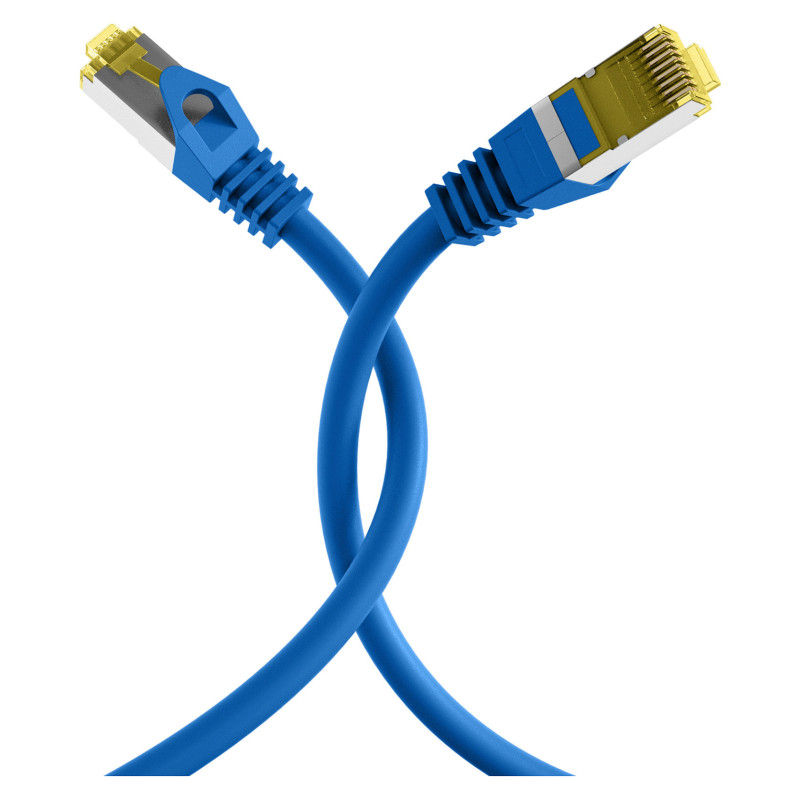

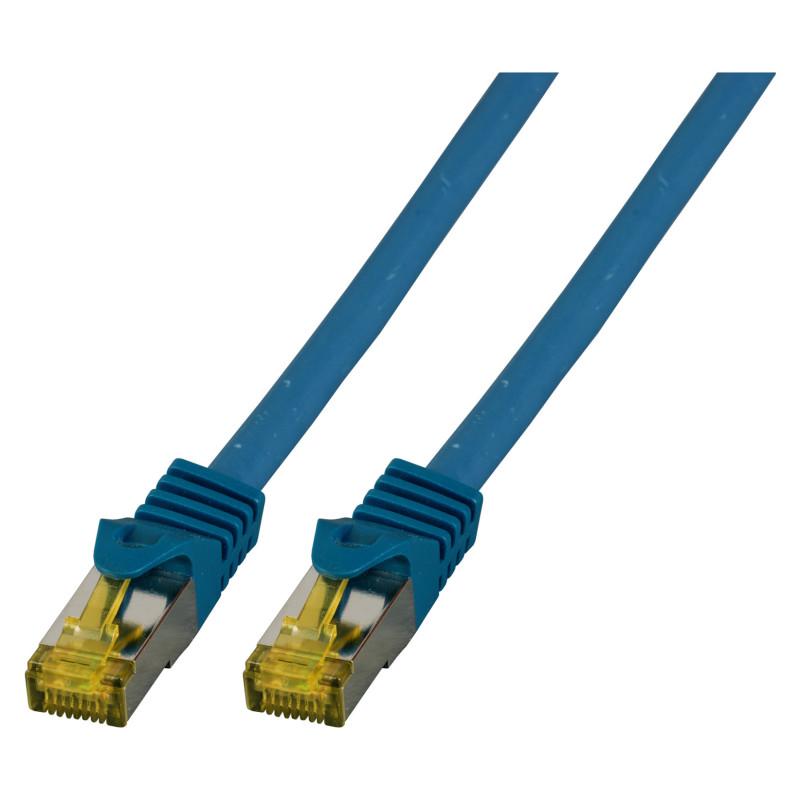

EFB Elektronik MK7001.0,15BL tinklo kabelis

EFB Elektronik MK7001.0,15BL. Cable length: 0.15 m, Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 10000 Mbit/s, Product colour: Blue

The Cat.6A (TIA) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts.

The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.

The assignment of the yellow RJ45 plugs is according to TIA/EIA 568B and is 1: 1. Suitable for the temperature range -20 - 60 °C.

The network cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. The frequency range is 500 MHz.

Features

Product colour: Blue
Cable length: 0.15 m
Cable standard: Cat6a
Cable shielding: S/FTP (S-STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Feature: Connector shielding
Jacket material: Low smoke zero halogen (LSZH)
Cable shape: Round
Conductor material: Copper
Ethernet interface type: 10 Gigabit Ethernet
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
AWG wire size: 26/7
Data transfer rate: 10000 Mbit/s
Frequency: 500 MHz
Bend radius (min): 3.25 cm
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)

Operational conditions

Operating temperature (T-T): -20 - 60 °C

Sustainability

Doesn't contain: Halogen

Weight & dimensions

Outer diameter: 6.5 mm

Packaging content

Quantity per pack: 1 pc(s)
