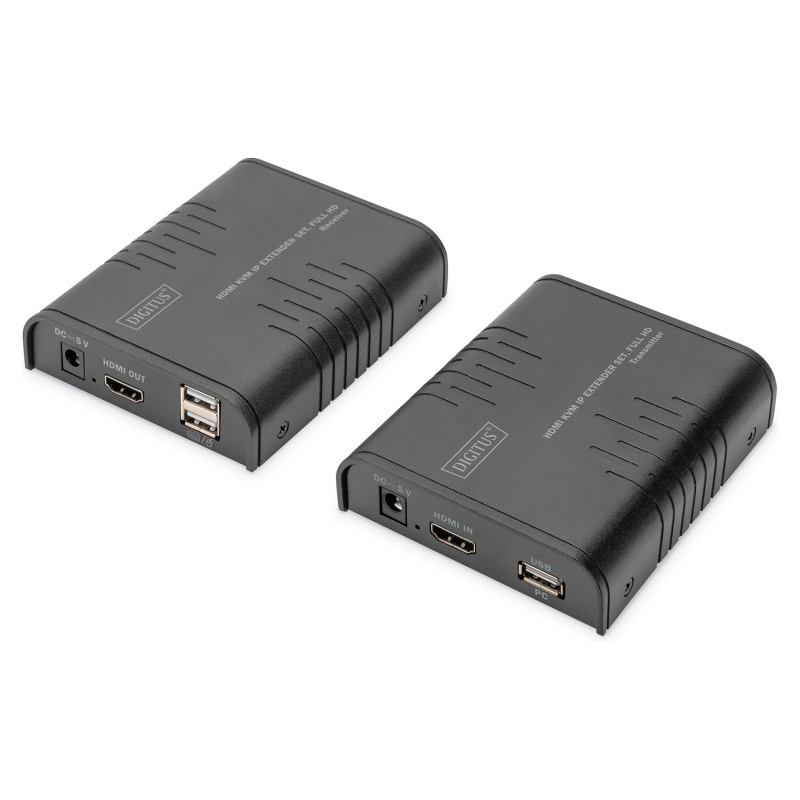

„Digitus DS-55529“ KVM ilgintuvas

Digitus HDMI KVM IP Extender Set, Full HD. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 120 m. Transmitter video port type: HDMI, Transmitter local video port type: HDMI, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. USB data transfer rates: 480 Mbit/s. Input current: 1 A, Power consumption (receiver) (max): 3.5 W, DC voltage: 5 V

Use additional receiver units (DS-55530) and your existing network infrastructure/network switches to display video content on up to 253 screens (IP connection). Provides additional KVM functionality on the receiver side.

- Extends Full HD AV signals over CAT-5e (or higher) cable to unlimited distances via the existing network infrastructure or using commercially available network switches
- Extends Full HD AV signals via CAT-5e (or higher) up to 120 m (point-to-point connection)
- KVM function on the receiver side for connecting a mouse/keyboard to control the signal source on the output screen
- Can be expanded to up to 253 screens (receivers) - additional receiver: DS-55530
- Supports resolutions of up to 1080p/60Hz, Full HD
- Supports CAT 5e (or higher) network cables
- Simple installation thanks to Plug & Play - no additional software/drivers or similar required
- HDMI 1.3
- HDCP 1.4

Our Full HD AV signal extension system allows you to transmit Full HD AV signals over existing CAT-5e (or higher) cables to unlimited distances over your existing network infrastructure. Compatibility with standard network switches makes installing and extending your AV network a breeze. With a point-to-point connection, you can extend your Full HD AV signals up to 120 meters over CAT-5e (or higher) cable. This ensures reliable transmission even over long distances. The system also offers a practical KVM function on the receiver side. Simply connect a mouse and keyboard and control your signal source directly from the output screen. This enables convenient and efficient operation. Would you like to expand your AV network? No problem! Our system supports expansion up to 253 screens by adding additional receivers. Simply use the DS-55530 (receiver) to transmit your AV signals to additional screens and customize your system according to your needs. With support for resolutions up to 1080p/60Hz, the system provides full HD quality for your AV content. Our system is compatible with CAT-5e (or higher) network cables. This allows you to make cost-effective use of your existing infrastructure without additional cabling or expensive upgrades. With HDMI 1.3 and HDCP 1.4 support, the system offers broad compatibility with various AV devices and ensures secure transmission of protected content. Expand your AV capabilities with our Full HD AV signal extension system. Enjoy easy installation, reliable signal transmission and impressive picture quality while seamlessly integrating your AV devices into your network.

Features

Type: Transmitter & receiver
Connectivity technology: Wired
Maximum transfer distance: 120 m
Cable types supported: Cat5e
Maximum digital resolution: 1920 x 1080 pixels
Supported resolutions: 1920x1080 60Hz
Product colour: Black
Material: Metal
Feature: Easy to install
Feature: Plug and Play
LED indicators: Yes

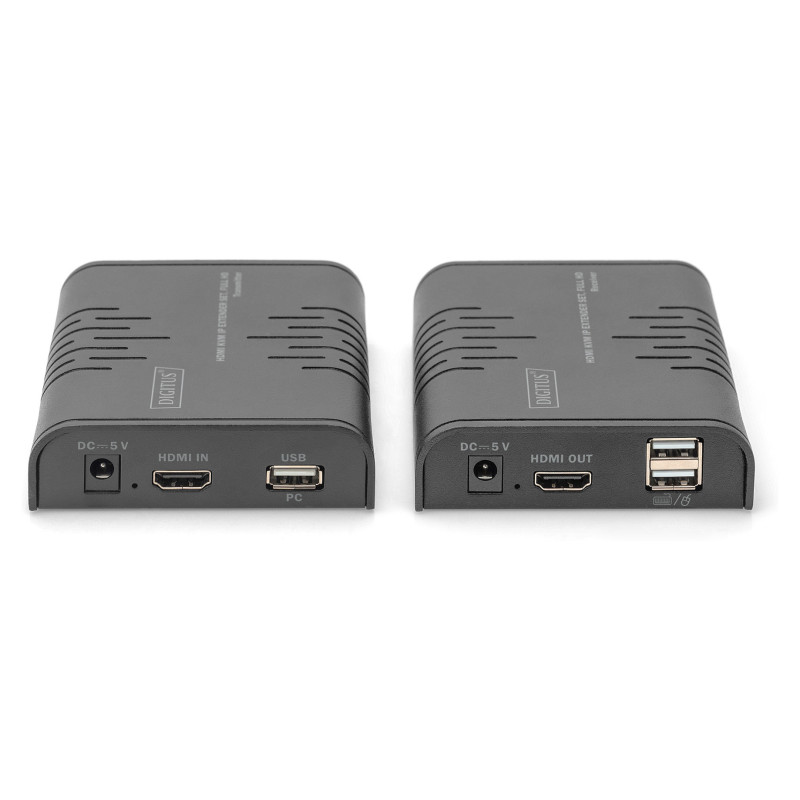

Transmitter

Transmitter video port type: HDMI
Transmitter local video port type: HDMI
Transmitter local keyboard/mouse port type: USB

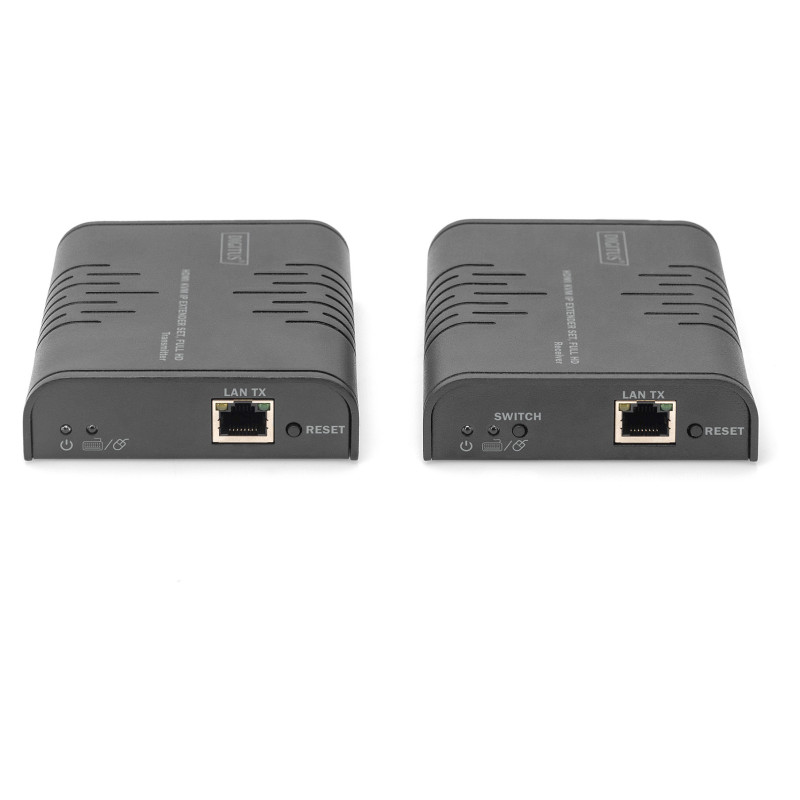

RJ-45 ports quantity (transmitter): 1

Receiver

Receiver local video port type: HDMI
Receiver local keyboard/mouse port type: USB
RJ-45 ports quantity (receiver): 1
Receiver local video ports quantity: 1

Ports & interfaces

USB 2.0 ports quantity: 3
HDMI version: 1.3
USB data transfer rates: 480 Mbit/s
RJ-45 ports quantity: 1

Power

Input current: 1 A
Power consumption (receiver) (max): 3.5 W
Feature: DC-in jack
DC voltage: 5 V

Weight & dimensions

Transmitter width: 9 cm
Transmitter depth: 11 cm
Transmitter height: 2.7 cm
Transmitter weight: 244 g
Receiver width: 9 cm
Receiver depth: 11 cm
Receiver height: 2.7 cm
Receiver weight: 244 g

Packaging data

Package width: 240 mm
Package depth: 177 mm
Package height: 80 mm
Package weight: 970 g

Packaging content

Feature: AC adapter included
Cables included: USB
Feature: Manual

Operational conditions

Operating temperature (T-T): -10 - 60 °C

Technical details

Package volume: 3398.4 cm³

Logistics data

Country of origin: China
UK Trade Tariff code: 85176200
