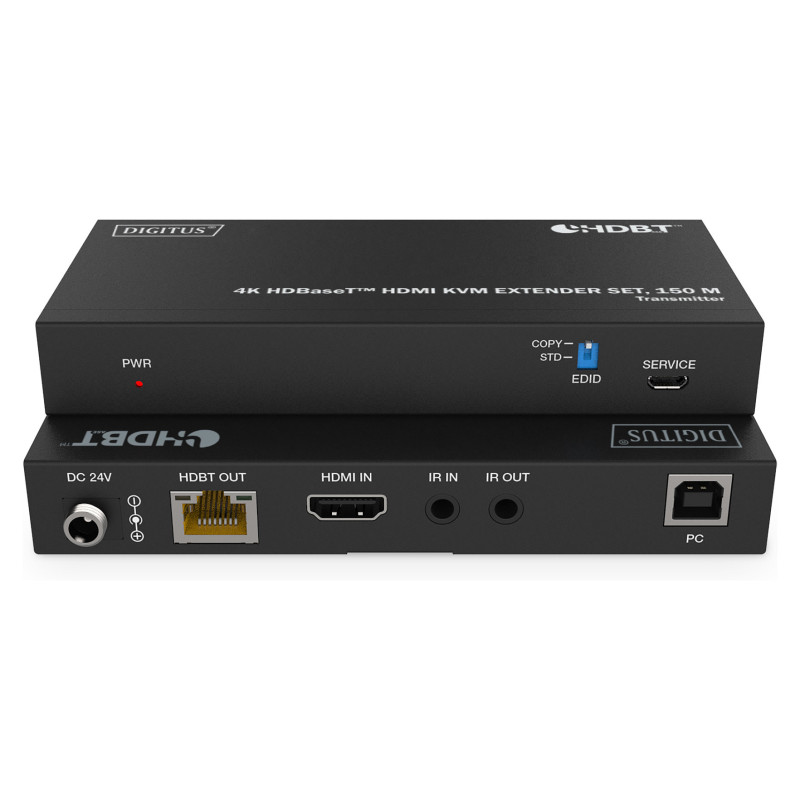

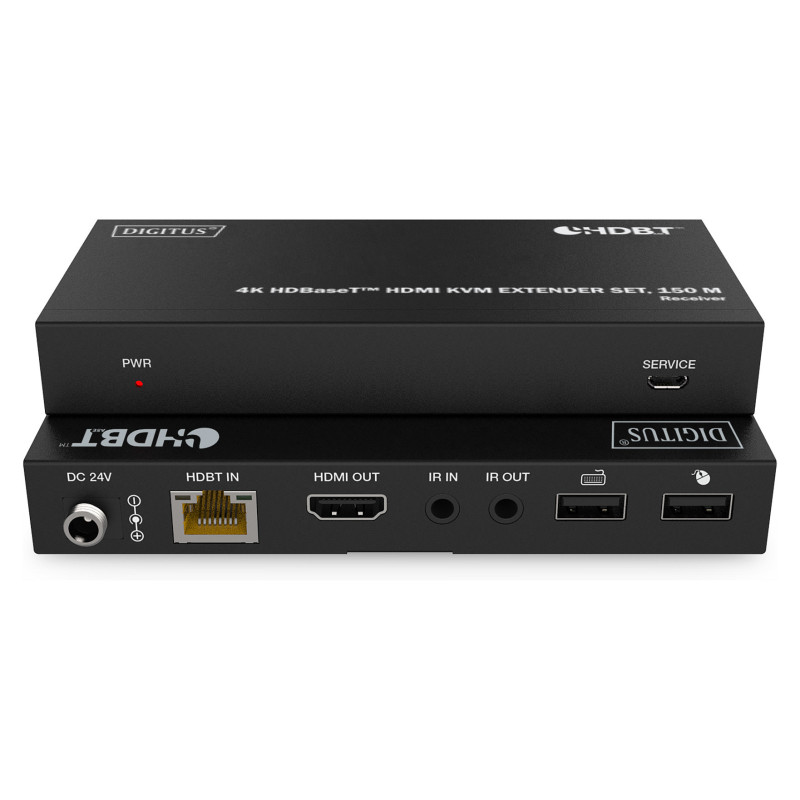

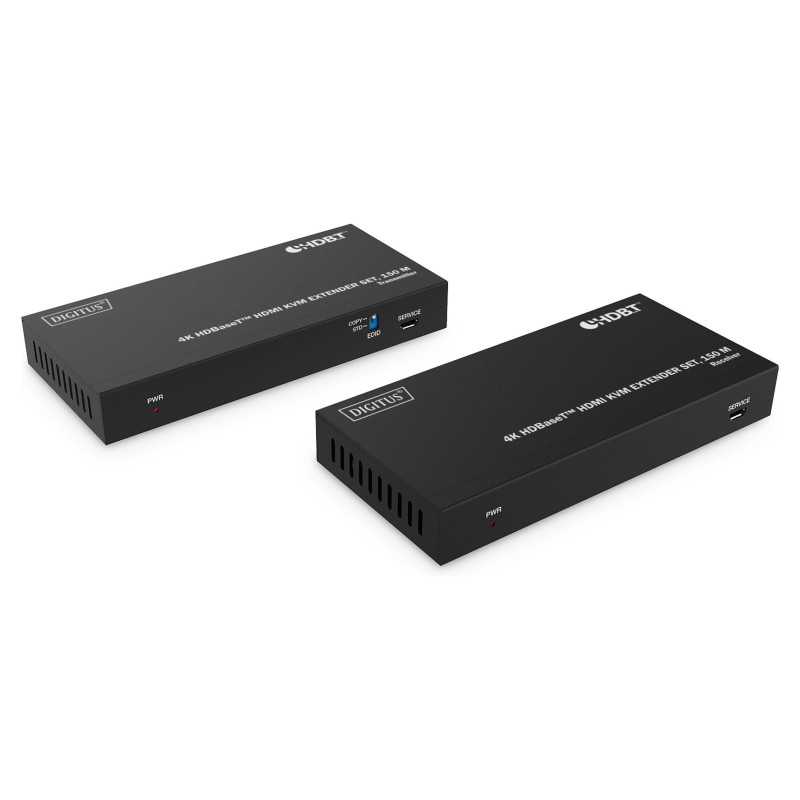

„Digitus DS-55522“ AV ilgintuvas

Digitus 4K HDBaseTTM HDMI KVM extender set, 150 m. Type: Transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6, Cat7, Cat8. Connectivity technology: Wired, HDMI version: 2.0b, USB connector type: USB Type-A, USB Type-B. Power source type: DC, Operating voltage (transmitter): 24 V, Operating voltage (receiver): 24 V. Receiver dimensions (WxDxH): 140 x 65 x 18 mm, Receiver weight: 246 g, Transmitter dimensions (WxDxH): 140 x 65 x 18 mm. Package width: 245 mm, Package depth: 185 mm, Package height: 75 mm

The HDBaseTTM Extender Set enables uncompressed and high-resolution AV signal transmission over long distances and offers KVM functionality (mouse & keyboard connection)

- Supports HDBaseTTM 1.0 via CAT6A/7/8 cable up to 100 m
- Transmission distance - Full HD (1080p/60Hz): 150 m (max.)
- Transmission distance - UHD (4K/60Hz): 120 m (max.)
- Supports 4K2K/60Hz (4:4:4)
- Video bandwidth: 18 Gbps
- Connection of mouse & keyboard to the receiver (2x USB 1.1) for convenient control of the signal source from the output display
- PoC (Power over Cable) - only one unit requires an external power supply unit
- EDID support (2 modes) - 1: Copy - HDMI output receiver / 2: Standard - 1080p, 2 channel
- Bi-directional IR signal transmission
- HDMI 2.0b / HDCP 2.2

The HDBaseTTM HDMI KVM Extender Set enables uncompressed and high-resolution AV signal transmission over long distances via a CAT6 (or higher) network cable. The maximum transmission distance is 150 m. Thanks to PoC, only one unit needs to be powered with an external power supply unit. The receiver unit has two USB (1.1) ports for connecting a mouse & keyboard to control the signal source conveniently from the output display. Bi-directional IR transmission is also included.

Features

Type: Transmitter & receiver
Maximum resolution: 3840 x 2160 pixels
Cable types supported: Cat6, Cat7, Cat8
Maximum transfer distance: 100 m
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG)
Maximum refresh rate: 60 Hz
Feature: Extended display identification data (EDID)
Feature: Bidirectional
Feature: Electrostatic Discharge (ESD) protection
Bandwidth: 18 Gbit/s
Feature: HDCP
Material: Metal
Feature: HDCP & EDID bypass
HDCP version: 2.2
Product colour: Black

Ports & interfaces

Connectivity technology: Wired
RJ-45 input ports: 1
RJ-45 output ports: 1
HDMI in: 1
Number of HDMI outputs: 1
HDMI version: 2.0b
USB ports quantity: 6
USB version: 1.1
USB connector type: USB Type-A, USB Type-B
Remote (IR) input: 2
Remote (IR) output: 2
Feature: DC-in jack

Power

Power source type: DC
Operating voltage (transmitter): 24 V
Operating voltage (receiver): 24 V
Power consumption (transmitter) (max): 10 W
Power consumption (receiver) (max): 10 W
Feature: External power adapter

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Receiver dimensions (WxDxH): 140 x 65 x 18 mm
Receiver weight: 246 g
Transmitter dimensions (WxDxH): 140 x 65 x 18 mm
Transmitter weight: 246 g

Packaging data

Package width: 245 mm
Package depth: 185 mm
Package height: 75 mm
Package weight: 1.09 kg

Packaging content

Feature: AC adapter included
Cables included: IR, USB
Feature: Manual

Technical details

Country of origin: China
Package volume: 3399.38 cm³

Logistics data

UK Trade Tariff code: 85176200
