„Digitus DS-55517“ AV ilgintuvas

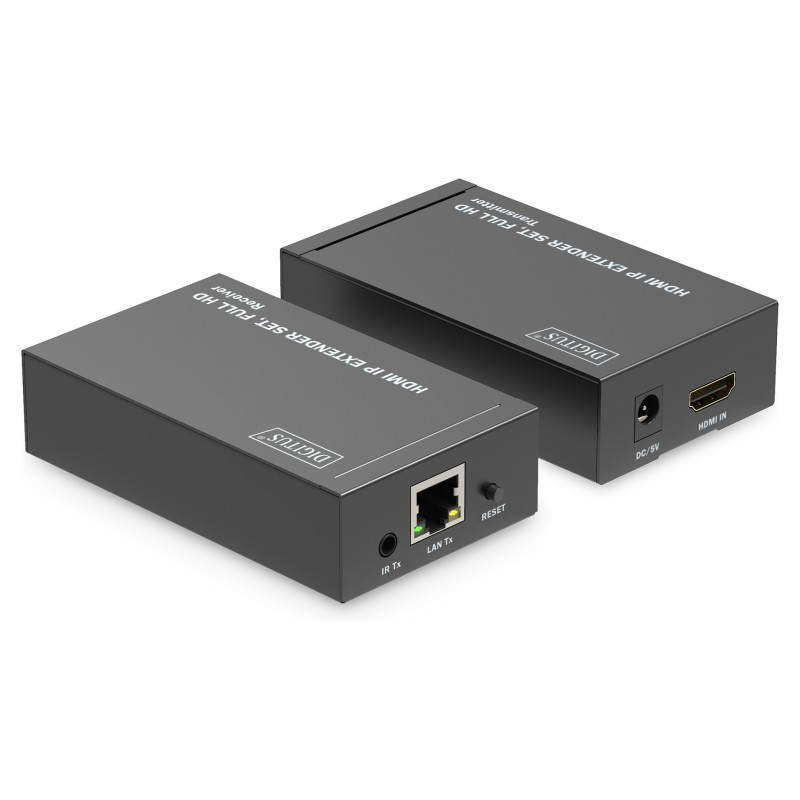

Digitus HDMI IP Extender Set, Full HD. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1080 pixels, Cable types supported: Cat6, Cat6a, Cat7, Cat8. Connectivity technology: Wired. Operating voltage: 5 V, Input current: 2 A, Power consumption (typical): 8 W. Width: 59 mm, Depth: 100 mm, Height: 25 mm. Package width: 196 mm, Package depth: 243 mm, Package height: 60 mm

Use additional receiver units (DS-55518) and your existing network infrastructure/network switches to display video content on up to 253 screens (IP connection)

- Extends Full HD AV signals over CAT6 (or higher) cable to unlimited distances via the existing network infrastructure or using commercially available network switches
- Extends Full HD AV signals via CAT6 (or higher) cable up to 120 m (point-to-point connection)
- Supports resolutions of up to 1080p/60Hz, Full HD
- Supports CAT 6, 6A, 7, 8 network cables
- IR interface enables remote control of the input source from the output screen
- HDCP 1.3
- Video bandwidth: 1.65 Gbps per channel

The HDMI Extender Set is a high-performance video distribution system consisting of a transmitter/receiver unit. It extends Full HD AV signals up to 120 m via a CAT6 (or higher) network cable (point-to-point connection). In addition, you can use network switches and the individual receiver units (DS-55518) to distribute your video content to up to 253 displays via the existing network (IP connection) and extend it to an unlimited distance. The additional integrated unidirectional IR interface enables remote control of the input source from the output screen (receiver side).

Features

Type: AV transmitter & receiver
Maximum resolution: 1920 x 1080 pixels
Cable types supported: Cat6, Cat6a, Cat7, Cat8
Maximum transfer distance: 120 m
Maximum refresh rate: 60 Hz
LED indicators: Yes
Supported video modes: 1080p
Bandwidth: 1.65 Gbit/s
Cable length: 1.5 m
Feature: HDCP
Material: Metal
Feature: Wall mountable
HDCP version: 1.3
Product colour: Black

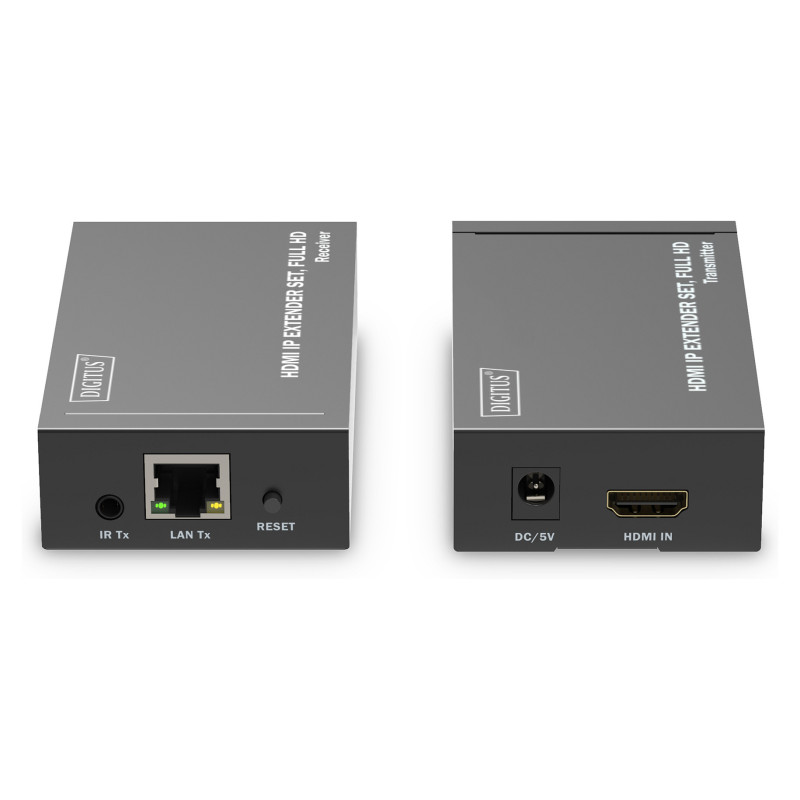

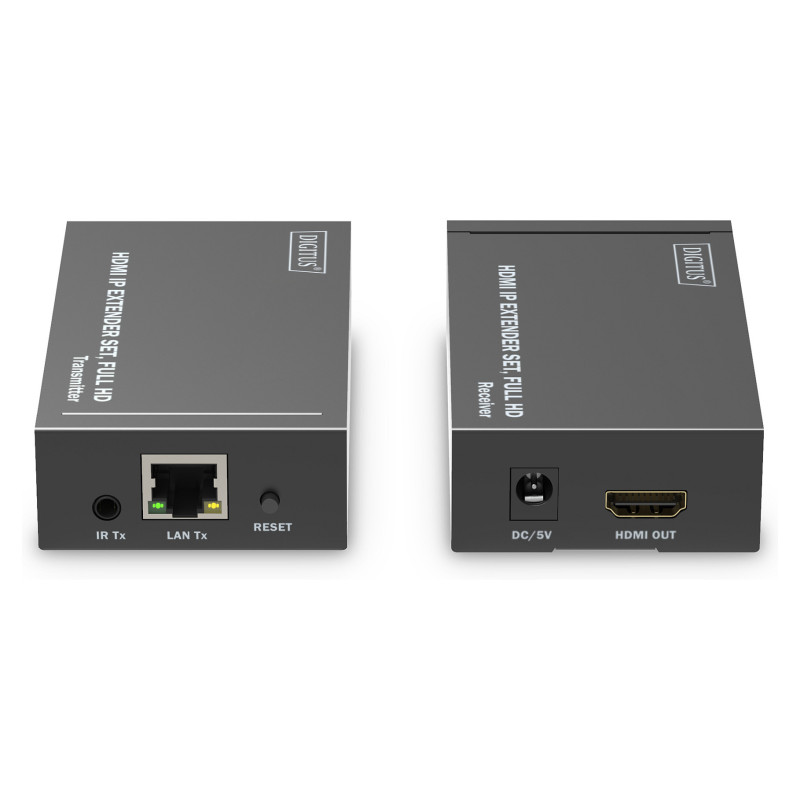

Ports & interfaces

Connectivity technology: Wired
Feature: Ethernet LAN
RJ-45 input ports: 1
RJ-45 output ports: 1
Number of HDMI outputs: 1
Remote (IR) input: 1
Remote (IR) output: 1
Feature: DC-in jack

Power

Operating voltage: 5 V
Input current: 2 A
Power consumption (typical): 8 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Weight & dimensions

Width: 59 mm
Depth: 100 mm
Height: 25 mm
Weight: 165 g

Packaging data

Package width: 196 mm
Package depth: 243 mm
Package height: 60 mm
Package weight: 770 g

Packaging content

Feature: AC adapter included
Cables included: IR
Feature: Manual
Feature: Transceiver(s) included
Feature: Mounting kit

Technical details

Country of origin: China
Package volume: 2857.68 cm³

Logistics data

UK Trade Tariff code: 85176200
