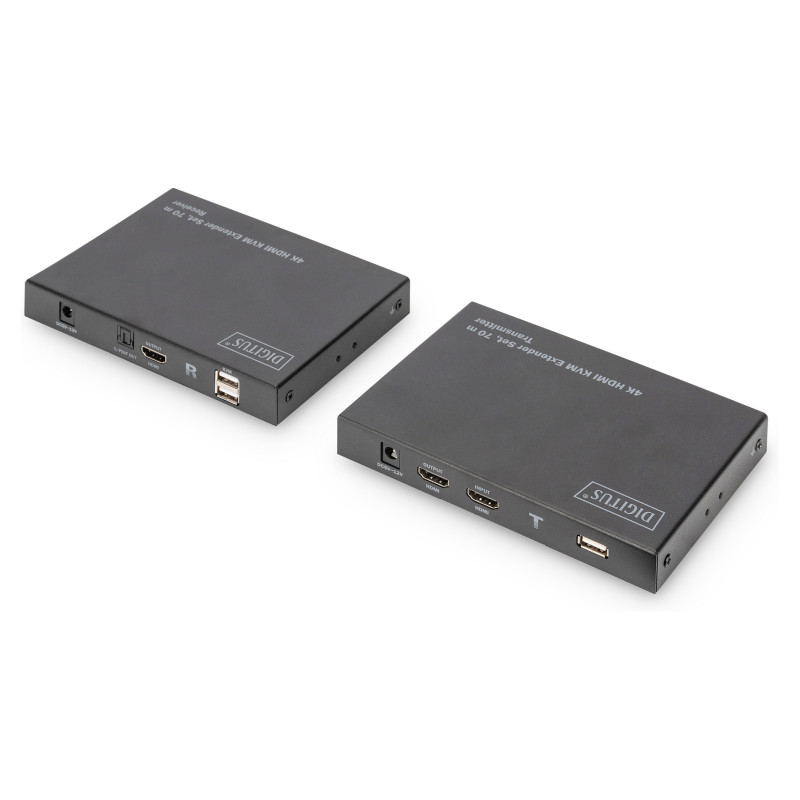

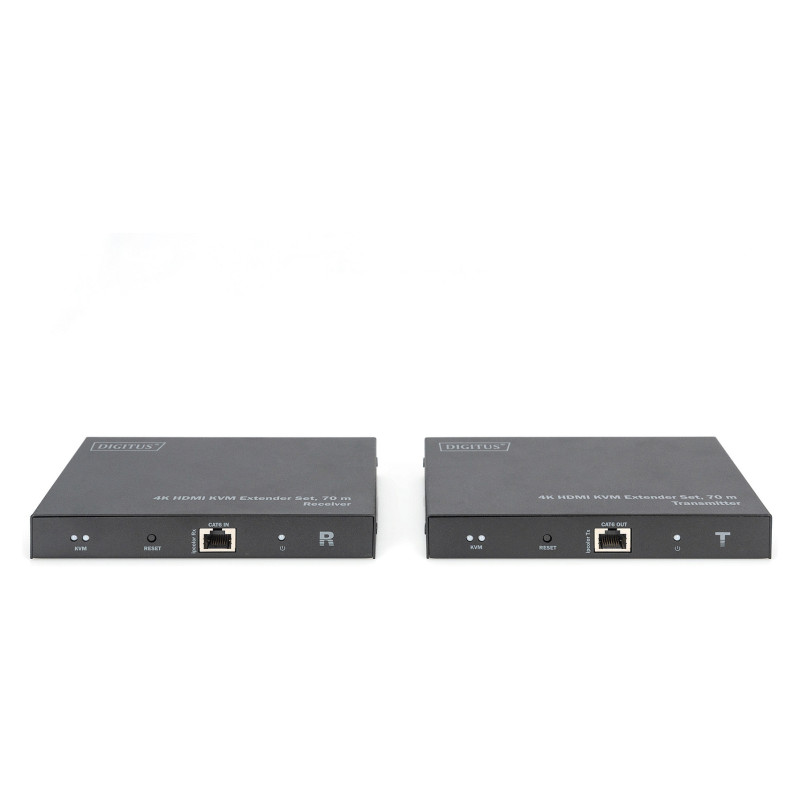

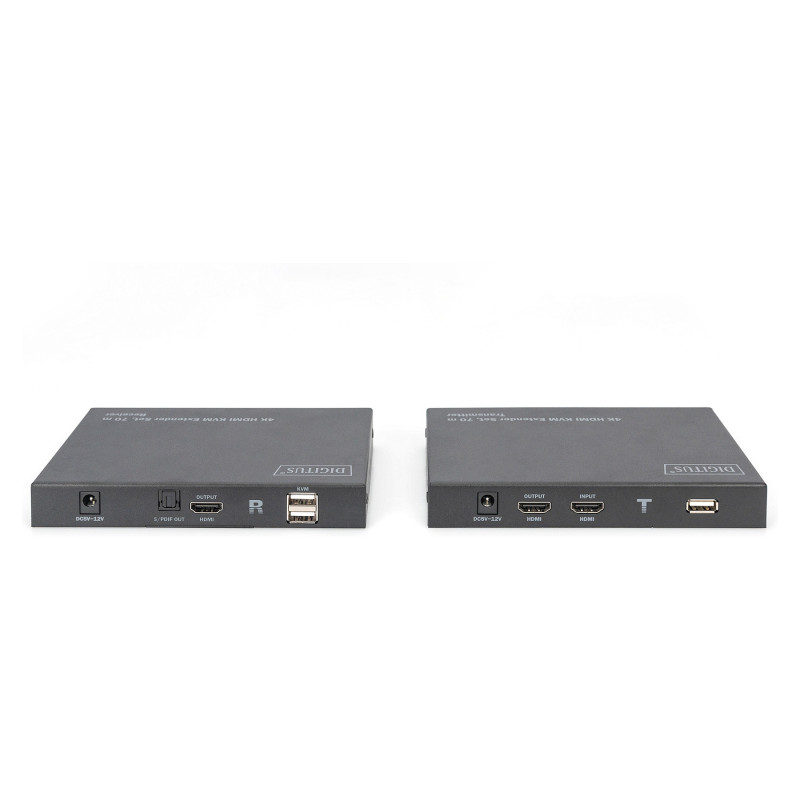

„Digitus DS-55513“ KVM ilgintuvas

Digitus 4K HDMI KVM Extender Set, 70 m. Type: Transmitter & receiver, Maximum transfer distance: 70 m, Cable types supported: Cat6, Cat7, Cat8. Transmitter video port type: HDMI. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. USB port type: Mini-USB A. AC adapter output voltage: 5 V, AC adapter output current: 2 A, Power consumption (transmitter) (max): 4 W

Extends an HDMI signal to a distance of up to 70 m in UHD resolution (4K/60Hz) and offers KVM/USB functionality for connecting a mouse, keyboard and touch screen

- Supports 4K2K/60Hz (HDR, 4:4:4)
- Video bandwidth: 18 Gbps
- Maximum transmission distance (UHD 4K2K): 70 m
- KVM/USB functionality - connection of mouse, keyboard, touch screen
- HDMI loop-out on the transmitter unit
- Supports CAT 6/7/8 cables
- Audio extractor on the receiver unit (S/PDIF)
- EDID Pass Back
- HDCP 2.2 / 1.4
- HDMI 2.0
- USB 1.1

Extends an HDMI signal to a distance of up to 70 m in UHD resolution (4K/60Hz) and offers KVM/USB functionality for connecting a mouse, keyboard and touch screen

Features

Type: Transmitter & receiver
Maximum transfer distance: 70 m
Cable types supported: Cat6, Cat7, Cat8
Product colour: Black
Material: Aluminium
LED indicators: Status

Transmitter

Transmitter video port type: HDMI
Number of displays supported: 2
RJ-45 ports quantity (transmitter): 1

Receiver

Receiver local video port type: HDMI
Receiver local keyboard/mouse port type: USB
RJ-45 ports quantity (receiver): 1

Ports & interfaces

USB port type: Mini-USB A
HDMI version: 2.0
RJ-45 ports quantity: 2

Power

AC adapter output voltage: 5 V
AC adapter output current: 2 A
Power consumption (transmitter) (max): 4 W
Power consumption (receiver) (max): 4 W

Weight & dimensions

Transmitter width: 15 cm
Transmitter depth: 10.7 cm
Transmitter height: 2.8 cm
Transmitter weight: 260 g
Receiver width: 15 cm
Receiver depth: 10.7 cm
Receiver height: 2.8 cm
Receiver weight: 260 g

Packaging data

Package width: 153 mm
Package depth: 357 mm
Package height: 85 mm
Package weight: 1.1 kg

Packaging content

Feature: AC adapter included
Cables included: USB
Feature: Manual
Feature: Mounting bracket(s) included

Operational conditions

Operating temperature (T-T): -20 - 60 °C

Technical details

Maximum resolution: 3840 x 2160 pixels
Package volume: 4642.79 cm³

Logistics data

Country of origin: China
