„Digitus DS-55346“ AV ilgintuvas

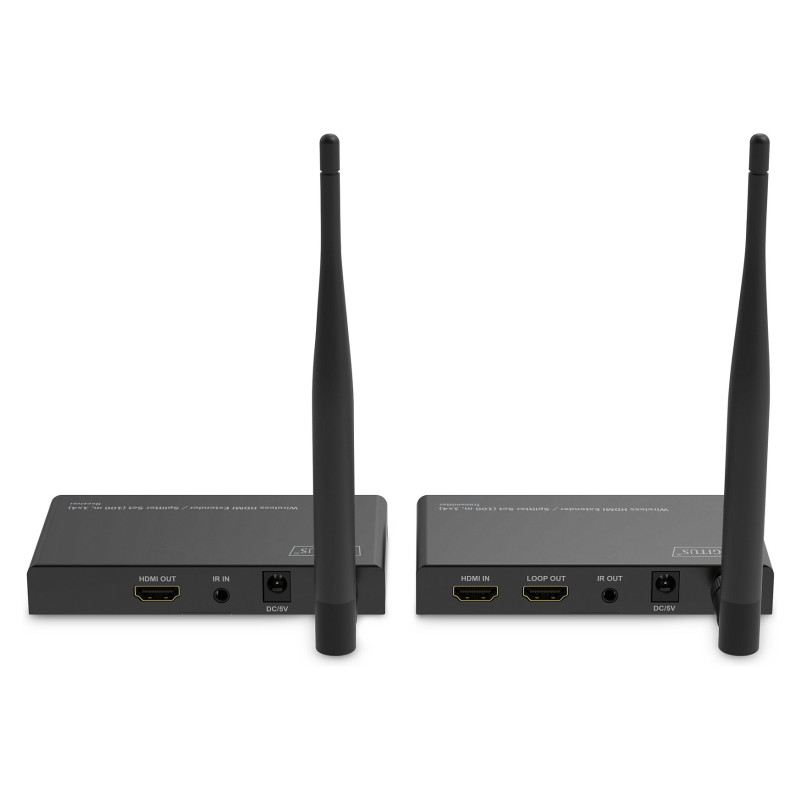

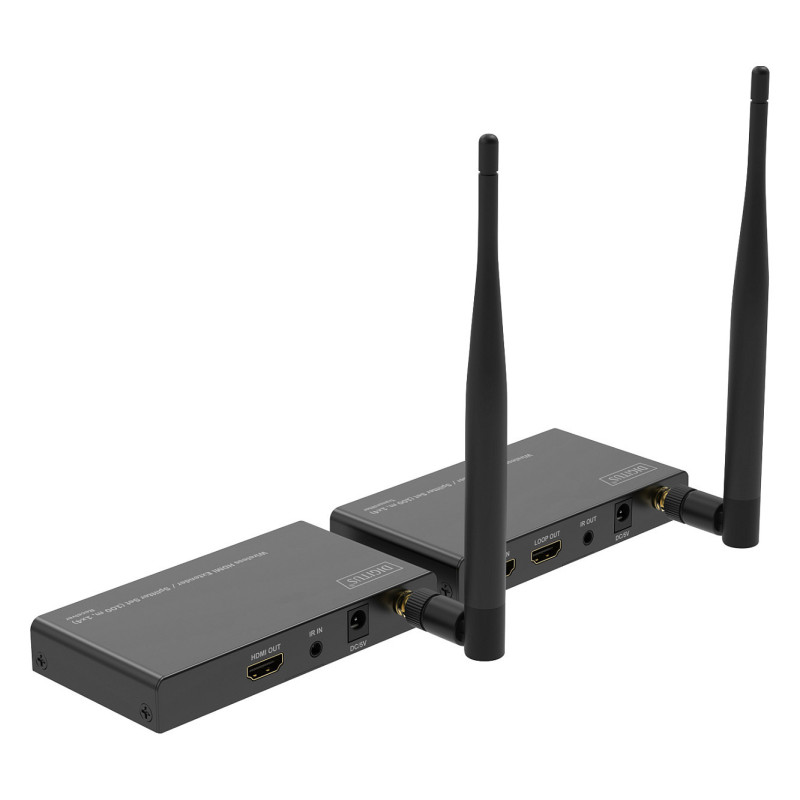

Digitus Wireless HDMI extender / splitter set (100 m, 1x4). Type: AV transmitter & receiver, Maximum resolution: 1920 x 1080 pixels, Maximum transfer distance: 100 m. Connectivity technology: Wireless. Power source type: DC, Operating voltage (transmitter): 5 V, Operating voltage (receiver): 5 V. Receiver dimensions (WxDxH): 63.5 x 118 x 18 mm, Receiver weight: 170 g, Transmitter dimensions (WxDxH): 63.5 x 118 x 18 mm. Package width: 196 mm, Package depth: 243 mm, Package height: 60 mm

Wireless transmission of HDMI AV signals over a distance of up to 100 m (1:1 connection, unrestricted view) and distribution to up to 4 monitors

- Wireless transmission of Full HD AV signals over a distance of up to 100 m (1:1 connection, unrestricted view)
- Supports point-to-point and multicast (point-to-multipoint) transmission
- Transmission of HDMI signals in Full HD with max. resolution of 1080p / 60 Hz
- Expandable up to 4 receiver units (DS-55347) and offers video splitter functionality with additional receivers
- Distribute your HDMI signal to up to 4 displays
- Additional HDMI output (loop-out) on the transmitter module for connecting an external monitor
- IR transmission to control the source device from the output display
- Plug & Play - no software or drivers required
- HDMI 1.4, HDCP 1.3
- AES 128 bit encryption
- WPA2 protocol

Experience ultimate flexibility and performance when transmitting your Full HD AV signals with our wireless transmission system, which offers a range of up to 100 meters in a 1:1 connection with unrestricted visibility. Our system supports both point-to-point (point-to-point) and multicast (point-to-multipoint) transmissions, giving you the freedom to broadcast your AV signal to multiple displays simultaneously or connect a single source to different target devices. With a maximum resolution of 1080p / 60 Hz, our system guarantees sharp and smooth playback of your content. In addition, you can easily expand your system to up to 4 receiver units (DS-55347) to achieve video splitter functionality and distribute your HDMI signal to up to 4 displays. The transmitter module has an additional HDMI output (loop-out) that allows you to connect an external monitor, while the integrated IR transmission enables convenient control of your source device directly from the output display (receiver unit). Our Plug & Play system requires no additional software or driver installation and is ready for immediate use.

Features

Type: AV transmitter & receiver
Maximum resolution: 1920 x 1080 pixels
Maximum transfer distance: 100 m
Maximum refresh rate: 60 Hz
LED indicators: Yes
Bandwidth: 6.75 Gbit/s
Video compression formats: H.264
Feature: HDCP
Material: Metal
HDCP version: 1.3
Product colour: Black
Antennas quantity: 1

Ports & interfaces

Connectivity technology: Wireless
Feature: Wi-Fi
HDMI in: 1
Number of HDMI outputs: 2
HDMI version: 1.4
Remote (IR) input: 1
Remote (IR) output: 1
Feature: DC-in jack

Power

Power source type: DC
Operating voltage (transmitter): 5 V
Operating voltage (receiver): 5 V
Power consumption (transmitter) (max): 3 W
Power consumption (receiver) (max): 1.5 W
Feature: External power adapter

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Weight & dimensions

Receiver dimensions (WxDxH): 63.5 x 118 x 18 mm
Receiver weight: 170 g
Transmitter dimensions (WxDxH): 63.5 x 118 x 18 mm
Transmitter weight: 172 g

Packaging data

Package width: 196 mm
Package depth: 243 mm
Package height: 60 mm
Package weight: 860 g

Packaging content

Feature: AC adapter included
Cables included: IR
Feature: Manual
