„Digitus DS-53400“ AV ilgintuvas

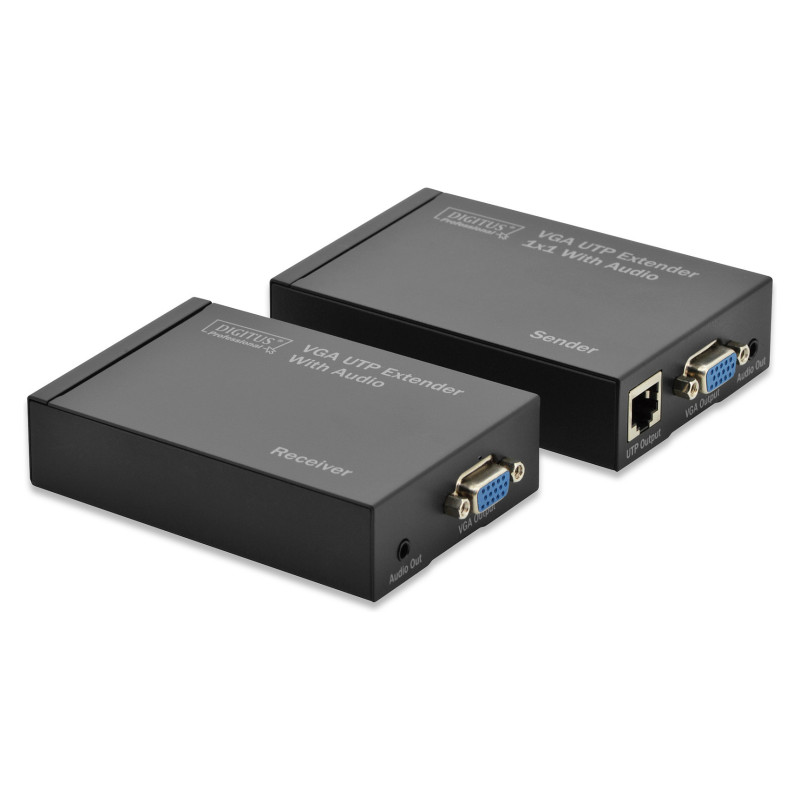

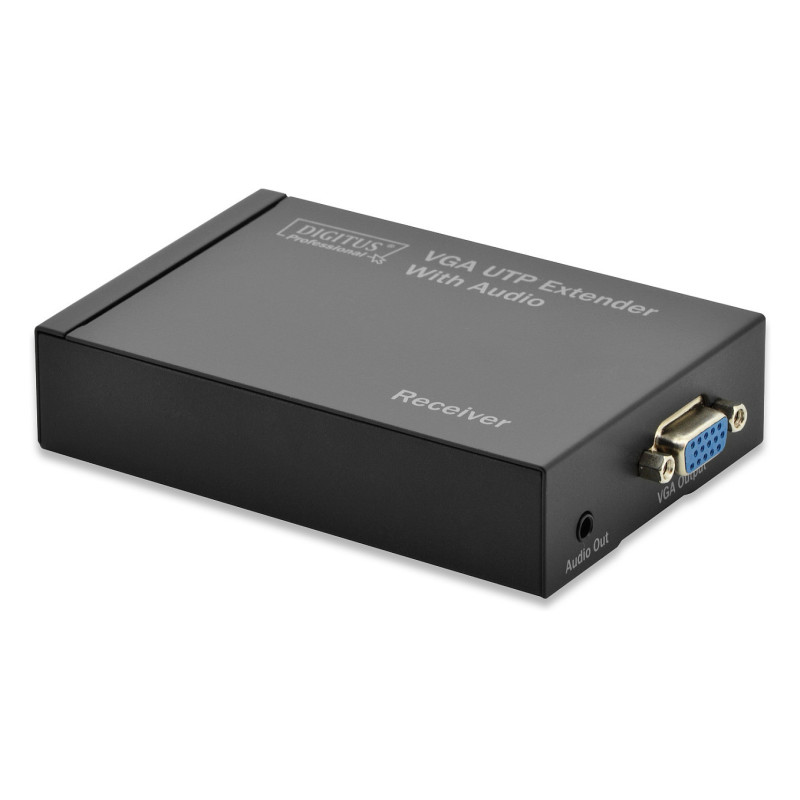

Digitus VGA UTP extender set. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5. Audio input: 3.5mm, Audio output: 3.5mm. Dimensions (WxDxH): 75 x 110 x 25 mm, Receiver weight: 208 g, Transmitter weight: 213 g. Package width: 175 mm, Package depth: 273 mm, Package weight: 760 g

Provides simple and fast distribution for VGA video signals up to a distance of 300 m - place your screens wherever you want.

- Provides simple and fast distribution for VGA video signals up to a distance of 300 m
- High resolutions up to 1920 x 1200 pixels possible

Extends a VGA signal up to 300 m, using only a simple UTP cable between the transmitter and receiver units.

Features

Type: AV transmitter & receiver
Maximum resolution: 1920 x 1200 pixels
Cable types supported: Cat5
Maximum transfer distance: 300 m
LED indicators: Yes

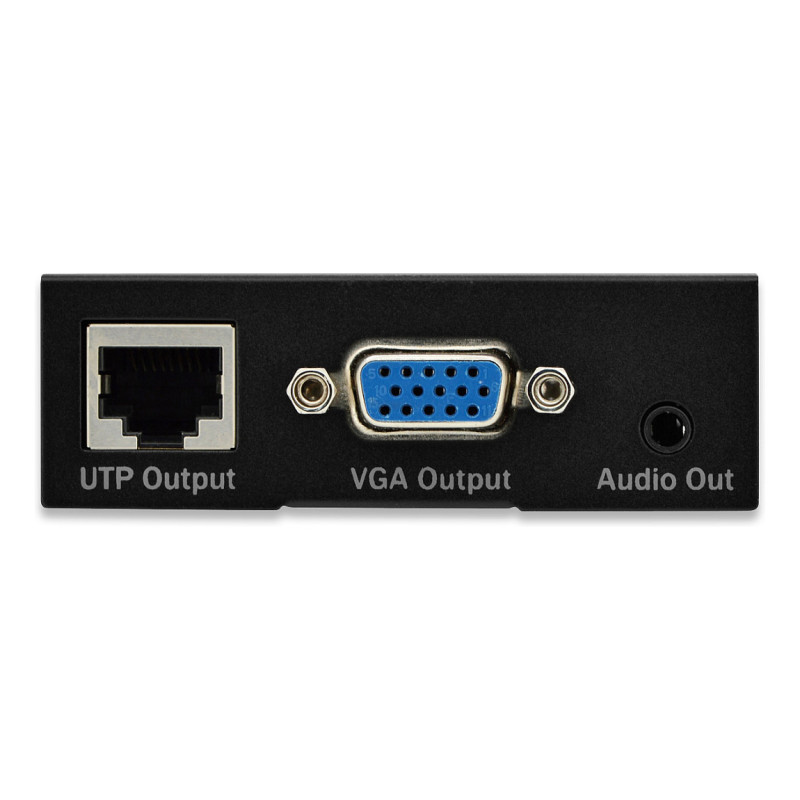

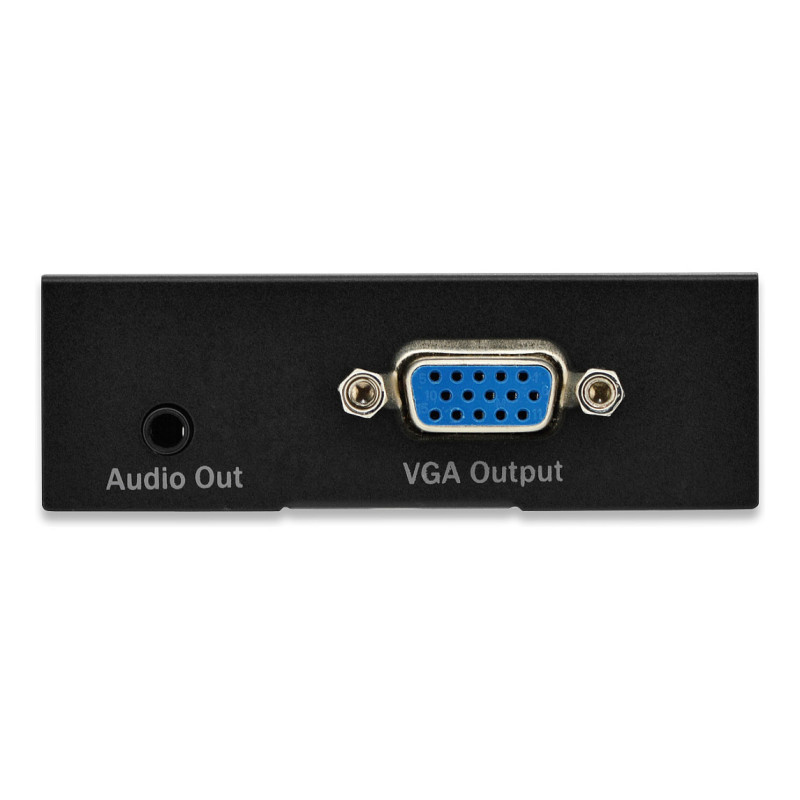

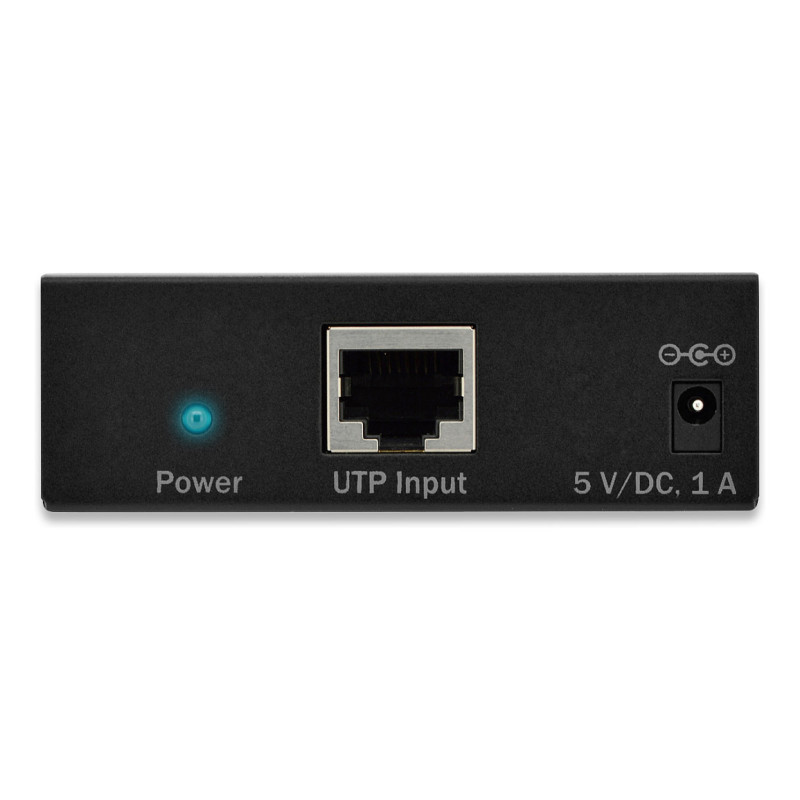

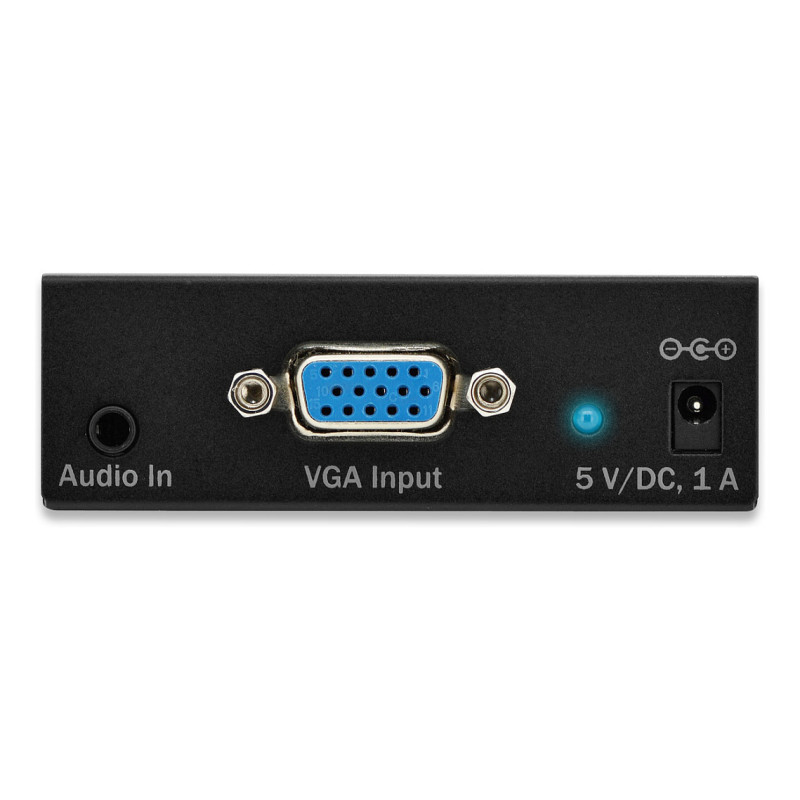

Ports & interfaces

Feature: Ethernet LAN
RJ-45 input ports: 1
RJ-45 output ports: 1
VGA (D-Sub) input ports: 1
VGA (D-Sub) output ports: 1
Audio input: 3.5mm
Audio output: 3.5mm
Feature: DC-in jack

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Operating relative humidity (H-H): 10 - 85%

Weight & dimensions

Dimensions (WxDxH): 75 x 110 x 25 mm
Receiver weight: 208 g
Transmitter weight: 213 g

Packaging data

Package width: 175 mm
Package depth: 273 mm
Package weight: 760 g

Packaging content

Feature: AC adapter included
Feature: Manual

Technical details

Country of origin: China
Package volume: 2627.62 cm³

Logistics data

UK Trade Tariff code: 84718000
