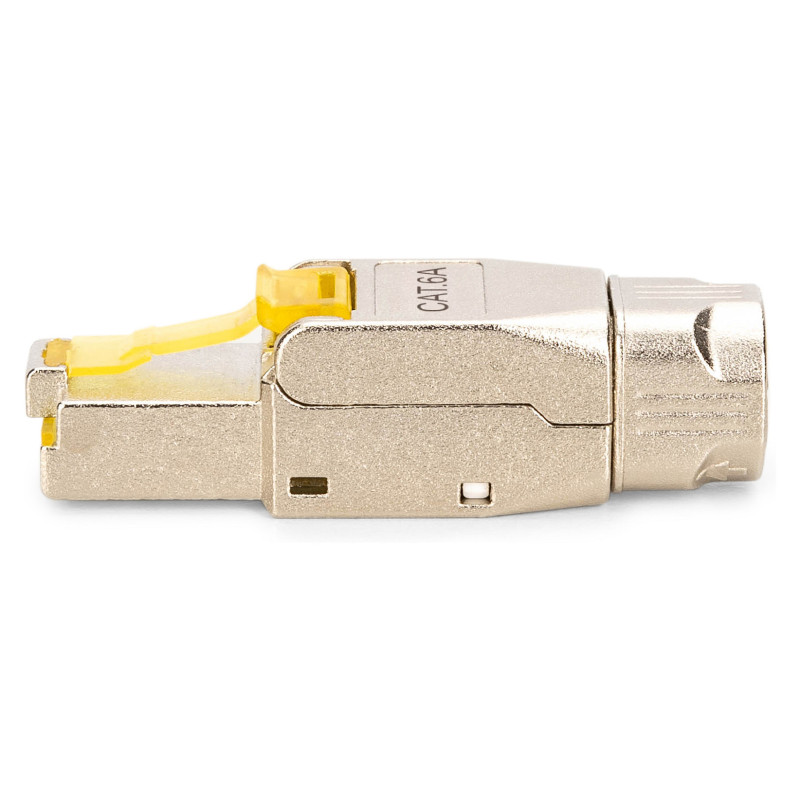

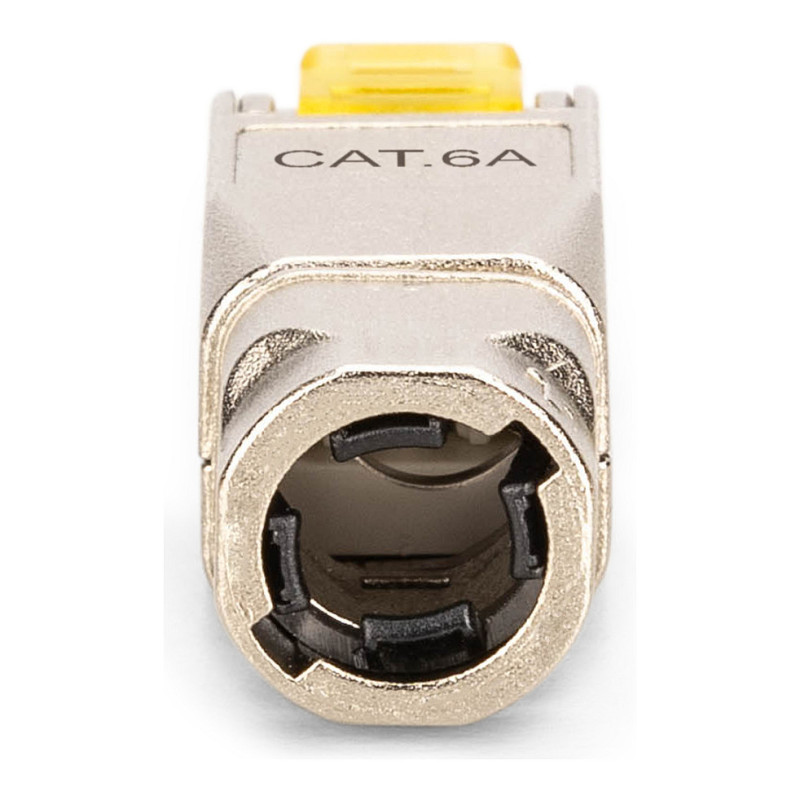

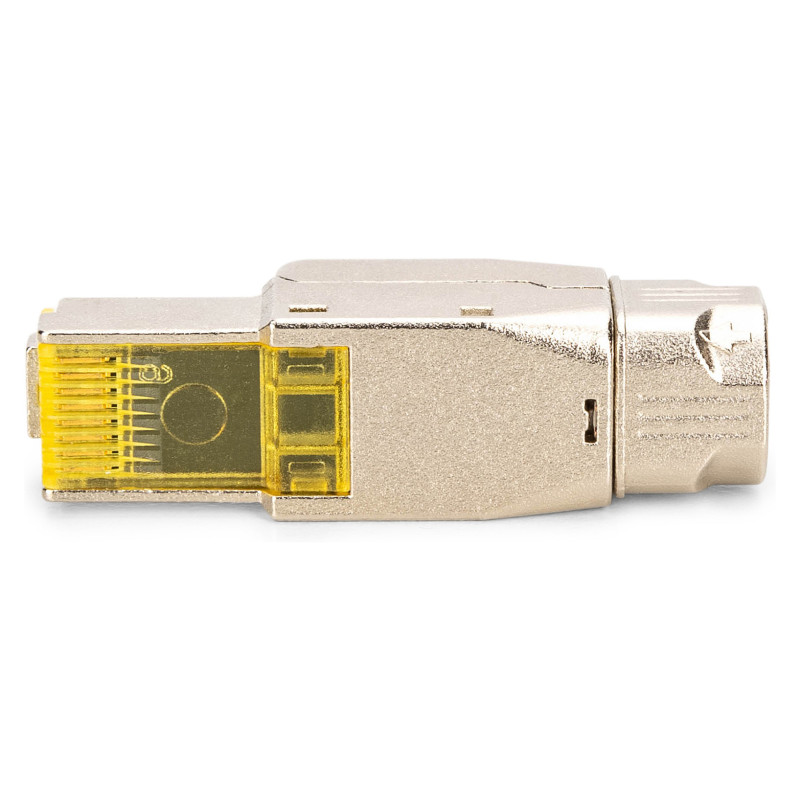

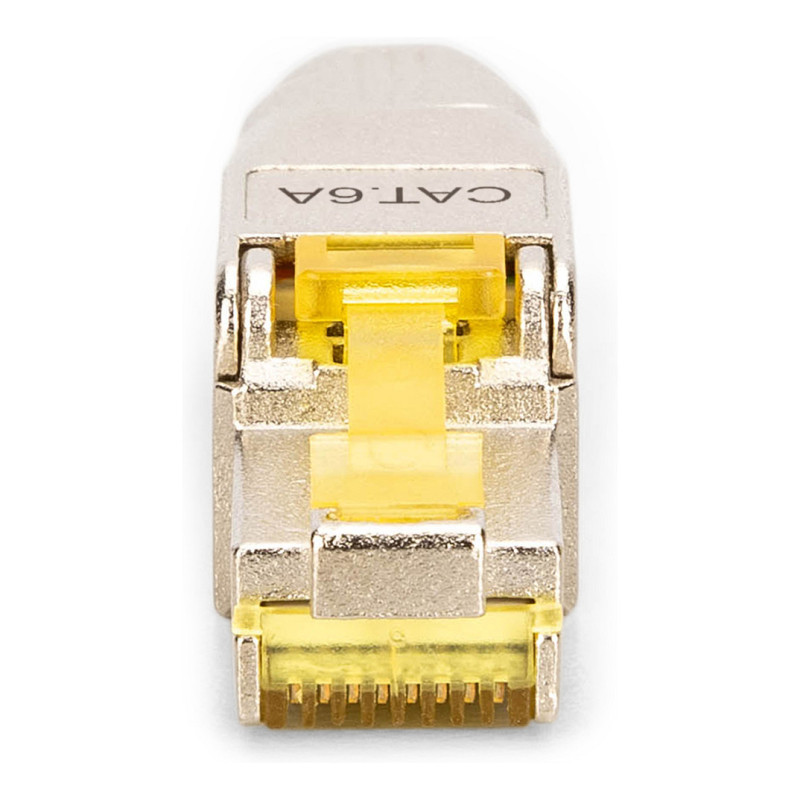

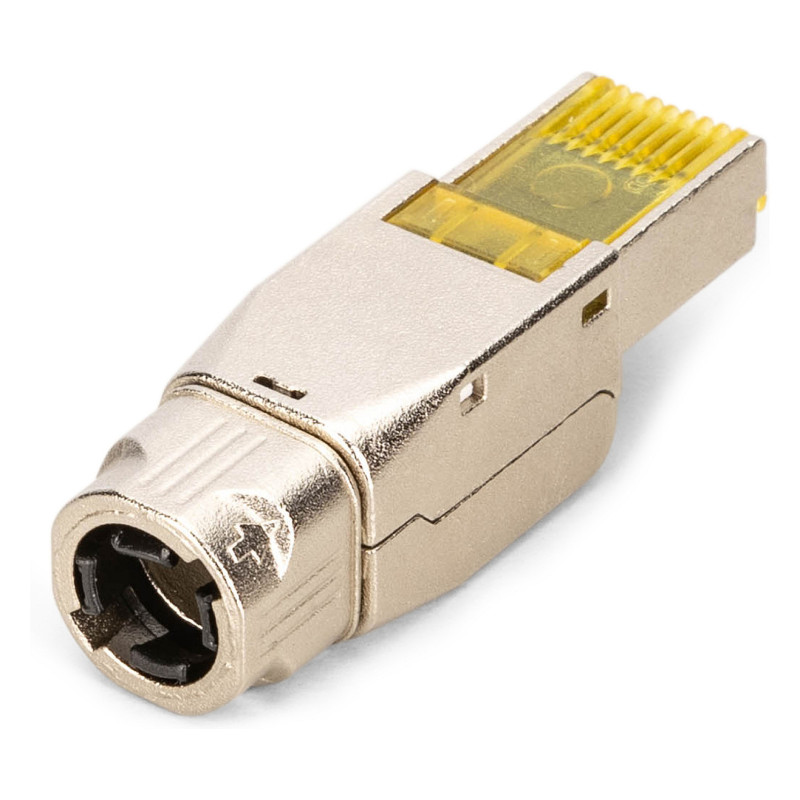

Digitus DN-93638 laidų jungtis

Digitus CAT 6A field connector, AWG 22-27, supports up to 4PPoE, IEEE802.3bt. Connector(s): RJ-45, Product colour: Silver, Yellow, Connector gender: Male. Quantity per pack: 1 pc(s), Package width: 20 mm, Package depth: 40 mm

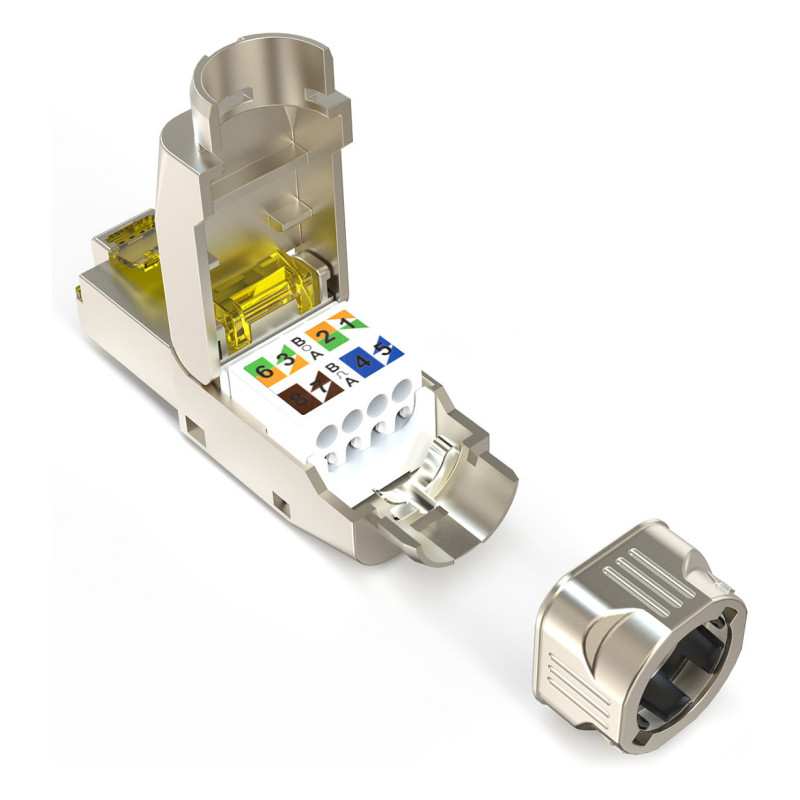

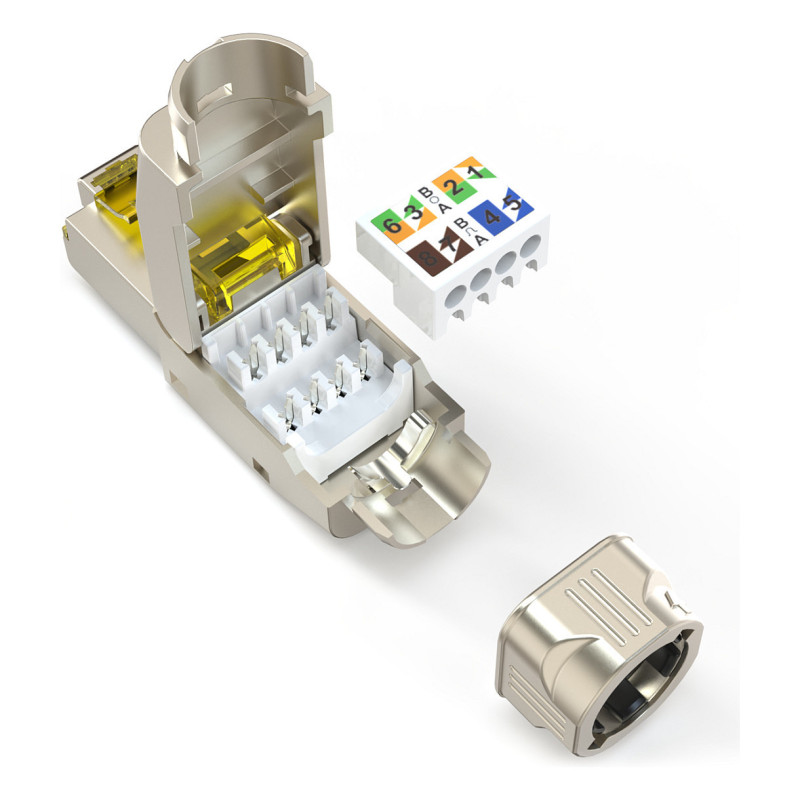

Tool-free field assembly - easy with these shielded metal field connectors

- High-performance data transmission - Supports transmission rates of up to 10 Gbit/s for maximum network performance
- Optimal shielding - Shielded design reduces electromagnetic interference for stable signal quality
- Tool-free installation - Innovative design enables quick and easy installation without special tools
- Robust construction - Durable housing and high-quality materials ensure reliable performance, even in demanding environments

The DIGITUS® CAT 6A connector for field assembly is a modern and high-quality RJ45 connector that is not only characterized by its super easy applicability, but is also reliable and time-saving for the field assembler in every application. The quick installation in just 60 seconds without any special tools, as well as the enormous flexibility, makes it the perfect choice for all locations. It is suitable for all networks, from voice to 10 Gigabit Ethernet. Satisfied customers thanks to fast and cost-saving installation, repair and maintenance are the logical consequence of this innovative RJ45 connector.

Features

Connector(s): RJ-45
Connector gender: Male
Connector form factor: Straight
Product colour: Silver, Yellow
Cable standard: Cat6a
Connector contacts plating: Nickel/Gold
Feature: Connector shielding
Power over Ethernet (PoE) type supported: PoE++ (4PPoE)
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Dielectric strength: 1000 V
Insertion force: 30 N

Operational conditions

Operating temperature (T-T): -20 - 70 °C

Packaging data

Quantity per pack: 1 pc(s)
Package width: 20 mm
Package depth: 40 mm
Package height: 10 mm
Package weight: 20 g

Technical details

Connector material: Phosphor bronze
Housing material: Zinc
