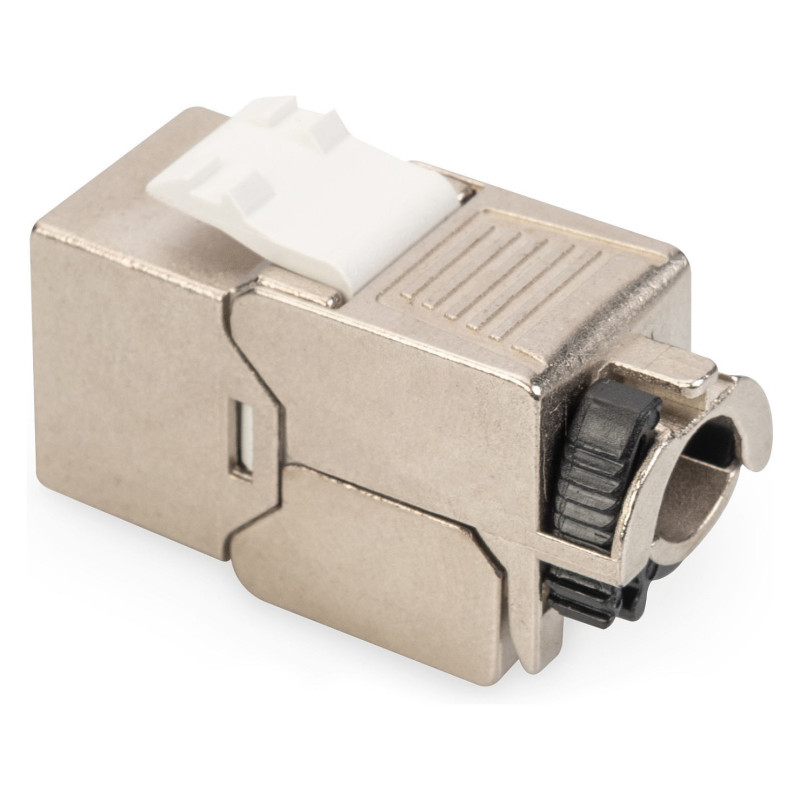

„Digitus DN-93617 Keystone“ modulis

Digitus CAT 6A Keystone module, shielded with intelligent cable manager. Product colour: Silver, Connector 1: Rj-45, Cable types supported: Cat6a. Weight: 19 g. Package width: 15 mm, Package depth: 31 mm, Package height: 21 mm. Country of origin: China

Design-capable, shielded, tool-free and intelligent cable manager

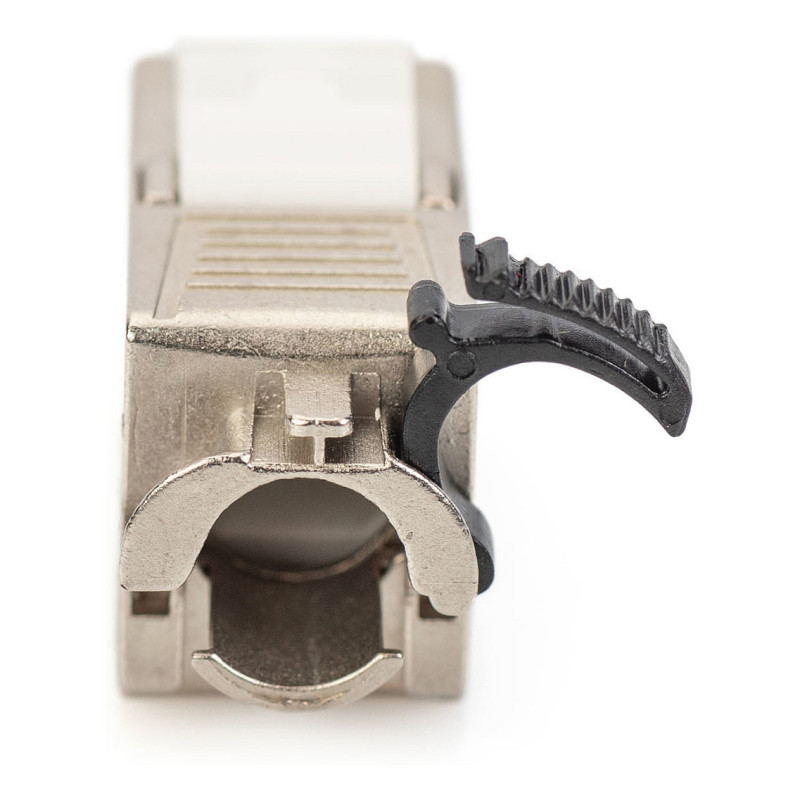

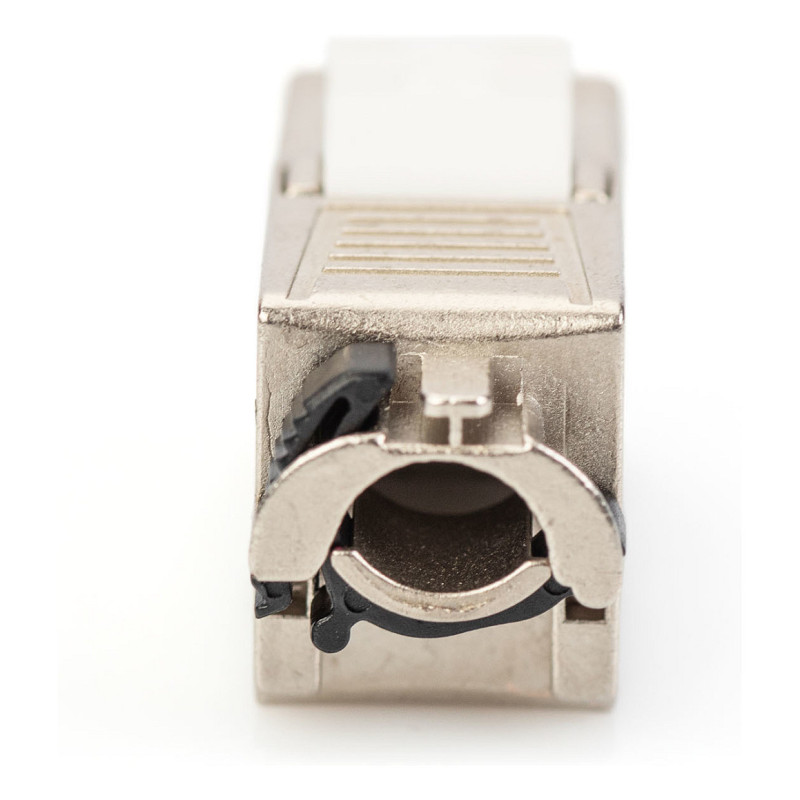

- Strain relief and cable fixing using intelligent cable manager
- 360° shield contacting
- Suitable for field assembly (tool-free installation)
- Design-compatible - suitable for mounting in distribution panels and junction boxes
- CAT 6A with LSA insulation displacement connectors
- Dust protection cap for RJ45 socket
- GHMT certified
- Supported PoE standards: IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link)

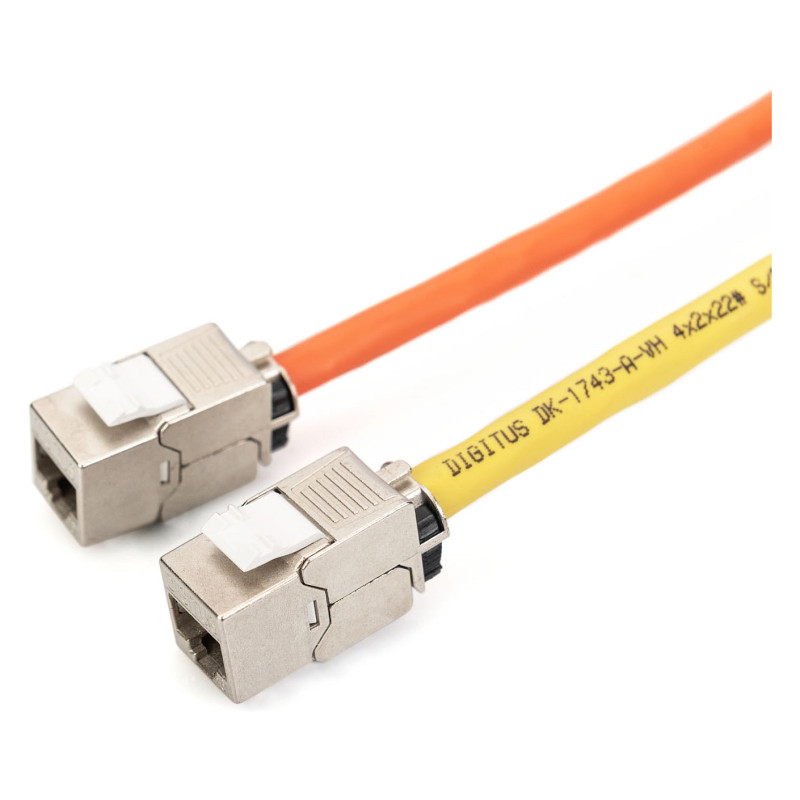

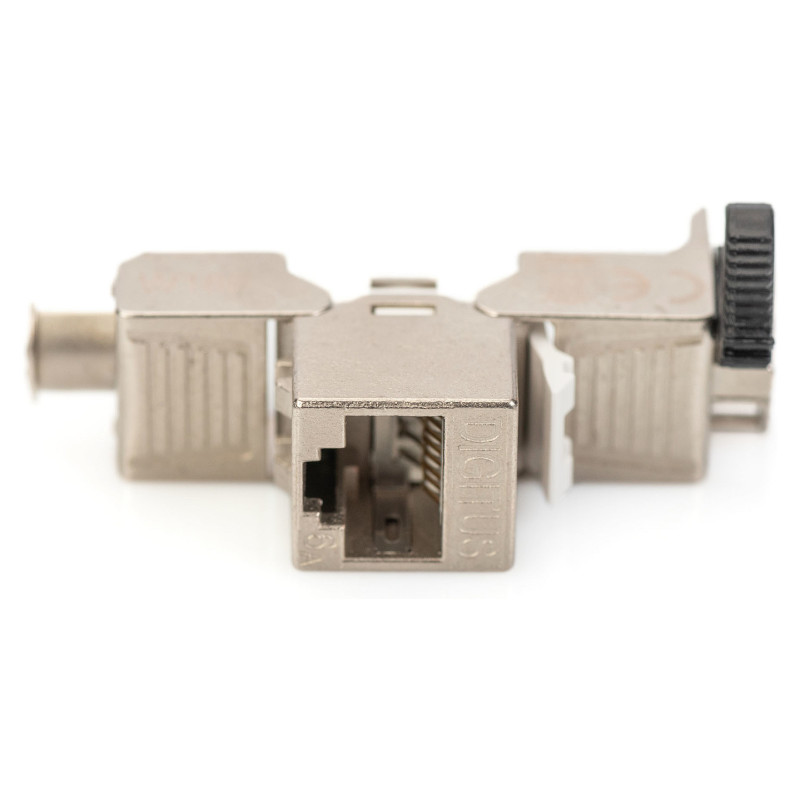

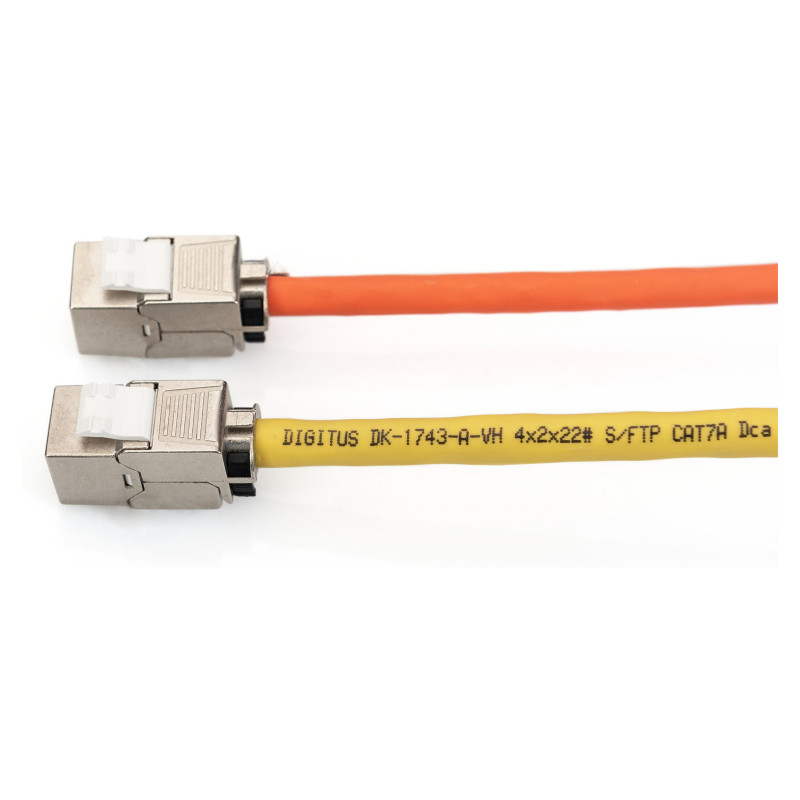

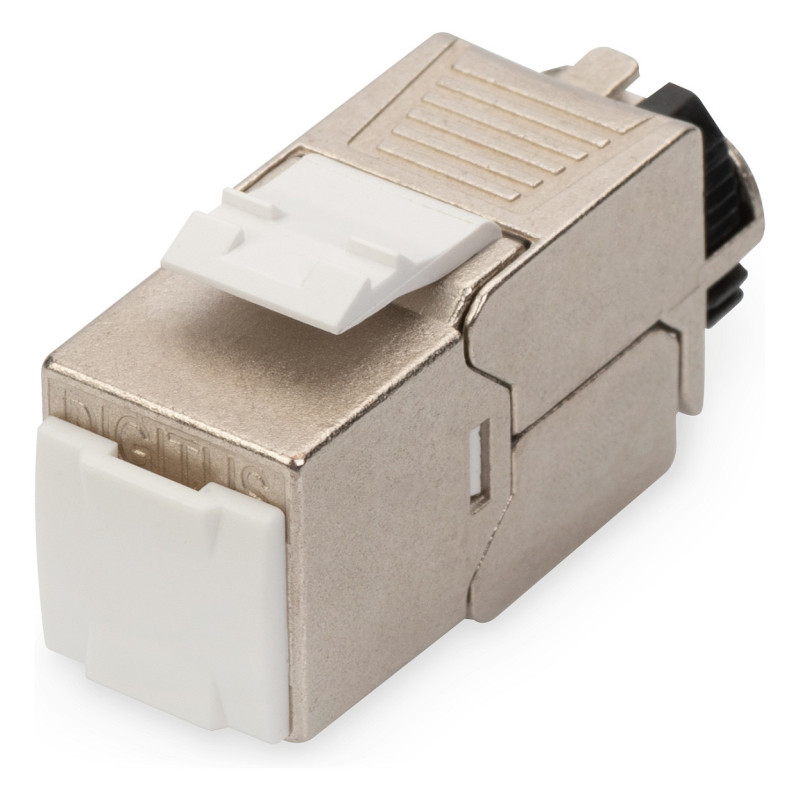

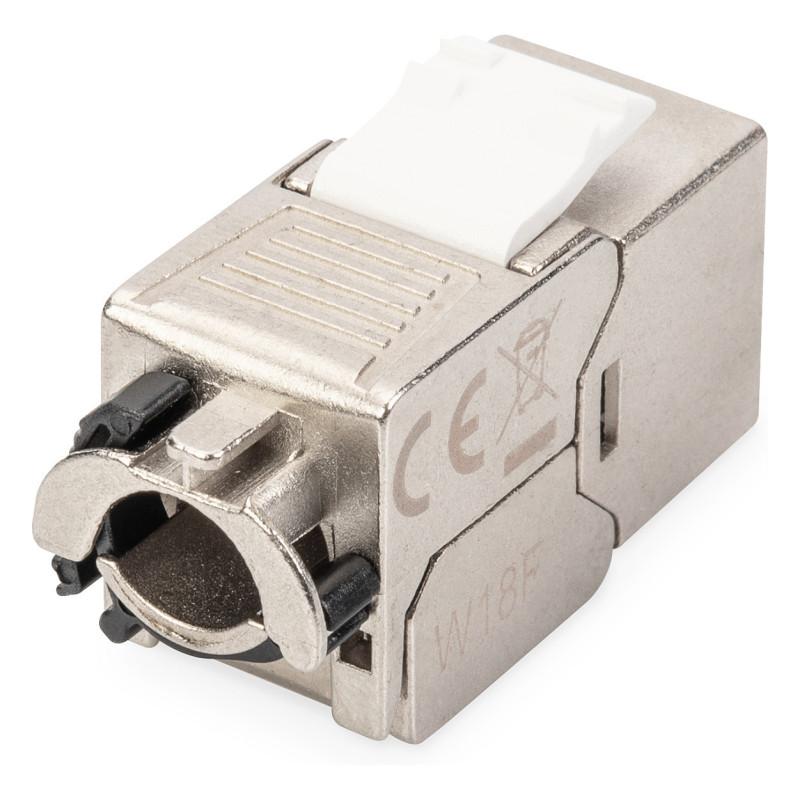

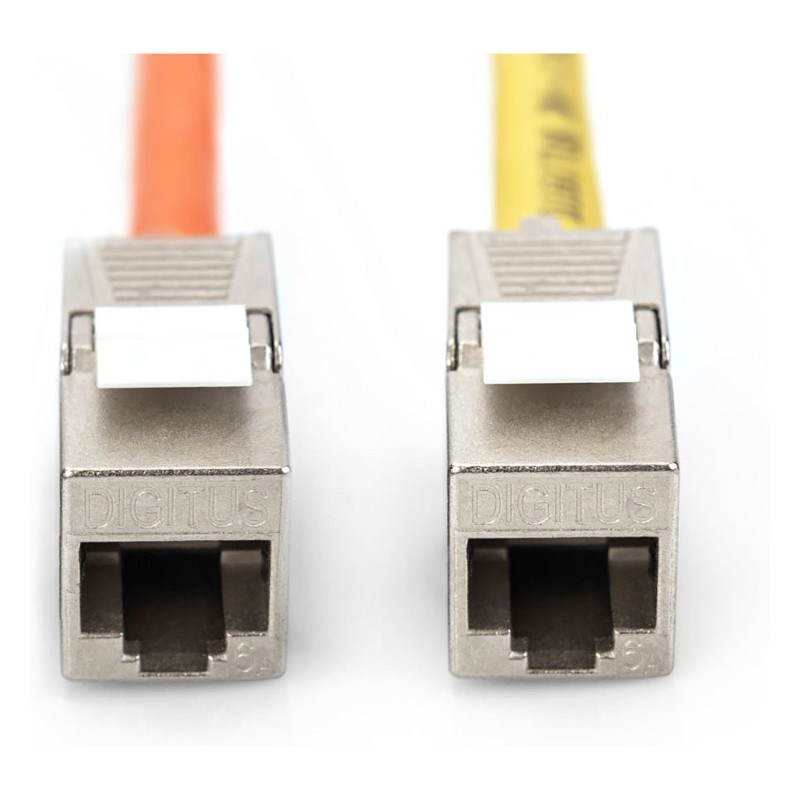

The shielded CAT 6A Keystone module set DN-93617 from DIGITUS® impresses with future-oriented standards and high-end quality for your network. The modules have 360° shield contacting, a locking lever and a reclosable, intelligent cable manager for strain relief and cable fixing. The compact design allows for row installation in 483 mm (19") 1U panels. The tool-free installation is carried out via LSA strips, color-coded in accordance with EIA/TIA 568 A&B. Thanks to its compact design, the module also fits into design-compatible modular junction boxes.

Features

Product colour: Silver
Connector 1: Rj-45
Cable types supported: Cat6a

Weight & dimensions

Weight: 19 g

Packaging data

Package width: 15 mm
Package depth: 31 mm
Package height: 21 mm
Package weight: 24.6 g

Logistics data

UK Trade Tariff code: 85366990
Country of origin: China
Harmonized System (HS) code: 85369010
