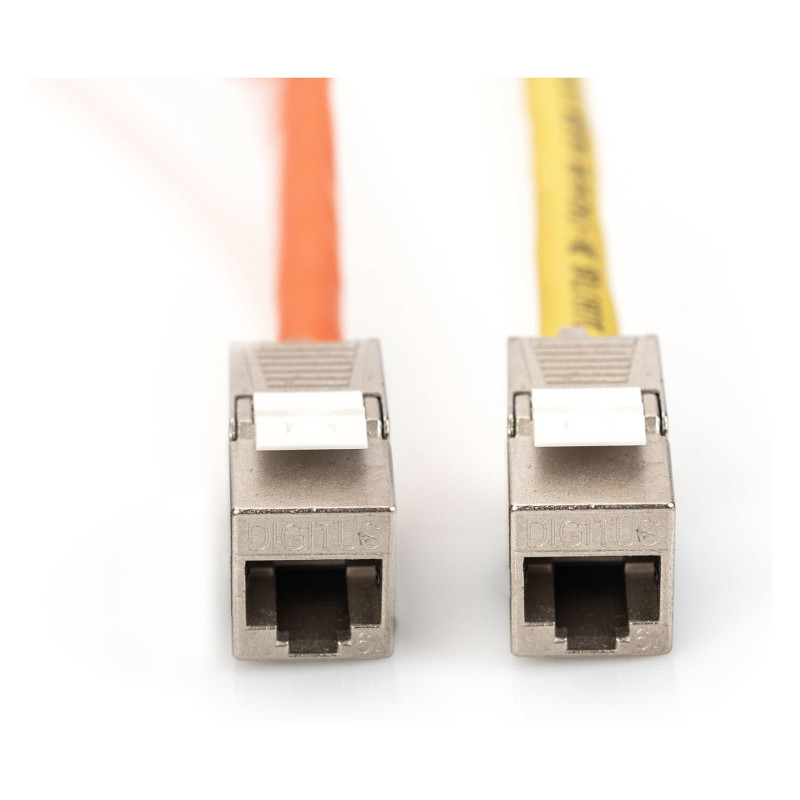

Digitus DN-93617-24 laidų jungtis

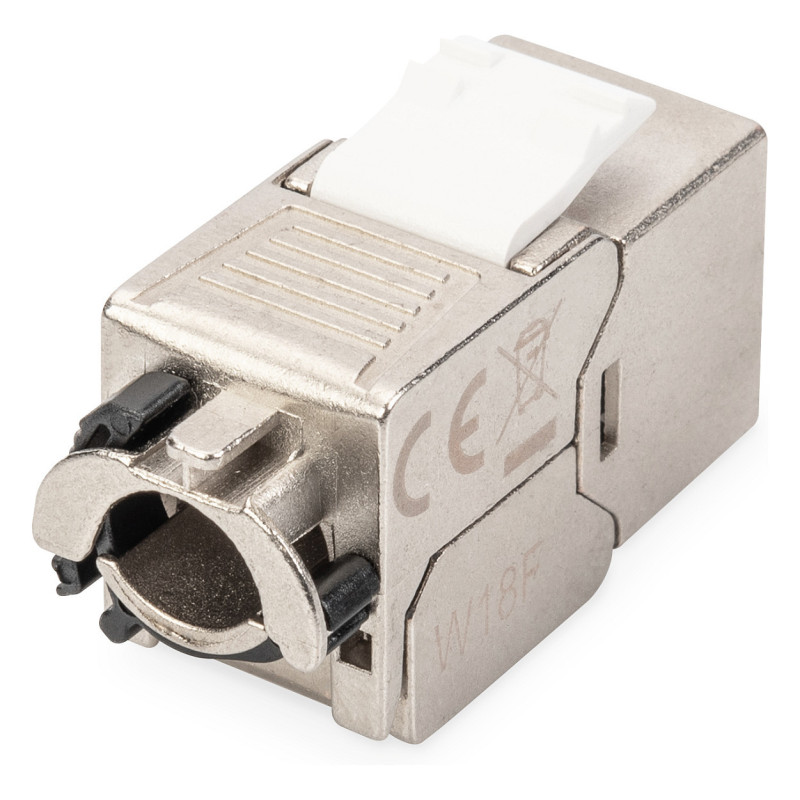

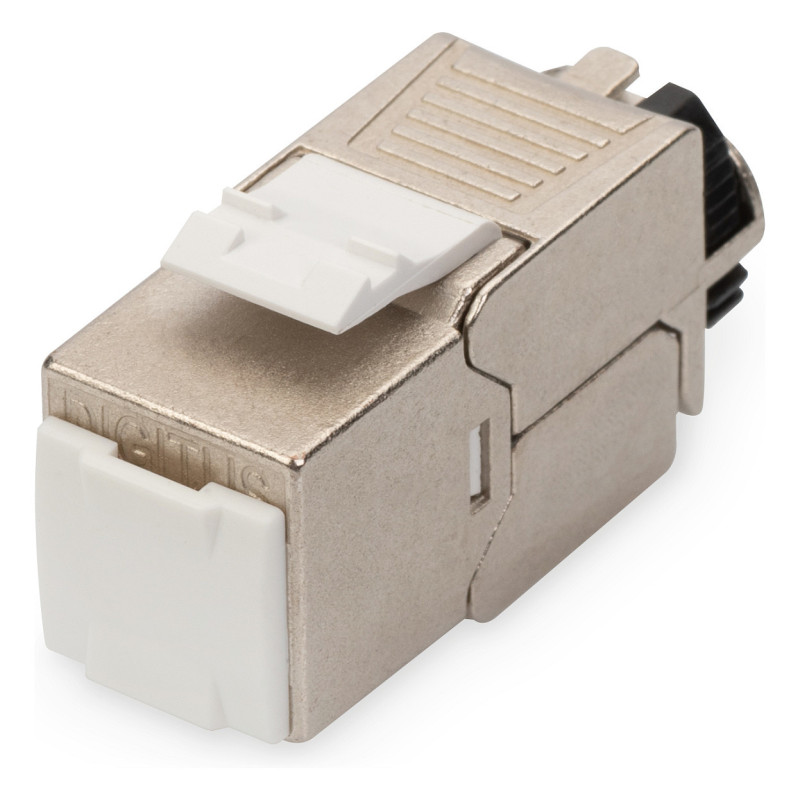

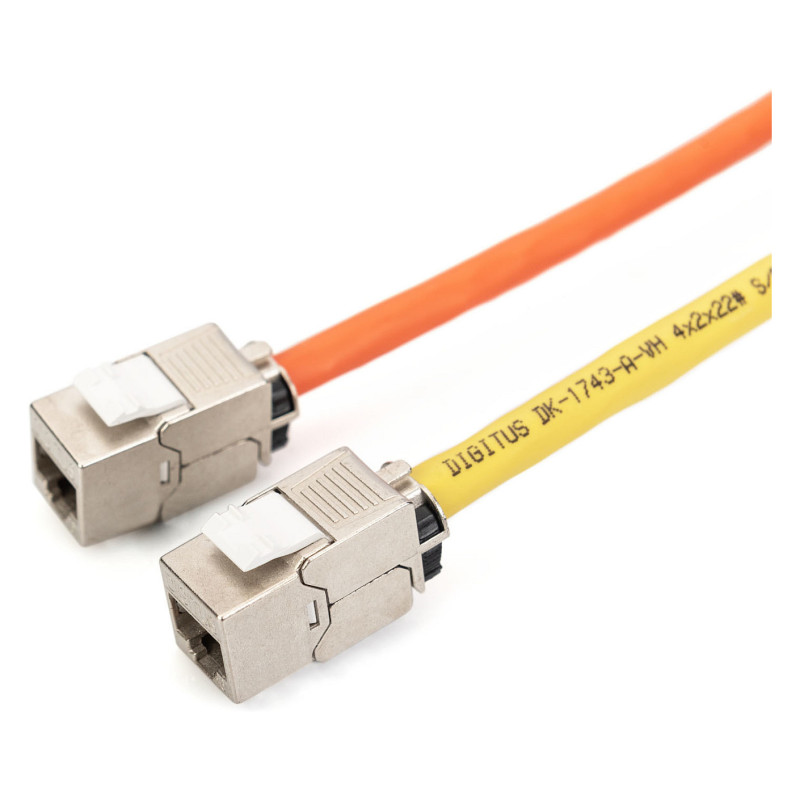

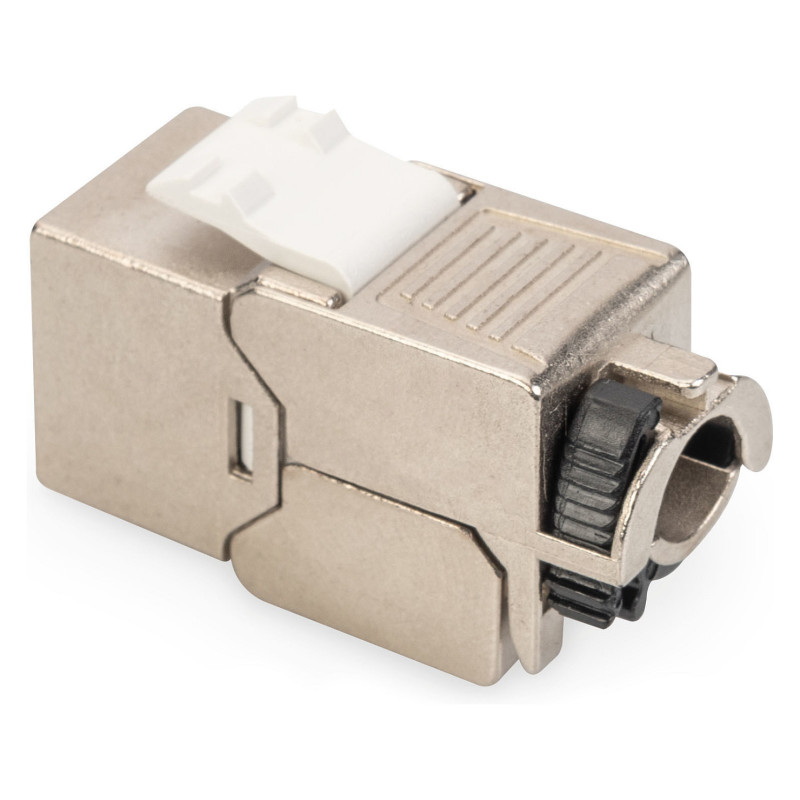

Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces). Product colour: Silver. Dimensions (WxDxH): 14.5 x 35.3 x 19.5 mm, Weight: 19 g. Quantity per pack: 24 pc(s), Package width: 15 mm, Package depth: 31 mm. Country of origin: China

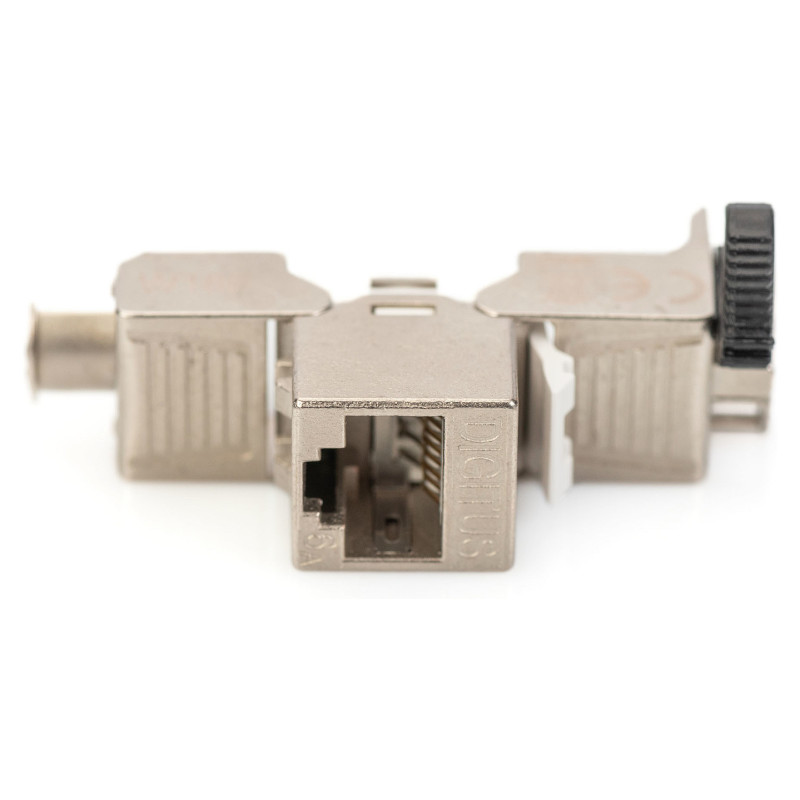

Design-capable, shielded, tool-free and intelligent cable manager

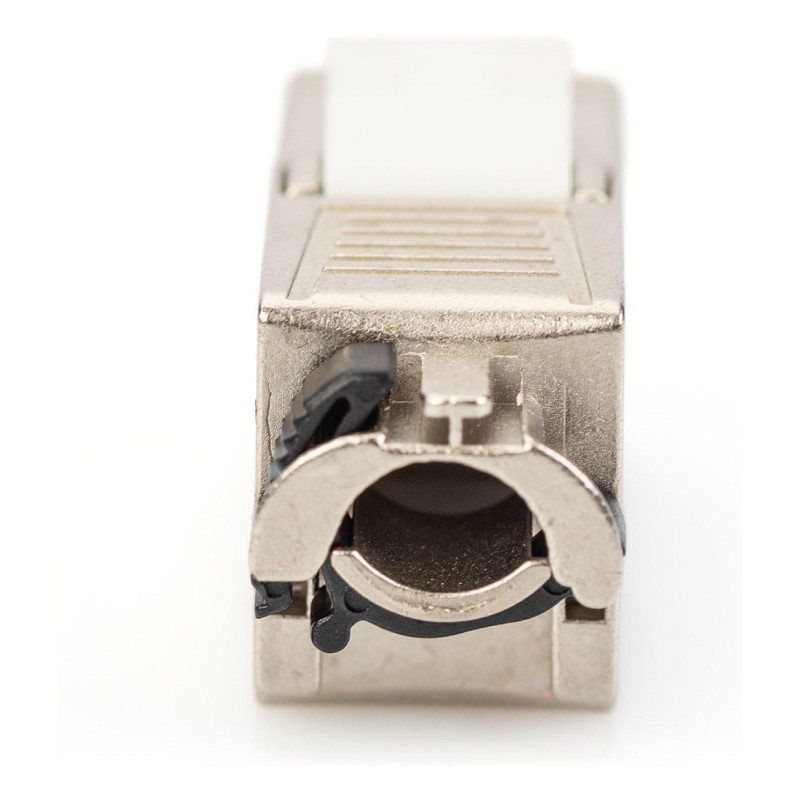

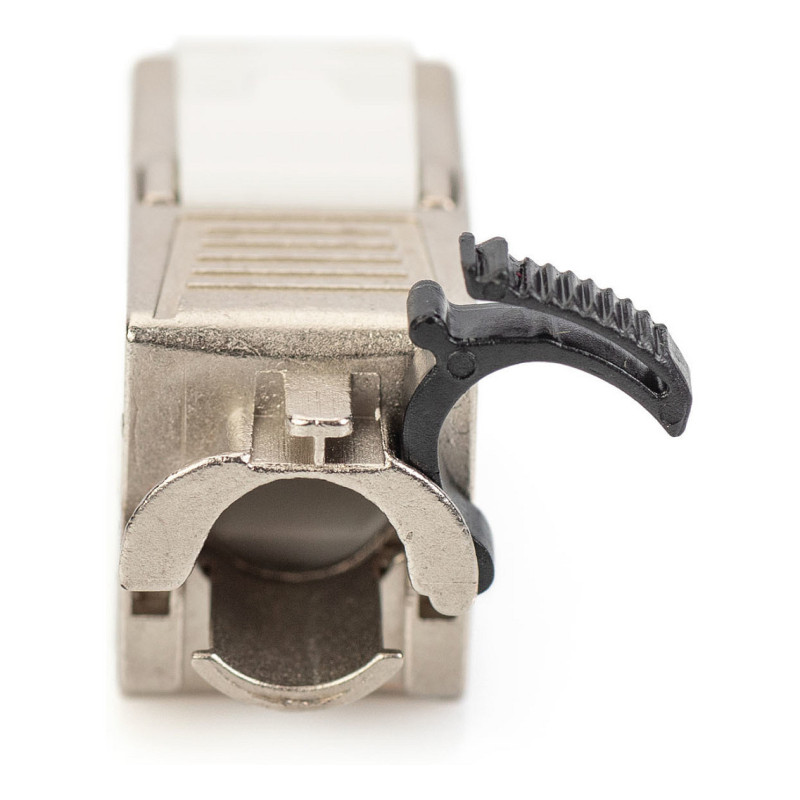

- Strain relief and cable fixing using intelligent cable manager
- 360° shield contacting
- Suitable for field assembly (tool-free installation)
- Design-compatible - suitable for mounting in distribution panels and junction boxes
- CAT 6A with LSA insulation displacement connectors
- Dust protection cap for RJ45 socket
- GHMT certified
- Supported PoE standards: IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link)

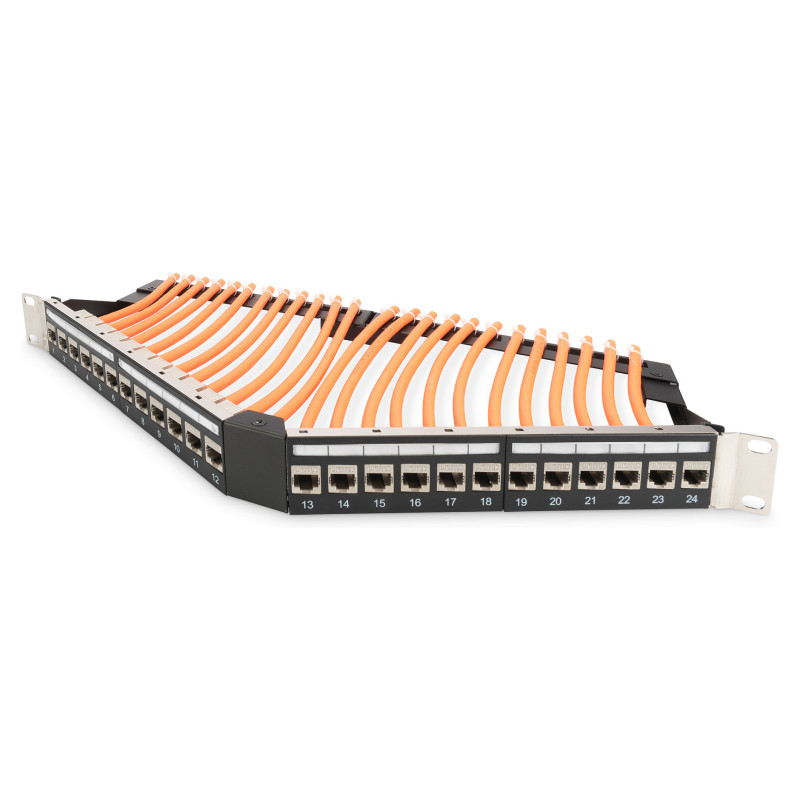

The shielded CAT 6A keystone module set DN-93617-24 from DIGITUS® impresses with future-oriented standards and high-end quality for your network. The modules have 360° shield contacting, a locking lever and a reclosable, intelligent cable manager for strain relief and cable fixing. The compact design allows for row installation in 483 mm (19") 1U panels. The tool-free installation is carried out via LSA strips, color-coded in accordance with EIA/TIA 568 A&B. Thanks to its compact design, the module also fits into design-compatible modular junction boxes.

Features

Product colour: Silver

Operational conditions

Operating temperature (T-T): -10 - 60 °C

Weight & dimensions

Dimensions (WxDxH): 14.5 x 35.3 x 19.5 mm
Weight: 19 g

Packaging data

Quantity per pack: 24 pc(s)
Package width: 15 mm
Package depth: 31 mm
Package height: 21 mm
Package weight: 625 g

Technical details

Connector 1: Rj-45
Connector 2: LSA

Logistics data

UK Trade Tariff code: 85366990
Country of origin: China
