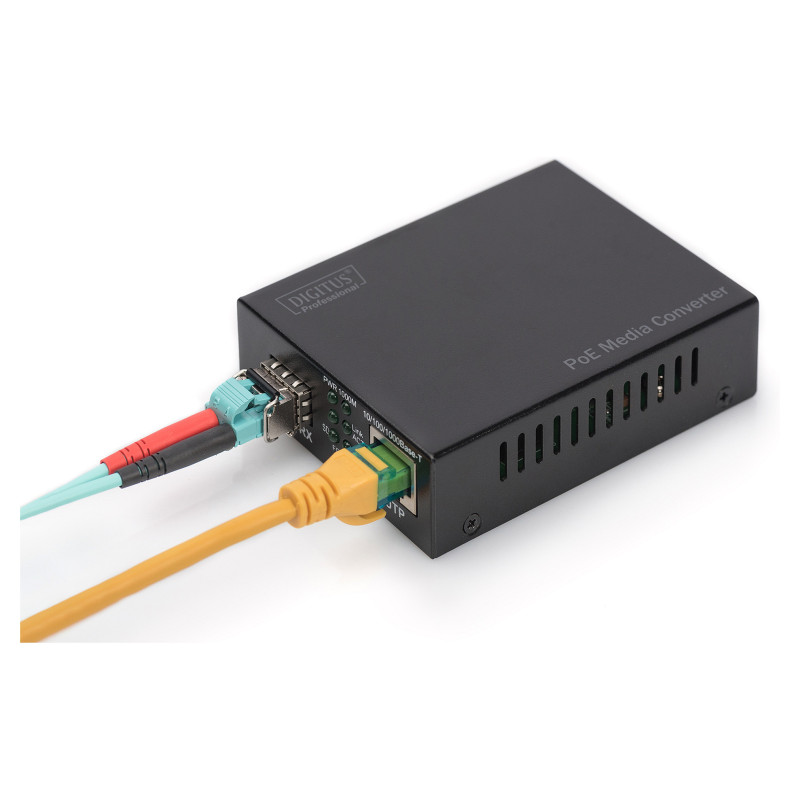

Digitus DN-82140 tinklo medijos keitiklis

Digitus Gigabit PoE media converter, RJ45 / SFP, PSE. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-T, 1000Base-T, Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z. Maximum transfer distance: 80000 m, Mean time between failures (MTBF): 500000 h. LED indicators: Activity, Link, Power, Product colour: Black. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 5 V, Output voltage: 48 - 52 V, Total Power over Ethernet (PoE) budget: 30 W

The perfect converter solution for optical data transmission

- PoE power supplier, PSE
- Sends data with high quality and additionally offers the highest level of failure safety
- A fast transfer in the gigabit range is guaranteed
- Upmarket SFP module with a range of up to 80 km

The media converters from DIGITUS® are an optimal solution for the migration of copper and fiber optic signals. From now on, you can access the fiber optic technology and transmit fiber optic signals over several kilometers without having to replace your entire network cabling. With our comprehensive range of products, you can respond to your individual needs. The intuitive operation guarantees a quick and easy installation. Many years of experience and a diverse range of services make DIGITUS® a reliable partner for your network technology.

Network

Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 10Base-T, 100Base-T, 1000Base-T
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Data transfer rate: 1000 Mbit/s
Feature: Auto MDI/MDI-X

Performance

Maximum transfer distance: 80000 m
Mean time between failures (MTBF): 500000 h

Features

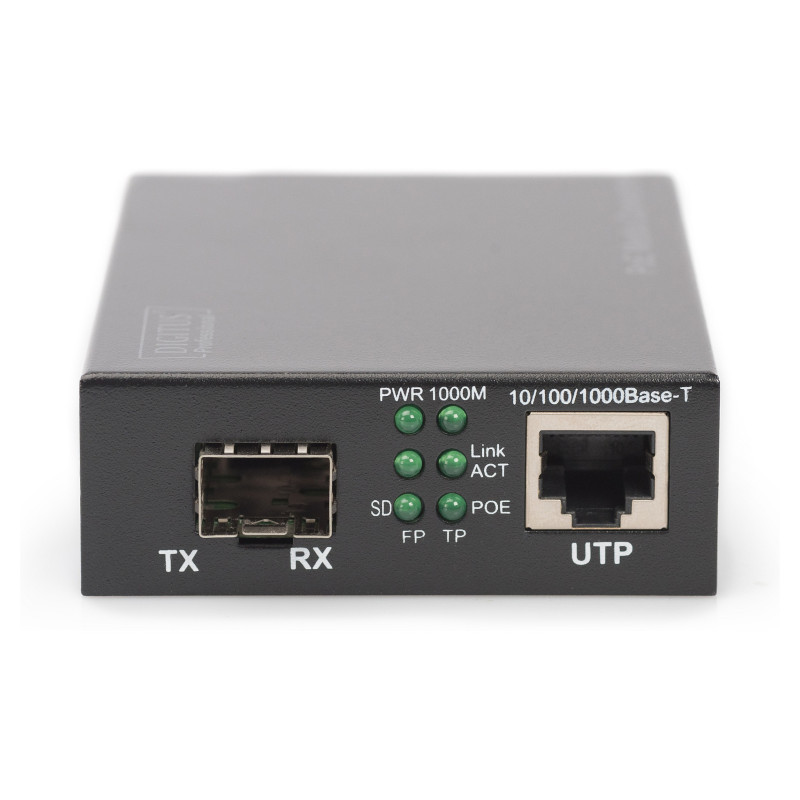

LED indicators: Activity, Link, Power
Product colour: Black

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP
Power over Ethernet (PoE) ports quantity: 1
Feature: DC-in jack

Power

Input voltage: 5 V
Output voltage: 48 - 52 V
Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 30 W
Feature: External power adapter

Weight & dimensions

Width: 71 mm
Depth: 95 mm
Height: 26 mm

Operational conditions

Operating temperature (T-T): -20 - 65 °C
Storage temperature (T-T): -40 - 85 °C

Packaging content

Feature: AC adapter included
Feature: Quick installation guide

Packaging data

Package width: 130 mm
Package depth: 240 mm
Package height: 60 mm
Package volume: 1872 cm³
Package weight: 800 g

Logistics data

Country of origin: China
UK Trade Tariff code: 85176200
Harmonized System (HS) code: 85176990
Master (outer) case width: 410 mm
Master (outer) case length: 570 mm
Master (outer) case height: 280 mm
Master (outer) case gross weight: 8 kg
Master (outer) case volume: 65436 cm³
Products per master (outer) case: 110 pc(s)
