Digitus DN-82124 tinklo medijos keitiklis

Digitus Gigabit Multimode/Singlemode Media Converter SC/SC. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-SX, Converter output interface: 1000Base-SX. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode, Multi-mode. LED indicators: Activity, Link, Power, Status, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 5 V, Input current: 1 A, Power consumption (typical): 3.5 W

The perfect converter solution for optical data transmission

- Easy conversion between multimode and singlemode fiber optic
- Fast migration for long distances
- Range of up to 20km

The media converters from DIGITUS® are an optimal solution for the migration of copper and fiber optic signals. From now on, you can access the fiber optic technology and transmit fiber optic signals over several kilometers without having to replace your entire network cabling. With our comprehensive range of products, you can respond to your individual needs. The intuitive operation guarantees a quick and easy installation. Many years of experience and a diverse range of services make DIGITUS® a reliable partner for your network technology.

Network

Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 1000Base-SX
Converter output interface: 1000Base-SX
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000 Mbit/s
Fiber ethernet cabling technology: 1000BASE‑SX
Data transfer rate: 1000 Mbit/s

Performance

Maximum transfer distance: 20000 m
Wavelength: 1310 nm
Fiber mode structure: Single-mode, Multi-mode
Fiber cable diameters supported (core/cladding): 8.3/125,8.7/125,9/125,10/125,50/125,62.5/125,100/140 µm

Features

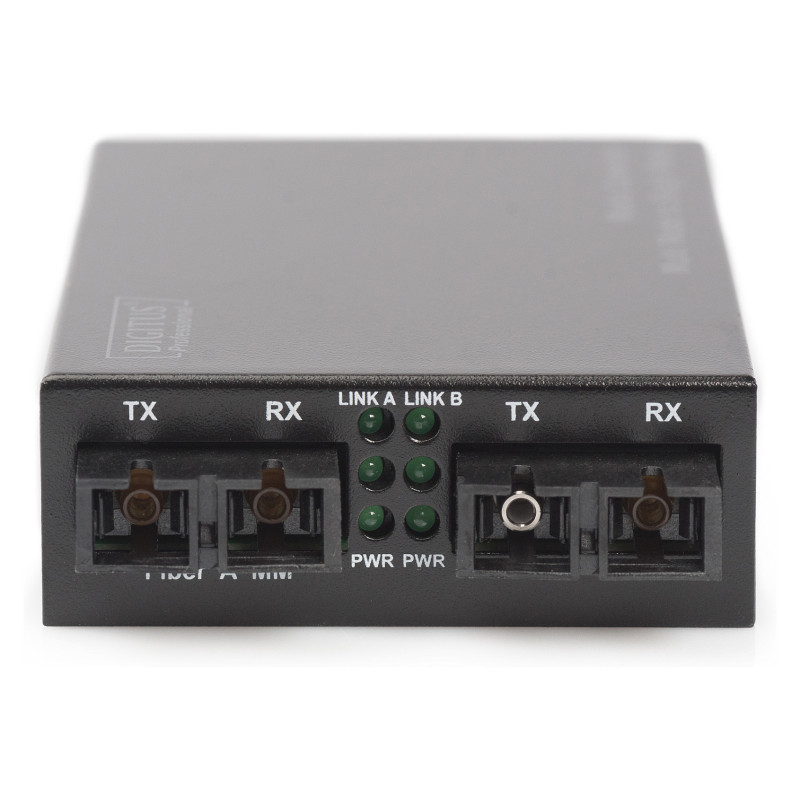

LED indicators: Activity, Link, Power, Status
Product colour: Black

Ports & interfaces

Connectivity technology: Wired
Fiber ports quantity: 2
Fiber optic connector: SC

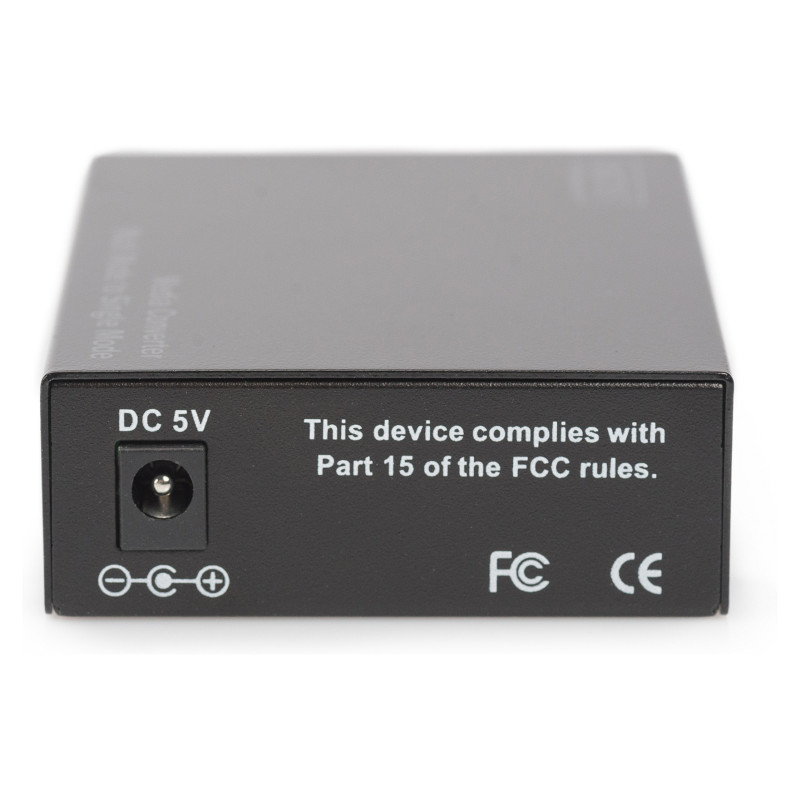

Feature: DC-in jack

Power

Input voltage: 5 V
Input current: 1 A
Power consumption (typical): 3.5 W
Feature: External power adapter

Weight & dimensions

Width: 95 mm
Depth: 40 mm
Height: 26 mm
Weight: 300 g

Operational conditions

Operating temperature (T-T): -10 - 55 °C

Packaging content

Feature: AC adapter included
Feature: Quick installation guide

Packaging data

Package width: 130 mm
Package depth: 250 mm
Package height: 55 mm
Package volume: 1787.5 cm³
Package weight: 350 g

Logistics data

Country of origin: China
UK Trade Tariff code: 85176200
Harmonized System (HS) code: 85176990
Master (outer) case width: 394 mm
Master (outer) case length: 550 mm
Master (outer) case height: 254 mm
Master (outer) case gross weight: 7 kg
Master (outer) case volume: 55041.8 cm³
Products per master (outer) case: 20 pc(s)
