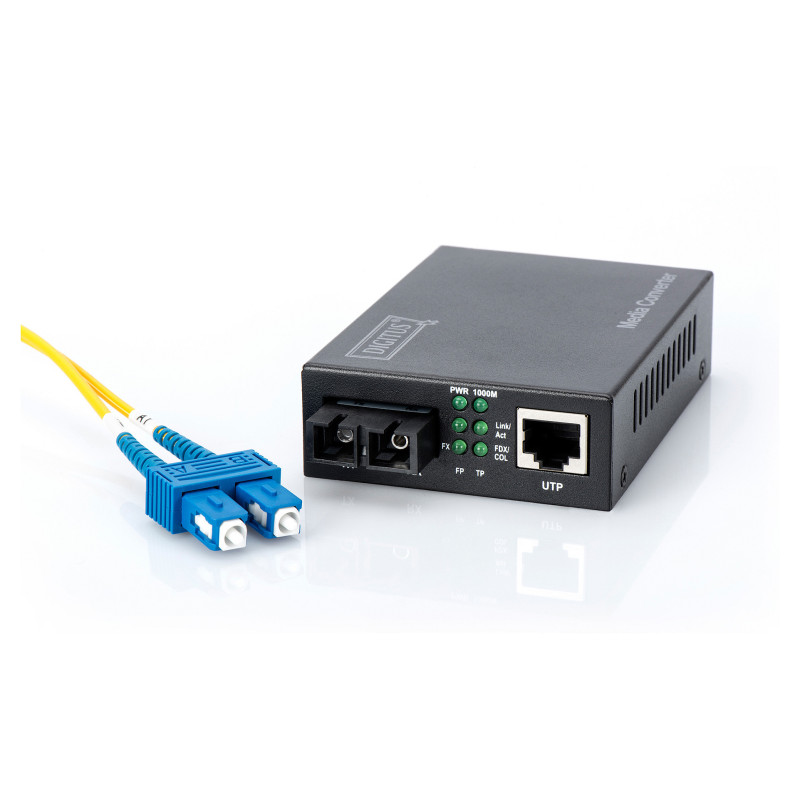

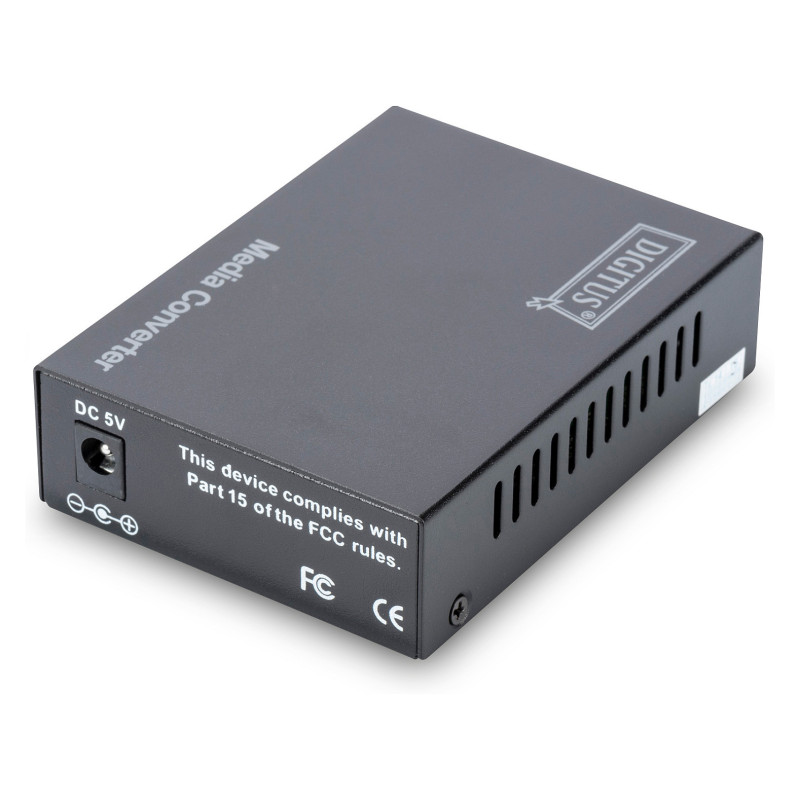

Digitus DN-82121-1 tinklo medijos keitiklis

Digitus Gigabit Media Converter, RJ45 / SC. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-TX, 100Base-TX, Converter output interface: 1000Base-LX. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. LED indicators: Activity, Link, Status, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 5 V

The perfect converter solution for various fiber media

- Distance up to 20km
- Sends data in high quality and additionally provides excellent reliability
- A quick delivery is guaranteed in the gigabit range

The media converters from DIGITUS® are the ideal solution for the migration of copper and fiber network signals. From now on, you are able to access the fiber technology and transfer network signals over several kilometers without renewing your whole network infrastructure. The huge variety of products fulfil your individual needs. The intiutive operation guarantees a quick and easy installation.

Network

Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 1000Base-TX, 100Base-TX
Converter output interface: 1000Base-LX
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Auto MDI/MDI-X
Duplex system: Full, Half

Performance

Maximum transfer distance: 20000 m
Wavelength: 1310 nm
Fiber mode structure: Single-mode
Fiber cable diameters supported (core/cladding): 9/125 µm
Tx power (min): -12 dBmW
Tx power (max): -6 dBmW
Rx power (min): -21 dBmW
Buffer size: 2048 KB

Features

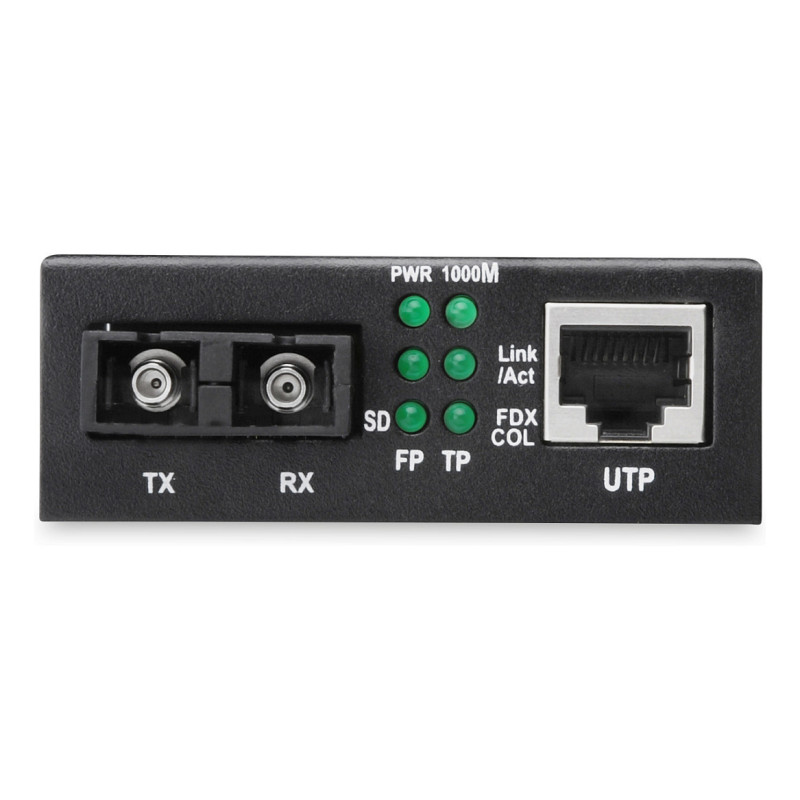

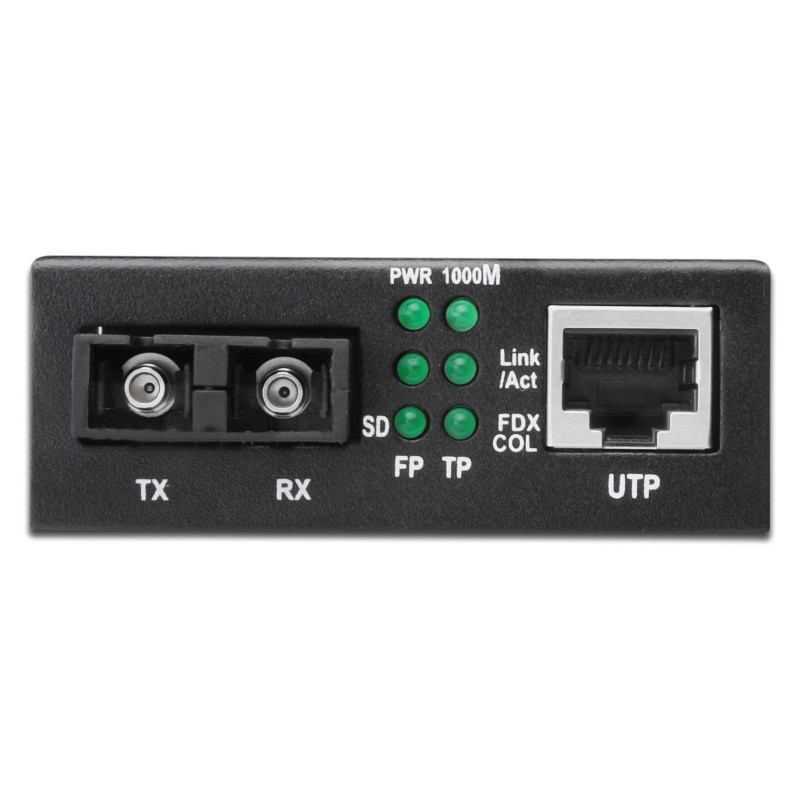

LED indicators: Activity, Link, Status
Product colour: Black

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC

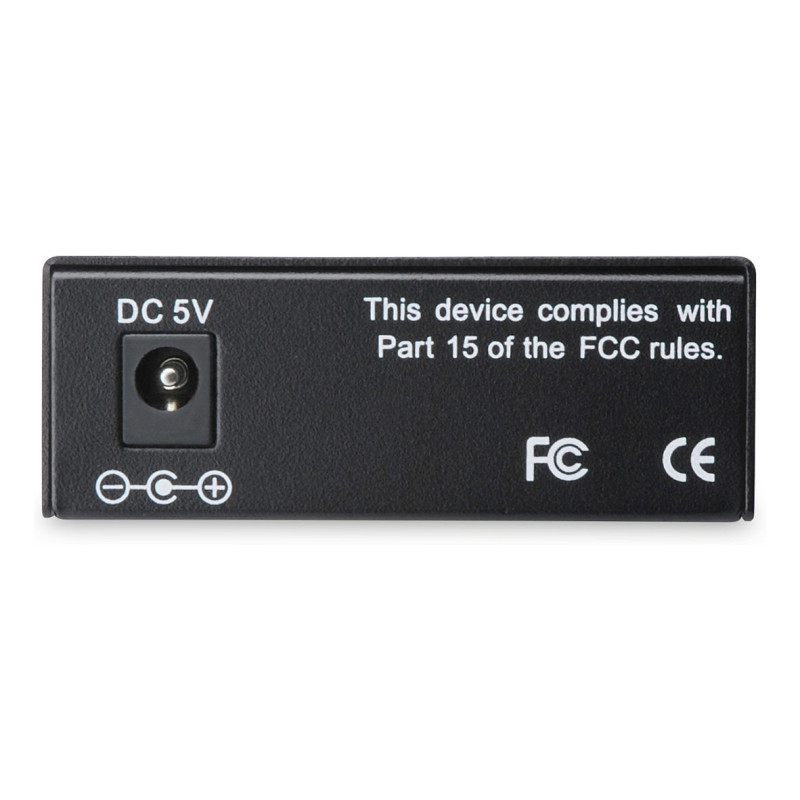

Feature: DC-in jack

Power

Input voltage: 5 V
Feature: External power adapter

Weight & dimensions

Width: 70 mm
Depth: 95 mm
Height: 26 mm
Weight: 200 g

Operational conditions

Operating temperature (T-T): 0 - 60 °C

Packaging data

Package width: 216 mm
Package depth: 60 mm
Package volume: 2086.56 cm³
Package weight: 450 g

Certificates

Certification: FCC, CE.

Logistics data

Country of origin: China
UK Trade Tariff code: 85176200
Harmonized System (HS) code: 85176990

Other features

Transmission distance (max): 10 km
