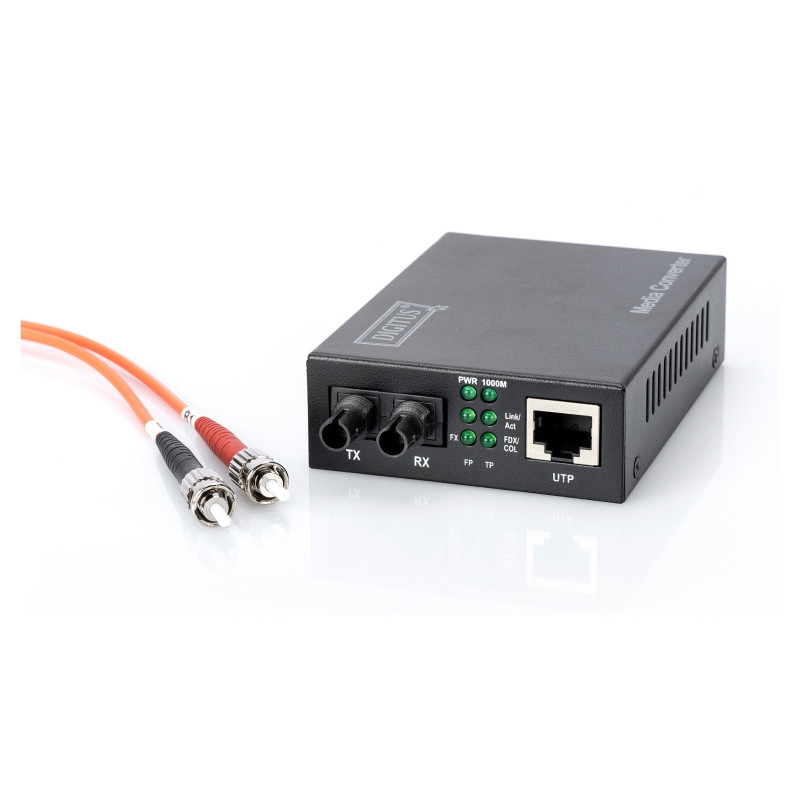

Digitus DN-82110-1 tinklo medijos keitiklis

Digitus Gigabit Media Converter, RJ45 / ST. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-T, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z. Maximum transfer distance: 500 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 5 V. Weight: 200 g

The perfect converter solution for various fiber media

- Sends data in high quality and additionally provides excellent reliability
- Automatic cable detection
- Over a distance of 500m transmits the converter in Gigabit speed

The media converters from DIGITUS® are the ideal solution for the migration of copper and fiber network signals. From now on, you are able to access the fiber technology and transfer network signals over several kilometers without renewing your whole network infrastructure. The huge variety of products fulfil your individual needs. The intiutive operation guarantees a quick and easy installation. Years of experience and a wide range of products lets DIGITUS® become a reliable partner for your network.

Network

Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 1000Base-T
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Feature: Auto MDI/MDI-X
Duplex system: Full, Half

Performance

Maximum transfer distance: 500 m
Wavelength: 850 nm
Fiber mode structure: Multi-mode
Sensitivity: -20 dBmW

Features

LED indicators: Yes

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 2
Fiber optic connector: SC

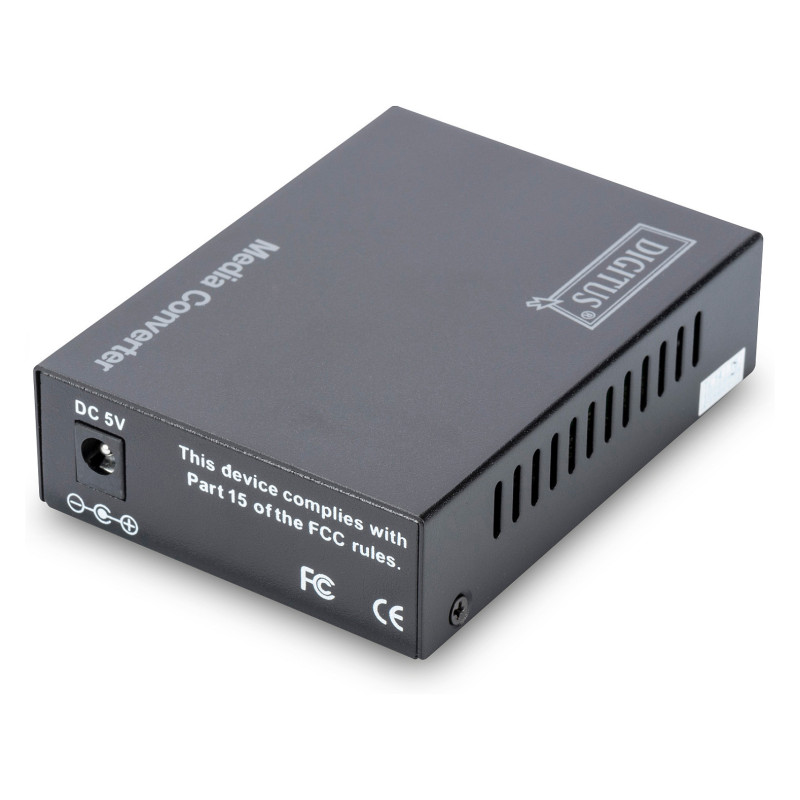

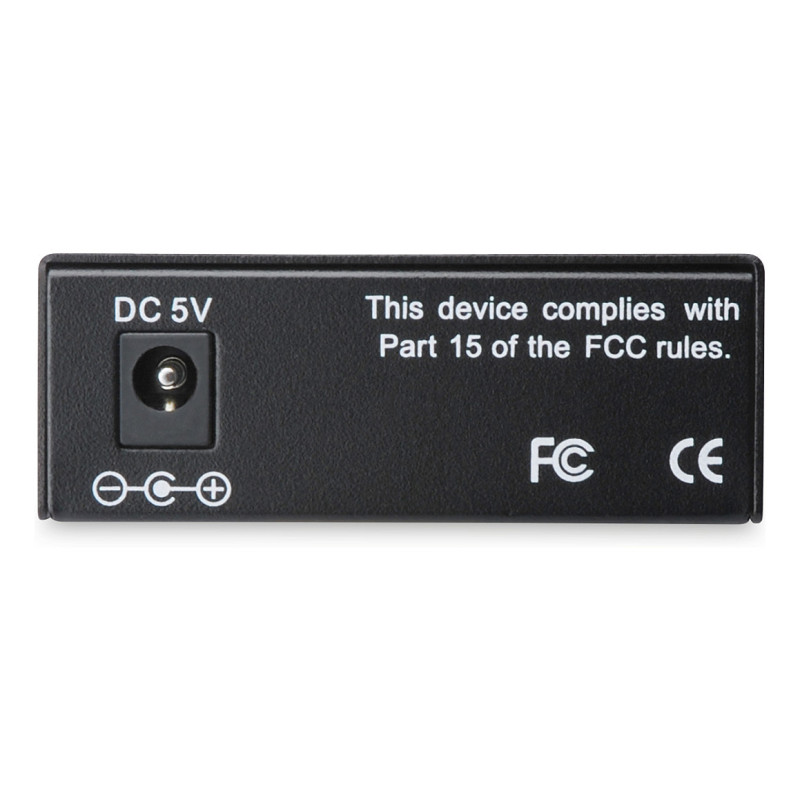

Feature: DC-in jack

Power

Input voltage: 5 V

Weight & dimensions

Weight: 200 g

Operational conditions

Operating temperature (T-T): 0 - 60 °C

Packaging data

Package width: 216 mm
Package depth: 60 mm
Package volume: 2086.56 cm³
Package weight: 450 g

Logistics data

Country of origin: China
UK Trade Tariff code: 85176200
Harmonized System (HS) code: 85176990

Other features

Dimensions (WxDxH): 95 x 70 x 26 mm
