„Digitus DN-10163“ tinklo plokštė

Digitus 10Gbps Dual Port Ethernet Server adapter. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Green, Silver

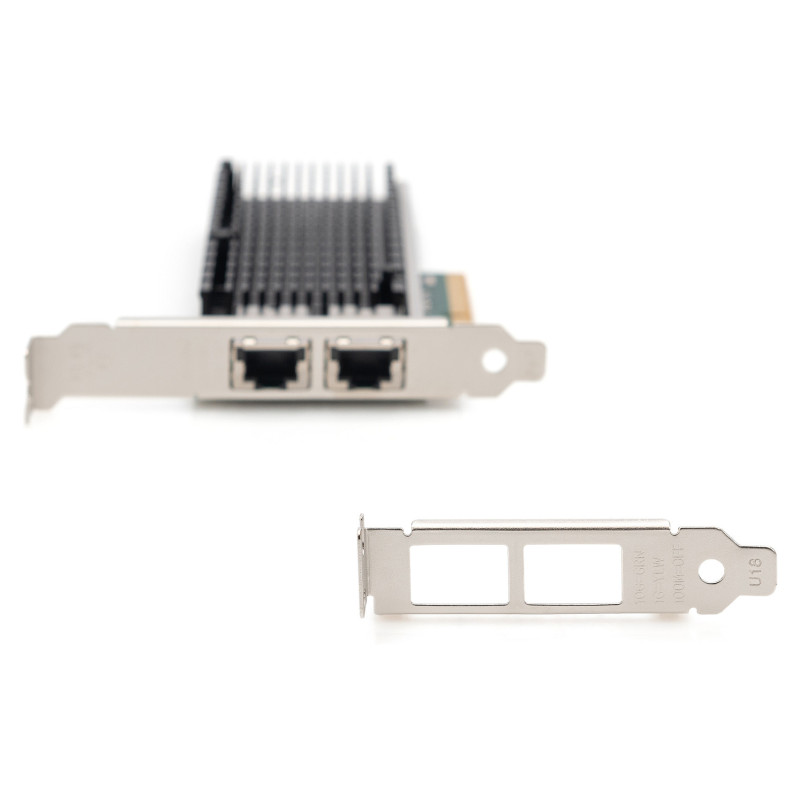

10Gbps Dual Port Ethernet Server adapter, incl. low Profile brackets

- Low cost, low power, 10 Gigabit Ethernet (10GbE) performance for the entire data center
- Standard CAT-6a cabling with RJ45 connectors
- Backward compatibility with existing 1000Base-T networks simplifies the transition to 10GbE
- Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 64 virtual ports
- Unified networking delivering LAN, iSCSI, and FCoE in one low cost CNA
- Industry first dual-port 10GBase-T adapter with single-chip solution with integrated MAC + PHY
- Reliable and proven 10 Gigabit Ethernet technology from Intel corporation
- Network / Transport Protocol: TCP/IP, UDP/IP, IPSec, iSCS

DN-10163 is PCI-e 10Gbps Dual RJ45 Port Ethernet Network Card , based on INTEL X540 Chipset, which is used by many OEMs as a single chip solution for LAN on Motherboard (LOM) to deliver 10 Gigabit Ethernet(10 GbE) on the latest server platforms. 10GBASE-T converged network adapter simplifies migration to 10 GbE, provides iSCSI, FCoE, Virtualization, and Flexible Port Partitioning."

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 2
PCI version: 2.1
PCI Card form factor: Full-height (low-profile)

Network

Maximum data transfer rate: 10000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p
Feature: Ethernet LAN
Feature: Jumbo frames support
Jumbo frames: 9.5
Data link protocols: TCP/IP, UDP/IP, IPSec, iSCS
LAN controller: Intel® X540-BT2

Design

Component for: Server
Product colour: Green, Silver
Feature: Internal
LED indicators: Yes
Country of origin: China

System requirements

Windows operating systems supported: Windows 10, Windows 8, Windows 8.1
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2008, Windows Server 2012, Windows Server 2016

Weight & dimensions

Width: 155 mm
Depth: 20 mm
Height: 120 mm
Weight: 170 g

Packaging data

Package width: 218 mm
Package depth: 30 mm
Package height: 155 mm
Package weight: 280 g

Packaging content

Feature: Mounting brackets included
Feature: Resource CD
Feature: Manual

Logistics data

UK Trade Tariff code: 84718000

Other features

Package volume: 1013.7 cm³
