„Digitus DK-24338U050BK-BBB InfiniBand“ / šviesolaidinis kabelis

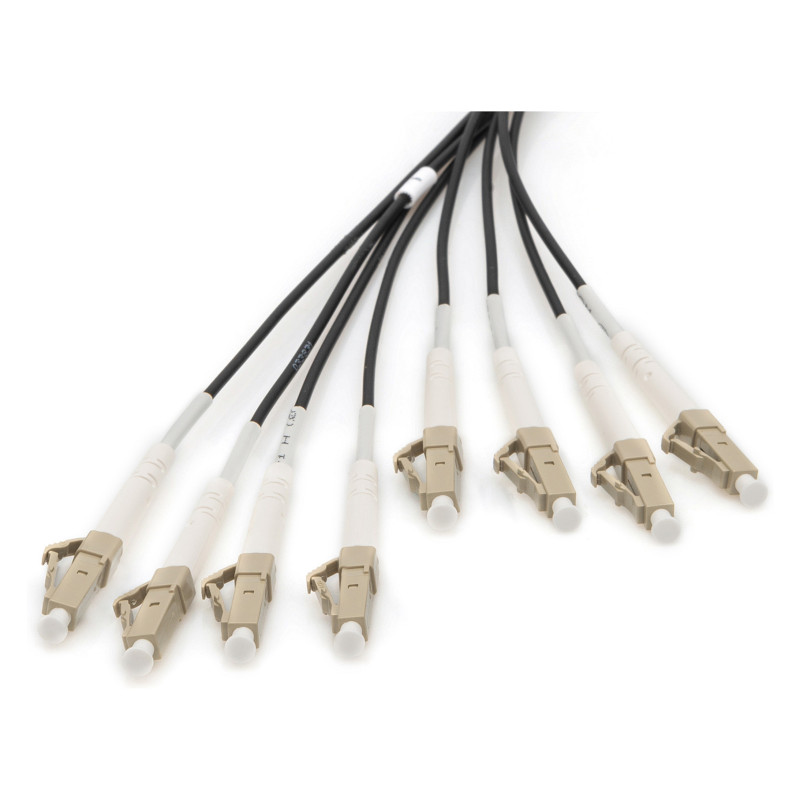

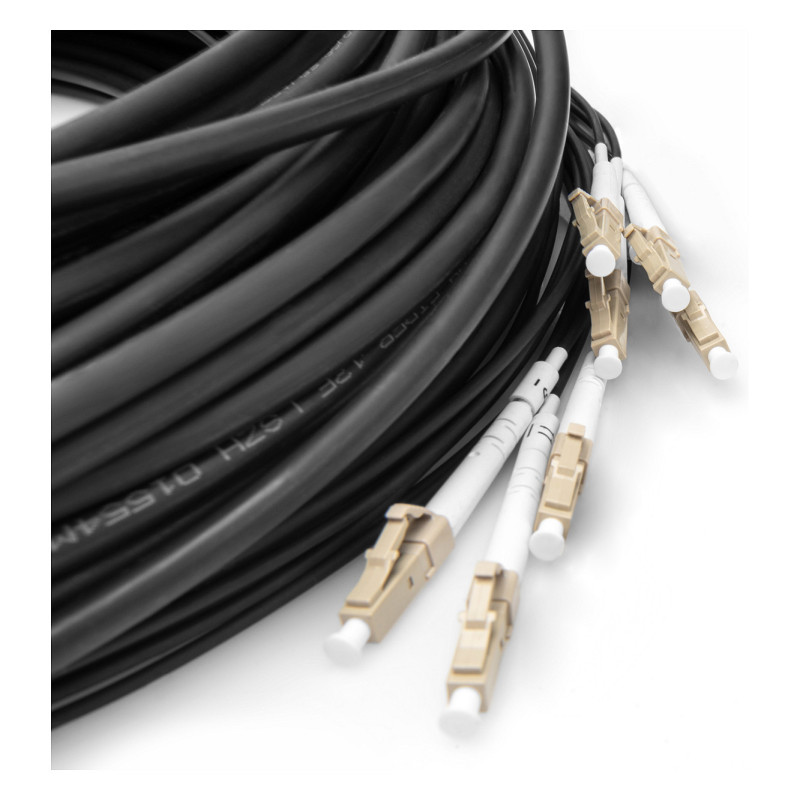

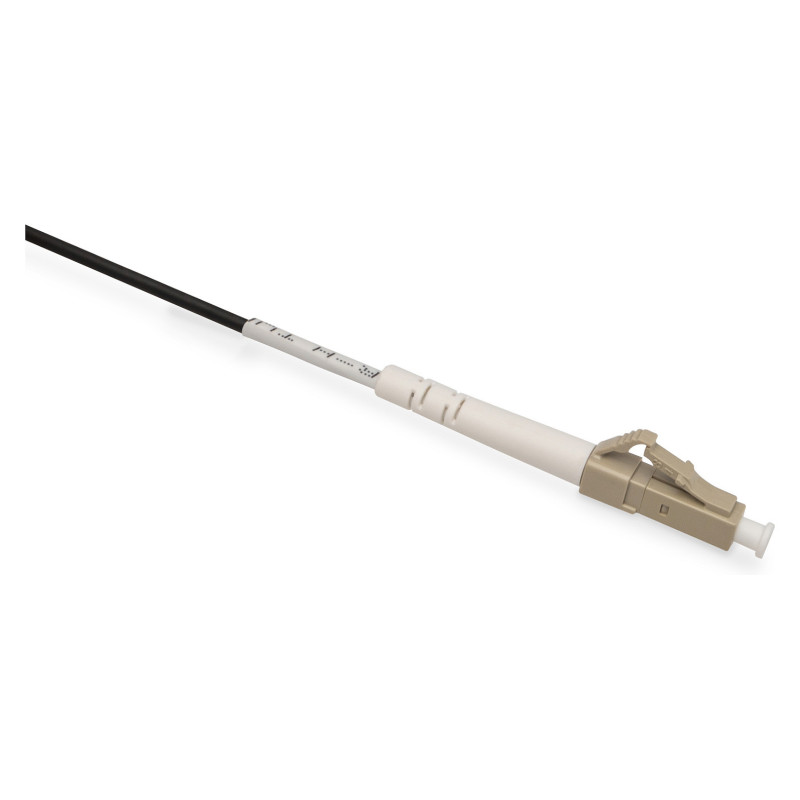

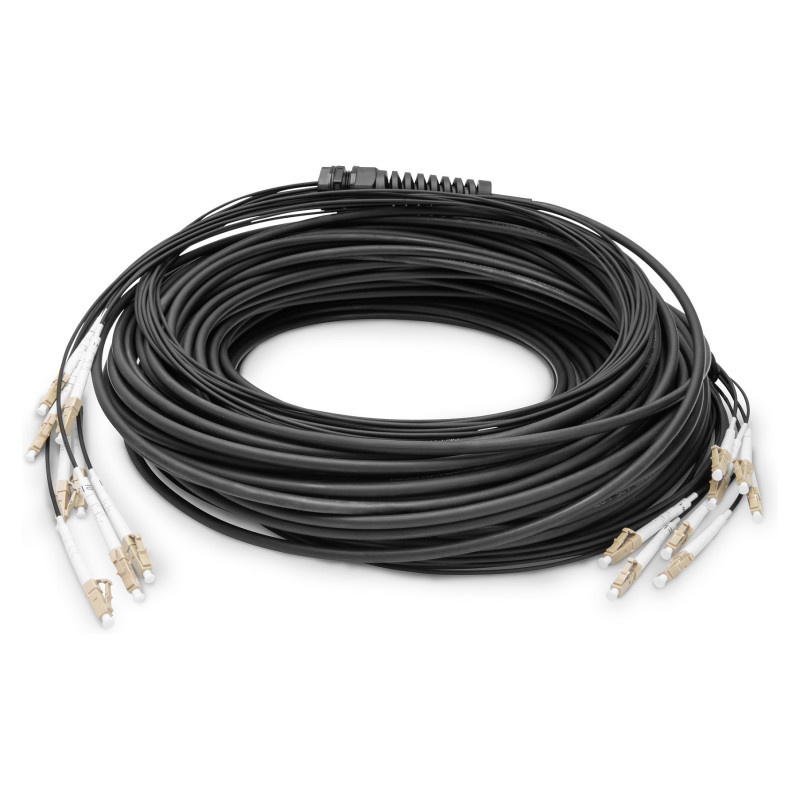

Digitus Pre-assembled Fiberglass Universal Breakout Cable, Multi Mode OM4, 8 Fibers, LC/UPC - LC/UPC. Cable length: 50 m, Cable type: U-DQ(ZN) BH, Fibre optic type: OM4, Connector 1: LC, Connector 2: LC, Core diameter: 50 µm

Pre-assembled fiber optic breakout cables enable simple, time-saving and flexible installation of high-bandwidth network links.

- Pre-assembled
- High-quality connectors fitted ex works
- Ready for immediate use, without additional splicing work
- Standard lengths available from stock
- High-quality components and construction
- Applications Applicable for indoor and outdoor use
- Connection of network cabinets without potential differences
- Individual mechanically protected fibers
- Robust cable construction

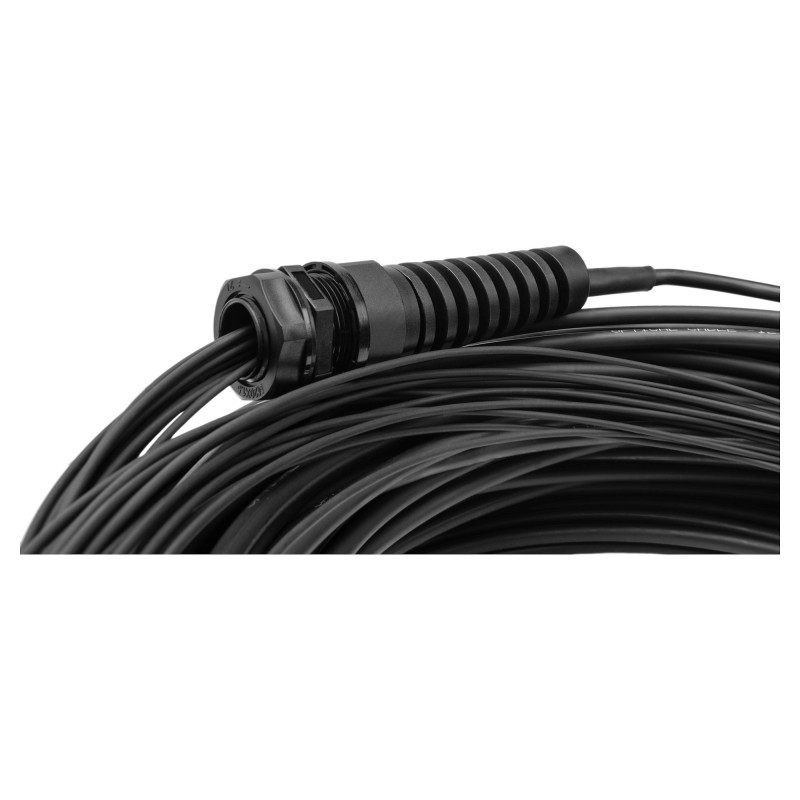

- Pull-in aid on both sides for secure installation

This pre-terminated breakout fiber optic cable is ideal for installations that require an extremely robust and reliable fiber optic cable design where maximum mechanical protection is required. It offers a secure plug & play solution for installations through the pre-terminated connectors. It is easy to install on partially assembled patch panels, for example. The supplied measurement protocol eliminates the need for time-consuming follow-up checks.

Features

Cable length: 50 m
Fibre optic type: OM4
Connector 1: LC
Connector 2: LC
Connector 1 gender: Male
Connector 2 gender: Male
Connector polish type: UPC
Cable type: U-DQ(ZN) BH
Product colour: Black
Core diameter: 50 µm
Cladding diameter: 125 µm
Fiber mode structure: Multi-mode
Insertion loss: 0.3 dB
Return loss: 30 dB
Jacket material: Low smoke zero halogen (LSZH)
Feature: Plug and Play

Operational conditions

Operating temperature (T-T): -20 - 70 °C
Storage temperature (T-T): -20 - 70 °C

Packaging data

Package width: 350 mm
Package depth: 350 mm
Package volume: 30625 cm³
Package weight: 5.3 kg

Packaging content

Quantity per pack: 1 pc(s)

Other features

Number of optical fibres: 8

Logistics data

UK Trade Tariff code: 85447000
Country of origin: China
