„Digitus DK-1743-VH-305-MF-W“ tinklo kabelis

Digitus CAT 7 S/FTP data cable - installation cable, 305 m, simplex, Dca-s1a, d0, a1. Cable length: 305 m, Cable standard: Cat7, Cable shielding: S/FTP (S-STP), Data transfer rate: 10000 Mbit/s, Product colour: White

Future-oriented standards and high-end quality for your network.

- 10GBit Ethernet
- 1200 MHz transmission frequency
- PoE Power over Ethernet support
- BauPVO class Dca-s1a,d0,a1
- Maxflex - maximum flexibility for your network cabling

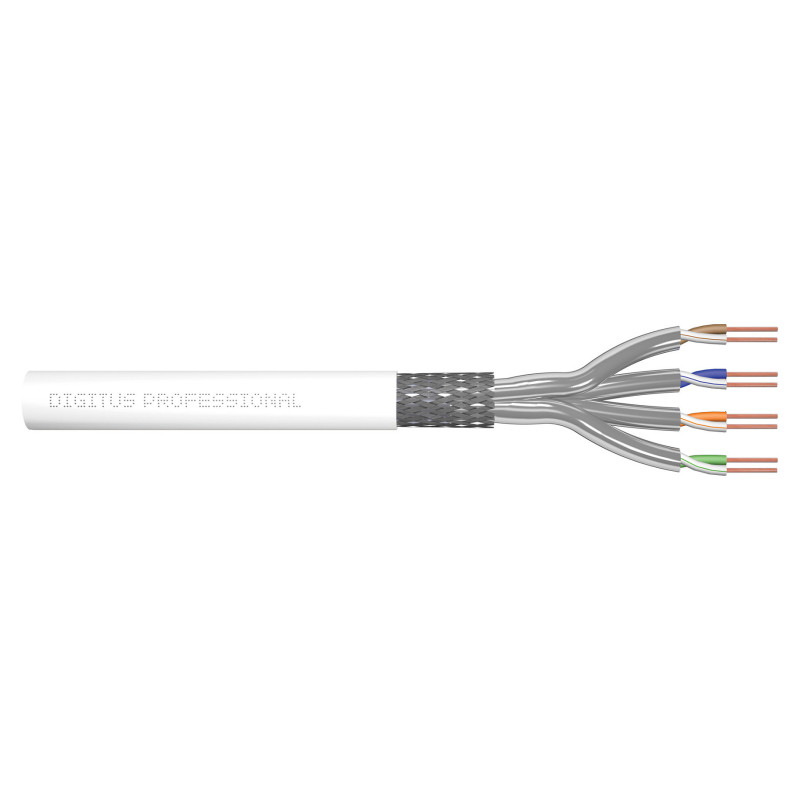

The Digitus® Cat.7 S/FTP installation cable is designed for use in structured data center & building cabling in accordance with ISO/IEC 11801, DIN EN 50173, IEC 61156-7, EN 50288-9-1. Ideally suited for the transmission of analog and digital data, audio, video, signal transmission, 10 Gbit Ethernet, POE and POE+. The shield structure consists of individually shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.

Features

Product colour: White
Cable length: 305 m
Cable standard: Cat7
Cable shielding: S/FTP (S-STP)
Connector 1: No
Connector 2: No
Connector 1 gender: No
Connector 2 gender: No
Jacket material: Low smoke zero halogen (LSZH)
Conductor type: Solid
Cabling technology: 10GBase-T
Ethernet interface type: 10 Gigabit Ethernet
AWG wire size: 26/1
Data transfer rate: 10000 Mbit/s
Frequency: 600 MHz
Feature: Power over Ethernet (PoE)
Country of origin: China

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -20 - 75 °C

Sustainability

Doesn't contain: Halogen

Certificates

Certification: CPR class Dca

Packaging data

Package width: 230 mm
Package depth: 430 mm
Package weight: 12.8 kg
Package volume: 42527 cm³

Logistics data

Harmonized System (HS) code: 84733080
UK Trade Tariff code: 85444920
