Digitus DK-1644-100 tinklo kabelis

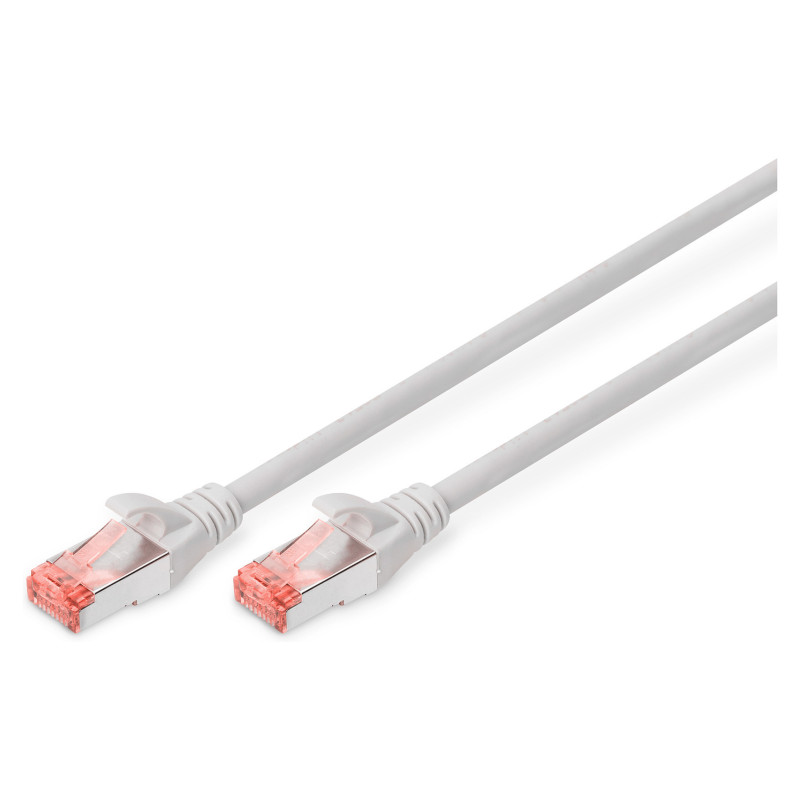

Digitus CAT 6 S/FTP Patch Cable, 10 m, Gray. Cable length: 10 m, Cable standard: Cat6, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Product colour: Grey

Future-oriented standards and high-end quality for your network.

- With an LSZH (Low Smoke Zero Halogen) outer jacket for optimal fire resistance and low smoke emission.

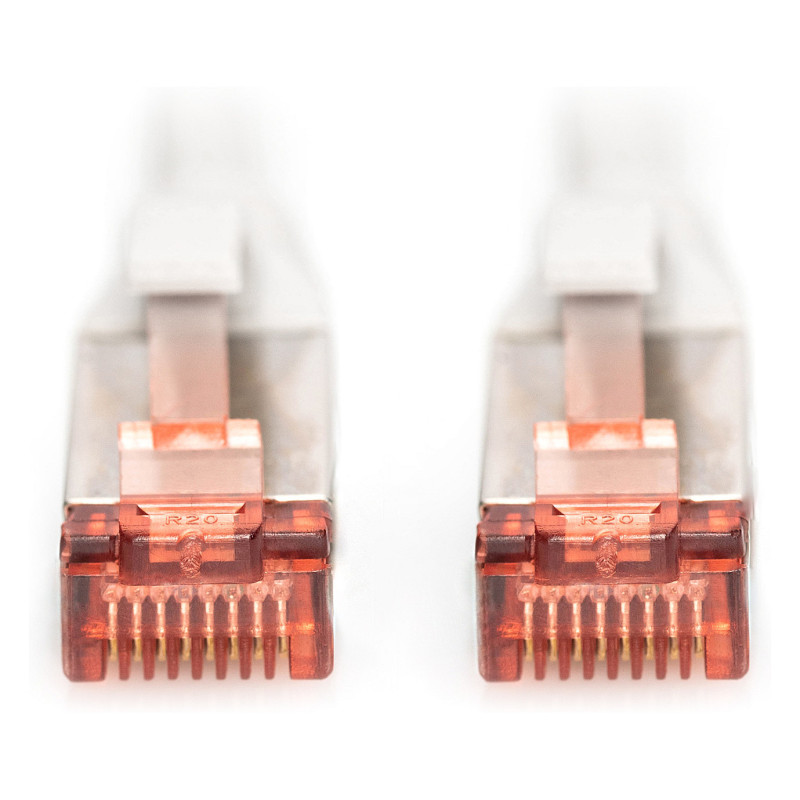

- Transparent red connector with metal shielding for easy identification of Category 6 (250 MHz)
- Inner conductor: Copper (Cu)
- Supports: PoE, PoE+, PoE++ (IEEE 802.3af; 3at; bt)

DIGITUS® Category 6 Class E patch cables are manufactured and tested in accordance with the ISO/IEC 11801 and DIN EN 50173 CAT 6 standards. They ensure that the cable installation complies with the ISO & EN channel specifications and deliver outstanding performance in DIGITUS® CAT 6 cabling. Performance has been tested up to 250 MHz, including performance characteristics such as near-end crosstalk (NEXT). DIGITUS® patch cables have been specially developed to fully meet all requirements across various application areas. Each cable is equipped with an injection-molded kink-protection sleeve with strain relief. In addition, the sleeve features a latch protection mechanism that prevents the cables from getting snagged and the latch from breaking off the connector. The red color of the connectors makes it easy to identify Category 6 cables.

Features

Product colour: Grey
Cable length: 10 m
Cable standard: Cat6
Cable shielding: S/FTP (S-STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector shield material: Metal foil
Jacket material: Low smoke zero halogen (LSZH)
Cable shape: Round
Twisted pair coupling type: 4x2
AWG wire size: 27/7
Country of origin: China

Operational conditions

Operating temperature (T-T): -20 - 60 °C

Certificates

Certification: IEC 60332-1, IEC 60332-3, IEC 61034

Packaging data

Package width: 190 mm
Package depth: 28 mm
Package height: 270 mm
Package weight: 323.33 g
Package volume: 1436.4 cm³
Package type: Polybag

Other features

Quantity: 1

Logistics data

Harmonized System (HS) code: 84733080
UK Trade Tariff code: 85444210

Technical details

Shielding type: Foil + braiding
