„DeLOCK 90781“ nuoseklusis keitiklis / kartotuvas / izoliatorius

DeLOCK 90781. Width: 31 mm, Depth: 35 mm, Height: 15 mm. Package type: Box. Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11. Country of origin: China

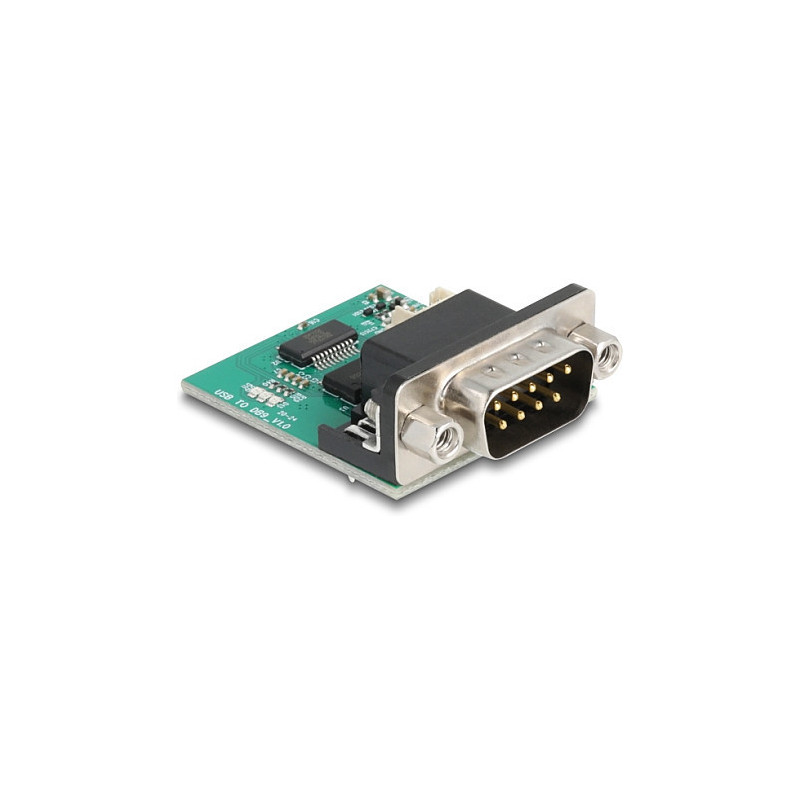

The USB 2.0 to RS-232 converter by Delock expands the computer via an internal USB port by a serial RS-232 standard interface. The small adapter board is ideal for mounting in housings or on slot brackets.

Flexibility with RS-232
The data transmission can be easily and flexibly adapted to serial devices and PC applications. The converter also provides functions such as remote wake-up, power management, modem and extensive compatibility.

Technical details

Host interface: USB 2.0
Output interface: RS-232
Connector gender: Male
RS-232 signals: CTS, DCD, DSR, DTR, GND, RI, RTS, RXD, TXD
Electrostatic Discharge (ESD) protection: 15 kV
Product colour: Black, Green
Chipset: FTDI FT231XS
Data bits: 7, 8
Maximum cable length: 0.3 m
Parity bit: Even, Mark, No, Odd, Space
Stop bits: 1, 2
Flow Control type: DTR/DSR, No, RTS/CTS, XON/XOFF

Operational conditions

Operating temperature (T-T): -40 - 85 °C

Weight & dimensions

Width: 31 mm
Depth: 35 mm
Height: 15 mm

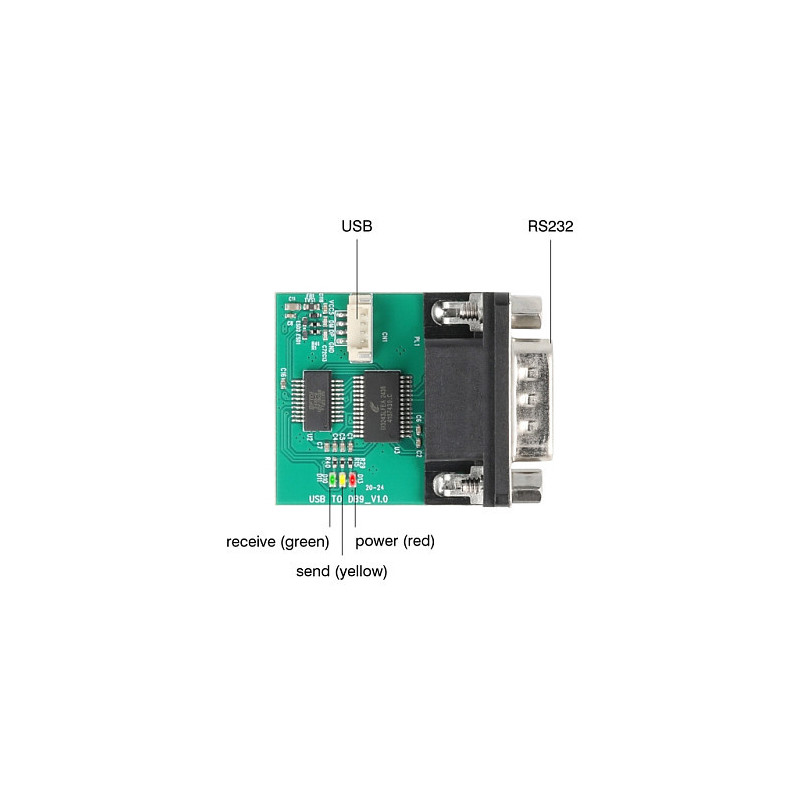

Indication

LED indicators: Yes

Packaging content

Package type: Box

Packaging data

Feature: Manual

Software

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11

Logistics data

Country of origin: China
