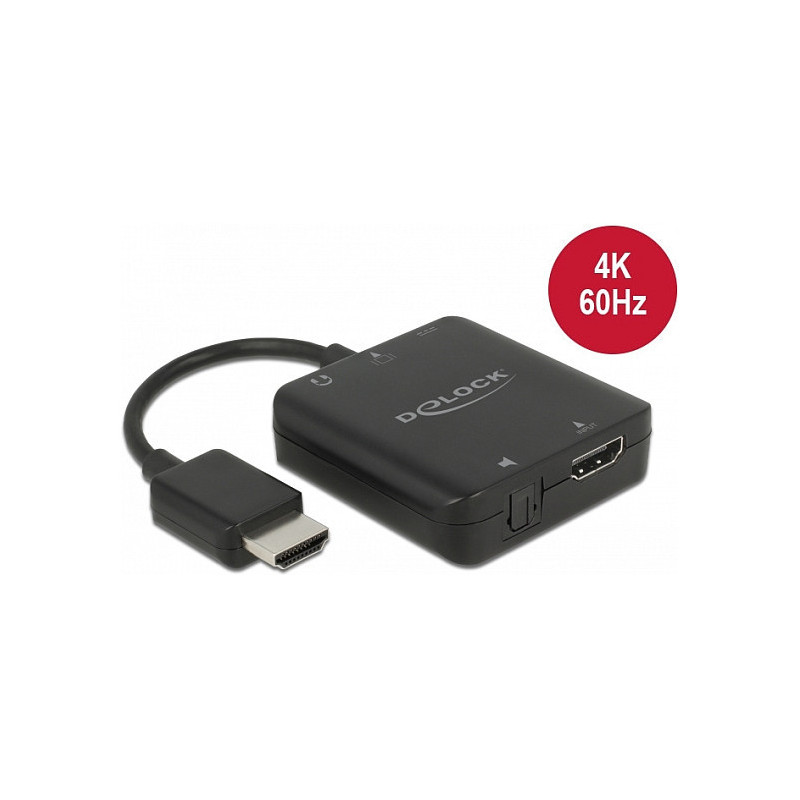

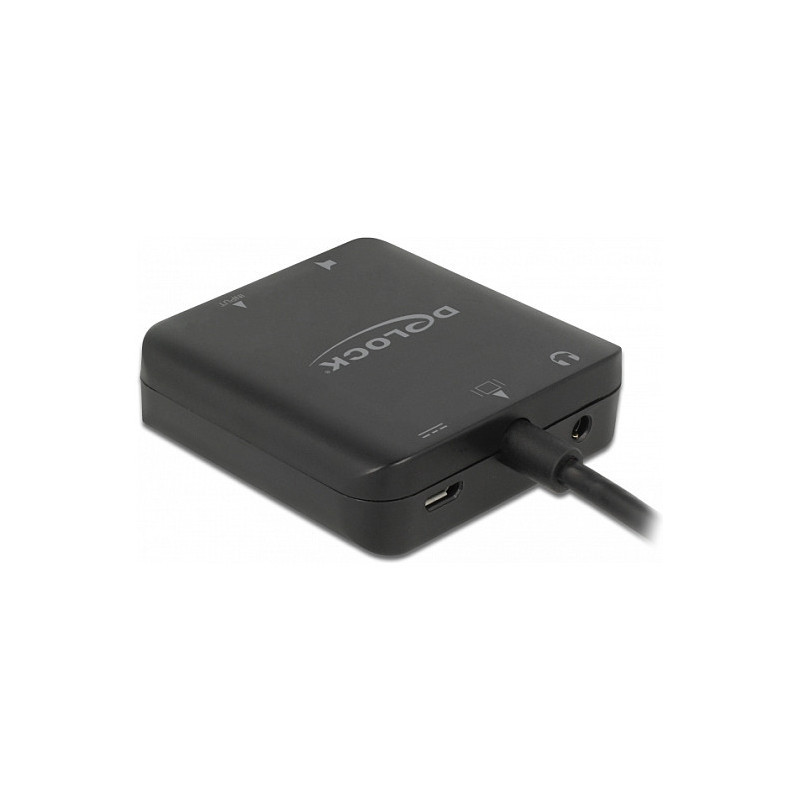

„DeLOCK 63333“ garso keitiklis

DeLOCK HDMI Audio Extractor 4K 60 Hz compact. USB connector type: Micro-USB B, Sample frequencies: 32/44.1/48/88.2/96 kHz. Power consumption (typical): 2 W. Width: 58 mm, Depth: 58 mm, Height: 16 mm. Cables included: USB Type-A to Micro-USB Type-B. Country of origin: China

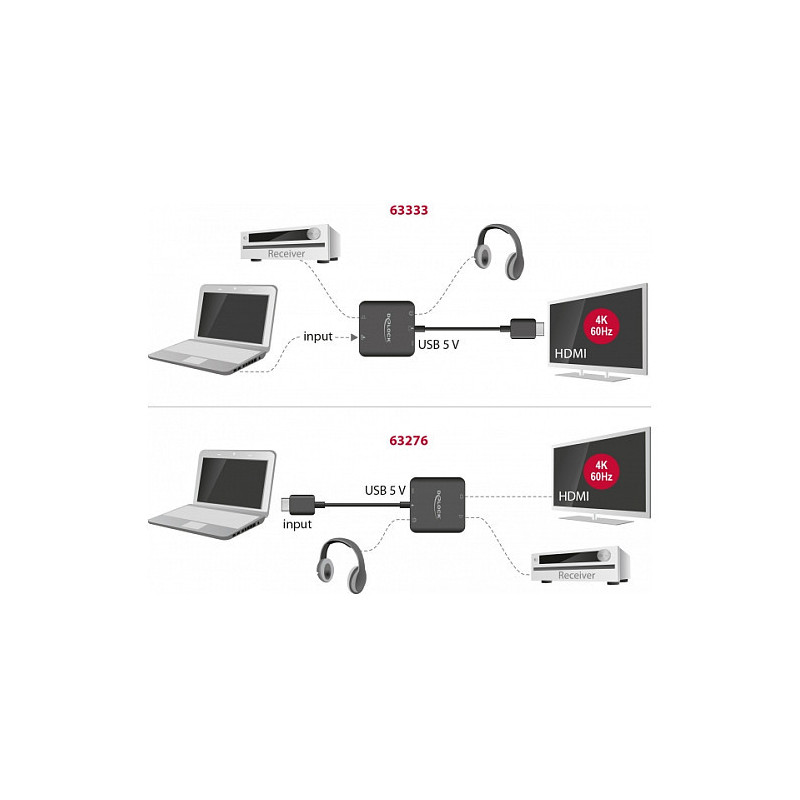

This adapter by Delock can be used to extract the audio signal from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) or analogue (stereo) to other devices, such as headphones or a surround receiver.

Small and practical

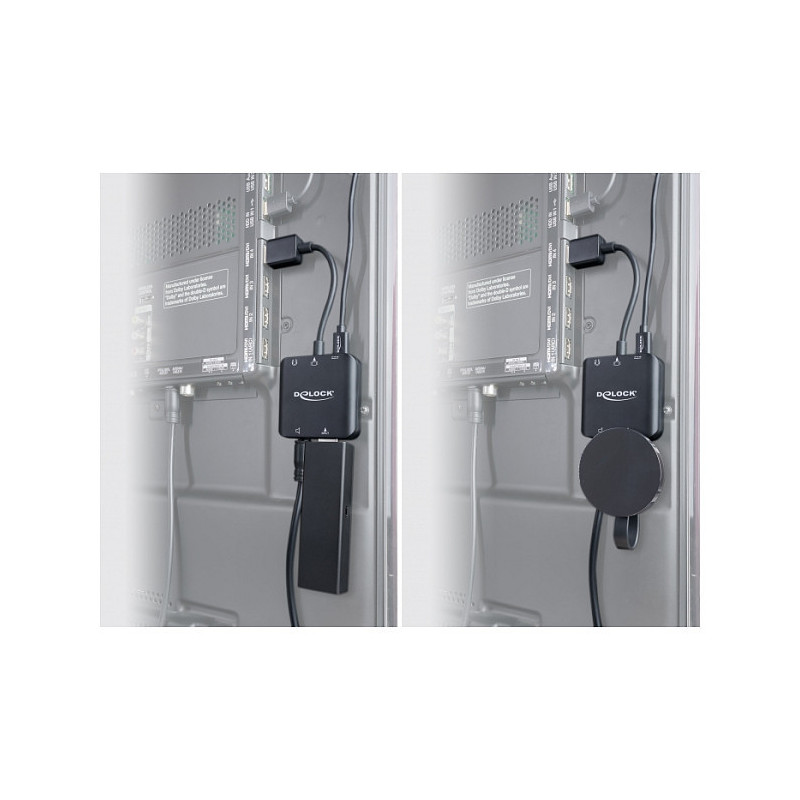

The device can be connected directly to the monitor or the TV, the short cable fits easily into side or recessed HDMI ports. The source, e.g. a TV streaming stick, can be connected to the input port.

Inputs

USB connector type: Micro-USB B
HDMI in: 1
Sample frequencies: 32/44.1/48/88.2/96 kHz

Outputs

Audio (L/R) out: 1
Feature: S/PDIF out port
Number of HDMI outputs: 1

Technical details

Maximum data transfer rate: 18000 Mbit/s
Product colour: Black
Maximum resolution: 3840 x 2160 pixels
Audio playback formats: LPCM
Housing material: Plastic

Power

Power consumption (typical): 2 W

Weight & dimensions

Width: 58 mm
Depth: 58 mm
Height: 16 mm

Packaging data

Quantity: 1

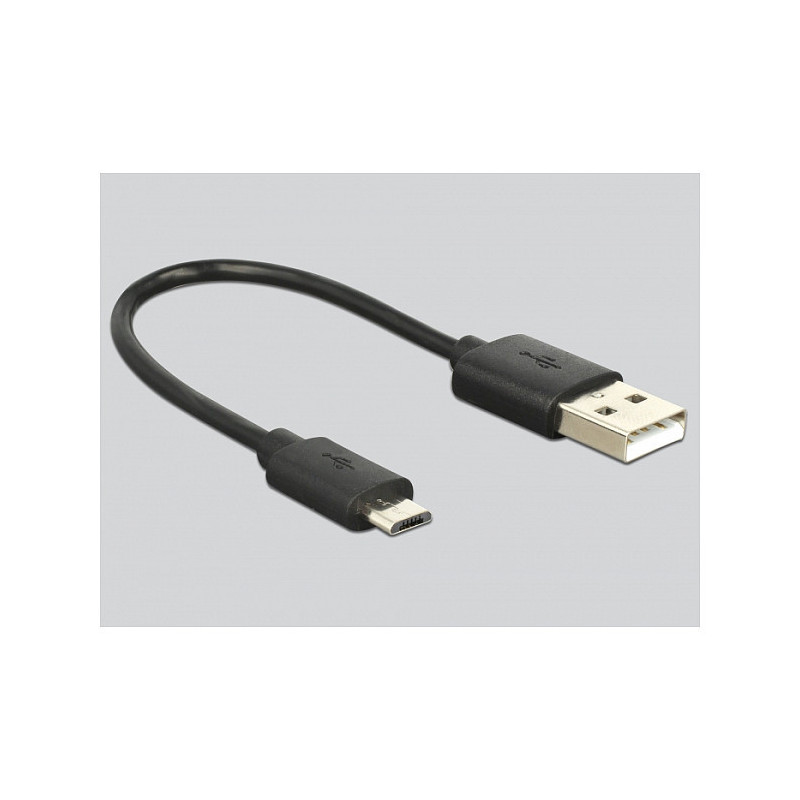

Cables included: USB Type-A to Micro-USB Type-B

Logistics data

Country of origin: China
