„DeLOCK 62976“ tinklo plokštė

DeLOCK 62976. Connectivity technology: Wired, Host interface: RS-232, Interface: Ethernet. Maximum data transfer rate: 100 Mbit/s. Product colour: Black

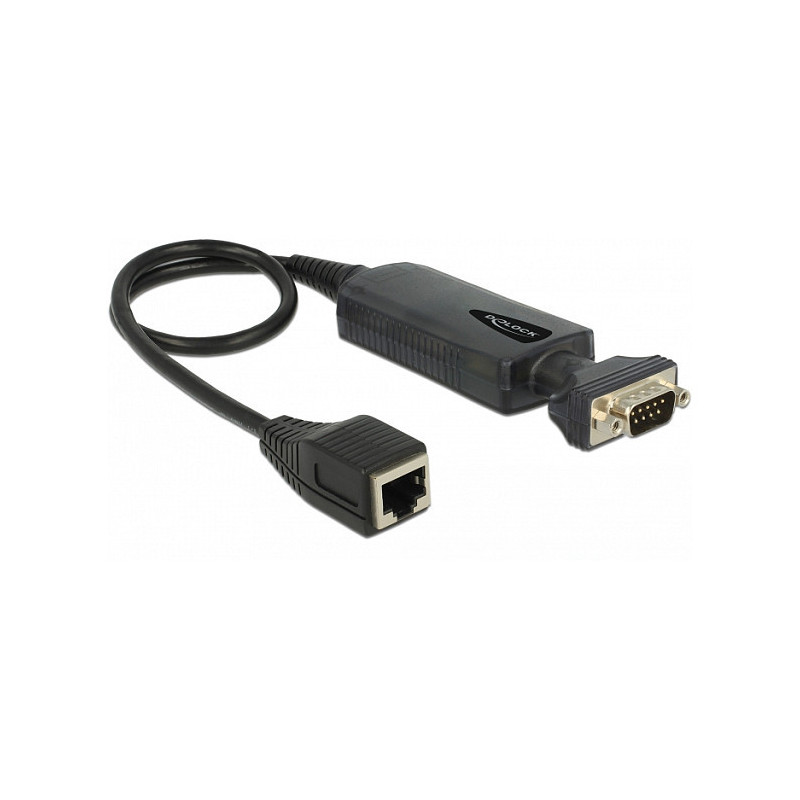

This Ethernet LAN to RS-232 converter by Delock provides a convenient solution to integrate RS-232 devices into a LAN infrastructure via plug and play. It supports connections to RS-232 devices such as scanners, machines, instruments, routers, IoT devices, etc. A Windows application enables a central control of Ethernet LAN converters. This includes the selection of the desired network interfaces, the configuration of the COM port settings as well as the functions for manual or automatic connections, password protection, device name and MAC hardware addresses.

In the Local Area Network or Wireless Local Area Network the converter interacts with the MAC hardware address (device address) without using the TCP/IP protocol. This reduces the response time between the computers and the RS-232 devices with very low latencies. Using the Ethernet protocol avoids furthermore the required configuration of IP addresses. The Ethernet LAN converter is compatible with current Ethernet and RS-232 standards and achieves a maximum data rate of up to 100 Mbps.

Ports & interfaces

Connectivity technology: Wired
Host interface: RS-232
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1

Network

Maximum data transfer rate: 100 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3u
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100 Mbit/s
Cabling technology: 10/100BaseT(X)
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Feature: Full duplex

Design

Product colour: Black
Feature: Hot-swap
Feature: Plug and Play
LED indicators: Yes
Country of origin: China

Power

Input current: 0.2 A
Output voltage: 5 V
Output current: 1 A

System requirements

Windows operating systems supported: Yes
Server operating systems supported: Windows Server 2012 R2, Windows Server 2016

Operational conditions

Operating temperature (T-T): 0 - 60 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 34 mm
Depth: 48 mm
Height: 18 mm
Weight: 67 g

Packaging data

Quantity per pack: 1 pc(s)
Package type: Box

Packaging content

Feature: Manual

Other features

Housing material: Polycarbonate (PC)
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz
