„DeLOCK 62783“ vaizdo signalo keitiklis

DeLOCK 62783. Product colour: Black, Housing material: Metal, Cable length: 1 m. Maximum video resolution: 1920 x 1080 pixels, Supported video modes: 720p, 1080p, Analog signal format system: NTSC, NTSC 4.43, NTSC M, PAL, PAL M, PAL N, SECAM. Host interface: SCART + HDMI, Connector type: HDMI-A, SCART, 3.5mm, S/PDIF. Input voltage: 100 - 240 V, Operating voltage: 5 V, Operating current: 1 A. Width: 101 mm, Depth: 102 mm, Height: 25 mm

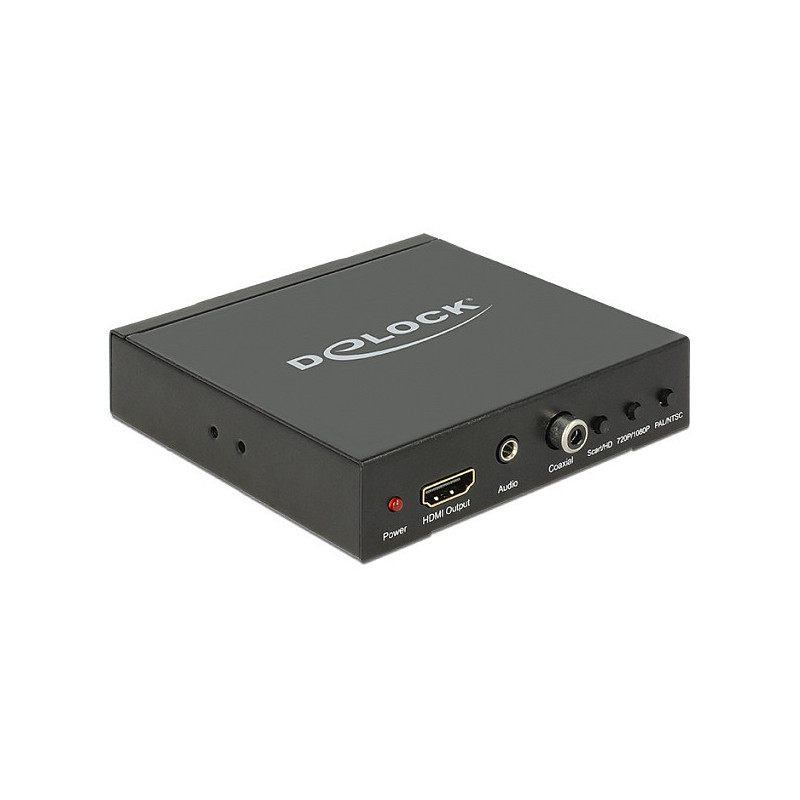

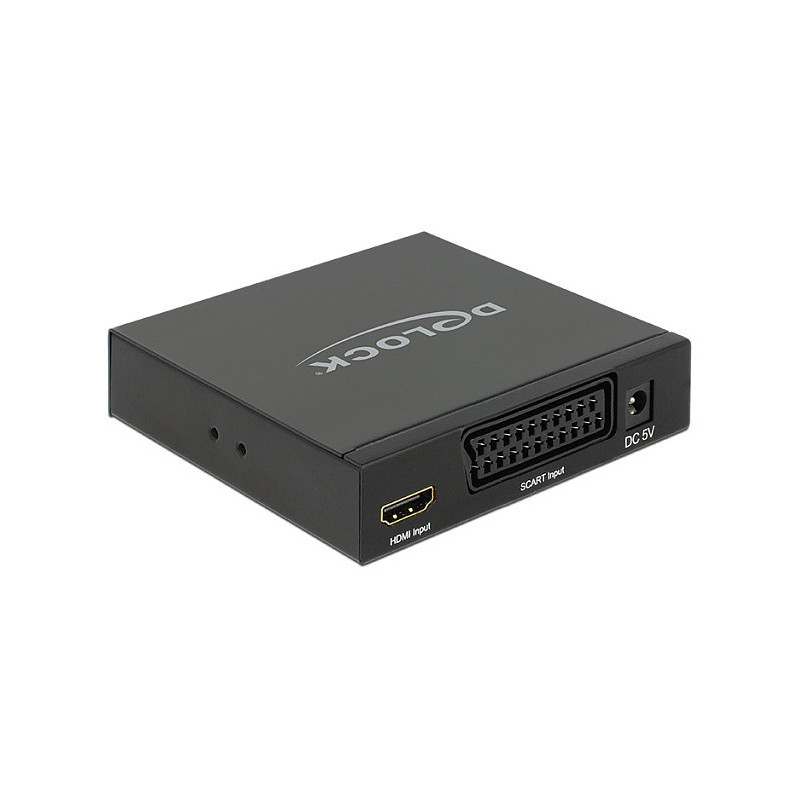

The Delock A/V converter converts an analogue SCART video and audio signal to a digital HDMI signal. Thereby e.g. a VCR or game console can be connected to an HDMI monitor or Full HD TV. In addition, an HDMI input is present, so that the converter can be used as a switch. Both inputs can be scaled via the integrated video processor to an HDMI output signal of 720p or 1080p with 50 or 60 Hz. The audio signal is simultaneously available at the HDMI output, as a digital S/PDIF signal and as analogue signal at the stereo jack.

Features

Product colour: Black
Housing material: Metal
Cable length: 1 m

Video

Maximum video resolution: 1920 x 1080 pixels
Supported video modes: 720p, 1080p
Analog signal format system: NTSC, NTSC 4.43, NTSC M, PAL, PAL M, PAL N, SECAM

Ports & interfaces

Host interface: SCART + HDMI
Video in: 2
Video out: 1
Connector type: HDMI-A, SCART, 3.5mm, S/PDIF
Audio output: 2

Power

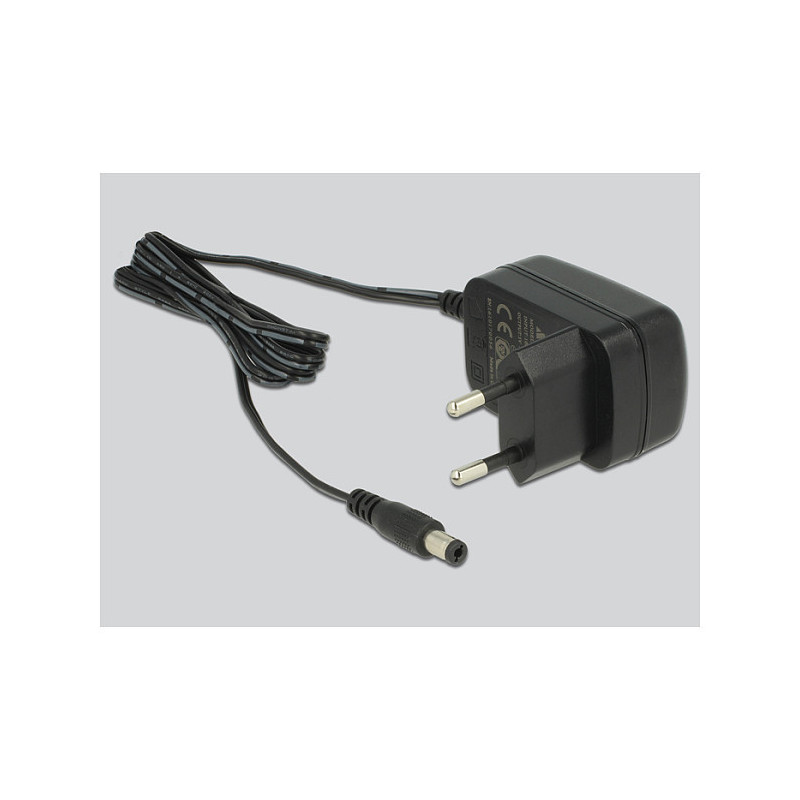

Feature: External power adapter
Input voltage: 100 - 240 V
Operating voltage: 5 V
Operating current: 1 A

Weight & dimensions

Width: 101 mm
Depth: 102 mm
Height: 25 mm

Packaging data

Feature: AC adapter included
Feature: Manual
Quantity: 1

Other features

Supported resolutions: 1280 x 720, 1920 x 1080

Logistics data

Harmonized System (HS) code: 85176990
