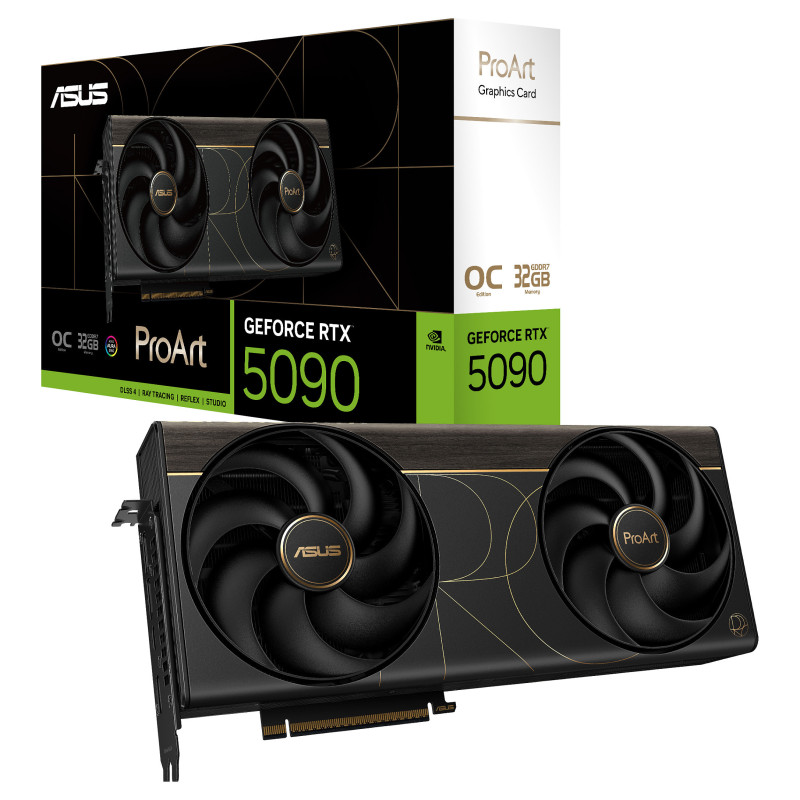

ASUS ProArt -RTX5090-O32G

ASUS ProArt -RTX5090-O32G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5090, Processor frequency: 2482 MHz. Discrete graphics card memory: 32 GB, Graphics card memory type: GDDR7, Memory bus: 512 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s)

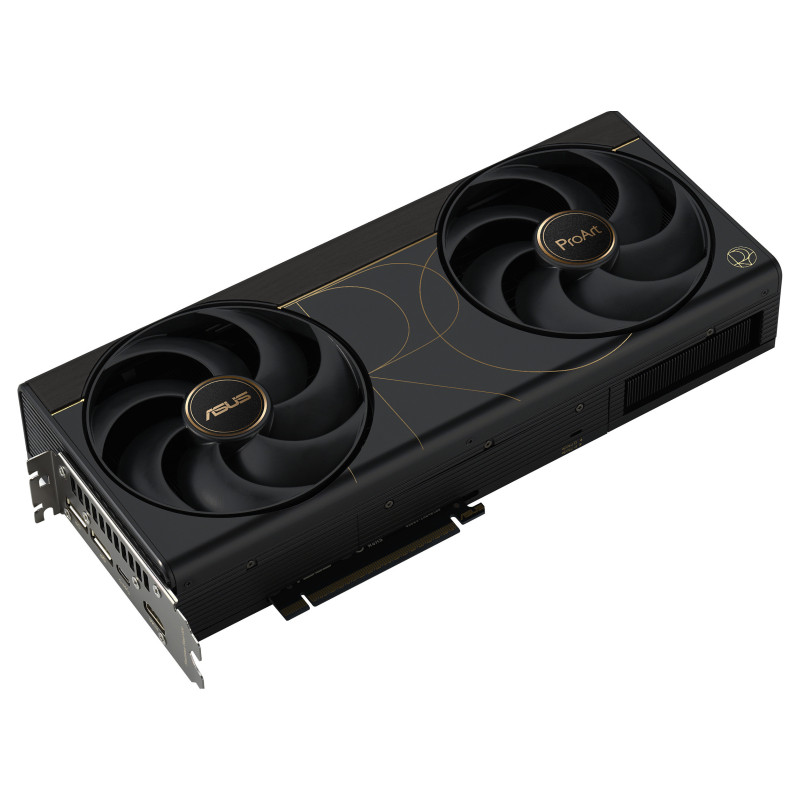

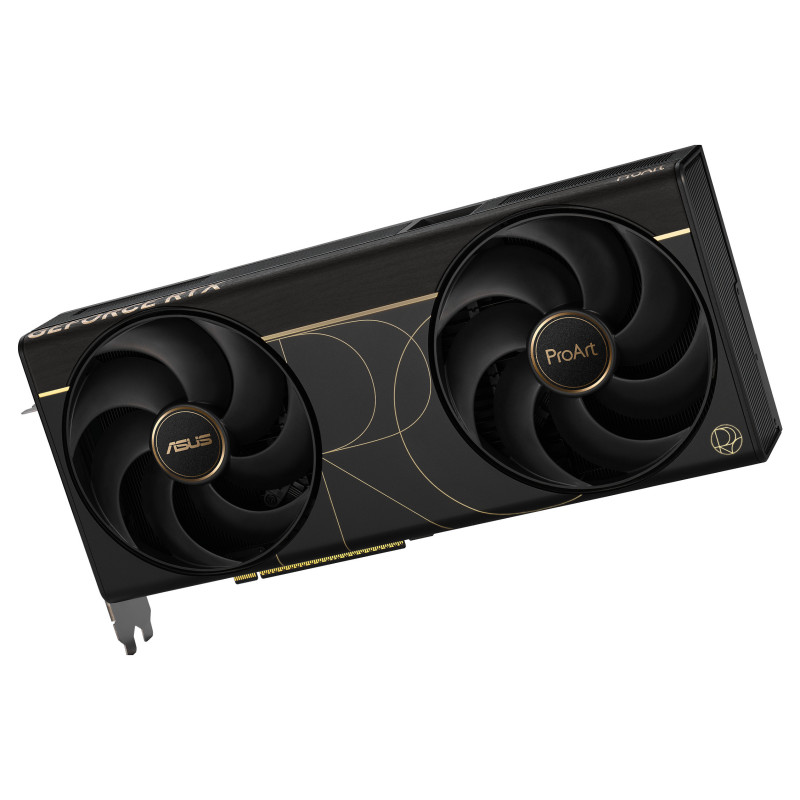

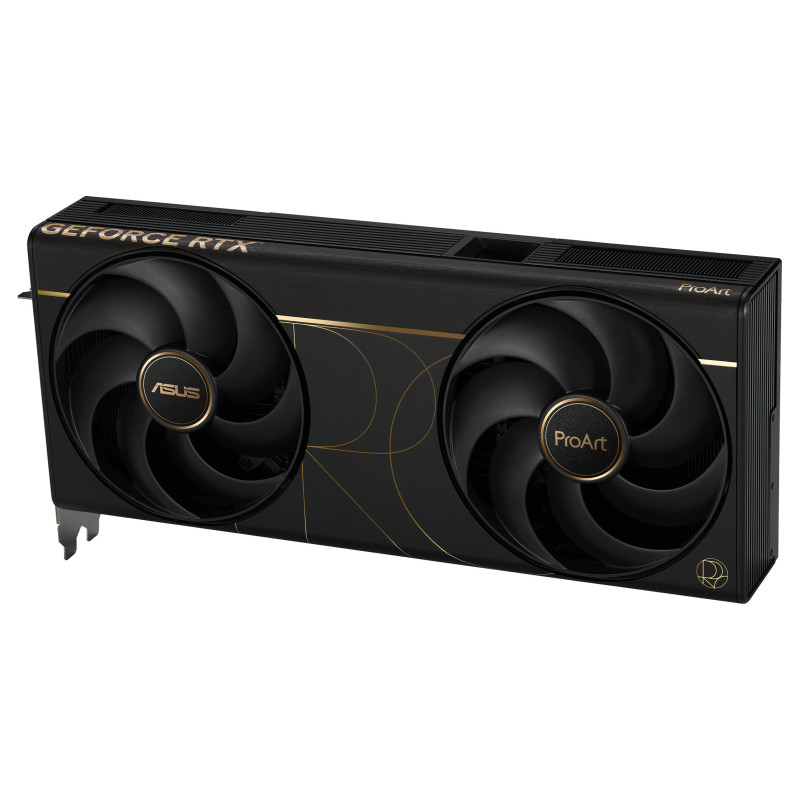

ProArt GeForce RTX™ 5090 OC Edition
Artistry Meets Performance
Experience exceptional power and cooling in a compact design with the ProArt GeForce RTX™ 5090. This first-ever 2.5-slot compact RTX 5090 card from ASUS features two large Axial-tech fans, a vapor chamber, and a double-vented backplate. It also features liquid metal thermal compound for enhanced GPU cooling, helping to ensure optimal performance. A USB Type-C port enhances versatility for content creation workflows, and wood-patterned laminate trim plus subtle ProArt elements deliver a refined aesthetic. Whether you're building a small-form-factor workstation or a full-scale tower, the ProArt RTX 5090 delivers ultimate versatility.

Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

Premium Cooling
Exceptional Thermal in Compact 2.5-Slot Design

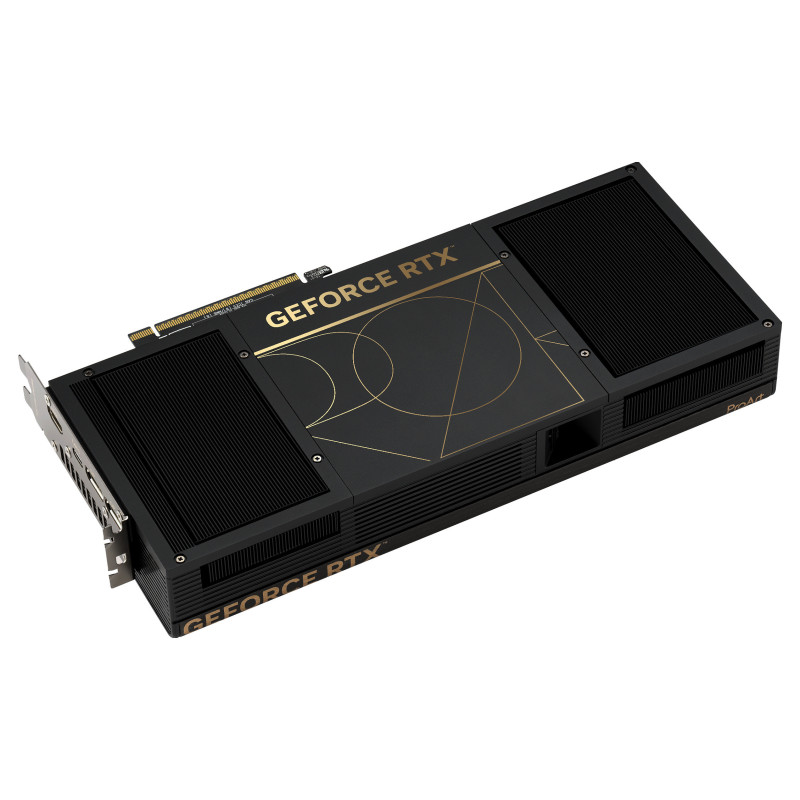

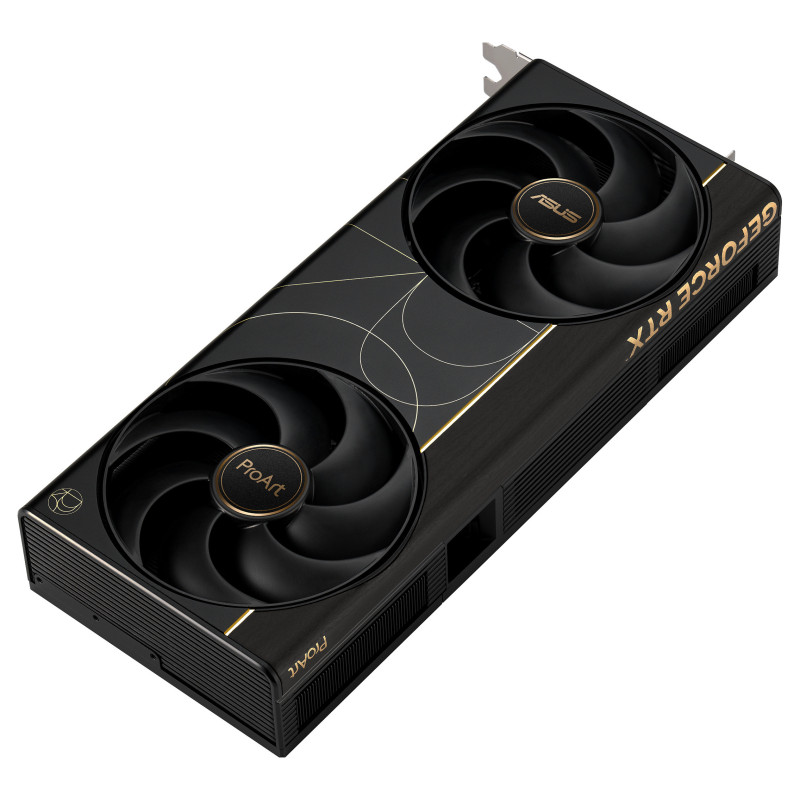

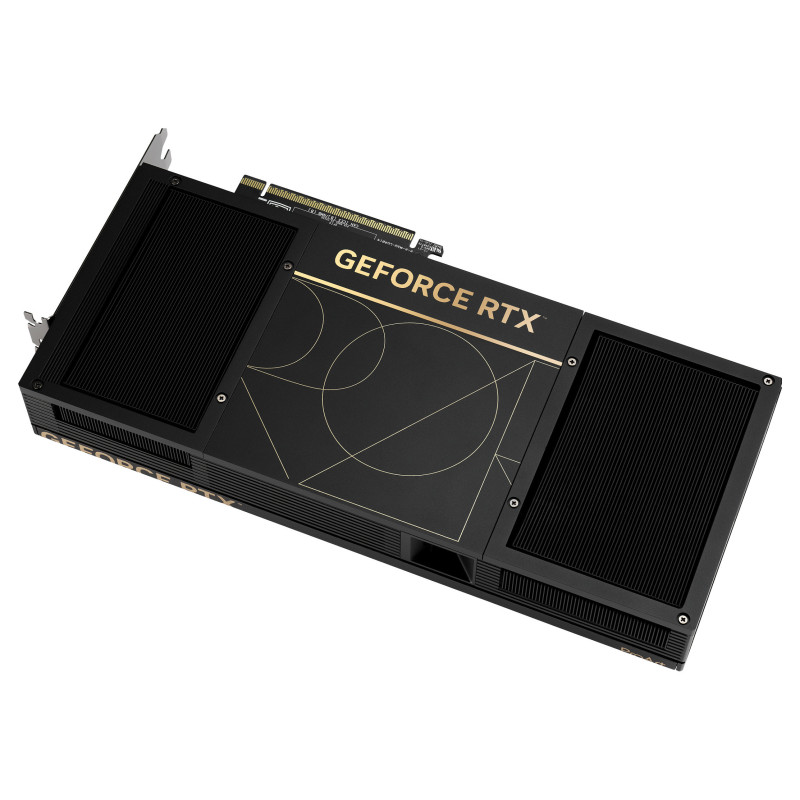

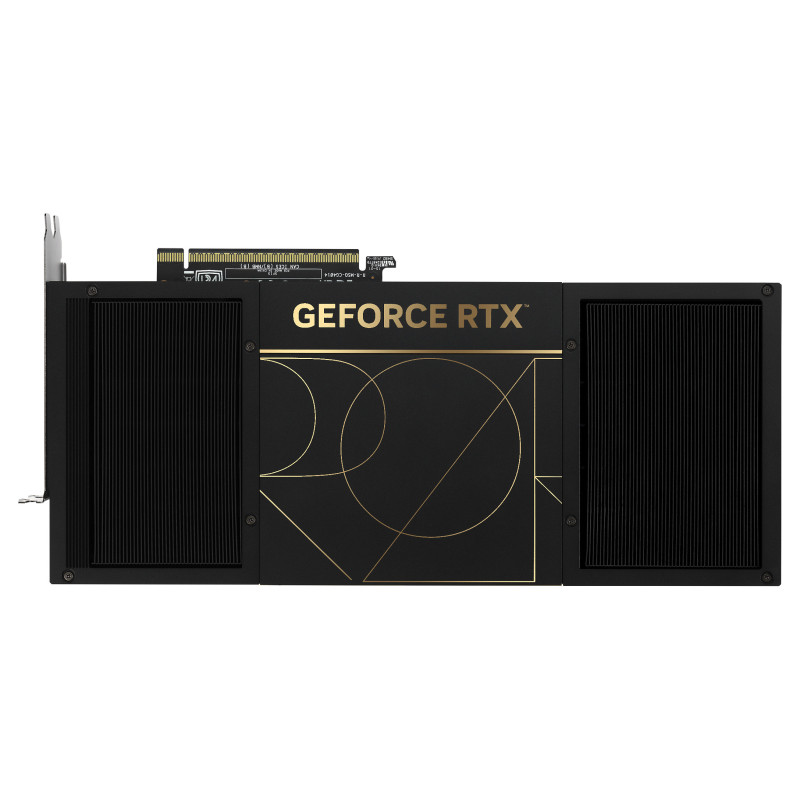

Large dual Axial-tech fans and a double-vented backplate maximize airflow, while a vapor chamber and liquid metal compound help ensure exceptional thermal performance in a compact design.

Processor

Feature: CUDA
CUDA cores: 21760
Graphics processor family: NVIDIA
Graphics processor: GeForce RTX 5090
Processor frequency: 2482 MHz
Processor frequency (OC mode): 2512 MHz
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported
Maximum displays per videocard: 4

Memory

Discrete graphics card memory: 32 GB
Graphics card memory type: GDDR7
Memory bus: 512 bit
Data transfer rate: 28 Gbit/s

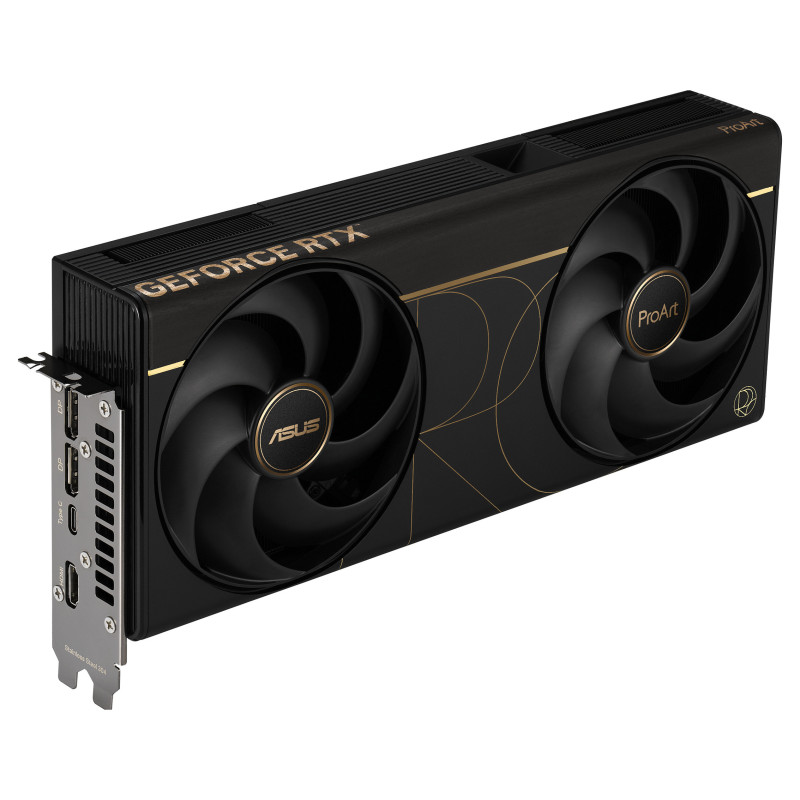

Ports & interfaces

Interface type: PCI Express 5.0
HDMI ports quantity: 1
HDMI version: 2.1b
DisplayPorts quantity: 2
DisplayPort version: 2.1b
USB Type-C ports quantity: 1

Performance

OpenGL version: 4.6
Feature: HDCP
HDCP version: 2.3
NPU performance up to: 3352 TOPs
Feature: Overclocked (OC) edition

Design

Cooling type: Active
Cooling technology: ASUS Axial-tech
Number of fans: 2 fan(s)
Form factor: Full-Height/Half-Length (FH/HL)
Bracket height: Full-Height (FH)
Number of slots: 2.5
Feature: SFF ready
Product colour: Black

Power

Minimum system power supply: 1000 W

Weight & dimensions

Weight: 1.81 kg
Length: 304 mm
Depth: 50 mm
Height: 140 mm

Packaging data

Package width: 405 mm
Package depth: 233 mm
Package height: 88.5 mm
Package weight: 2.47 kg
Package type: Box

Packaging content

Feature: Manual
