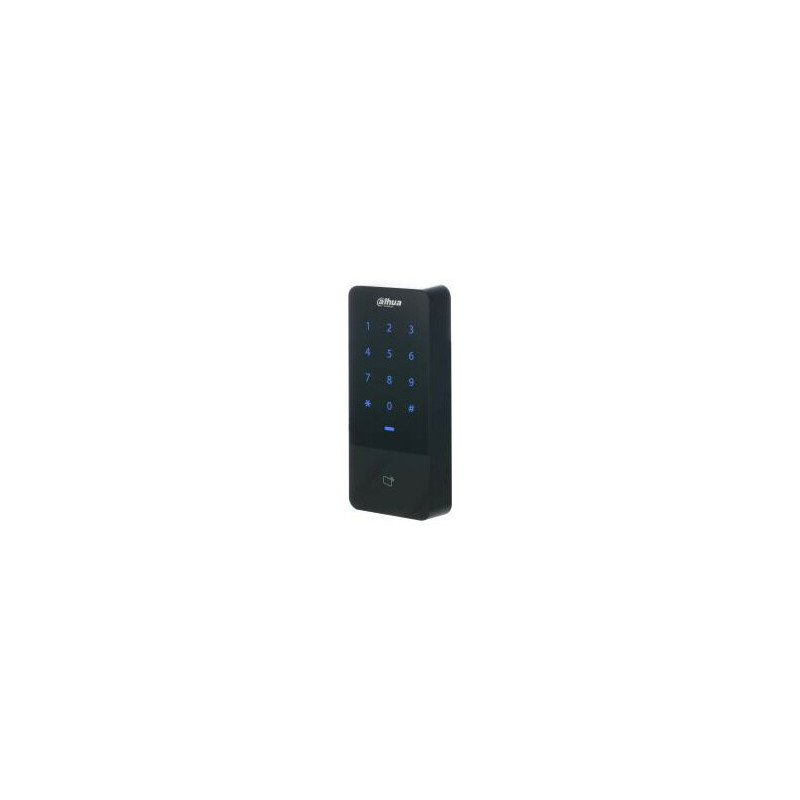

CODE LOCK SMART / ASI1201E-D-V1 DAHUA ASI1201E-D-V1 (6939554932106)

Dahua ID Card Access Standalone

> Made from PC materials and composite panels.

> Supports 30,000 users, 30,000 passwords, 30,000 cards, and 60,000 records.

> Offers multiple unlock methods including card and password. You can also combine them to create your own personal unlock methods.

> Provides touch keypad with backlighting.

> Contactless card reading for ID cards (125 KHz, EM-Marine RFID).

> Supports RS-485 communication and Wiegand communication.

> Buzzer and indicator light.

> Tamper alarm.

> Controller mode and card reader mode.

> Offers multiple types of alarms such as duress, intrusion, unlock timeout, and excessive use of illegal card.

> Cards can be issued to many types of users such as normal, VIP, patrol, guest, and blocklist users.

> Supplies power to 1 lock (12 V, 1 A or lower) or 1 card reader (12 V, 200 mA or lower).

> Online update.

> TCP/IP connection and auto registration.

> IP66 rated.

> Ideal for use outdoors.

> Surface mount.

> Compatible with the platforms of SmartPSS Lite and DSS Pro.
