„StarTech.com“ ICUSB2321F kabelio lyties keitiklis

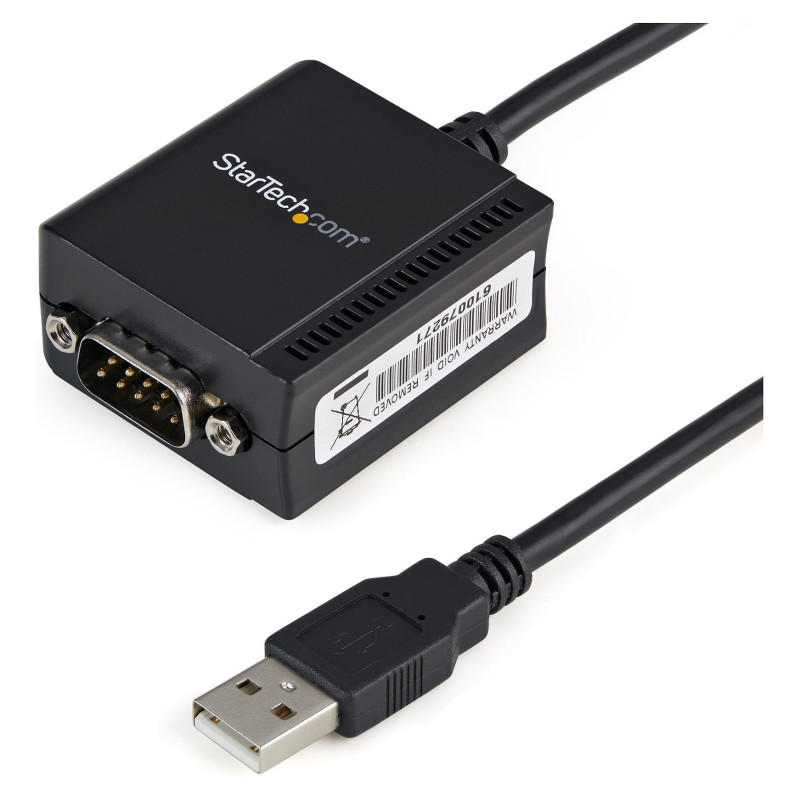

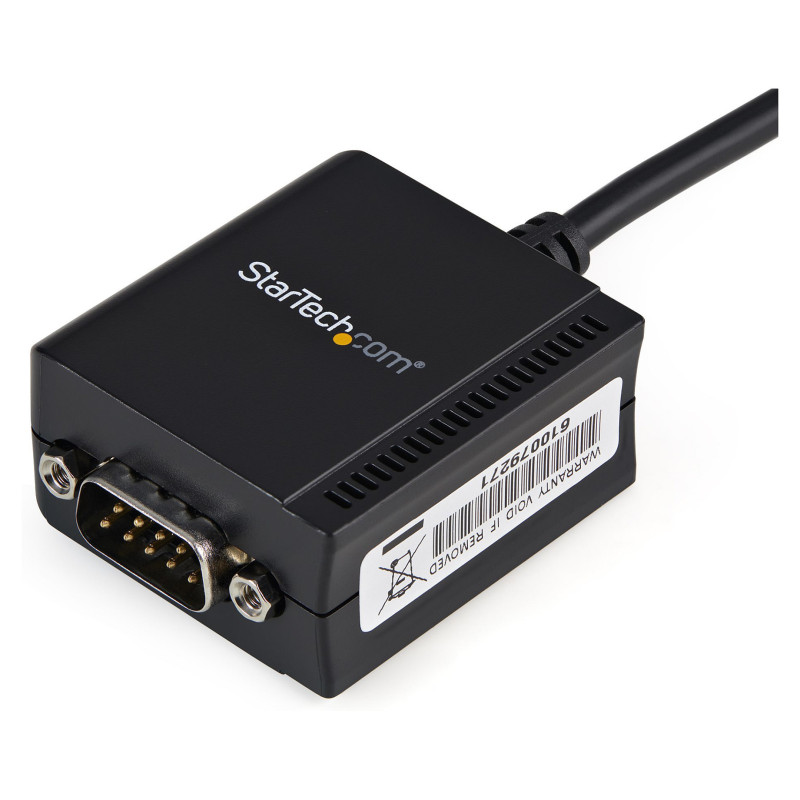

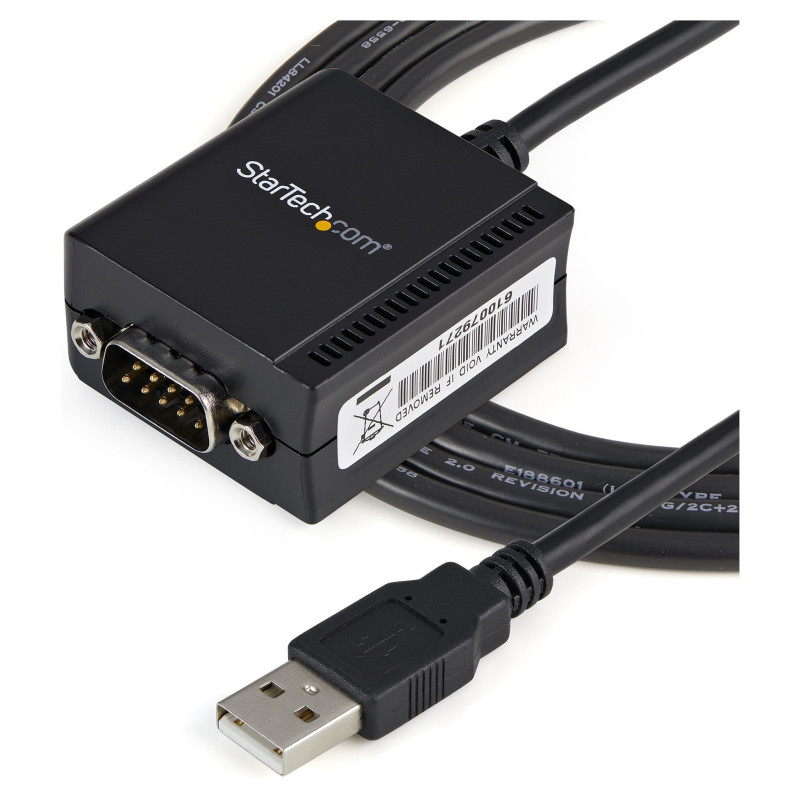

StarTech.com 6ft (1.8m) 1-Port FTDI USB to Serial RS232 Adapter Cable with COM Retention, USB to RS232 Adapter - TAA. Connector 1: DB-9, Connector 2: USB 2.0 A, Cable length: 0.2 m. Product colour: Black

Add an RS232 serial port with COM retention to your laptop or desktop computer through USB

The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices. This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions. Compatibility with a broad list of Operating Systems including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Ports & interfaces

Connector 1: DB-9

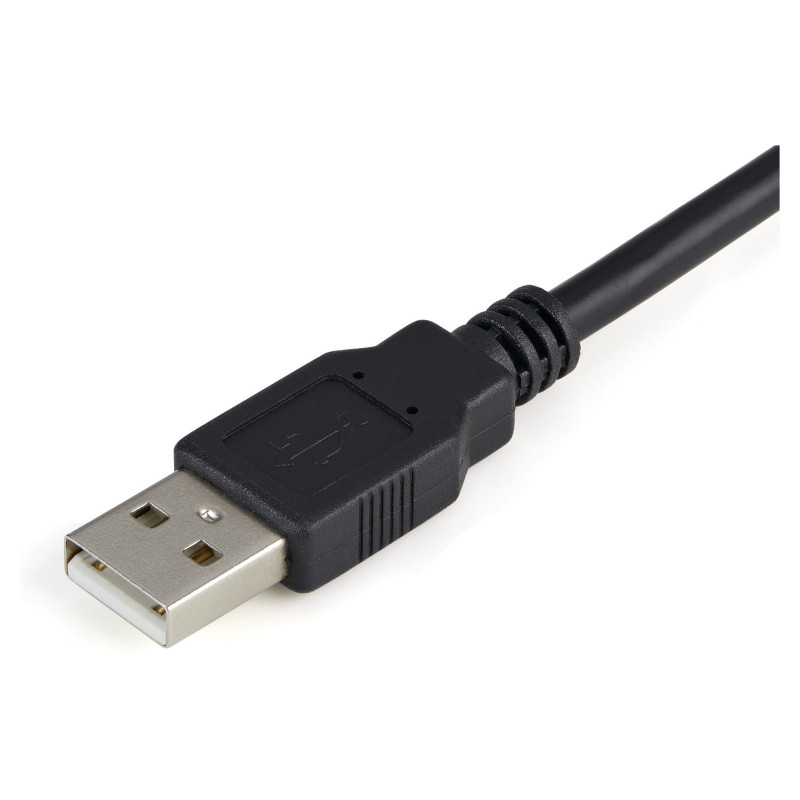

Connector 2: USB 2.0 A
Connector 1 gender: Male
Connector 2 gender: Male
Cable length: 0.2 m

Performance

Product colour: Black
Chipset: FTDI - FT232RL
Data bits: 7, 8
Stop bits: 1, 2
Baud rate: 115.2 Kbit/s
Parity bit: Even, Mark, No, Odd, Space
FIFO (First In, First Out): 256 B

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 85 °C
Relative humidity: 5 - 95%

Certificates

Compliance certificates: RoHS
Certification: CE, FCC

Weight & dimensions

Width: 41.5 mm
Depth: 45 mm
Height: 22 mm
Weight: 90 g

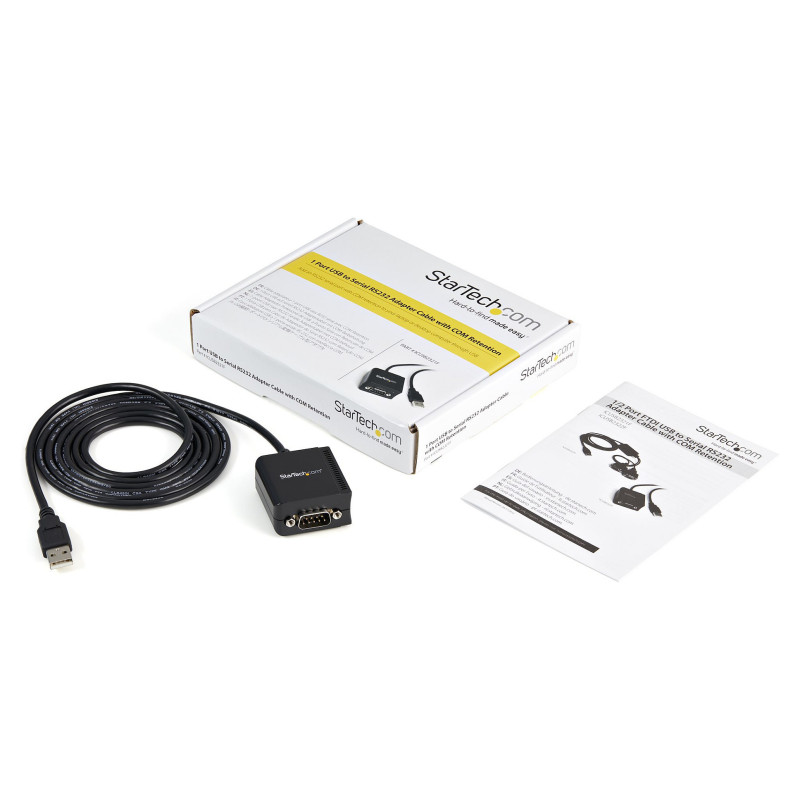

Packaging content

Feature: Manual
Feature: Drivers included

Packaging data

Package width: 175 mm
Package depth: 144 mm
Package height: 32 mm
Package weight: 176 g

Logistics data

Products per master (outer) case: 80 pc(s)
Master (outer) case width: 534 mm
Master (outer) case length: 453 mm
Master (outer) case height: 356 mm
