Lindy 43156 USB laidas

Lindy 10m USB 3.0 Active Extension. Cable length: 10 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5 Gbit/s, Connector contacts plating: Gold, Product colour: Black

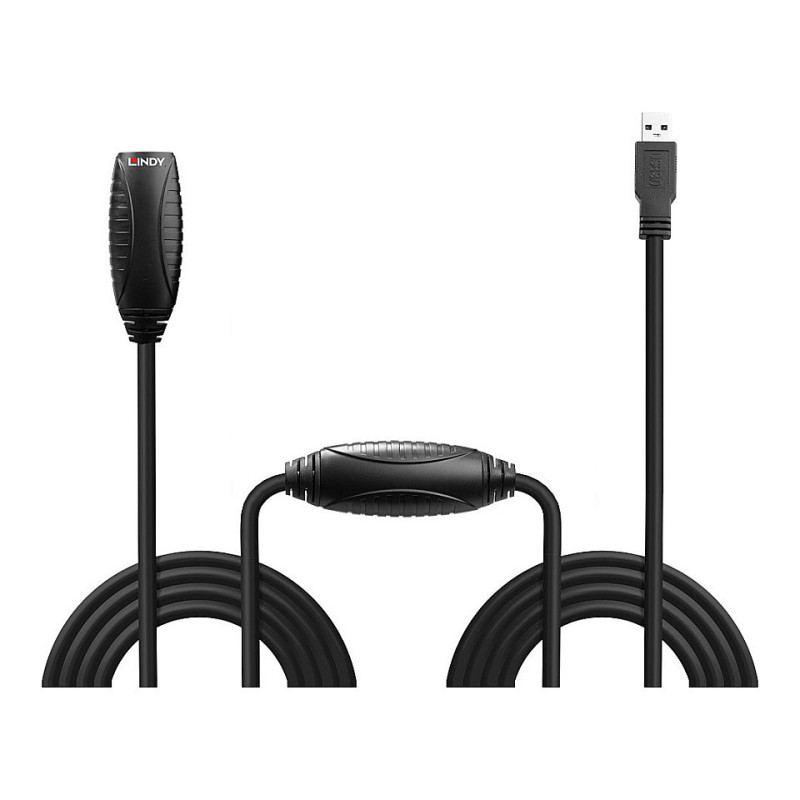

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 10m whilst continuing to support data transfer rates of up to 5Gbps.

With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 20m.

The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.

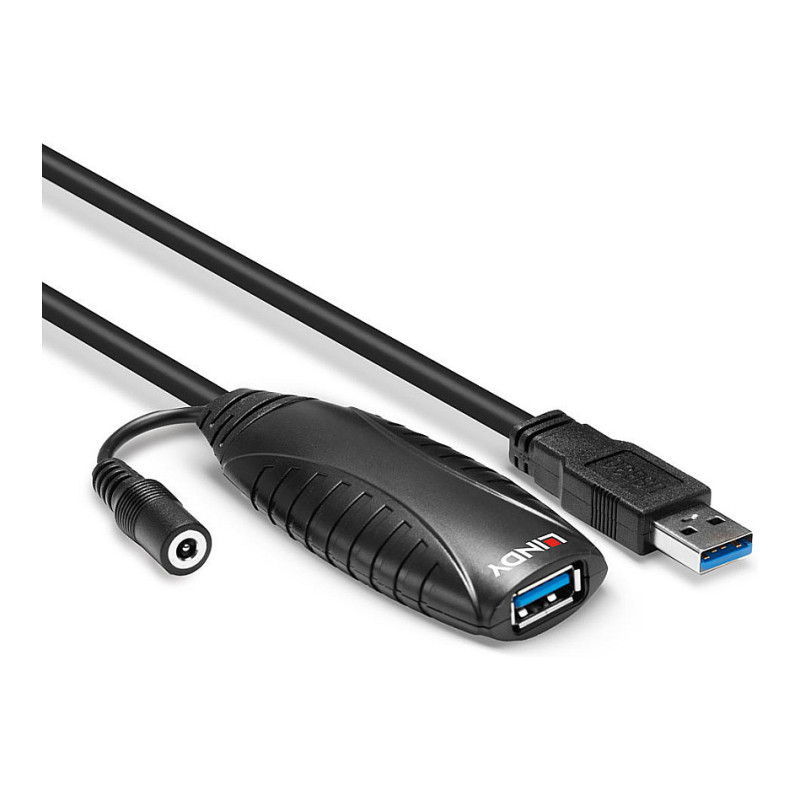

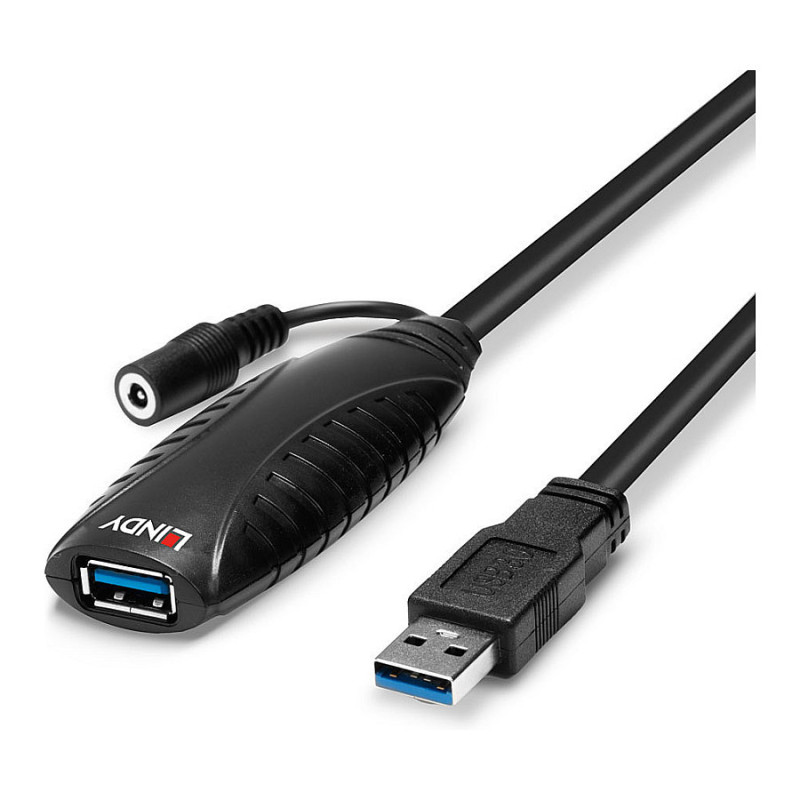

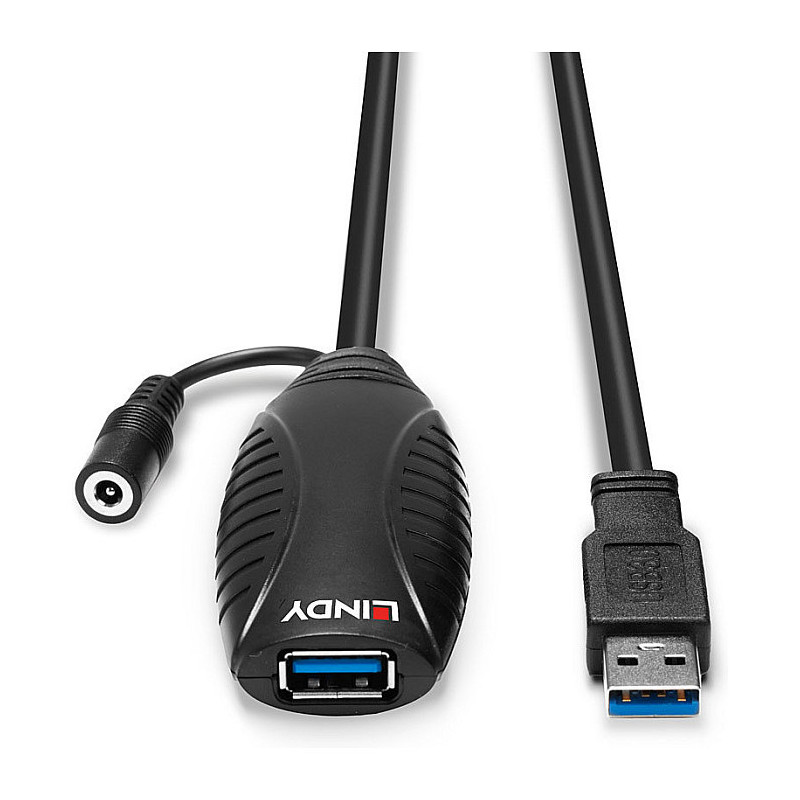

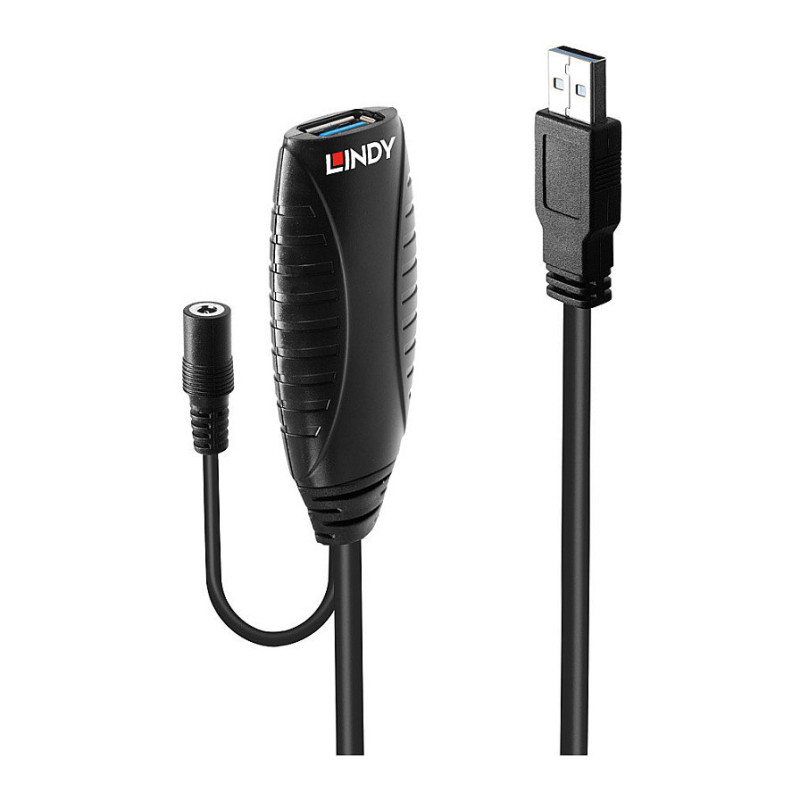

The USB active extension cable also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Features

USB version: USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1: USB A
Connector 2: USB A
Connector 1 gender: Male
Connector 2 gender: Female
Connector 1 form factor: Straight
Connector 2 form factor: Straight
AWG wire size: 28/28/22
Connector material: Nickel
Contact material: Copper
Connector contacts plating: Gold
Cable jacket material: Polyvinyl chloride (PVC)
Conductor material: Tinned copper
Feature: Connector shielding
Connector shield material: Aluminium
Connector housing material: Plastic
Maximum data transfer rate: 5000 Mbit/s
Maximum data transfer rate: 5 Gbit/s
Product colour: Black
Cable type: Round cable
Feature: Plug and Play
Transmission medium: Twisted pair
Nominal attenuation: (100 MHz, -1.5 dB)(1.25 GHz, -5.0 dB)(2.5 GHz, -7.5 dB)(7.5 GHz, -25 dB)

Power

Power note: 3.5/1.35mm DC

Weight & dimensions

Cable length: 10 m
Cable diameter: 6 mm
Weight: 515 g
Bend radius (min): 6 cm
Connector 1 dimensions (WxDxH): 16 x 37 x 9.8 mm
Connector 2 dimensions (WxDxH): 32 x 85 x 10 mm

Packaging data

Package type: Box
Package width: 140 mm
Package depth: 90 mm
Package height: 150 mm
Package weight: 600 g

Packaging content

Quantity per pack: 1 pc(s)

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 70 °C

Certificates

Certification: CE, UKCA, FCC, RoHS, REACH

Logistics data

Harmonized System (HS) code: 84733080
