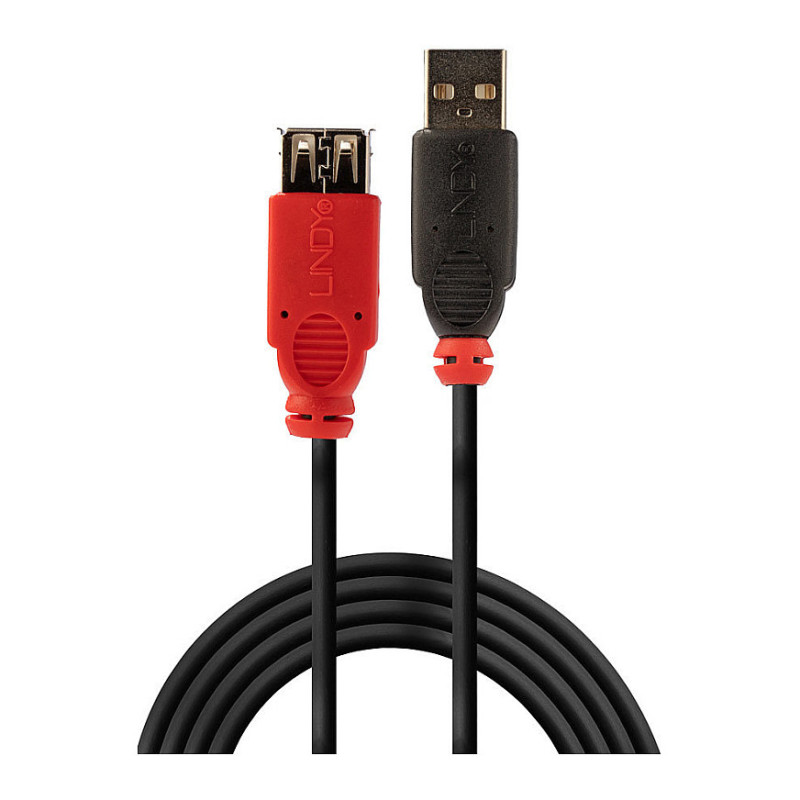

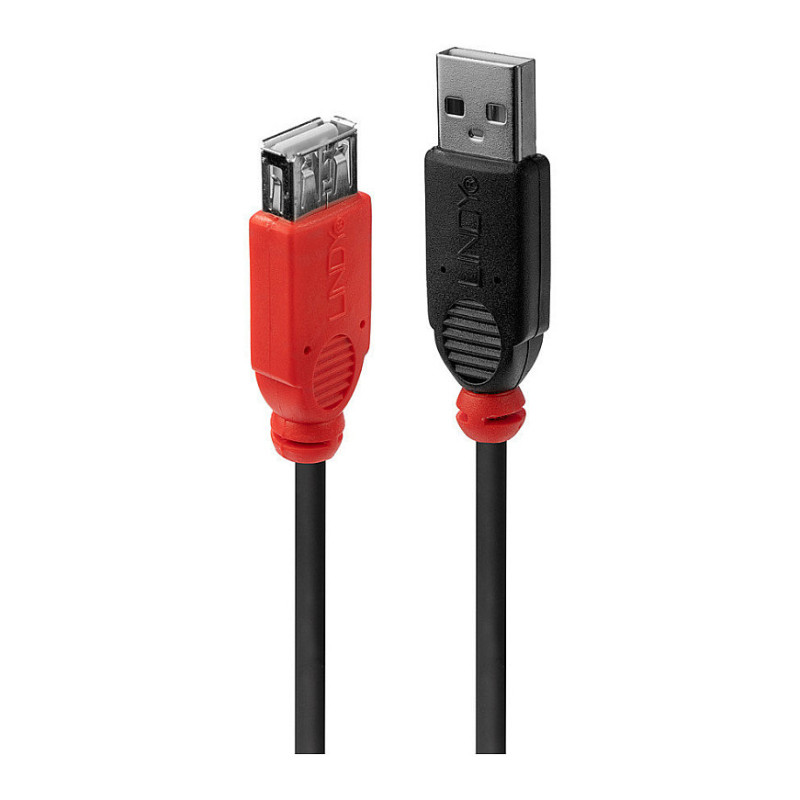

Lindy 42817 USB laidas

Lindy 5m USB 2.0 Active Extension Slim. Cable length: 5 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 2.0, Maximum data transfer rate: 0.48 Gbit/s, Connector contacts plating: Gold, Product colour: Black

The Lindy USB 2.0 Active Extension Cable Slim uses built-in active electronics to extend the cable length of a USB 2.0 device by an additional 5m whilst continuing to support data transfer rates of up to 480Mbps.

With its USB A male and USB A female connector it allows Type A devices to be connected at longer distances and ensures flexible positioning. Up to 5 extension cables can be chained together to achieve a distance of 25m.

The cable's unique and slim design allows the active electronics to fit into a standard USB connector - an advantage over other active USB leads which use bulky connectors. Compatible with all USB Type A equipped computers.

Features

USB version: USB 2.0
Connector 1: USB A
Connector 2: USB A
Connector 1 gender: Male
Connector 2 gender: Female
Connector 1 form factor: Straight
Connector 2 form factor: Straight
AWG wire size: 24/28
Connector material: Nickel
Contact material: Brass
Connector contacts plating: Gold
Cable jacket material: Polyvinyl chloride (PVC)
Conductor material: Tinned copper
Feature: Connector shielding
Connector shield material: Aluminium
Connector housing material: Plastic
Maximum data transfer rate: 480 Mbit/s
Maximum data transfer rate: 0.48 Gbit/s
Product colour: Black
Cable type: Round cable
Feature: Plug and Play
Transmission medium: Twisted pair
Nominal attenuation: 24AWG: 93.25Ohm/km28AWG: 237.25Ohm/km

Weight & dimensions

Cable length: 5 m
Cable diameter: 4.8 mm
Weight: 180 g
Bend radius (min): 4.8 cm
Connector 1 dimensions (WxDxH): 15 x 40 x 6 mm
Connector 2 dimensions (WxDxH): 15 x 45 x 8 mm

Packaging data

Package type: Blister
Package width: 214 mm
Package depth: 146 mm
Package height: 38 mm
Package weight: 200 g

Packaging content

Quantity per pack: 1 pc(s)

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -10 - 80 °C

Certificates

Certification: CE, UKCA, FCC, RoHS & REACH

Logistics data

Harmonized System (HS) code: 84733080
