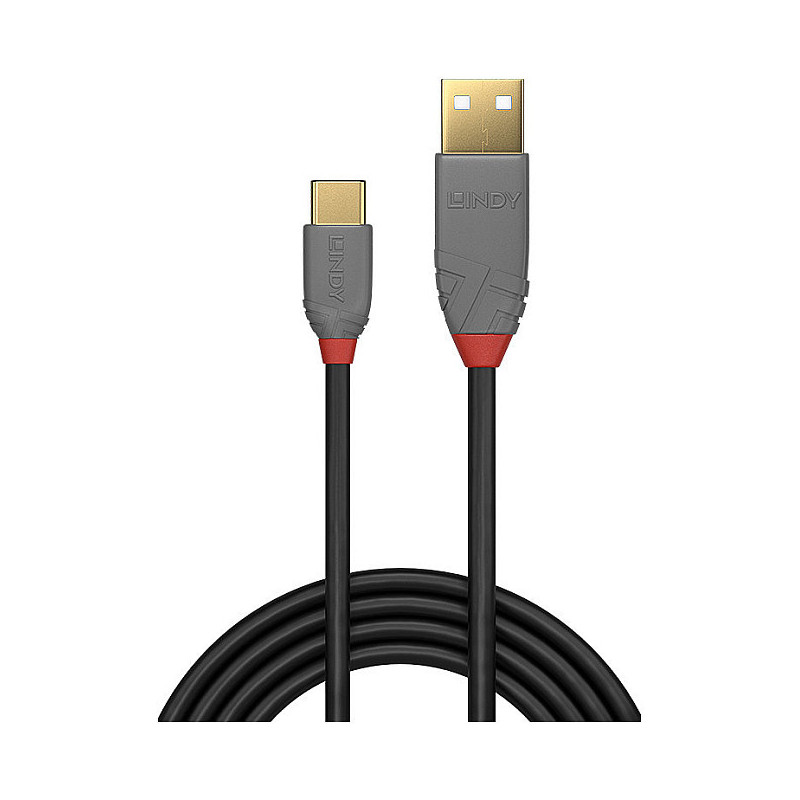

Lindy 36886 USB laidas

Lindy 1m USB 2.0 Type A to C Cable, Anthra Line. Cable length: 1 m. Connector 1: USB A, Connector 2: USB C, USB version: USB 2.0, Maximum data transfer rate: 0.48 Gbit/s, Connector contacts plating: Gold, Product colour: Black, Grey

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to C cables are the professional choice for high performance connections in commercial AV and IT installations.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain signal integrity and reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A to C cables are available in lengths from 0.5m to 3m.

Features

USB version: USB 2.0
Connector 1: USB A
Connector 2: USB C
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
AWG wire size: 28
Connector material: Gold
Contact material: Phosphor bronze
Connector contacts plating: Gold
Cable jacket material: Polyvinyl chloride (PVC)
Conductor material: Tinned copper
Feature: Connector shielding
Connector shield material: Copper
Connector housing material: Polyvinyl chloride (PVC)
Maximum data transfer rate: 480 Mbit/s
Maximum data transfer rate: 0.48 Gbit/s
Product colour: Black, Grey
Cable type: Round cable
Feature: Plug and Play
Nominal attenuation: 0.5-3m: 0.5Mhz €" 400Mhz 5.8db

Weight & dimensions

Cable length: 1 m
Cable diameter: 3.5 mm
Bend radius (min): 3.5 cm
Connector 1 dimensions (WxDxH): 11 x 25.5 x 7.3 mm
Connector 2 dimensions (WxDxH): 15.5 x 35.1 x 7.8 mm

Packaging data

Package type: Polybag

Packaging content

Quantity per pack: 1 pc(s)

Operational conditions

Operating temperature (T-T): -20 - 80 °C
Storage temperature (T-T): -25 - 85 °C

Certificates

Certification: RoHS, REACH, UL

Logistics data

Harmonized System (HS) code: 84733080
