Lindy 36761 USB laidas

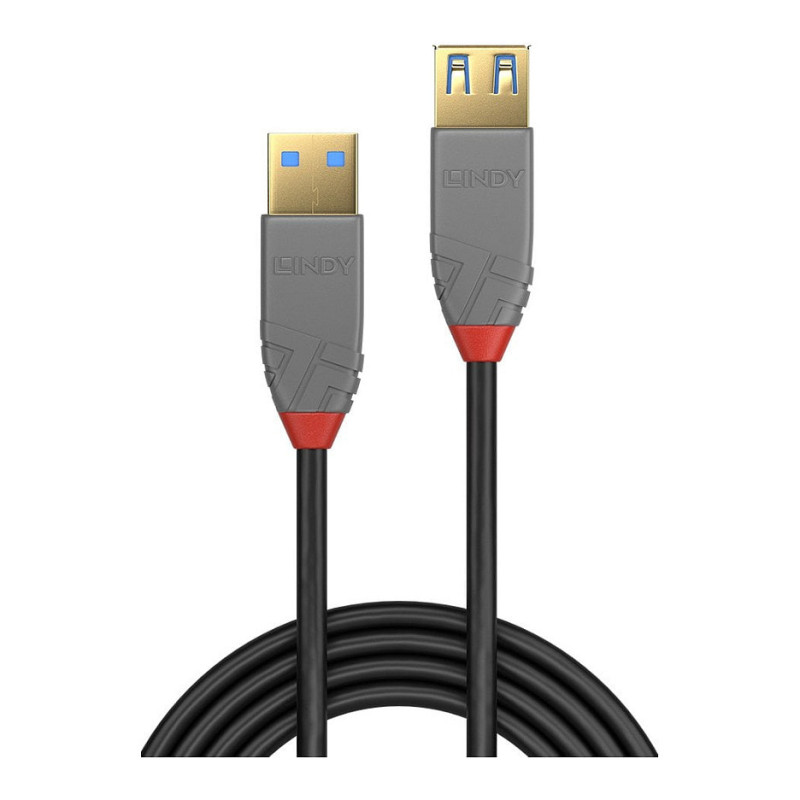

Lindy 1m USB 3.2 Type A Extension Cable, 5Gbps, Anthra Line. Cable length: 1 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5 Gbit/s, Connector contacts plating: Gold, Product colour: Black

The Anthra Line USB 3.2 Type A to A Extension cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.

Anthra Line USB 3.2 Type A to A Extension cables are available in the following lengths: 0.5m, 1m, 2m and 3m.

Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Features

USB version: USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1: USB A
Connector 2: USB A
Connector 1 gender: Male
Connector 2 gender: Female
Connector 1 form factor: Straight
Connector 2 form factor: Straight
AWG wire size: 24/28/30
Connector material: Gold
Contact material: Copper
Connector contacts plating: Gold
Cable jacket material: Polyvinyl chloride (PVC)
Conductor material: Tinned copper
Feature: Connector shielding
Connector shield material: Aluminium
Connector housing material: Polyvinyl chloride (PVC)
Maximum data transfer rate: 5000 Mbit/s
Maximum data transfer rate: 5 Gbit/s
Product colour: Black
Cable type: Round cable
Nominal attenuation: 0.5-5m: 0.5MHz-7.5GHz

Weight & dimensions

Cable length: 1 m
Cable diameter: 5.5 mm
Bend radius (min): 4.8 cm
Connector 1 dimensions (WxDxH): 15.5 x 35 x 7.8 mm
Connector 2 dimensions (WxDxH): 17 x 35 x 9.8 mm

Packaging data

Package type: Polybag

Packaging content

Quantity per pack: 1 pc(s)

Sustainability

Sustainability certificates: UL ECOLOGO

Operational conditions

Operating temperature (T-T): 0 - 60 °C
Storage temperature (T-T): 0 - 60 °C

Certificates

Compliance certificates: REACH, RoHS
Certification: RoHS, REACH, UL

Logistics data

Harmonized System (HS) code: 84733080
Warranty period: 10 year(s)
