Lindy 36676 USB laidas

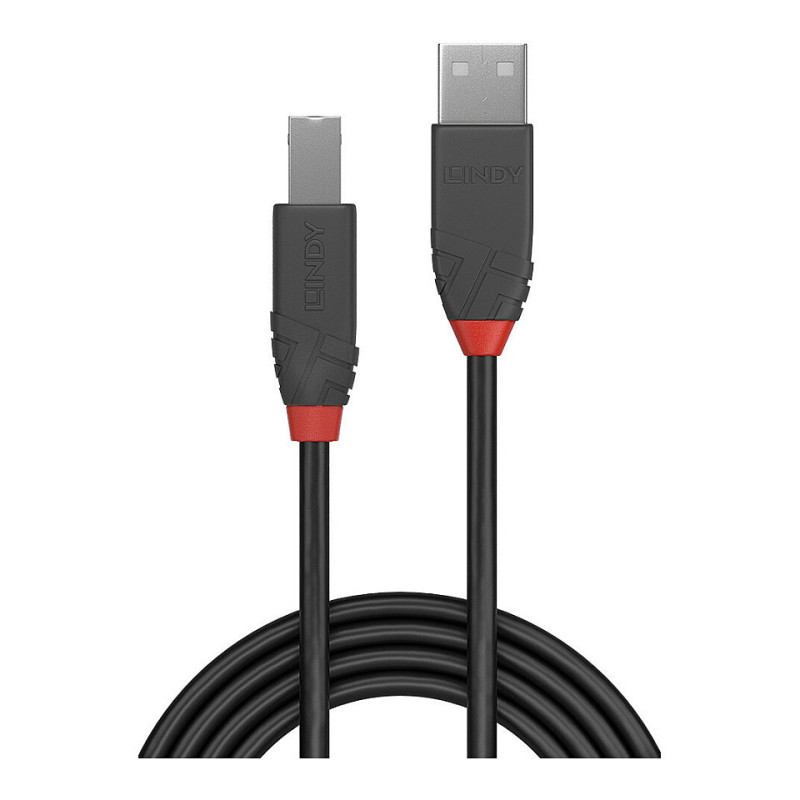

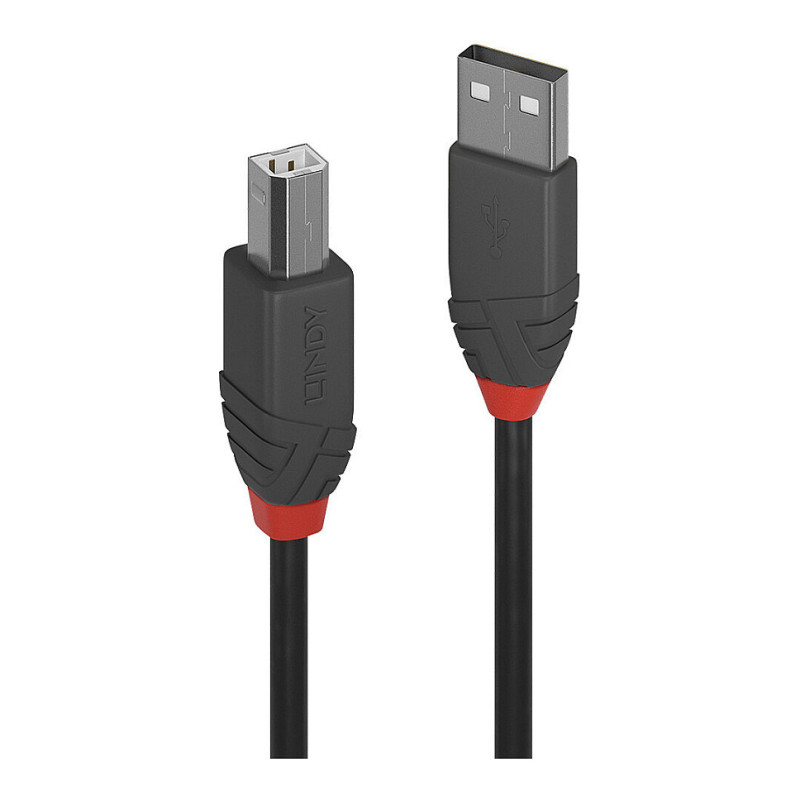

Lindy 7.5m USB 2.0 Type A to B Cable, Anthra Line. Cable length: 7.5 m. Connector 1: USB A, Connector 2: USB B, USB version: USB 2.0, Maximum data transfer rate: 0.48 Gbit/s, Connector contacts plating: Nickel, Product colour: Black

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to B cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A to B cables are available in lengths from 0.2m to 10m.

Features

USB version: USB 2.0
Connector 1: USB A
Connector 2: USB B
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
AWG wire size: 28/24
Connector material: Nickel
Contact material: Copper
Connector contacts plating: Nickel
Cable jacket material: Polyvinyl chloride (PVC)
Conductor material: Tinned copper
Feature: Connector shielding
Connector shield material: Aluminium
Connector housing material: Polyvinyl chloride (PVC)
Maximum data transfer rate: 480 Mbit/s
Maximum data transfer rate: 0.48 Gbit/s
Product colour: Black
Cable type: Round cable
Nominal attenuation: 5.8db/km

Weight & dimensions

Cable length: 7.5 m
Cable diameter: 5 mm
Bend radius (min): 1.6 cm
Connector 1 dimensions (WxDxH): 15.5 x 35 x 7.8 mm
Connector 2 dimensions (WxDxH): 11.8 x 35 x 10.2 mm

Packaging data

Package type: Polybag

Packaging content

Quantity per pack: 1 pc(s)

Operational conditions

Operating temperature (T-T): 0 - 60 °C
Storage temperature (T-T): 0 - 60 °C

Certificates

Certification: RoHS, REACH, UL

Logistics data

Harmonized System (HS) code: 84733080
