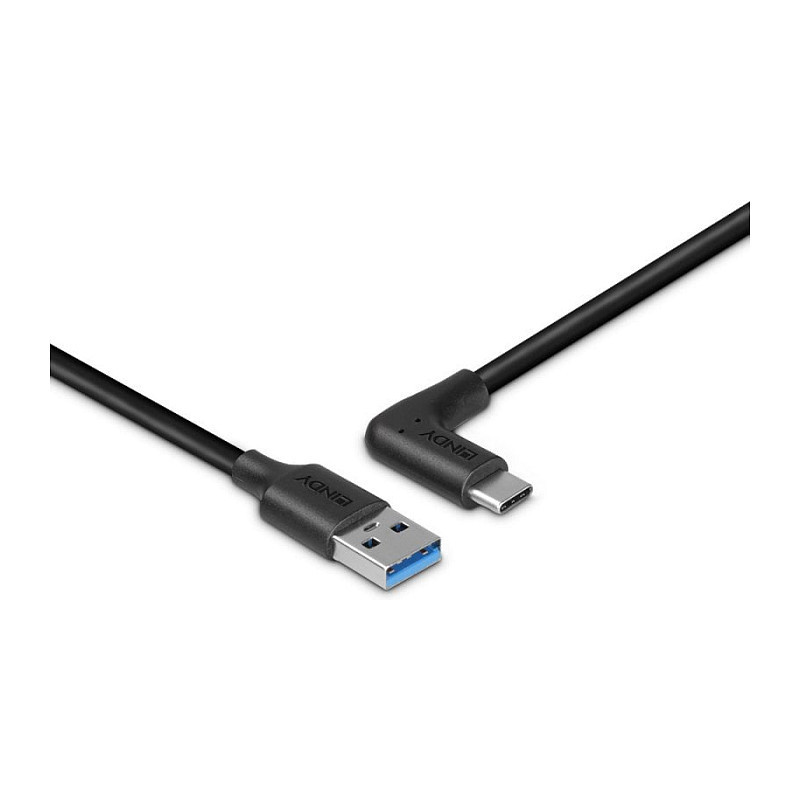

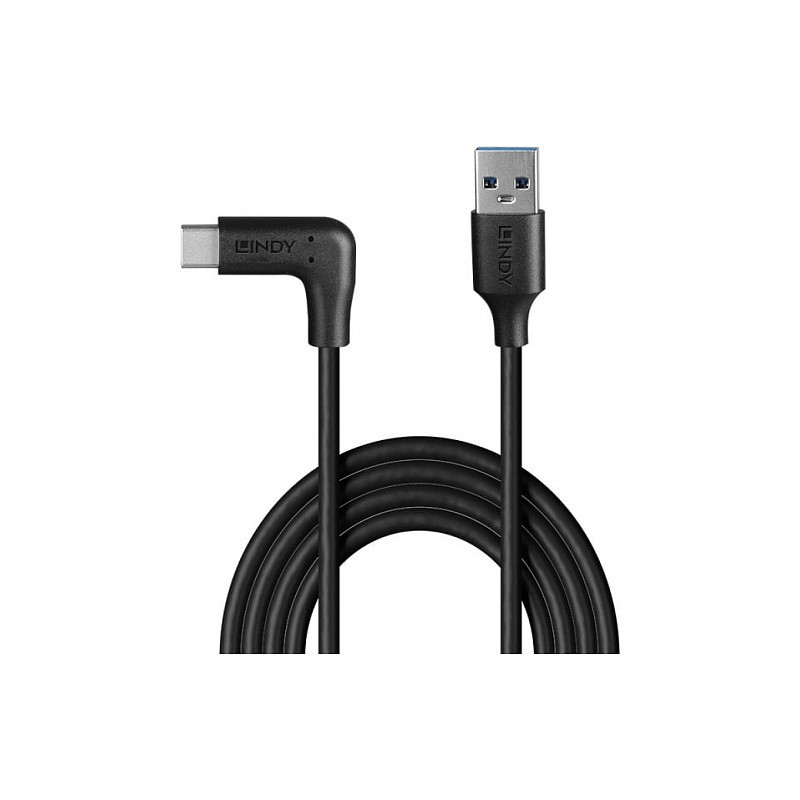

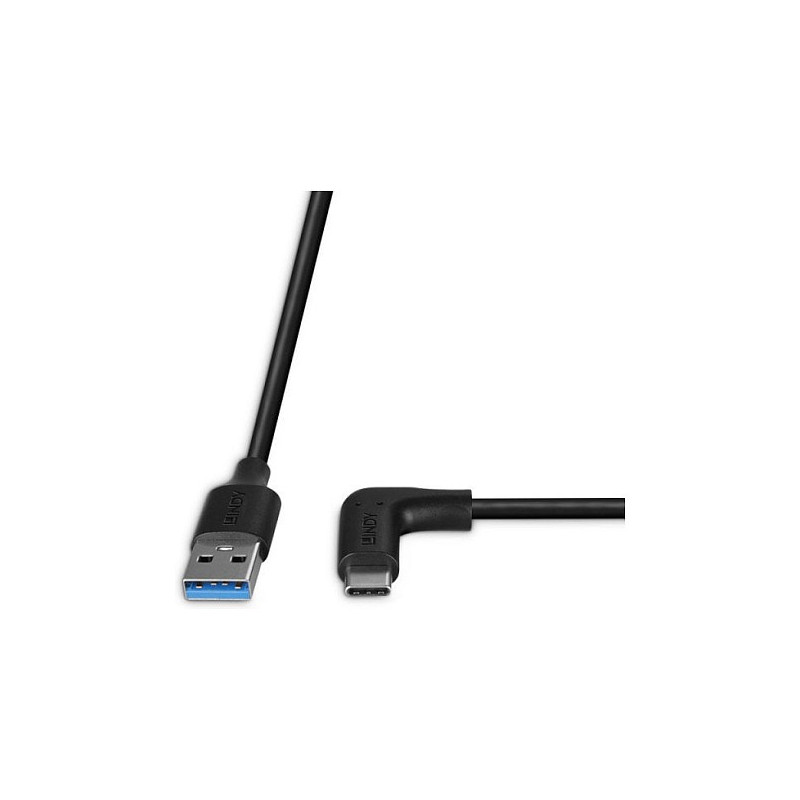

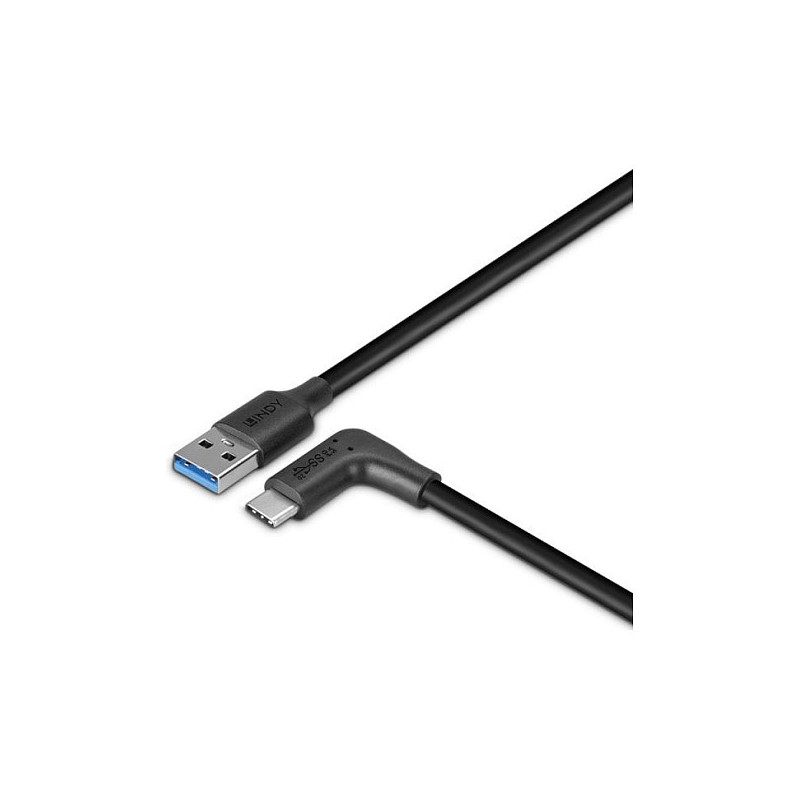

Lindy 32014 USB cable

Lindy 1.5m USB 3.2 Type A to C Cable, 90° Right Angle, 10Gbps. Cable length: 1.5 m. Connector 1: USB A, Connector 2: USB C, USB version: USB 3.2 Gen 2 (3.1 Gen 2), Maximum data transfer rate: 10 Gbit/s, Connector contacts plating: Nickel, Product colour: Black

LINDY USB 3.2 Type A to C cables feature double shielded construction with copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.

USB cables with angled plugs protect the USB ports of your devices by reducing pressure and preventing cable breakage, making them ideal for confined spaces and hard-to-reach ports.

Data transfer speeds up to 10Gbps are supported for the quick and effortless transfer of large data volumes.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

USB 3.2 Type A to C, 90° Right Angle cables are available in the following lengths: 0.5m, 1m, 1.5m.

Features

USB version: USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1: USB A
Connector 2: USB C
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Angled
AWG wire size: 24/28
Connector material: Gold
Connector contacts plating: Nickel
Cable jacket material: Nylon/Polyvinyl Chloride (PVC)
Conductor material: Copper
Feature: Connector shielding
Connector shield material: Aluminium
Maximum data transfer rate: 10 Gbit/s
Cable type: Round cable
USB Power Delivery up to: 15 W
Product colour: Black
Nominal attenuation: 0.5Mhz- 400Mhz < 5.8db

Weight & dimensions

Cable length: 1.5 m
Cable diameter: 3.8 mm
Bend radius (min): 5 cm
Connector 1 dimensions (WxDxH): 7.8 x 26.5 x 14.25 mm
Connector 2 dimensions (WxDxH): 11.1 x 25.8 x 24.2 mm

Packaging data

Package type: Polybag

Packaging content

Quantity per pack: 1 pc(s)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): 0 - 70 °C

Certificates

Compliance certificates: REACH, RoHS
Certification: RoHS, REACH, California Proposition 65

Logistics data

Warranty period: 10 year(s)
