Įrenkite 119466 USB laidą

Equip USB-C to C Active Optical Cable, 5m, PD 60W, 8K/60Hz, 10Gbps, Video+Data+PD. Cable length: 5 m. Connector 1: USB C, Connector 2: USB C, USB version: USB 3.2 Gen 2 (3.1 Gen 2), Maximum data transfer rate: 10 Gbit/s, Connector contacts plating: Gold, Product colour: Black

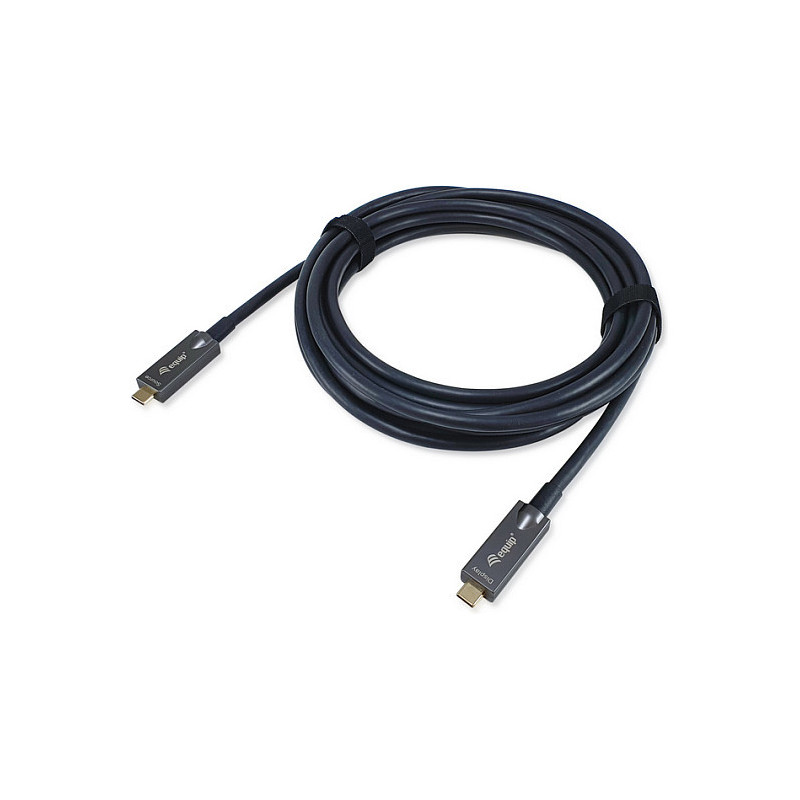

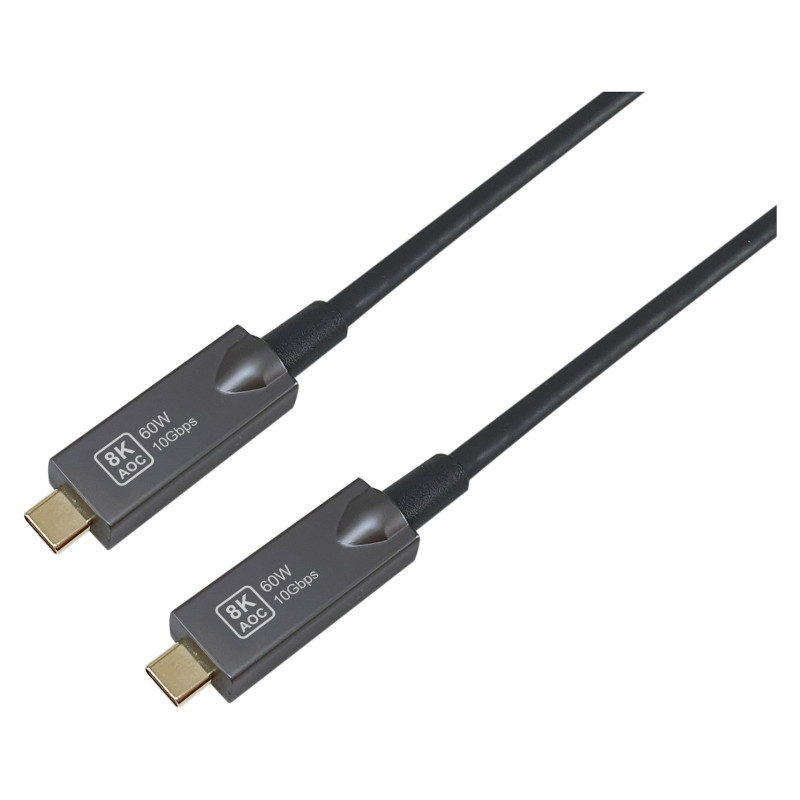

The 119466 USB-C to C Active Optical Cable is designed for long-distance transmission of video, data, and power with stable and reliable performance. Utilizing active optical technology, it converts electrical signals into optical signals, significantly reducing signal attenuation and electromagnetic interference over extended cable lengths.

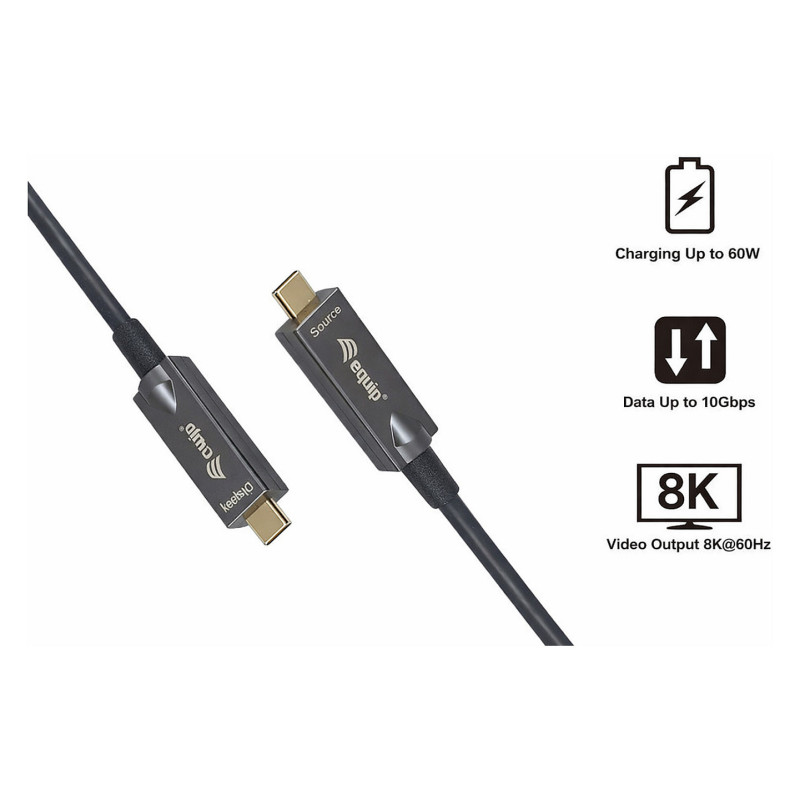

Based on USB 3.2 Gen 2 specification, the cable supports data transfer speeds of up to 10Gbps and delivers Power Delivery up to 60W (20V/3A), making it suitable for connecting laptops, tablets, and USB-C source devices to external displays and peripherals. It supports video output up to 8K@60Hz via DP Alt Mode, with additional support for DSC, HDR, and HDCP 2.2 for high-quality visual performance.

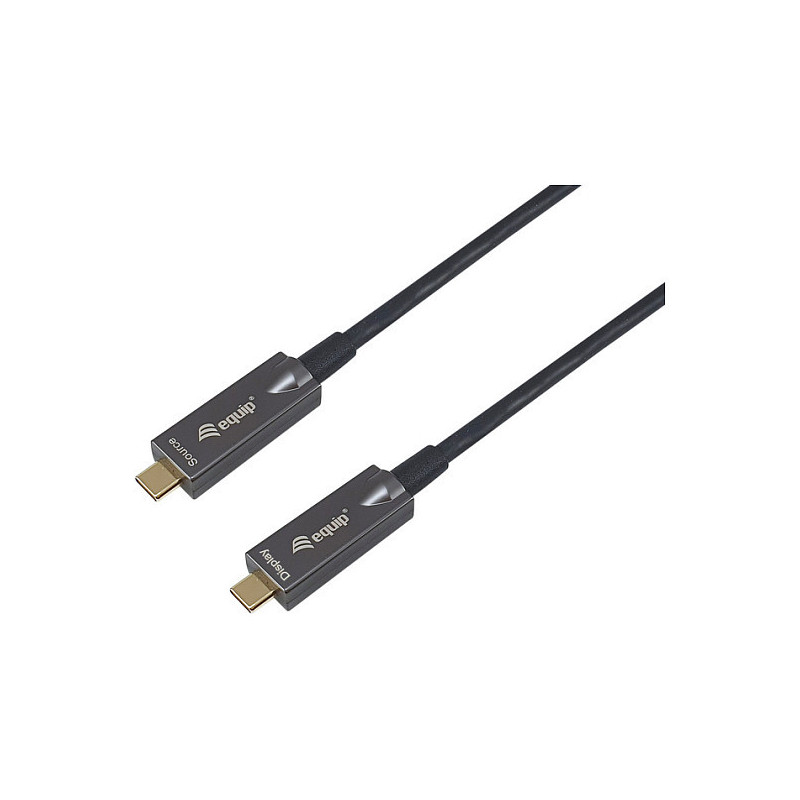

Compared to traditional copper cables, the active optical construction makes the cable thinner, lighter, and more flexible, while enabling reliable signal transmission over a 5.0-meter distance. This cable features a unidirectional design and must be connected from the source device to the display according to the marked direction.

Features

USB version: USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1: USB C
Connector 2: USB C
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Maximum data transfer rate: 10 Gbit/s
Cable type: Round cable
Feature: Plug and Play
Feature: Fast charging
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 60 W
Product colour: Black
Feature: USB Type-C DisplayPort Alternate Mode
Maximum resolution: 7680 x 4320 pixels
Feature: High Dynamic Range (HDR) supported
Feature: HDCP
HDCP version: 2.2

Power

Input voltage: 20 V
Input current (max): 3 A

Weight & dimensions

Cable length: 5 m
Width: 15.3 mm
Depth: 8.7 mm
Height: 5000 mm
Weight: 420 g

Packaging data

Package type: Box
Package width: 330 mm
Package depth: 250 mm
Package height: 30 mm
Package weight: 440 g

Packaging content

Quantity per pack: 1 pc(s)

Certificates

Compliance certificates: CE, RoHS

Logistics data

Products per master (outer) case: 10 pc(s)
Master (outer) case width: 300 mm
Master (outer) case length: 230 mm
Master (outer) case height: 460 mm
Master (outer) case gross weight: 5 kg
Customs product code (TARIC): 8544421000
Country of origin: China
