„Digitus DB-300220-010-S“ USB kabelis

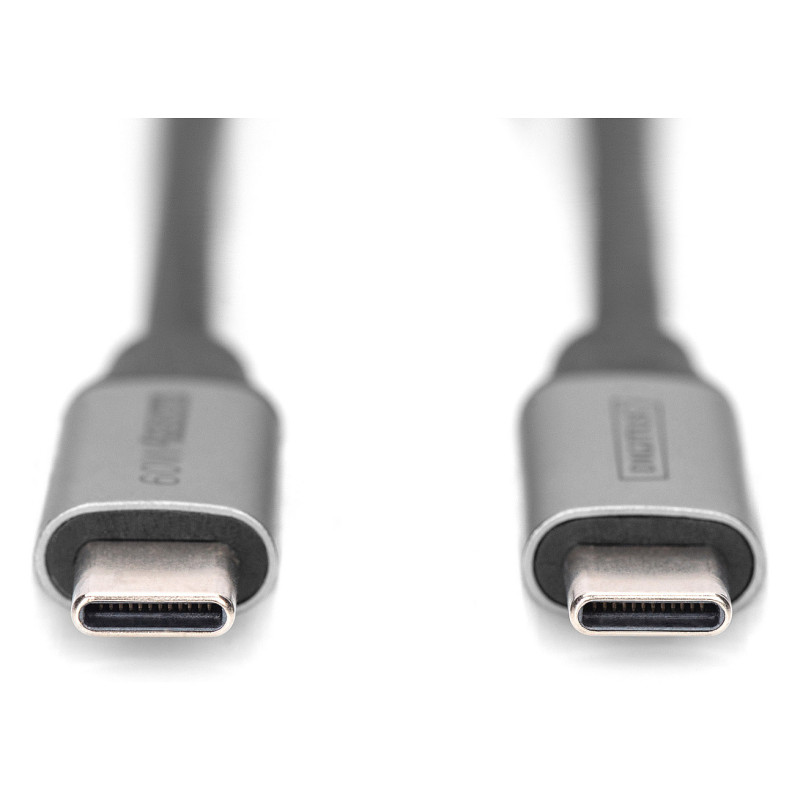

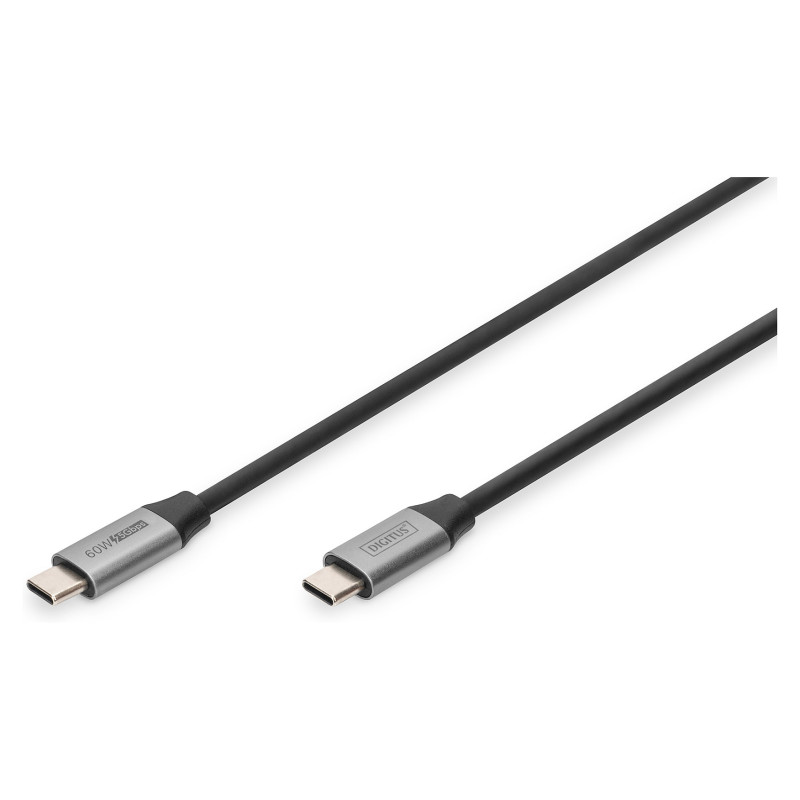

Digitus USB-C - USB-C connection cable, 4K / 60 Hz, 1m. Cable length: 1 m. Connector 1: USB C, Connector 2: USB C, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5 Gbit/s, Connector contacts plating: Nickel, Product colour: Black

Supports the following transmission types: Audio/video/data transmission/charging function

- Supports data transfer rates of up to 5 Gbit/s
- Supports USB Power Delivery with 20V, 3A and 60W
- Backwards compatible with Thunderbolt 3 and USB 2.0
- Supports DisplayPort video/audio signals and PCi Express
- Video/audio support up to 4K at 60Hz
- USB version: USB 3.0 Gen. 1
- Aluminum housing

The Digitus® USB 3.0 Gen.1 connection cable is the all-rounder among cables. Thanks to the Thunderbolt 3 protocol, PCI Express, DisplayPort and host-to-host transmissions can be realized. You can use this cable to transfer audio/video signals, data and power. The data transfer speed is 5 Gbit/s. This allows you to transfer large data such as movies and music within seconds. The video signals are transmitted in max. 4K at a refresh rate of 60 Hz. Thanks to USB Power Delivery, the charging function is guaranteed. With the corresponding charger, you can charge your smart devices with max. 60 W (3 A / 20 V) in a short time. The USB Type-C interface enables broad compatibility with devices with this connection.

Features

USB version: USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1: USB C
Connector 2: USB C
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector material: Nickel
Connector contacts plating: Nickel
Cable jacket material: Thermoplastic elastomer (TPE)
Conductor material: Copper
Maximum data transfer rate: 5000 Mbit/s
Maximum data transfer rate: 5 Gbit/s
Cable type: Round cable
Feature: Plug and Play
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 60 W
Product colour: Black

Power

Output voltage: 20 V
Output current (max): 3 A

Weight & dimensions

Cable length: 1 m

Packaging data

Package width: 120 mm
Package depth: 110 mm
Package height: 30 mm
Package weight: 48.889 g

Packaging content

Quantity per pack: 1 pc(s)

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -10 - 50 °C

Logistics data

Package volume: 396 cm³
Country of origin: China
