„DeLOCK 90600“ brūkšninių kodų skaitytuvas

DeLOCK USB Barcode Scanner 1D and 2D wired for stationary installation - German Version. Type: Built-in bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: RJ-50, Cable length: 1.5 m. Product colour: Black. Power source type: USB, Input voltage: 5 V, Power consumption: 100 mA. Weight: 173 g, Width: 67 mm, Depth: 78 mm

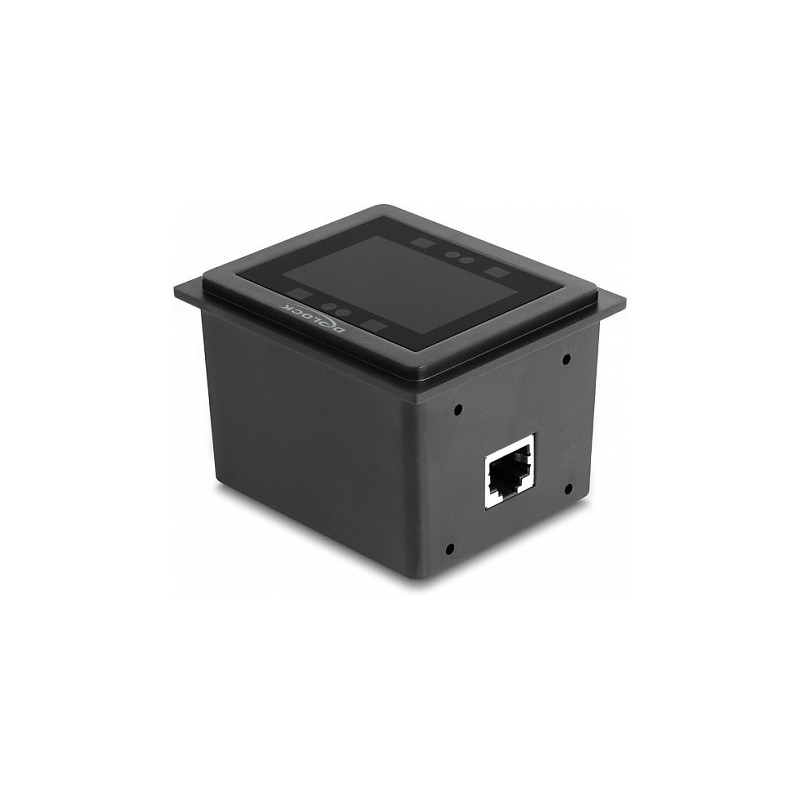

This stationary barcode scanner by Delock is ideal for space-saving installation in a table top and connection to the system. It is also ideal for use in access control, for example in a digitalised turnstile. All common 1D and 2D barcode types can also be precisely captured from the smartphone.

Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 60 scans per second under optimal lighting conditions.

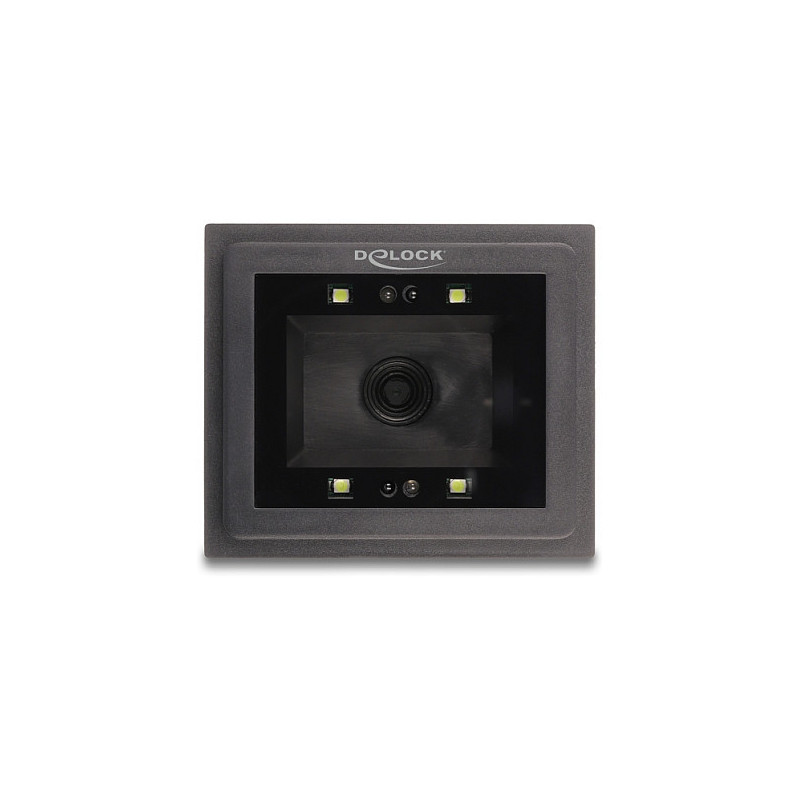

In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.

Transmission via USB

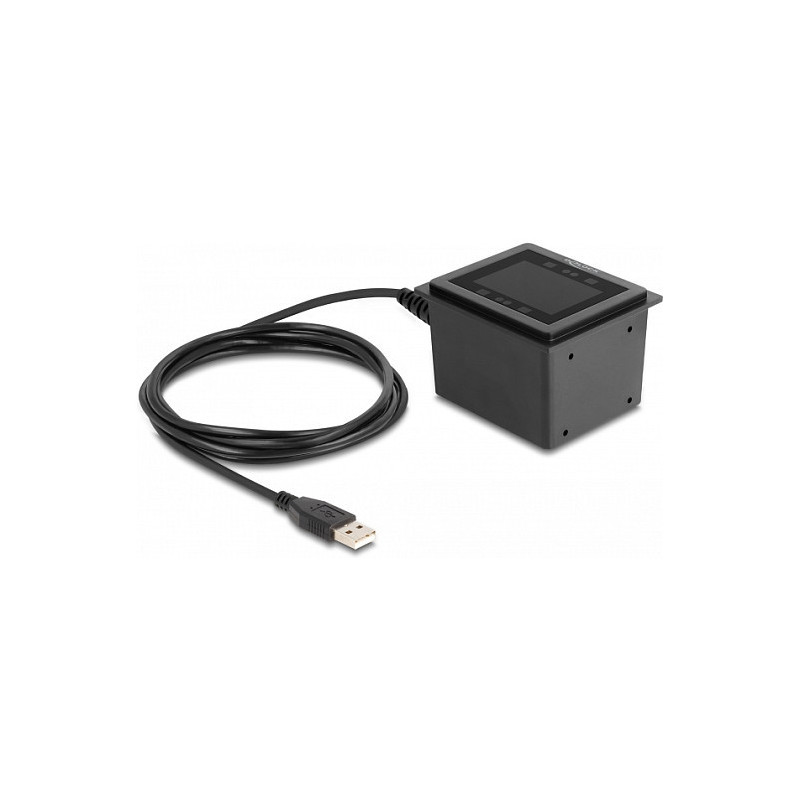

The data transfer of the scanned barcodes is done via the included USB cable.

Scanning

Type: Built-in bar code reader
Scanner type: 1D/2D
Sensor type: CMOS
Linear (1D) barcodes supported: Code 128, Code 39, EAN-13, EAN-8, Interleaved 2 of 5, PDF417
2D (matrix & stacked) barcodes supported: Code 39, Data Matrix, Micro QR Code, QR Code
Optical sensor resolution (W x H): 752 x 480 pixels
Working distance: 25 cm
Read rate (max): 60 reads/s

Ports & interfaces

Connectivity technology: Wired
Standard interfaces: RJ-50
Cable length: 1.5 m

Performance

Feature: Built-in processor
Product colour: Black

Power

Power source type: USB
Input voltage: 5 V
Power consumption: 100 mA

Weight & dimensions

Width: 67 mm
Depth: 78 mm
Height: 52 mm
Weight: 173 g

Packaging data

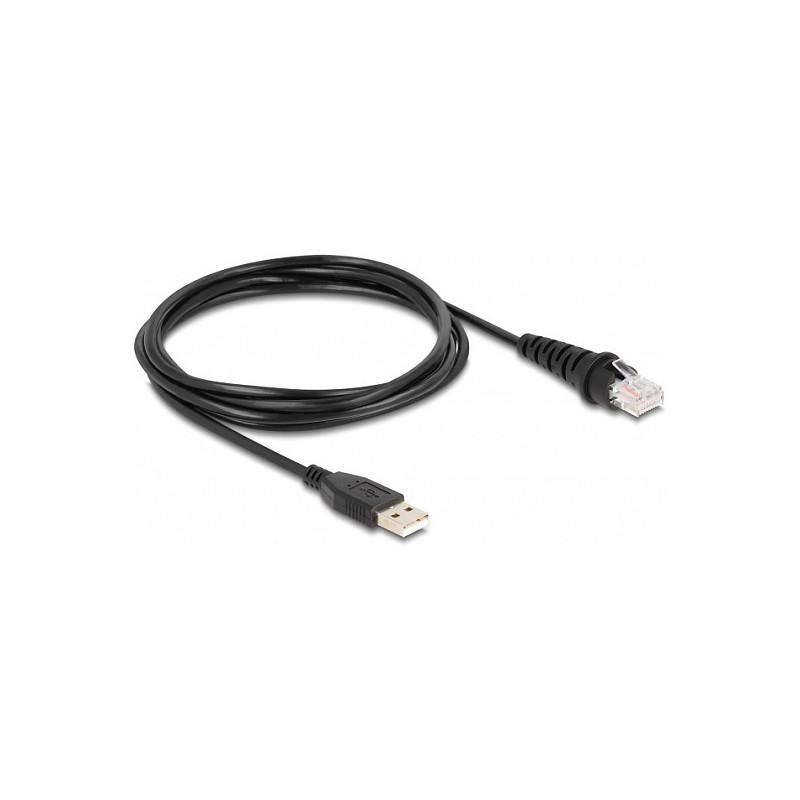

Cables included: USB

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Storage temperature (T-T): -10 - 50 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%
