DeLOCK 86067 USB laidas

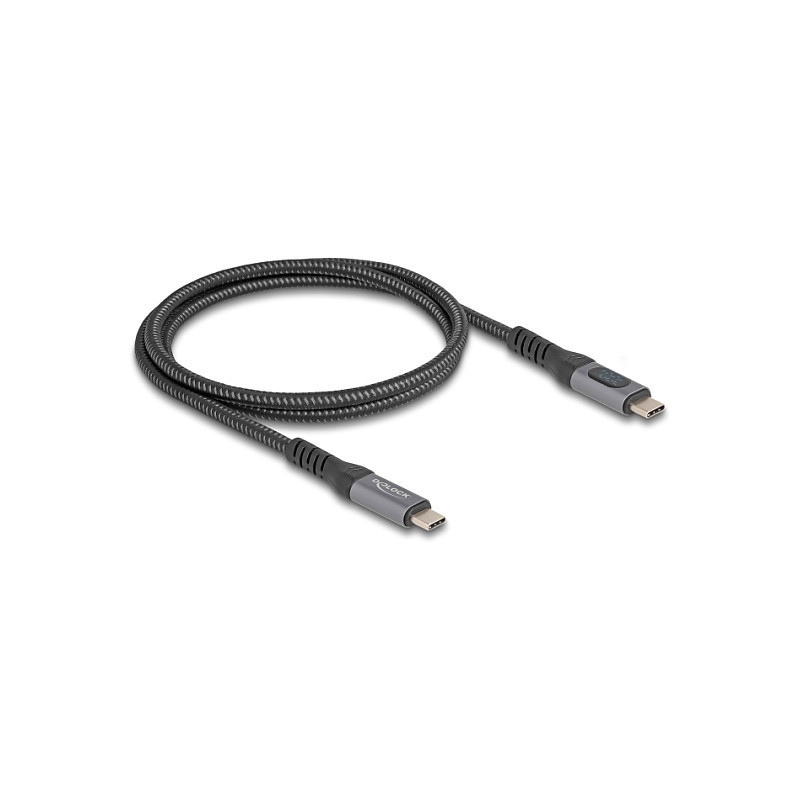

DeLOCK USB 40 Gbps Data and Fast Charging Coaxial Cable 1 m 8K 60 Hz USB PD 3.1 Extended Power Range 240 W. Cable length: 1 m. Connector 1: USB C, Connector 2: USB C, USB version: USB4 Gen 3x2, Maximum data transfer rate: 40 Gbit/s, Product colour: Black

This USB 40 Gbps "full featured" cable by Delock enables the connection of various devices, such as smart phones, monitors, external enclosures and docking stations, via a USB Type-C™, Thunderbolt™ 3 or Thunderbolt™ 4 port of a PC or laptop. A suitable PD power supply unit with a USB Type-C™ socket can be used for the charging function only. Support for the Extended Power Range resp. USB Power Delivery 3.1 standard means that connected devices can be supplied with power, up to 240 W (48 V / 5 A) is possible. The cable supports the transfer of USB as well as DisplayPort and PCI Express data.

Display

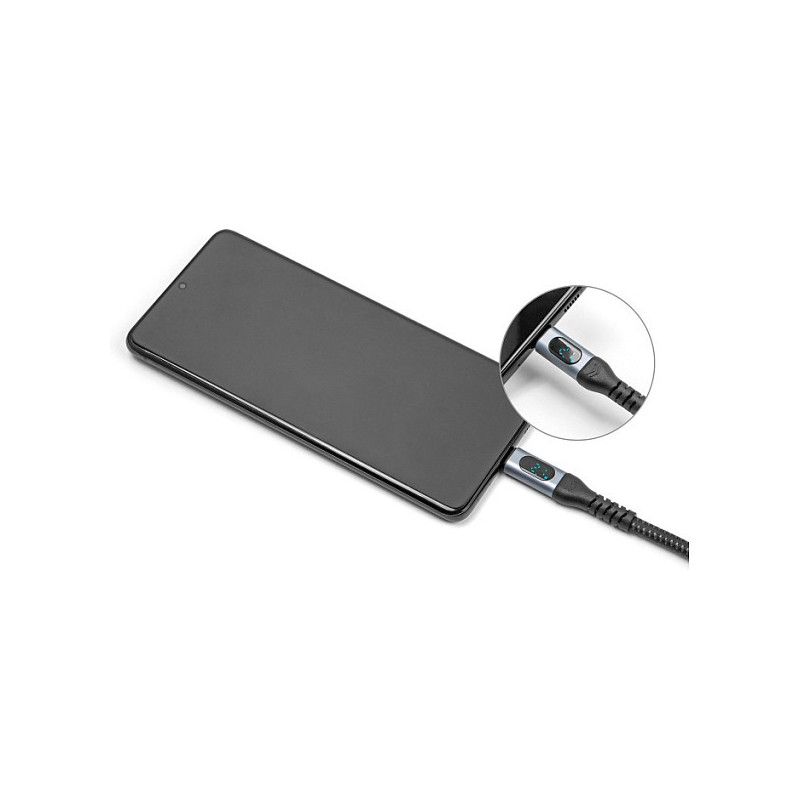

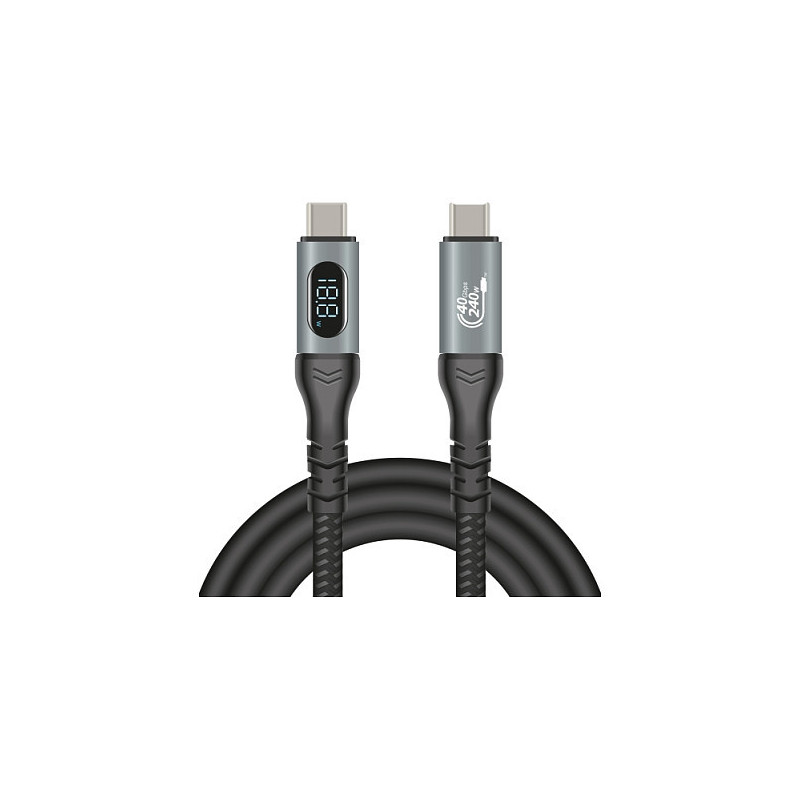

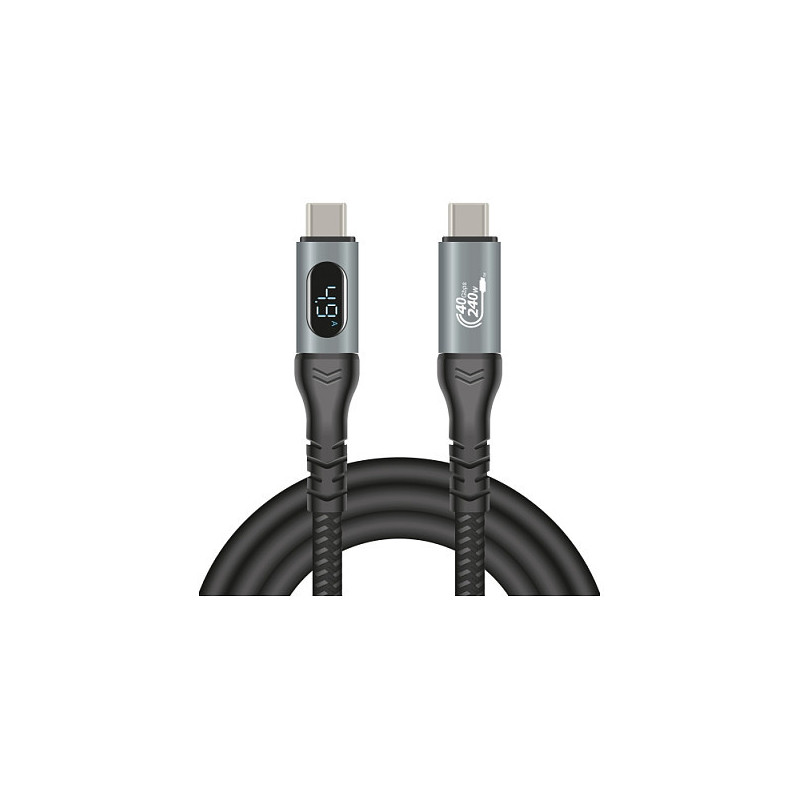

A special feature of this cable is the power indication, which shows the current charging power in watts as well as the current in amperes and voltage in volts. The power will be displayed with three digits.

Connect USB-C™ 8K monitors
The Delock cable supports the DisplayPort 2.0 Alternate Mode, enabling the connection of corresponding USB-C™ monitors with a screen resolution up to 8K 60 Hz.

Quality and performance
The cable is very sturdy and durable due to its robust textile shielding and strong strain relief. The high cable gauge of the power line with 21 AWG also supports a stable power supply of up to 5 A.

Features

USB version: USB4 Gen 3x2
Connector 1: USB C
Connector 2: USB C
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
AWG wire size: 29/21
Cable jacket material: Textile
Cable jacket type: Braided
Maximum data transfer rate: 40 Gbit/s
Product colour: Black
Cable type: Round cable
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.1
USB Power Delivery up to: 240 W
Feature: USB Type-C DisplayPort Alternate Mode
DisplayPort version: 1.4a
Feature: Built-in display
Feature: Built-in power meter
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: High Dynamic Range 10 (HDR10)
Feature: HDCP
HDCP version: 1.4/2.3

Power

Input voltage: 48 V
Input current (max): 5 A

Weight & dimensions

Cable length: 1 m
Cable diameter: 5.5 mm

Packaging data

Package type: Box

Packaging content

Quantity per pack: 1 pc(s)
