„DeLOCK 60687“ sąsajos šakotuvas

DeLOCK 60687. Host interface: USB 2.0 Type-B, Hub interfaces: USB 2.0 Type-A. Data transfer rate: 480 Mbit/s, Product colour: Black, Housing material: Metal. Power supply type: DC. Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Mac operating systems supported: Mac OS 13.1, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia, Linux operating systems supported: Linux Kernel 6.2, Linux Kernel 6.5. Width: 80 mm, Depth: 158 mm, Height: 32 mm

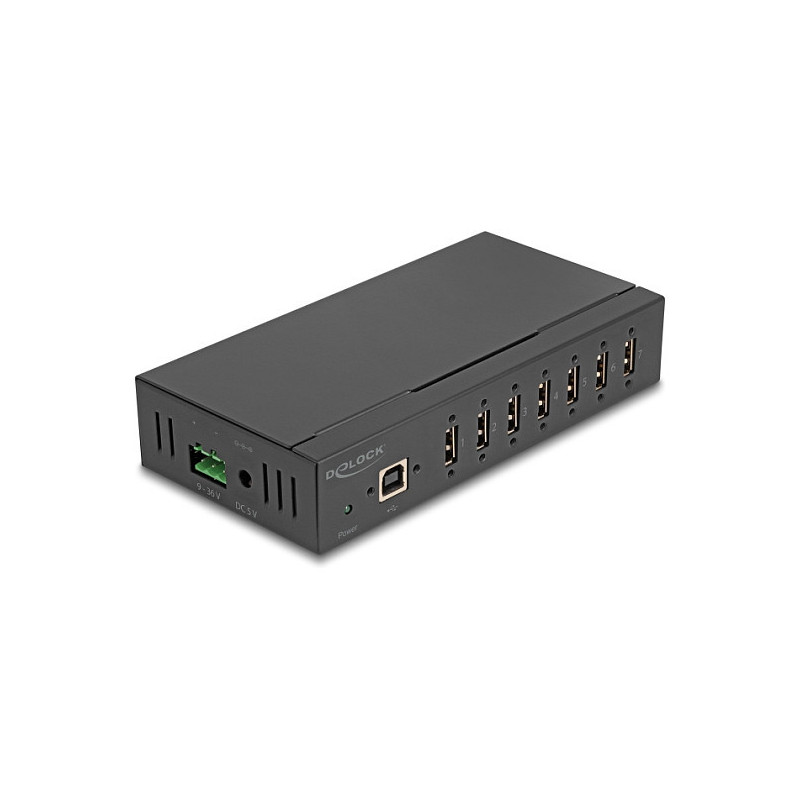

This solid industry capable USB Hub by Delock can be connected to a computer via the USB Type-A interface. It expands the computer by seven USB Type-A connectors.

Screw connection and mounting option

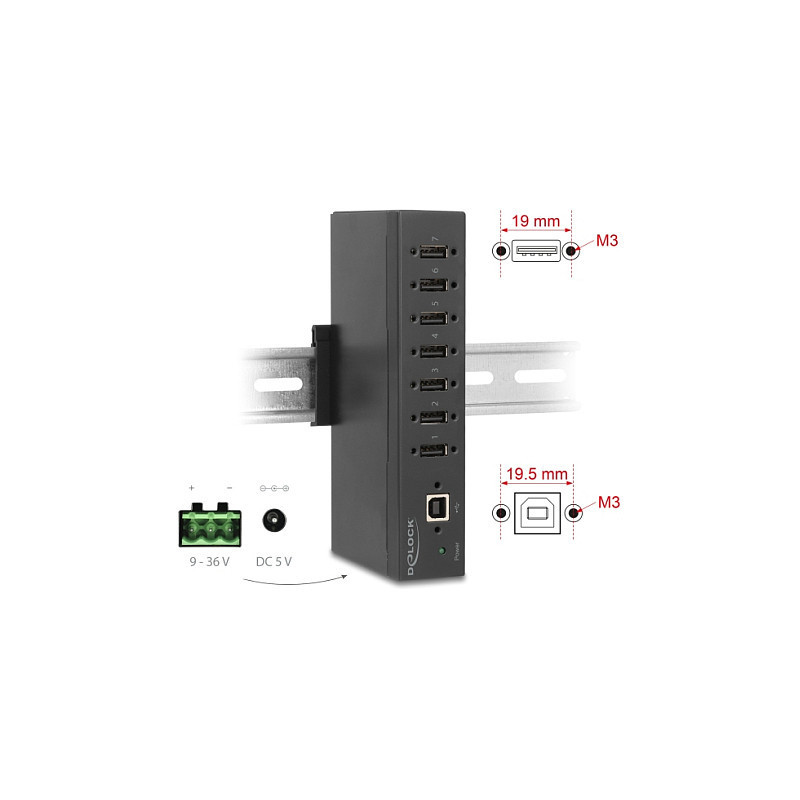

Each USB port has two screw holes with M3 thread. Appropriate cables can be plugged in and screwed into the screw holes. This ensures a secure data connection even in mobile environments.

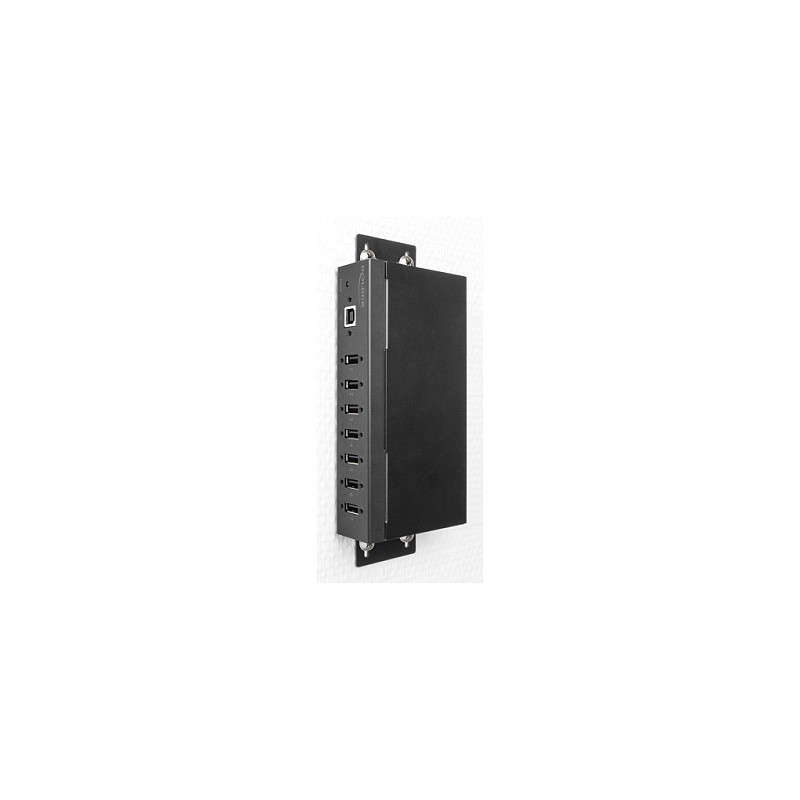

In addition, the hub comes with wall mounting plates and a DIN rail bracket, making it perfect for installation in an industrial environment.

ESD fuse
The USB ports are protected against electrostatic discharges up to 15 kV.

Power supply
If necessary, an optional power supply or an optional power cable can be connected to the power socket. A voltage between 9 - 36 V can be applied to the terminal power connection, and 5 V to the DC connection.

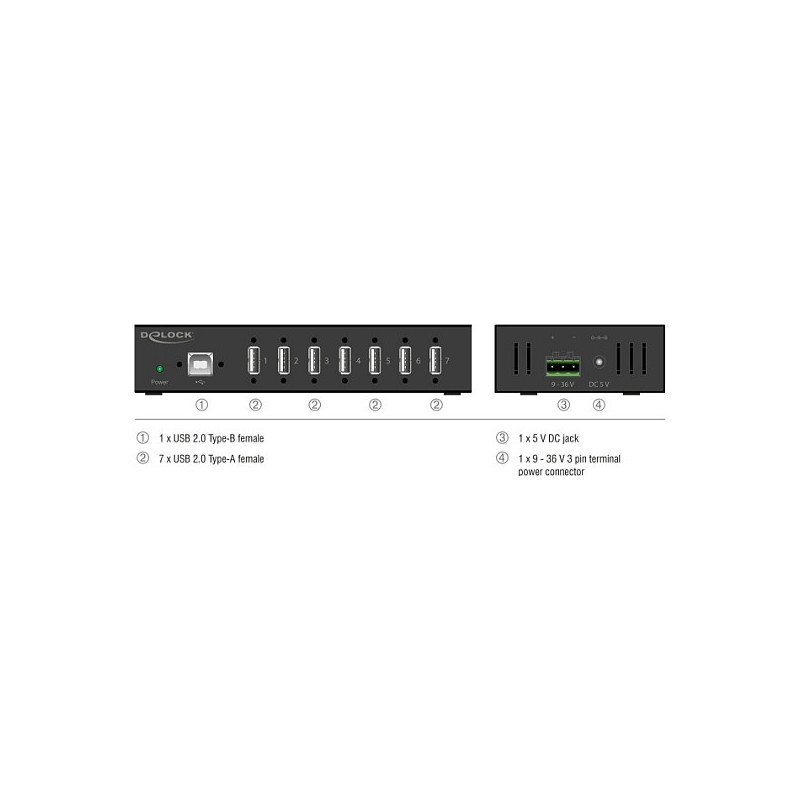

Ports & interfaces

Host interface: USB 2.0 Type-B
Hub interfaces: USB 2.0 Type-A
USB 2.0 ports quantity: 8
Ports quantity: 8
Feature: Terminal block port
Feature: DC-in jack

Features

Data transfer rate: 480 Mbit/s
Product colour: Black
Housing material: Metal
LED indicators: Yes
Cable length: 1.8 m
Feature: Plug and Play
Country of origin: China

Power

Power supply type: DC

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11
Mac operating systems supported: Mac OS 13.1, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Linux operating systems supported: Linux Kernel 6.2, Linux Kernel 6.5
Server operating systems supported: Windows Server 2022

Weight & dimensions

Width: 80 mm
Depth: 158 mm
Height: 32 mm

Packaging data

Quantity per pack: 1 pc(s)
Package type: Box

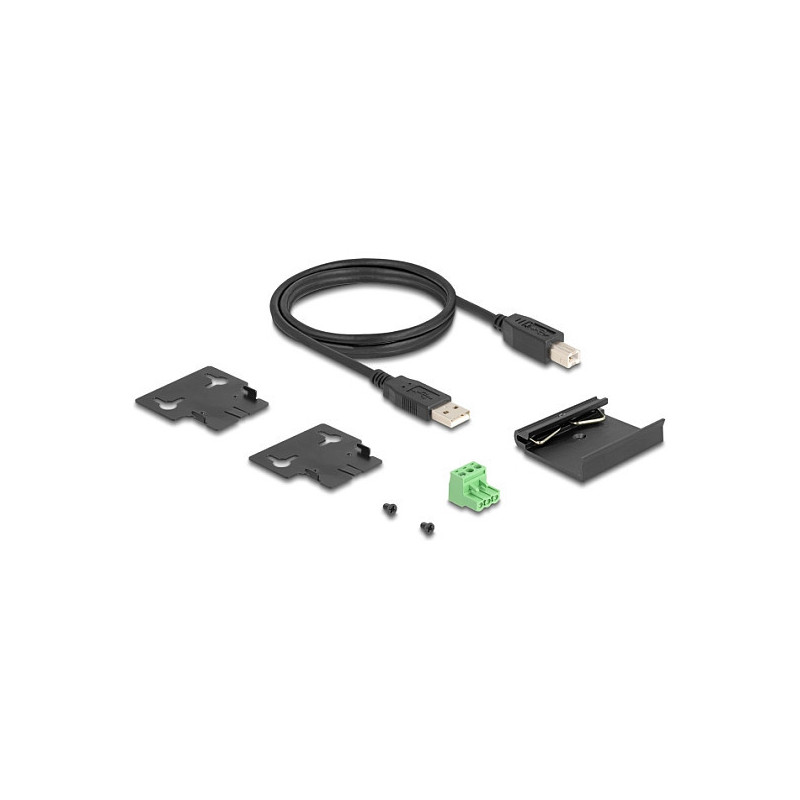

Packaging content

Cables included: USB Type-A to USB Type-B
Feature: Manual

Operational conditions

Operating temperature (T-T): 0 - 60 °C
Storage temperature (T-T): -10 - 70 °C

Other features

Chipset: Genesys Logic GL850G
