„DeLOCK 42025“ atminties įrenginio korpusas

DeLOCK 42025. Product type: SSD enclosure. Number of storage drives supported: 1, Storage drive size: M.2, Supported storage drive interfaces: M.2, PCI Express. Data transfer rate: 40 Gbit/s. Installed storage drive type: SSD, Hot-swap. Product colour: Grey. USB connector type: USB Type-C

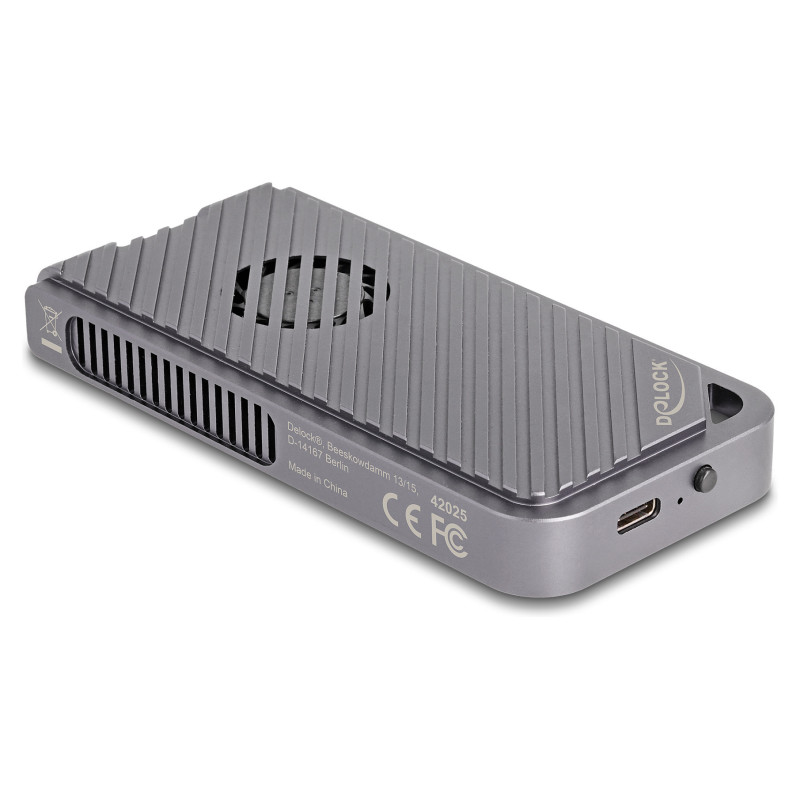

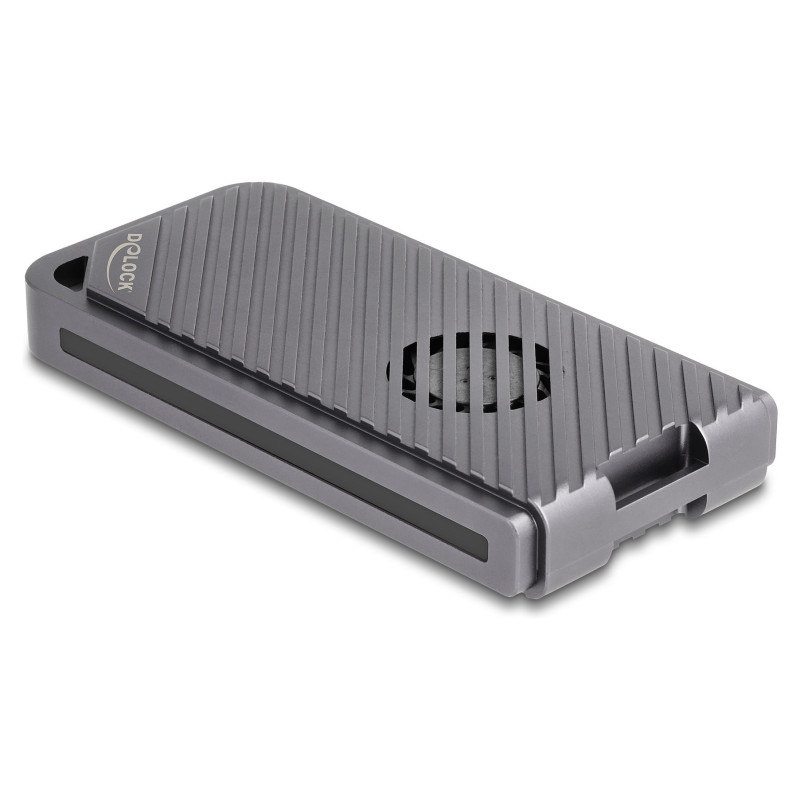

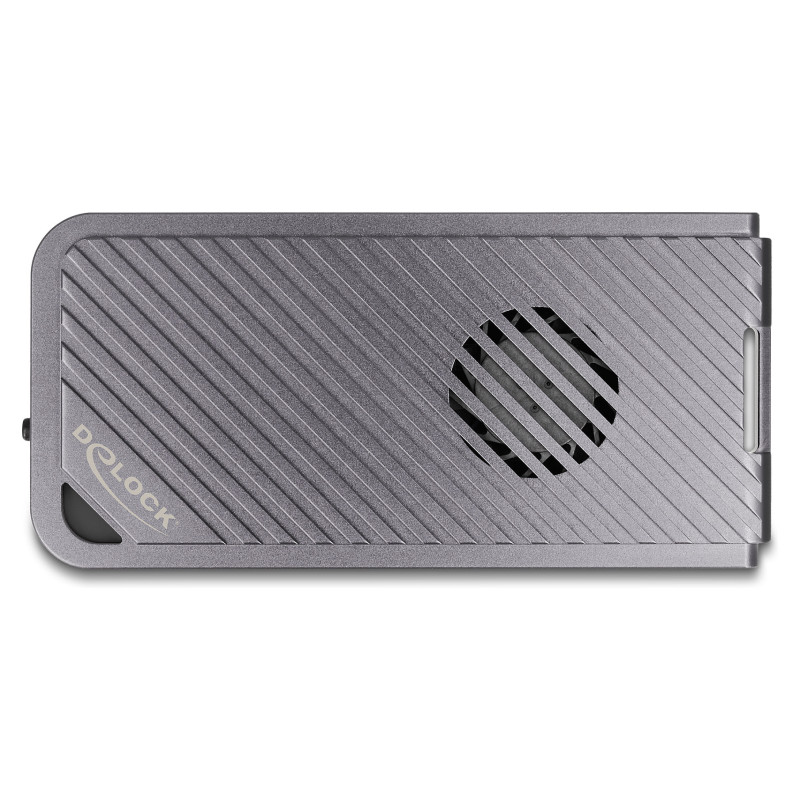

This enclosure by Delock enables the installation of an M.2 PCIe NVMe SSD in 2280 format, it can be connected via Thunderbolt™ 3, Thunderbolt™ 4 or USB-C™ to the PC or laptop.

USB 40 Gbps
Due to USB 40 Gbps compatibility, the Delock enclosure can be connected to Thunderbolt™ 3 and 4 ports, as well as to all USB Type-C™ ports. The maximum data transfer rate depends on the host device.

LED illumination
In addition to the Power LED there is an LED light bar on the side. This glows in pulsating blue light when the enclosure is connected to a USB interface and in colourful illumination when connected to a Thunderbolt™ interface.

SSD installation without tools
The special feature of this enclosure is that no tools are required to install the M.2 SSD.

Active cooling by fan
A silent fan in the bottom area of the enclosure ensures sufficient cooling of the used SSDs, so that the operation also works without problems with the enclosure closed. The fan can be switched on and off.

Note
Due to the USB to NVMe controller, the data transfer rate on a USB Gen 2x2 port is only 10 Gbps.

Storage

Number of storage drives supported: 1
Storage drive size: M.2
Supported storage drive interfaces: M.2, PCI Express
Supported storage drive heights: 1.5 mm
Installed storage drive type: SSD
Feature: NVMe
Feature: Hot-swap

Ports & interfaces

Feature: USB connectivity
USB version: USB4 Gen 4
USB connector type: USB Type-C
USB connector gender: Female
USB ports quantity: 1
Feature: Integrated USB cable

Design

Product type: SSD enclosure
Product colour: Grey
Material: Aluminium, Metal
LED indicators: Yes
Number of fans: 1 fan(s)
Fan diameter: 3 cm

Performance

Data transfer rate: 40 Gbit/s
Chipset: Intel JHL7440, Realtek RTL9210B
Feature: Plug and Play

Power

Power source type: USB

System requirements

Mobile operating systems supported: Android 10, Android 11.0, Android 12.0, iOS
Windows operating systems supported: Windows 10, Windows 11, Windows 8.1
Linux operating systems supported: Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15
Mac operating systems supported: Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Weight & dimensions

Width: 56 mm
Depth: 117 mm
Height: 16 mm
Cable length: 0.5 m

Packaging content

Package type: Box

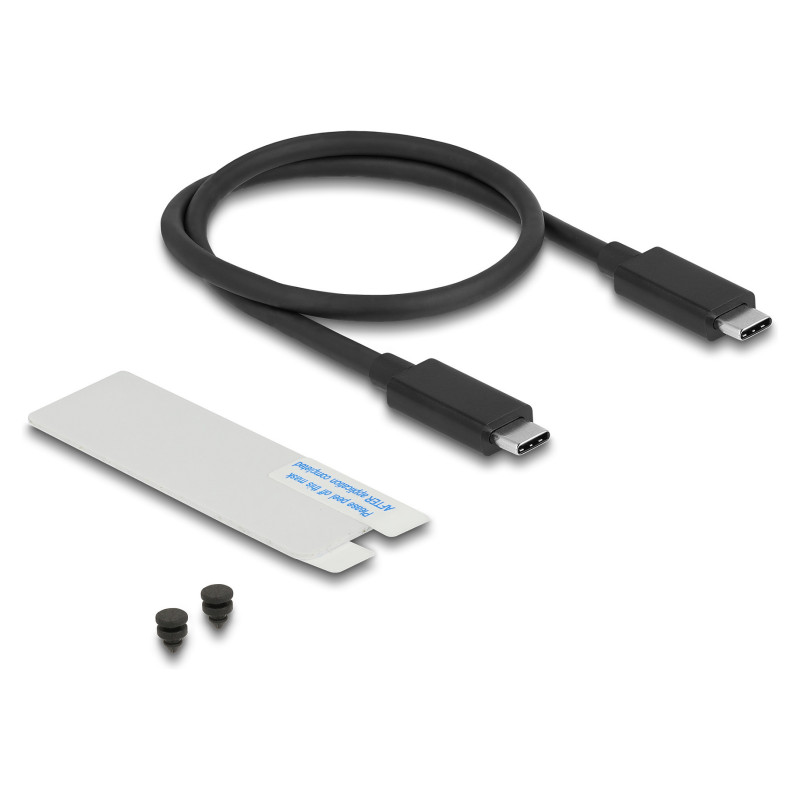

Cables included: Thunderbolt, USB Type-C to USB Type-C
Feature: Screws included
Feature: Screwdriver included
Feature: Manual

Technical details

Compliance certificates: CE
