„DeLOCK 41471“ mobiliojo įrenginio įkroviklis

DeLOCK USB GaN Charger 1 x USB Type-C PD 3.1 with 140 W. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 - 240 V, Maximum output voltage: 28 V. USB Type-C ports quantity: 1, Fast charging, Power protection features: Over current, Overheating, Overload, Short circuit. Product colour: White

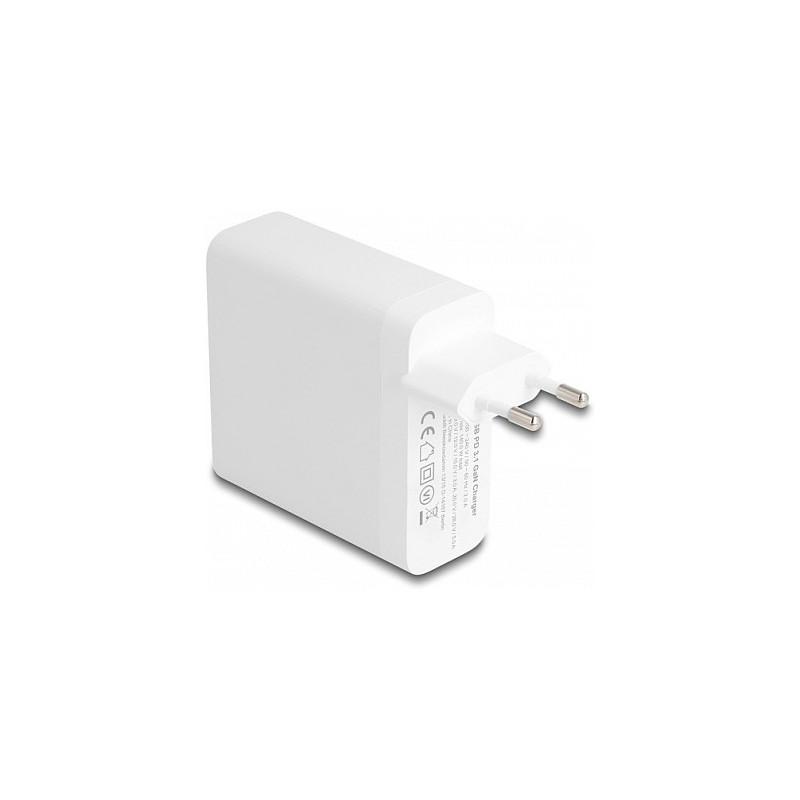

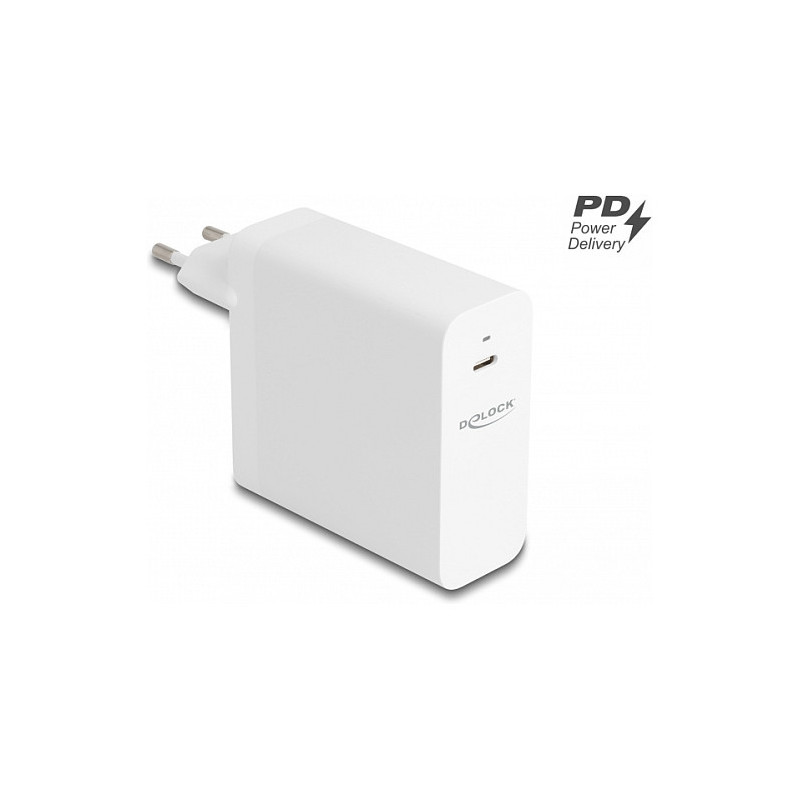

This USB charger by Delock can be used to charge a USB devices. The port is equipped with a USB Type-C™ Power Delivery (PD 3.1), thereby supported devices can be charged with up to 140 watt.

USB-PD Version 3.1
The USB PD 3.1 specification defines the voltage levels 28, 36 and 48 volts with support for Extended Power Range (EPR) with 5 amps each. Due to a calculated maximum power of 240 W (48 V / 5 A), other device classes can be supplied with power in addition to powerful laptops and desktop PCs. The Delock charger features an output power of 28 V and 5 A.

GaN technology
The use of GaN (gallium nitride) transistors increases efficiency compared to conventional silicon technology. Even with very compact dimensions a high output power can be achieved.

Note
For the EPR mode (28, 36, 48 V / 5 A), a USB cable with a corresponding E-marker is mandatory. If this E-marker is not available, max. 3 A are transmitted.
Corresponding cables by Delock are optionally available.

Performance

Charger compatibility: Universal
Power source type: AC
USB Type-C ports quantity: 1
Feature: Fast charging
Charger type: Indoor
Number of simultaneously connected devices (max): 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.1
Power protection features: Over current, Overheating, Overload, Short circuit

Design

Product colour: White
Feature: Gallium nitride (GaN) transistors

Power

Input voltage: 100 - 240 V
Input frequency: 50 - 60 Hz
Input current: 2 A
Maximum power: 140 W
Maximum output voltage: 28 V
Minimum output voltage: 5 V
Output current (5V): 3 A
Output current (9V): 3 A
Output current (12V): 3 A
Output current (15V): 3 A
Output current (20V): 5 A
Power consumption (no load): 0.182 W
Average active efficiency: 89.75
Feature: Efficiency at low load (10%)

Weight & dimensions

Width: 75 mm
Depth: 113 mm
Height: 35 mm

Packaging content

Quantity per pack: 1 pc(s)
Cables included: USB Type-C
Feature: Manual
