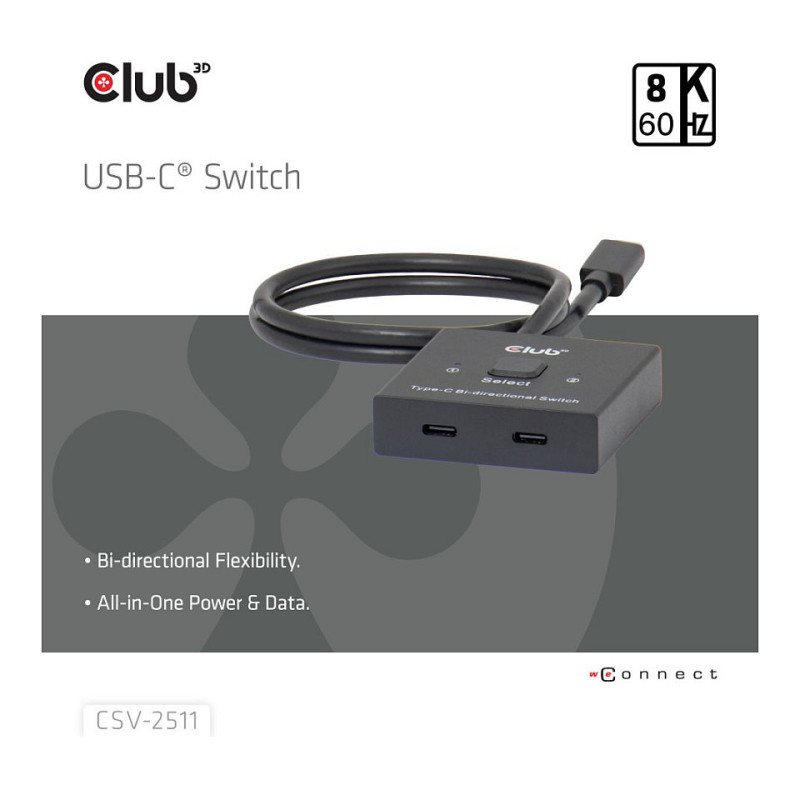

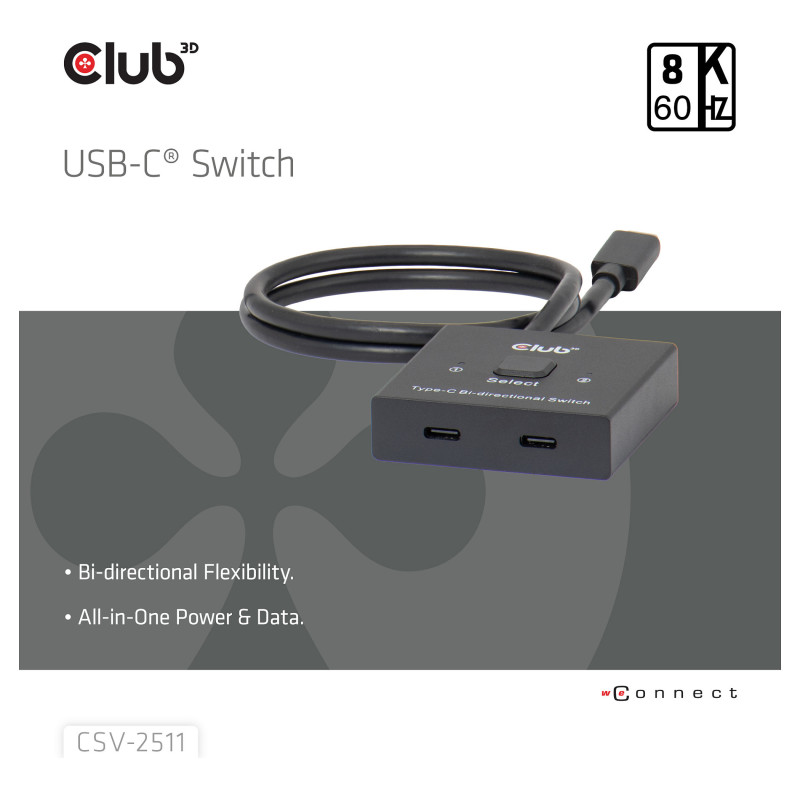

CLUB3D CSV-2511 video splitter

CLUB3D USB-C® Bi-Directional Video + Data + PD Switch. Video port type: USB Type-C, Video out: 2x DisplayPort. Maximum resolution: 7680 x 4320 pixels, Product colour: Black, HD type: 8K Ultra HD. Power consumption (max): 100 W. Width: 55 mm, Depth: 55 mm, Height: 15 mm. Quantity per pack: 1 pc(s), Package width: 145 mm, Package depth: 145 mm

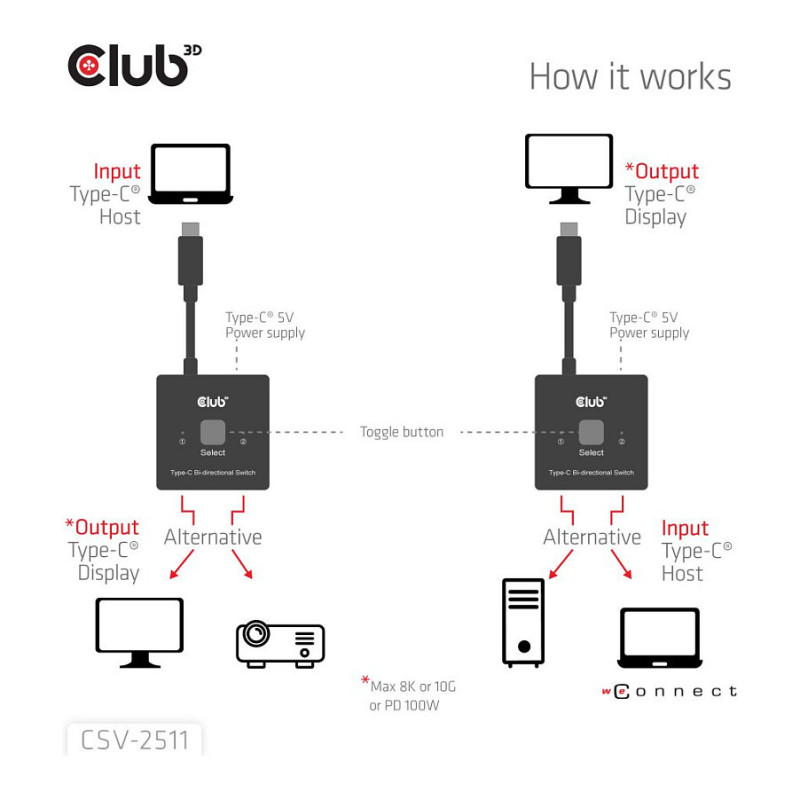

The Club 3D CSV-2511 Full Feature Bi-directional Switch can switch either of two sources to one display or switch one source to either of two displays. This Switch supports multiple resolutions and up to 8K, or max 10Gbps data transmission, or PD3.0 max 100W PD charging. It can work on all USB-C® host, compatible with Thunderbolt devices.

Ports & interfaces

Video port type: USB Type-C

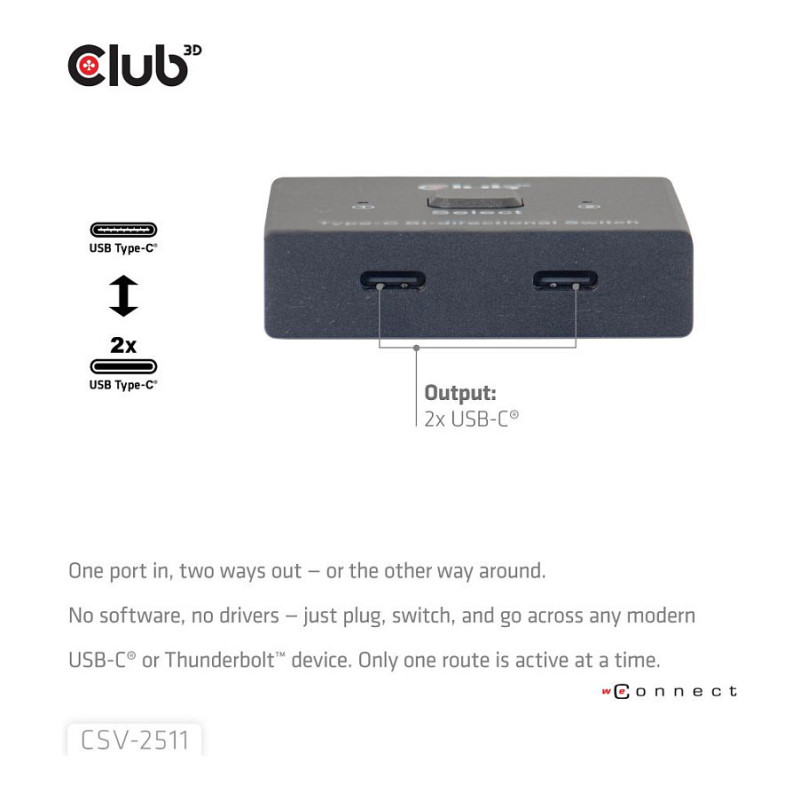

Video out: 2x DisplayPort
Video ports quantity: 2

Features

Product colour: Black
Maximum resolution: 7680 x 4320 pixels
HD type: 8K Ultra HD
Maximum refresh rate: 120 Hz
Cable length: 0.5 m
Feature: HDCP
Feature: Easy to install

Power

Power consumption (max): 100 W

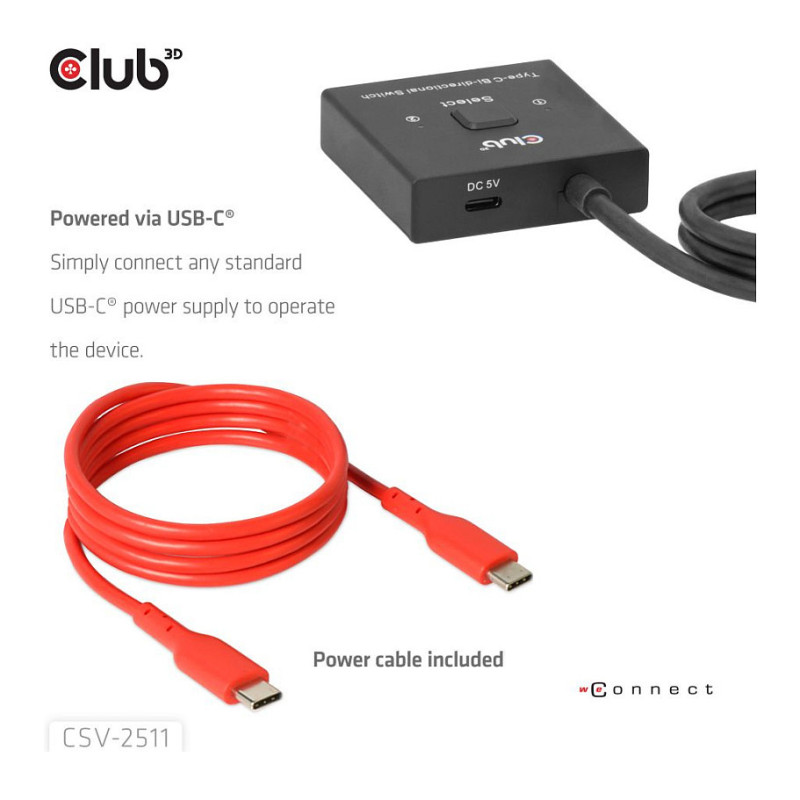

Feature: USB powered

Weight & dimensions

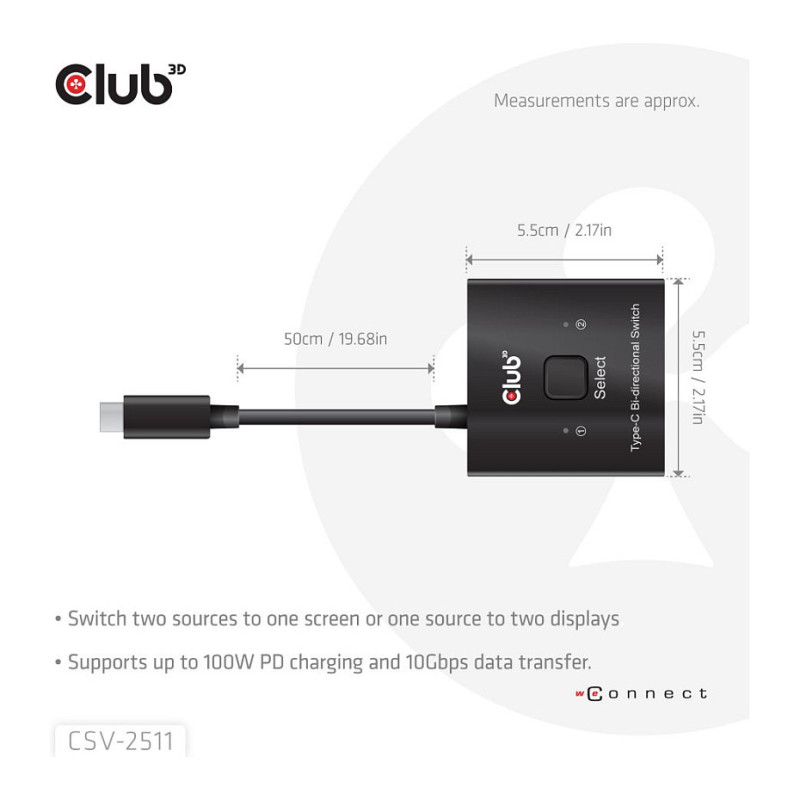

Width: 55 mm
Depth: 55 mm
Height: 15 mm
Weight: 61 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 145 mm
Package depth: 145 mm
Package height: 45 mm
Package weight: 110 g
Package type: Box
Plastic packaging weight: 4 g
Paper/cardboard packaging weight: 45 g
Total plastic packaging weight: 0 g
Total paper/cardboard packaging weight: 0 g

Technical details

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Logistics data

Harmonized System (HS) code: 8473 3020
