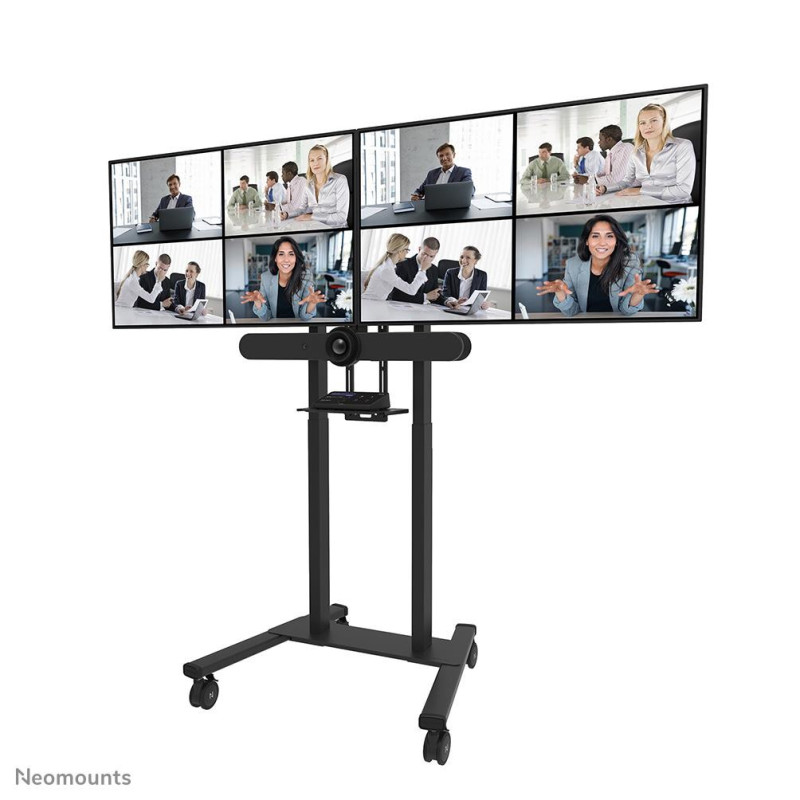

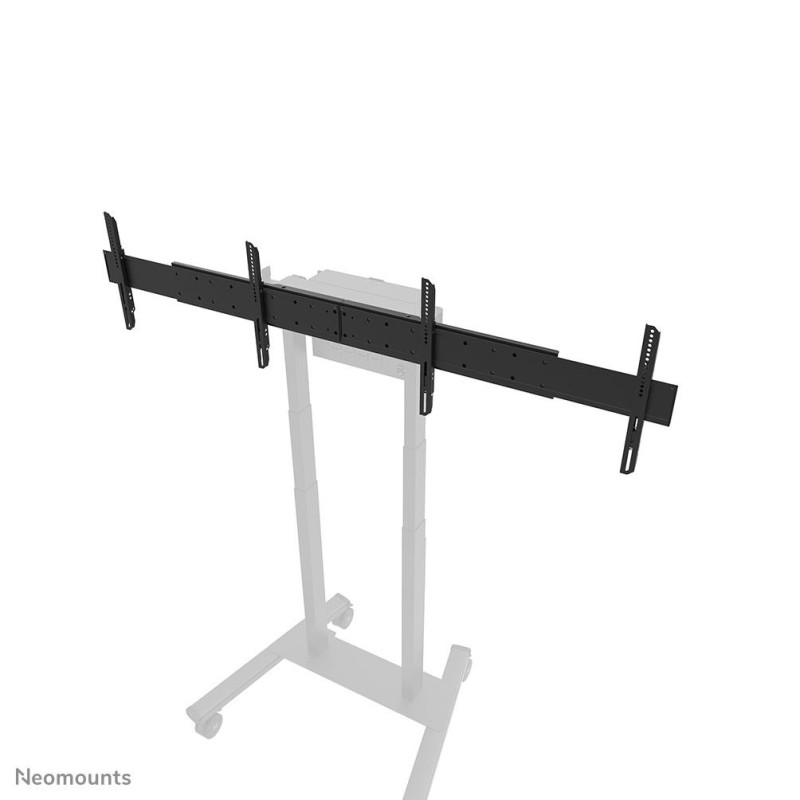

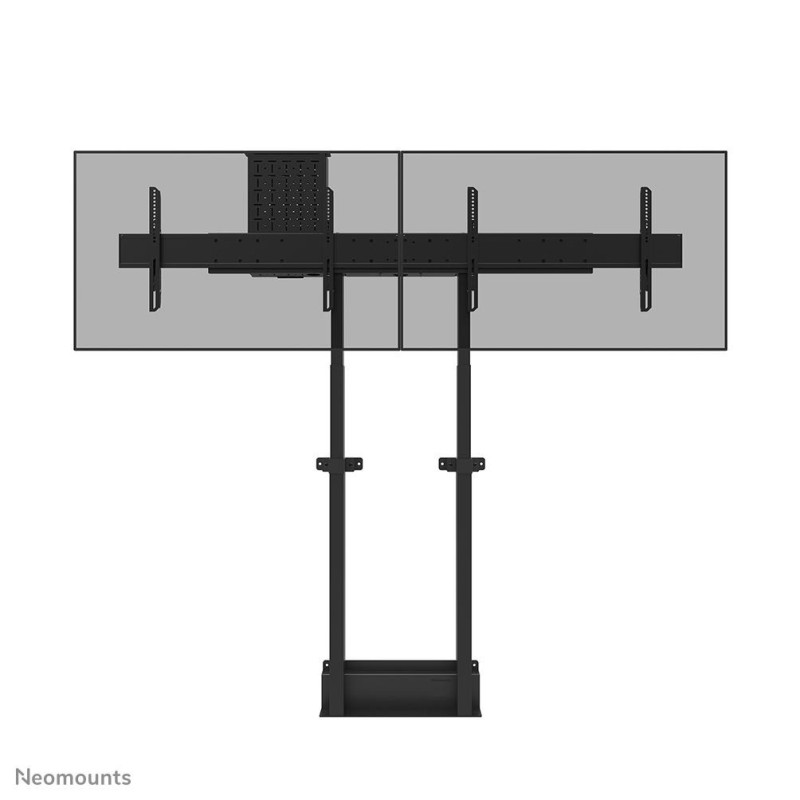

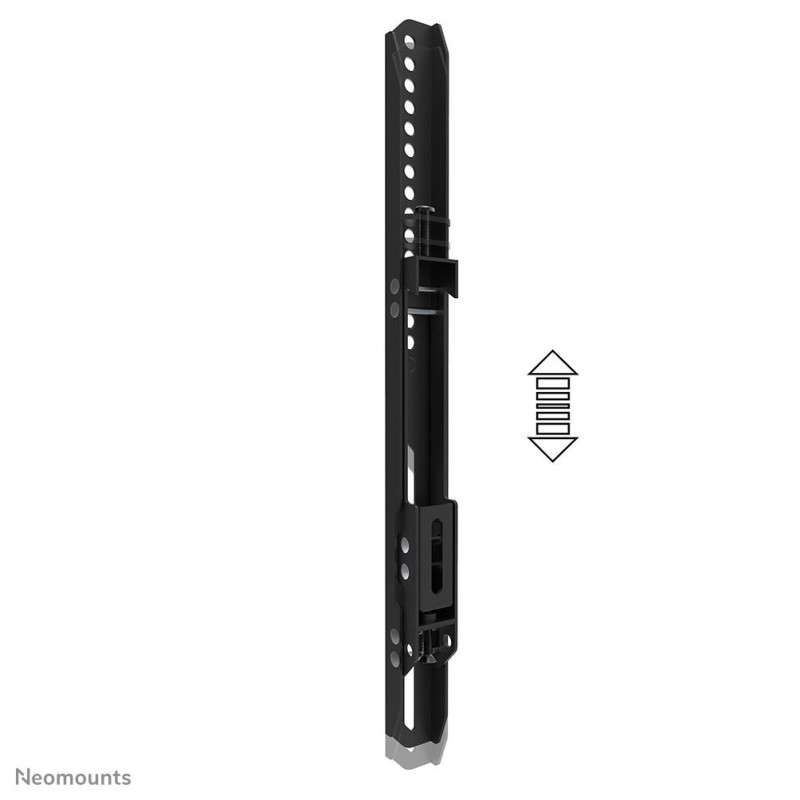

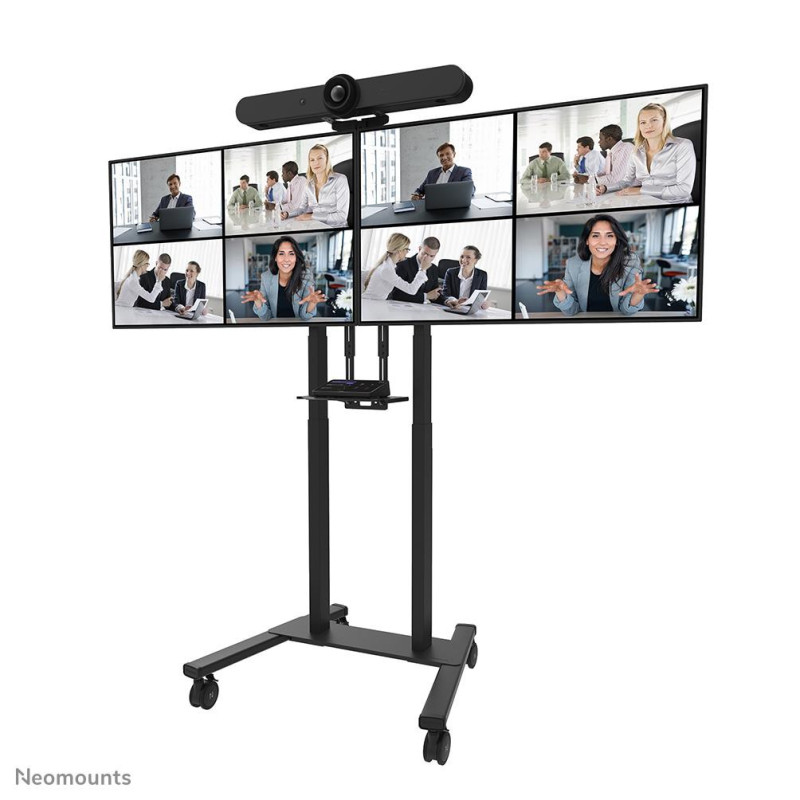

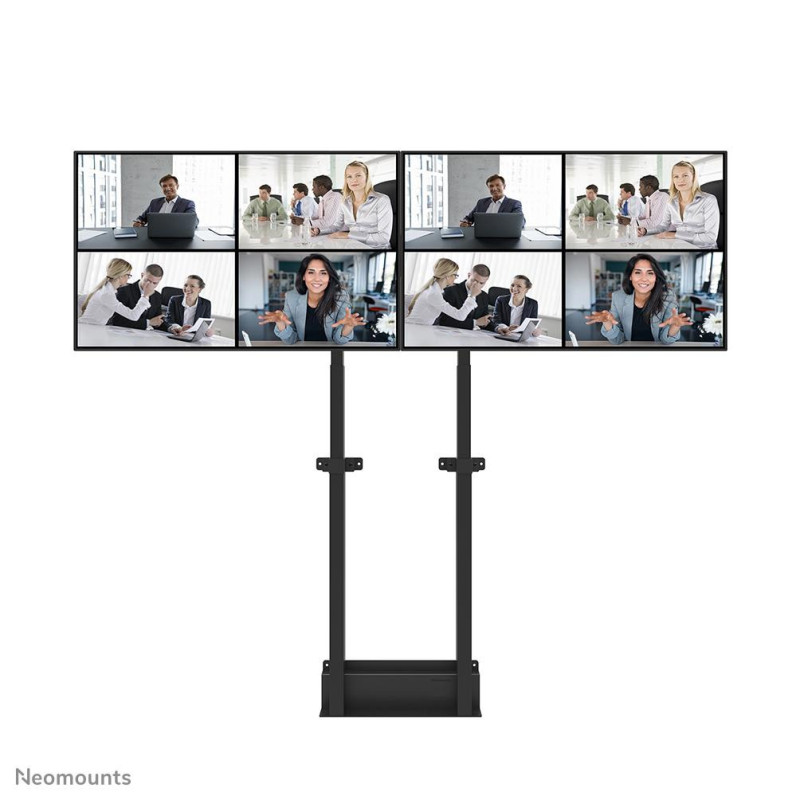

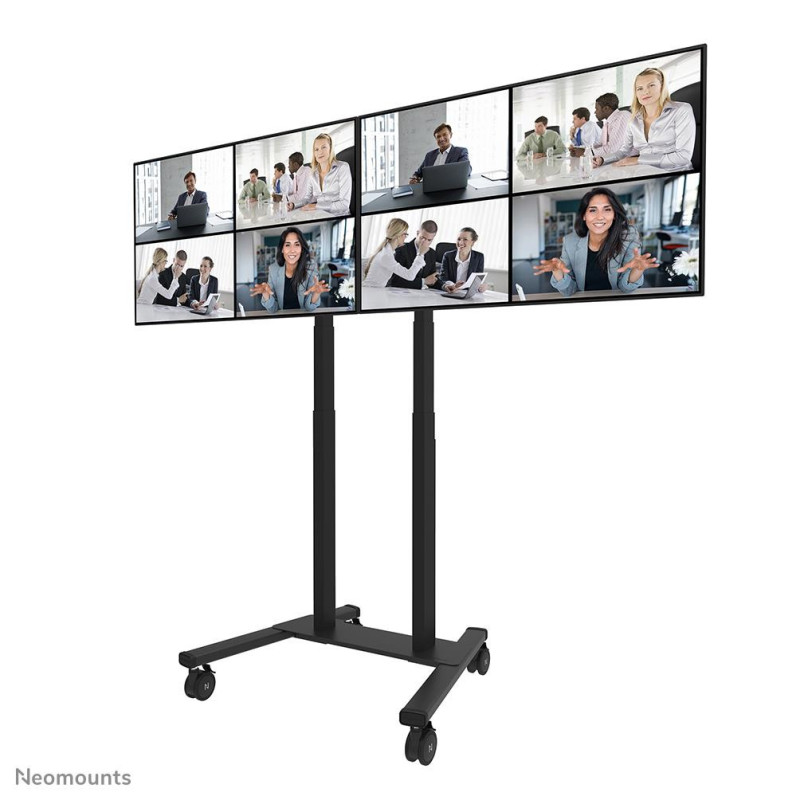

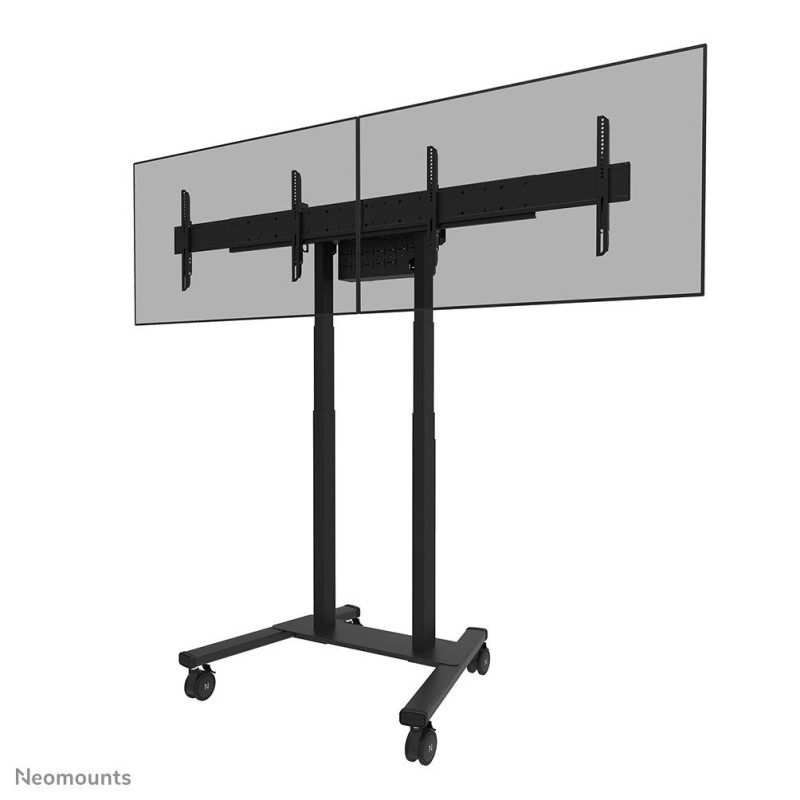

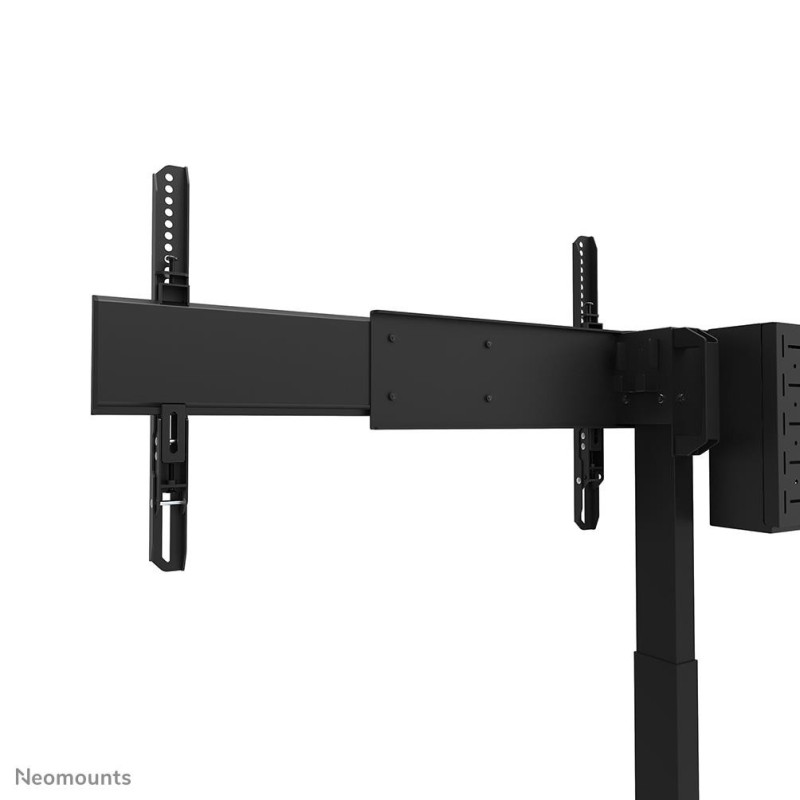

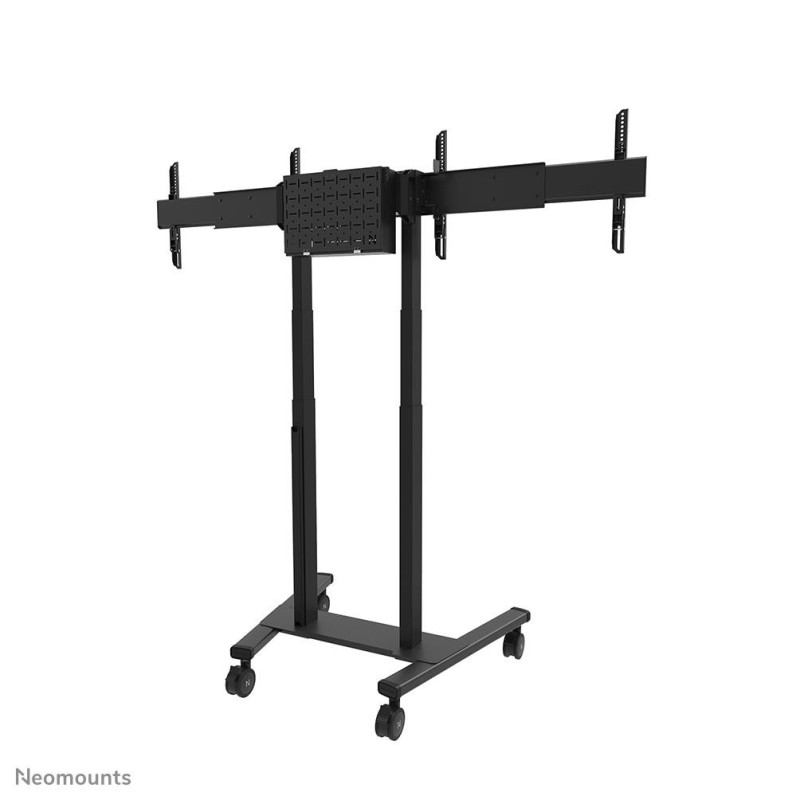

The Neomounts ADM-875BL2 is a dual screen adapter optional for the FL55-875BL1 mobile floor stand and WL55-875BL1 wall stand. The adapter allows the installation of 2 screens from 42" up to 65" with a maximum weight of 40 kg per screen. The height adjustable brackets ensure perfect alignments of the screens. It is possible to lock these brackets, using a padlock (not included). It is also possible to install a XXL display up to VESA 2000x600 mm and max 80 kg.
The optional AFL-875BL1 or AV1-875BL videobar & multimedia kit can be used in combination with the dual screen adapter without any problem.
| Aukštis | 650 mm |
| Aukščio reguliavimas | Taip |
| Aukščio reguliavimo intervalas | 0 - 10 mm |
| Bruto svoris | 11.9 kg |
| Darniosios sistemos (DS) kodas | 7326909890 |
| Didžiausias ekrano dydis | 65 " |
| Gaminių skaičius ant padėklo (ES) | 50 vnt |
| Gaminių skaičius pagrindinėje (išorinėje) dėžėje | 1 vnt |
| Garantinis laikotarpis | 5 metai |
| Geresnis kabelio valdymas | Ne |
| Ilgis | 59 mm |
| Kilmės šalis | Kinija |
| Korpuso medžiaga | Plienas |
| Maksimalus svoris (tūris) | 40 kg |
| Mažiausias ekrano dydis | 42 " |
| Model | ADM-875BL2 |
| Montavimo sąsajos suderinamumas (maks.) | 800 x 400 mm |
| Montavimo sąsajos suderinamumas (min.) | 100 x 100 mm |
| Neto svoris | 5 kg |
| Pagrindinės (išorinės) dėžės bendrasis svoris | 12200 g |
| Pagrindinės kartono dėžutės grynasis svoris | 12200 g |
| Paketo svoris | 12200 g |
| Pakuotės aukštis | 1010 mm |
| Pakuotės gylis | 72 mm |
| Pakuotės plotis | 213 mm |
| Palaikomų ekranų skaičius | 2 |
| Plotis | 2130 mm |
| Produkto spalva | Juoda |
| Shipping Box Depth | 101 cm |
| Shipping Box Height | 7 cm |
| Shipping Box Weight | 11.9 kg |
| Shipping Box Width | 21.5 cm |
| Suderinama su VESA sienos tvirtinimo sistema | 100 x 100/100 x 150/100 x 200/120 x 120/200 x 100/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/440 x 400/500 x 400/600 x 200/600 x 300/600 x 400/680 x 300/800 x 200/800 x 400 mm |
| Summary | Neomounts ADM-875BL2 Dual screen adapter 42-65". Panel mounting interface: 100 x 200,100 x 100,100 x 150,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x..., Minimum screen size: 106.7 cm (42"), Maximum screen size: 165.1 cm (65"). Width: 2130 mm, Depth: 59 mm, Height: 650 mm. Package width: 213 mm, Package depth: 72 mm, Package height: 1010 mm. Master (outer) case net weight: 12.2 kg, Products per pallet (EU): 50 pc(s), Master (outer) case gross weight: 12.2 kg |
| Svoris | 10400 g |
| Unit Box Height | 0.07 |
| Unit Box Length | 1.01 |
| Unit Box Width | 0.215 |
| Unit Brutto Volume | 0.0152 cubm |
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=ADM-875BL2 |
| Vieneto aukštis | 7 cm |
| Vieneto gylis | 101 cm |
| Vieneto plotis | 21.5 cm |
| Vienetų skaičius vienoje siuntimo dėžėje | 1 |
