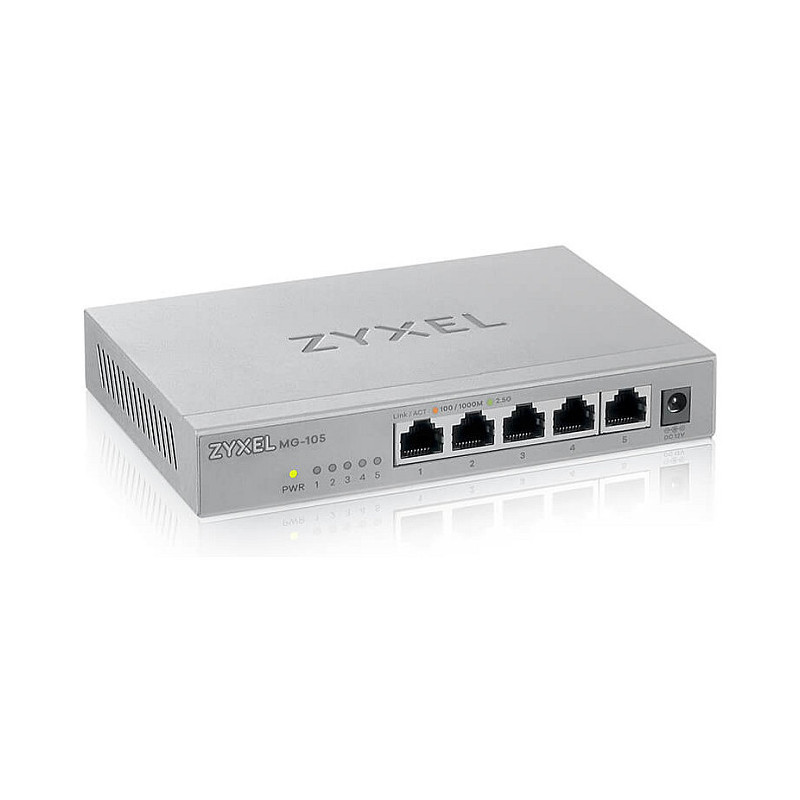

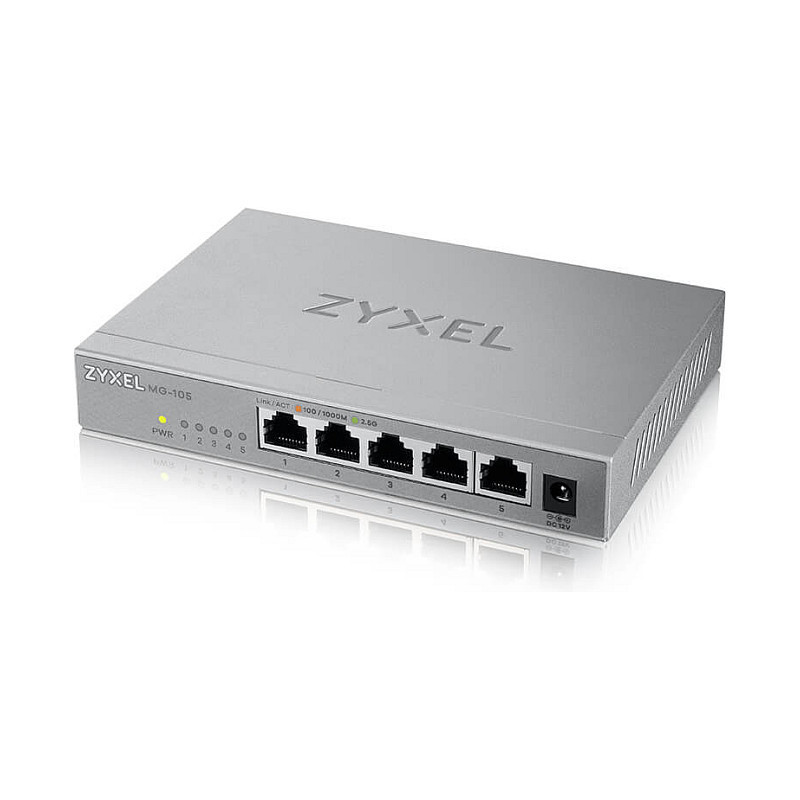

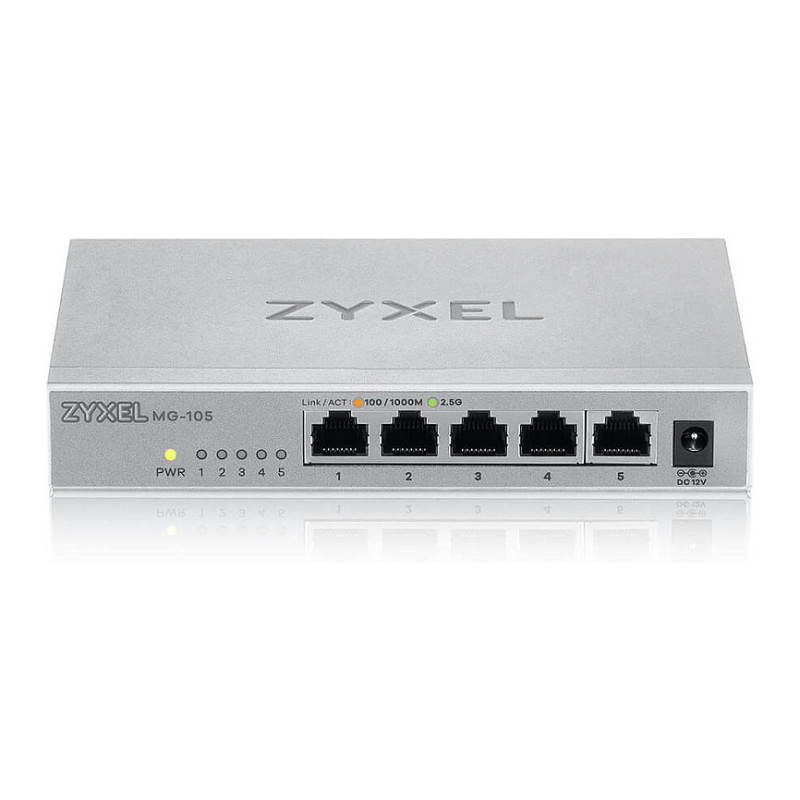

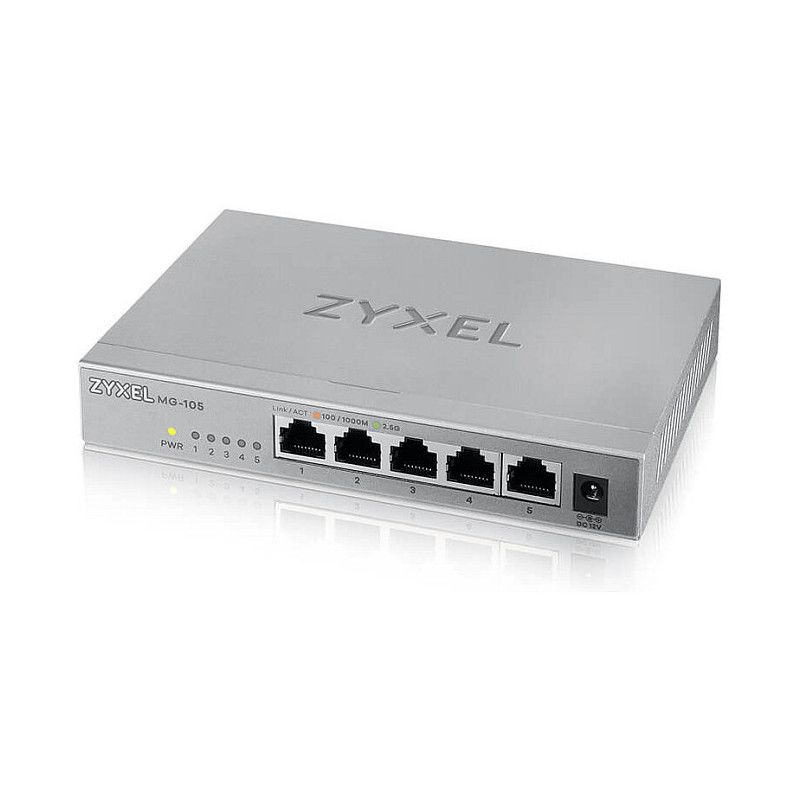

ZYXEL XMG-105

Zyxel XMG-105. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 16000 entries, Switching capacity: 25 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x

Upgrade Network to Multi-Gig
MG-105 and MG-108 come with five/eight 2.5 Gigabit ports to optimize performance of your Multi-Gig bandwidth and devices, and provide 25/40 Gbps of switching capacity. They are an ideal choice for LAN parties, home entertainment, SoHo and offices.

Plug-n-Play, Enjoy High Speed Network
Easily connect MG-105 or MG-108 to the latest 2.5G-capable network devices such as 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, WiFi 6 AP, 4K video, desktop, and more and more to instantly enjoy high performance networking and smoother home entertainment experience with its simplified plug-and-play technology.

Use your existing cables
The Multi-Gigabit RJ-45 ports not only provide more speed options for your network, but it can increase your home networking speed from current 1Gbps to 2.5Gbps without additional cabling fee!

Fanless Design For True Silent Operation
MG-105 and MG-108 are built with fanless and sturdy hardware design to ensure all-time silent and stable operation. They are perfect for every home or business environment.

Flexible Deployment In Your Room
The mounting option gives you the flexibility to place the 2.5G switch on a desktop or mount it to a wall.

Management features

Switch type: Unmanaged
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)

Network

Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x

Data transmission

Switching capacity: 25 Gbit/s
Forwarding rate: 18.6 Mpps
MAC address table: 16000 entries
Feature: Jumbo frames support
Packet buffer memory: 12 MB

Design

Product colour: Grey
Housing material: Metal
LED indicators: Activity, Link, Power

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (typical): 3.83 W
Power consumption (max): 9.34 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 160 mm
Depth: 110 mm
Height: 26 mm
Weight: 460 g

Packaging content

Feature: Quick start guide

Packaging data

Package width: 215 mm
Package depth: 133 mm
Package height: 79 mm
Package weight: 919.6 g

Certificates

Certification: CE, EAC, FCC, BSMI Class B
