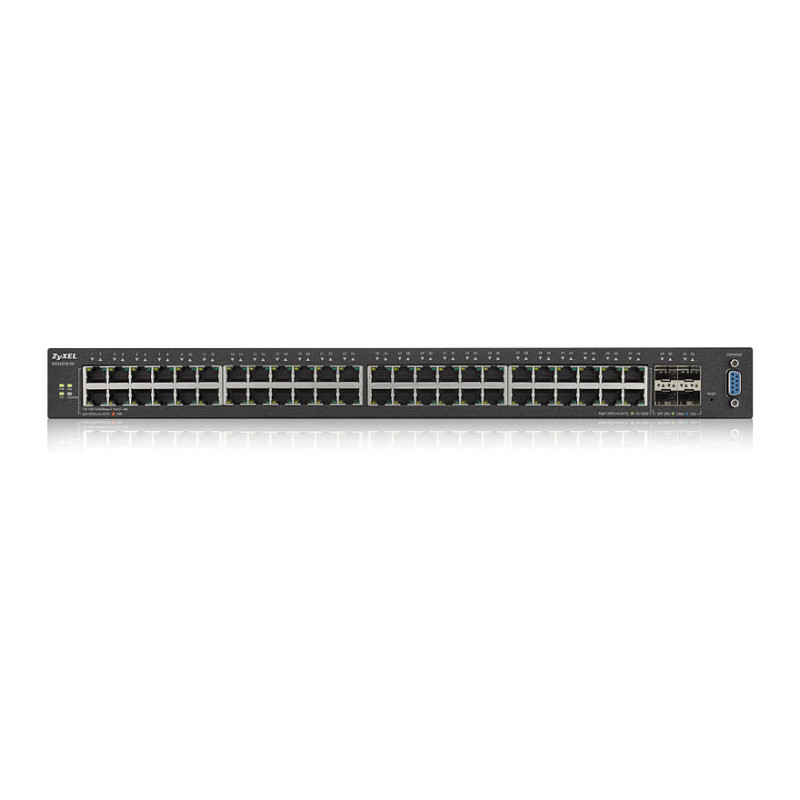

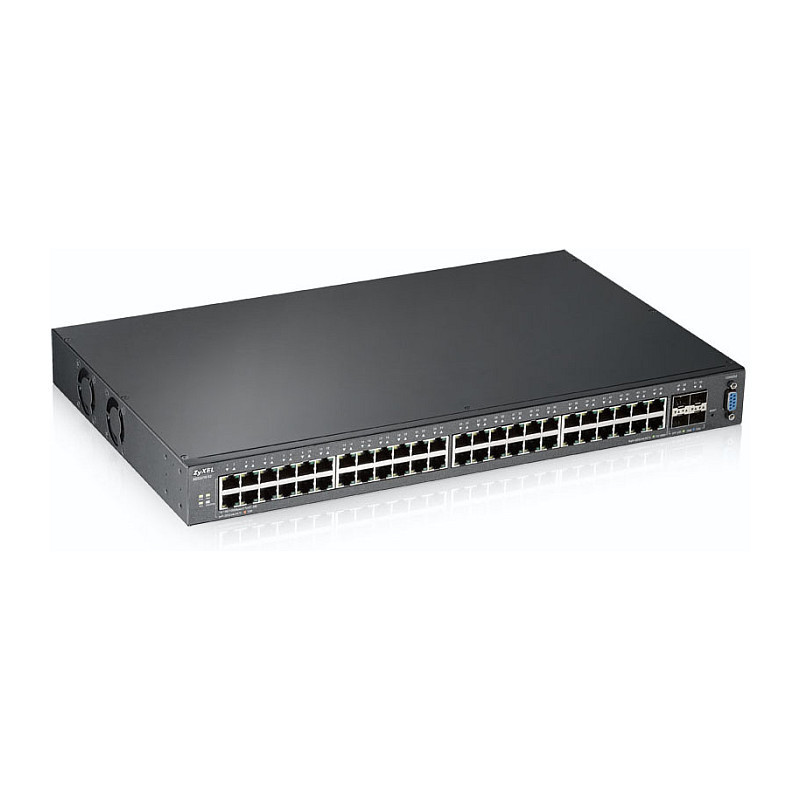

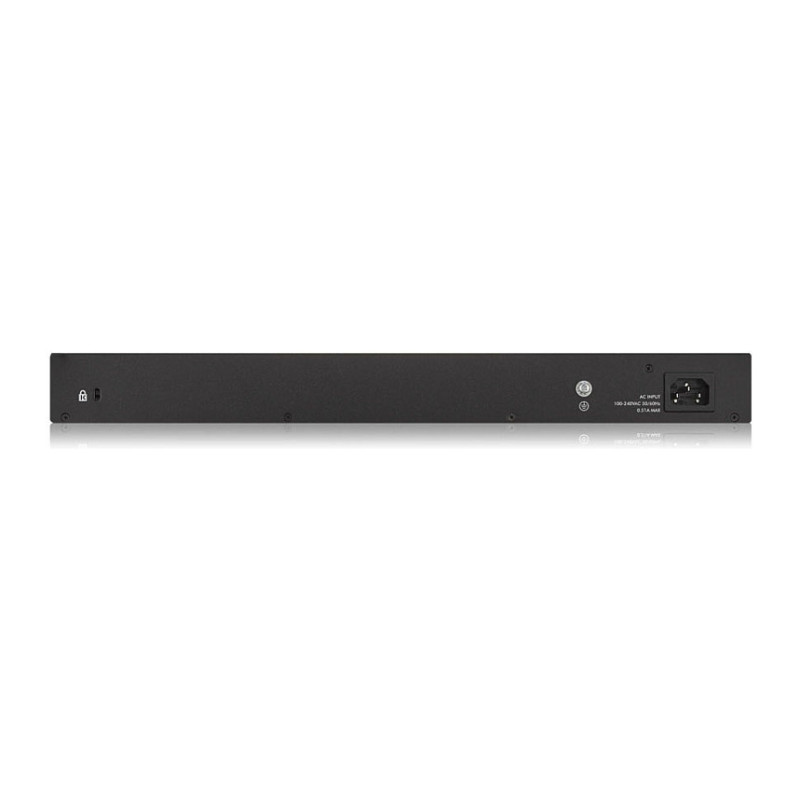

Zyxel XGS2210-52

Zyxel XGS2210-52. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Rack mounting, Form factor: 1U

Agile traffic control for converged networking applications

ZyXEL XGS2210/GS2210 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference, IPTV and IP surveillance deployments and provide hotels, businesses andeducational institutions greater agility and more effective traffic management for the converged applications of today.

ZyXEL One Network experience

Aiming for relieving our customers from repetitive operations of deploying and managing a network, ZyXEL One Network is designed to simplify the configuration, management, and troubleshooting, allowing our customers to focus on the business priorities. ZyXEL One Network presents an easy-to-use tool, ZyXEL One Network Utility (ZON Utility), to realize speed network setup. ZyXEL Smart Connect allows ZyXEL networking equipment to be aware and recognize each other and further facilitating the network maintenance via one-click remote functions such as factory reset or power cycling. ZyXEL One Network redefines the network integration across multiple networking products from switch to Wi-Fi AP and to Gateway.

High-powered Power over Ethernet (PoE)

The ZyXEL XGS2210/GS2210 Series PoE switches support the IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30 watts of power per port for advanced Powered Devices (PD) like 802.11ac wireless APs and video IP phones. The high power budget enables the XGS2210/GS2210 PoE switches to comfortably accommodate the PDs required in a modern network edge.

High-powered Power over Ethernet (PoE)

The ZyXEL XGS2210/GS2210 Series PoE switches support the IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30 watts of power per port for advanced Powered Devices (PD) like 802.11ac wireless APs and video IP phones. The high power budget enables the XGS2210/GS2210 PoE switches to comfortably accommodate the PDs required in a modern network edge.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Traffic shaping
Feature: ARP inspection
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4

Network

Feature: 10G support
Feature: Port mirroring
Feature: IP routing
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: MAC address auto-learning supported
Feature: VLAN support
Virtual LAN features: Private VLAN, Protocol-based VLAN, Port-based VLAN

Data transmission

Switching capacity: 176 Gbit/s
Throughput: 130.9 Mpps
MAC address table: 16000 entries
Number of queues: 8
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP client
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: 802.1x RADIUS, SNMP, SSH, SSH-2
Feature: MAC address filtering
Feature: SSH/SSL support
Feature: BPDU filtering/protection
Authentication: MAC-based authentication

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Black
Safety: LVD, BSMI
Electromagnetic compatibility: FCC 15 (A), CE (A), BSMI

Performance

Noise level: 44.15 dB
Feature: Plug and Play
Mean time between failures (MTBF): 970594 h

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 45 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 10 - 90%
Heat dissipation: 153.3 BTU/h

Weight & dimensions

Width: 441 mm
Depth: 270 mm
Height: 45 mm
Weight: 3.86 kg

Packaging content

Cables included: AC
Feature: Rack mount kit

Packaging data

Package width: 622 mm
Package depth: 358 mm
Package height: 108 mm
Package weight: 4.92 kg

Certificates

Certification: RoHS

Logistics data

Harmonized System (HS) code: 85176990
